| Light Source | LED |

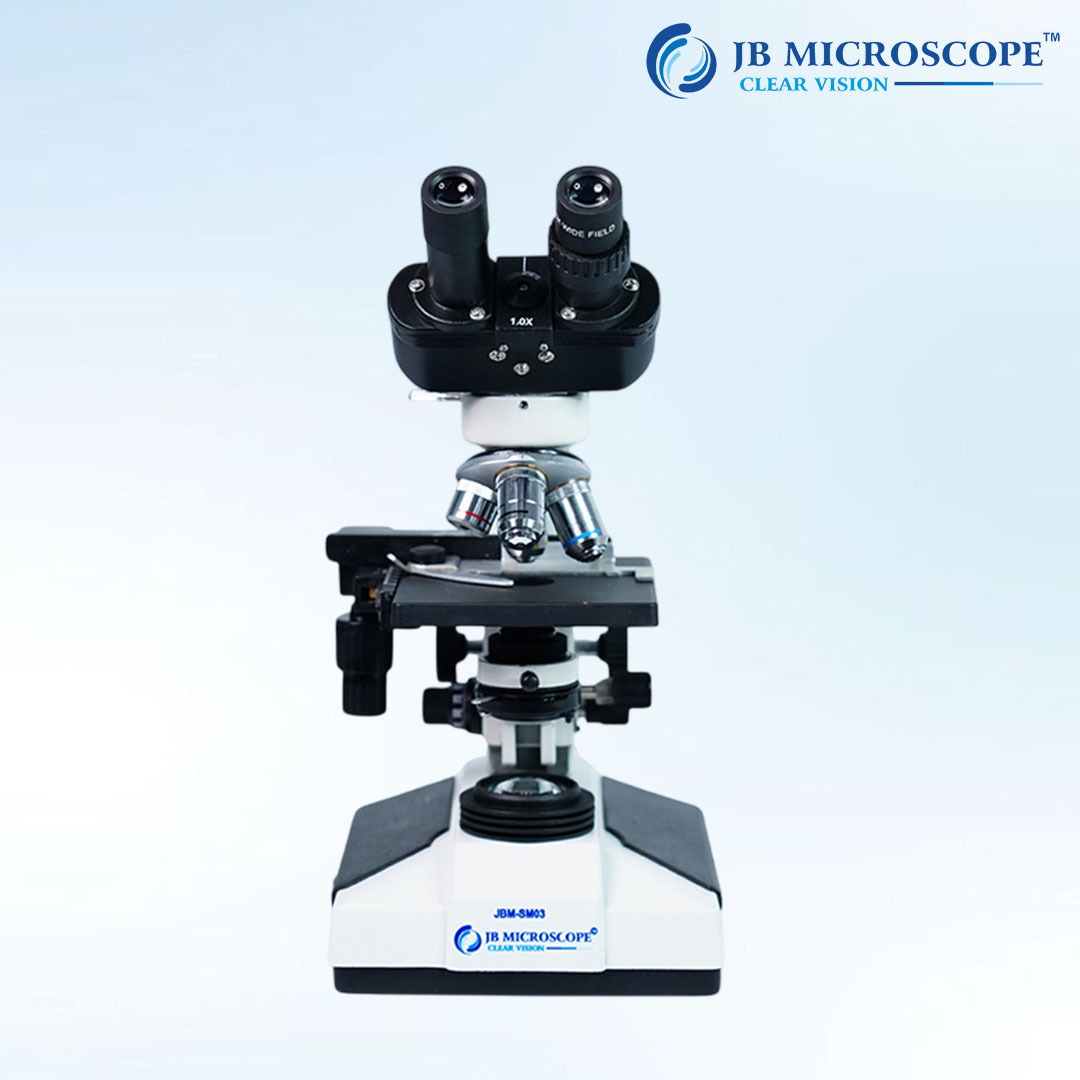

| Model Name/Number | JBM-SM03 |
| Eye Pieces | 10x 20mm |
| Interpupillary Distance Adjustable | 37.7mm |
| Double Layer Graduated Mechanical Rectangular Stage Size | Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls |
| Optional Swing Out Abbe Condenser | yes |
| Interpupillary distance | 48mm to 75mm |
Inter-pupillary distance from 48mm to 75mm. Eyepiece (Anti fungus coated)
Wide Field 10X (paired) F.O.V 20mm. Objectives (Anti fungus coated)
S-Plan Achromatic 4X S-Plan Achromatic 10X
S-Plan Achromatic 40X(S.L.)
S-Plan Achromatic 100X Oil(S.L.) Mechanical Body
Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. The slow motion has 1Div=0.002mm.
Quadruple nosepiece revolves on ball bearing.
Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm
Cross movement 78mm X 54mm. Sub Stage Condenser
Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm. Illumination System
Built-in-base illumination system with 3W LED bulb and adjustable brightness.
