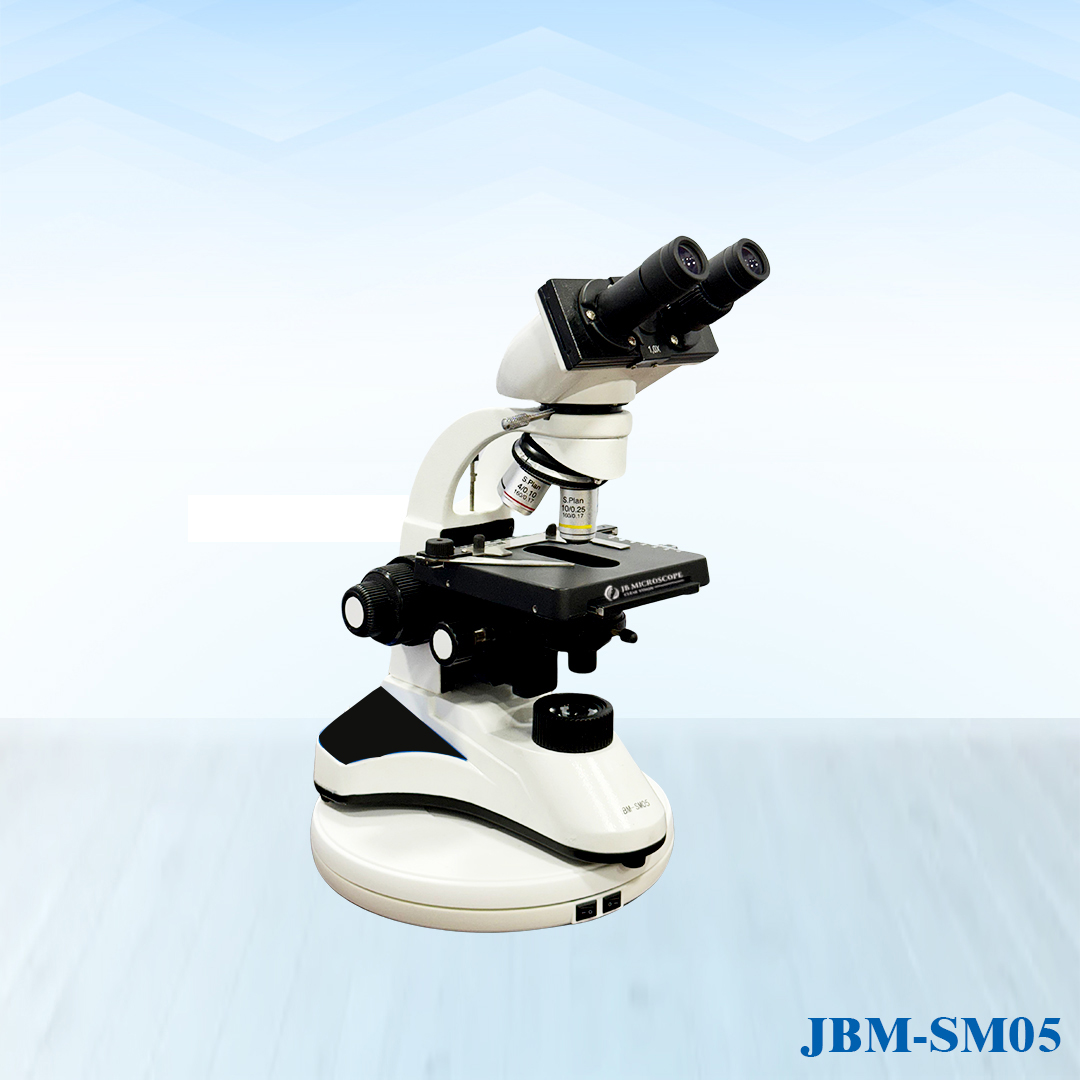

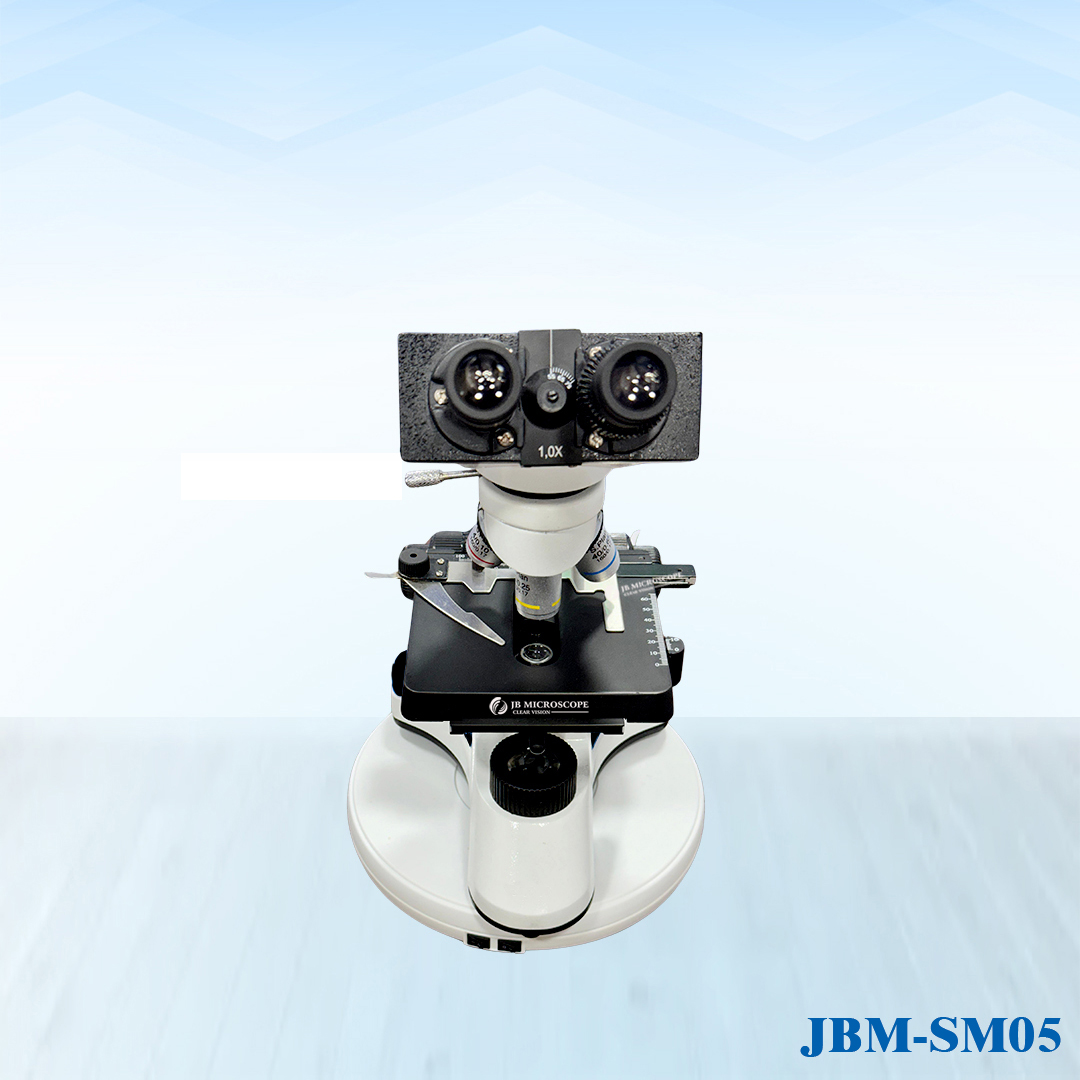

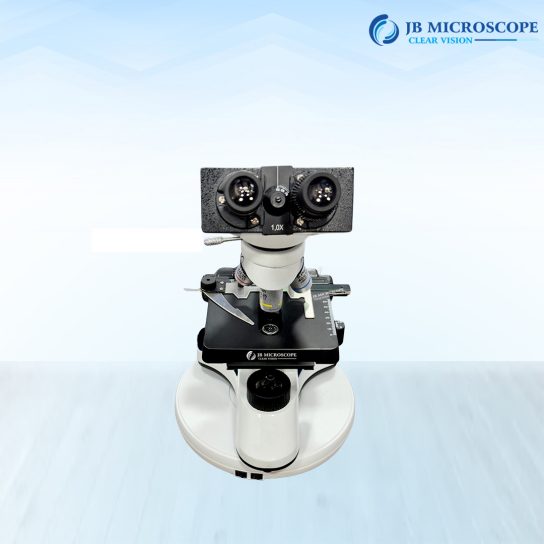

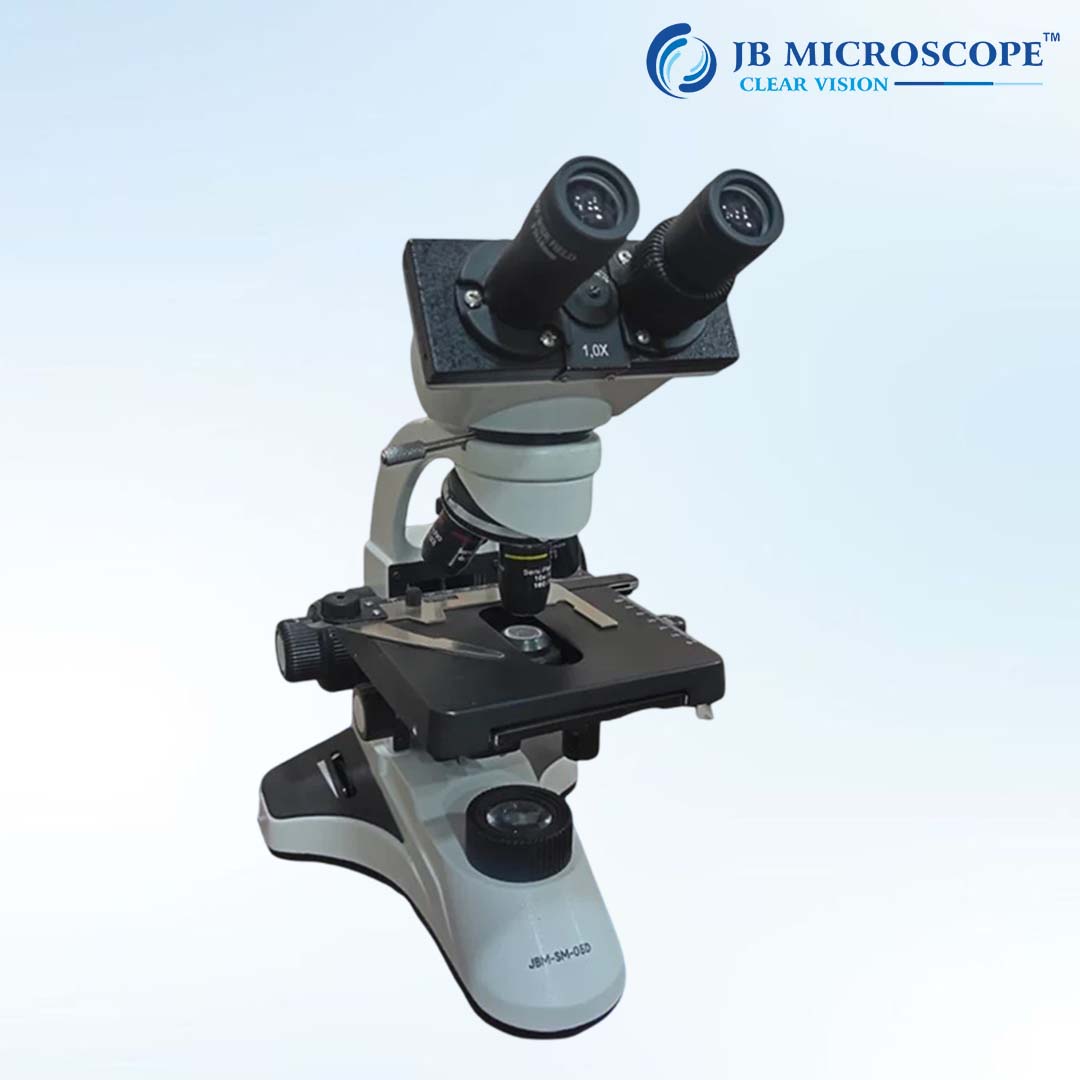

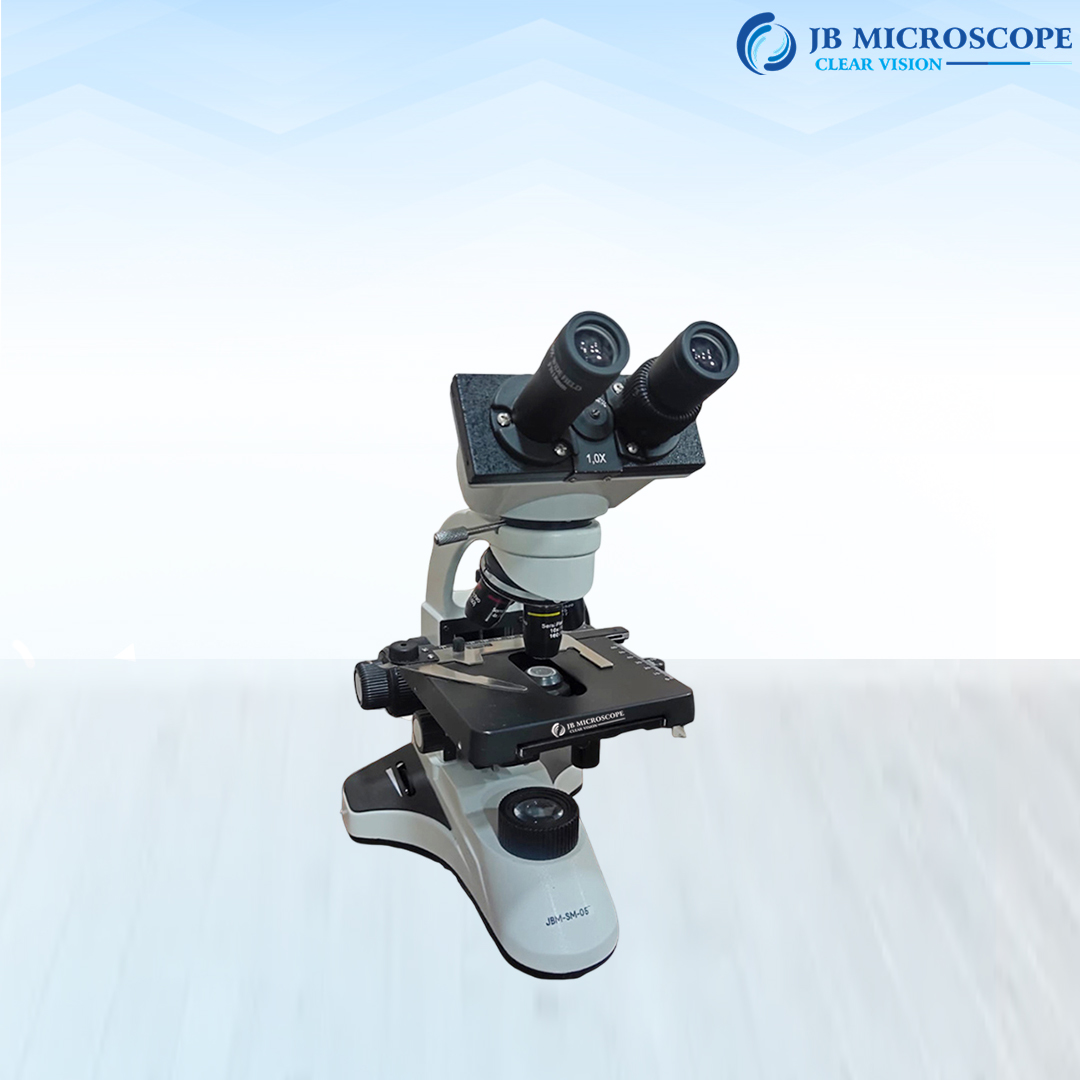

Binocular Microscope JBM-SM05

JBM-SM05 Binaculor Microscope features of Standard Laboratory Microscopes. The objectives are high grade IMPORTED Achromats – Semi – Plan, very well CENTRED & PARAFOCAL, a feature not found in other Indian make microscopes. All the features such as mechanical stage, coaxial coarse & fine focusing mechanism, Illumination system & Sub-stage Condenser on Rack & Pinion offered in these models are the same as in other JB Microscope: hence these offer excellent performance at lowest price.

Categories: ,

Stand- Sturdy stand anti rust materials. Extended base. Viewing Bodies- 30° inclined, 360° rotatable dovetail, Inter papillary distance 54 – 74mm

Eyepiece- Wide Field eyepiece WF10x/18mm, with foldable eye guard, anti-fungus coating – locked in ocular tube.

Nosepiece- Quadruple nosepiece (Ball bearing type)

Objectives- Semi-Plan Achromatic objectives 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating. Par-centered & Para focal.

Mechanical Stage- Mechanical stage with Co-axial drive, highly smooth on ball slides, stainless steel holder for slide movement X-Y = 75mm x 50mm.
