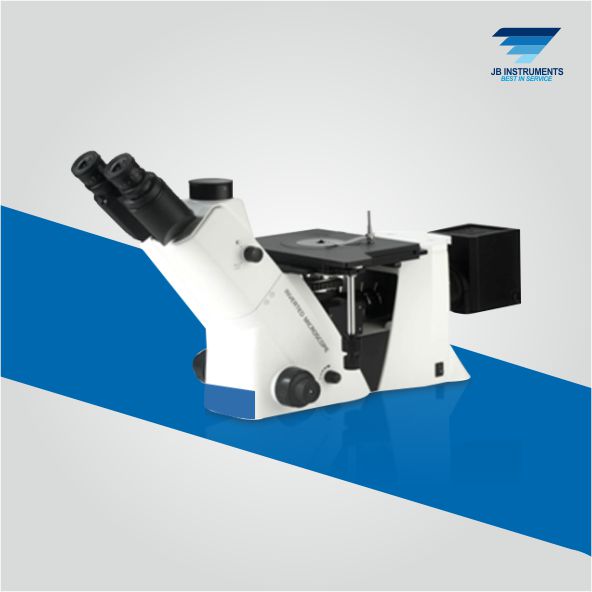

JBI-MM10/MM10D Trinocular Inverted Metallurgical Microscope is equipped with professional metallurgical objectives and plan eyepiece which provide clear image & comfortable observation.

It is widely used to identify & analyze the structure of various metals and alloys in foundries, Heat Treatment forging
and Research Plants and Laboratories.

Items Specification JBI-MM10 JBI-MM10D
Eyepiece WF10X/22mm (adjustable)

WF  10X/22mm  (adjustable, retivule 0.1mm)

Metallurgical LWD infinity Plan Objectives LPL   5X/0.13        W.D=24.23mm

LPL  10X/0.25          W.D=18.48mm

LPL 20X/0.40             W.D=8.35mm

LPL 50X/0.70(S)      W.D=1.95mm

LPL 40X/0.65            W.D=3.90mm o o
LPL 80X/0.80(S)       W.D=0.85mm o o
LPL  100X/0.90(S)         W.D=1.00mm o o
Metallurgical LWD infinity Plan Objectives for Bright & Dark Field M PLAN 5X / 0.13 BD WD=24.23mm

M PLAN 10X / 0.25 BD  W.D=18.48mm

M PLAN 20X / 0.40  BD WD=8.35mm

M PLAN 50X / 0.70 BD WD=1.95mm

M PLAN 80X / 0.80 BD WD=0.85mm o
Seidentopf  Trinocular  Head Inclined   30° Interpupilary  Distance: 48 -76mm
Light  Distribution(both):100:0 (100% for eyepiece)
80:20 (80% for Trinocular head and 20% for eyepiece)

Nosepiece Quintuple

Quadplex (Specially for bright/dark field objective)

Mechanical  Stage Three layers, Stage  Size:  210 x  180mm, Moving range:50x50mm, Scale:0.1mm

Coaxial  Coarse   and  Fine  Focusing  Unit Coarse stroke: 10mm,
Fine stroke per rotation:0.2mm, fine division 2 µm

Polarizing Unit Polarizer /Analyzer

Illumination 12V/50W Halogen (Input voltage: 100V~240V)

Filter Blue

Green o o
Amber o o
Grey o o
C-mount 1X C-Mount o o
0.5X C-Mount  (Focus   Adjustable) o o
Adaptor for Digital Photograph Use for CANON/ NIKON / OLYMPUS etc. o o
Packing Size: 660mmX590mmX325mm         Gross Weight:  17 kgs         Net Weight:  12.5 kgs
