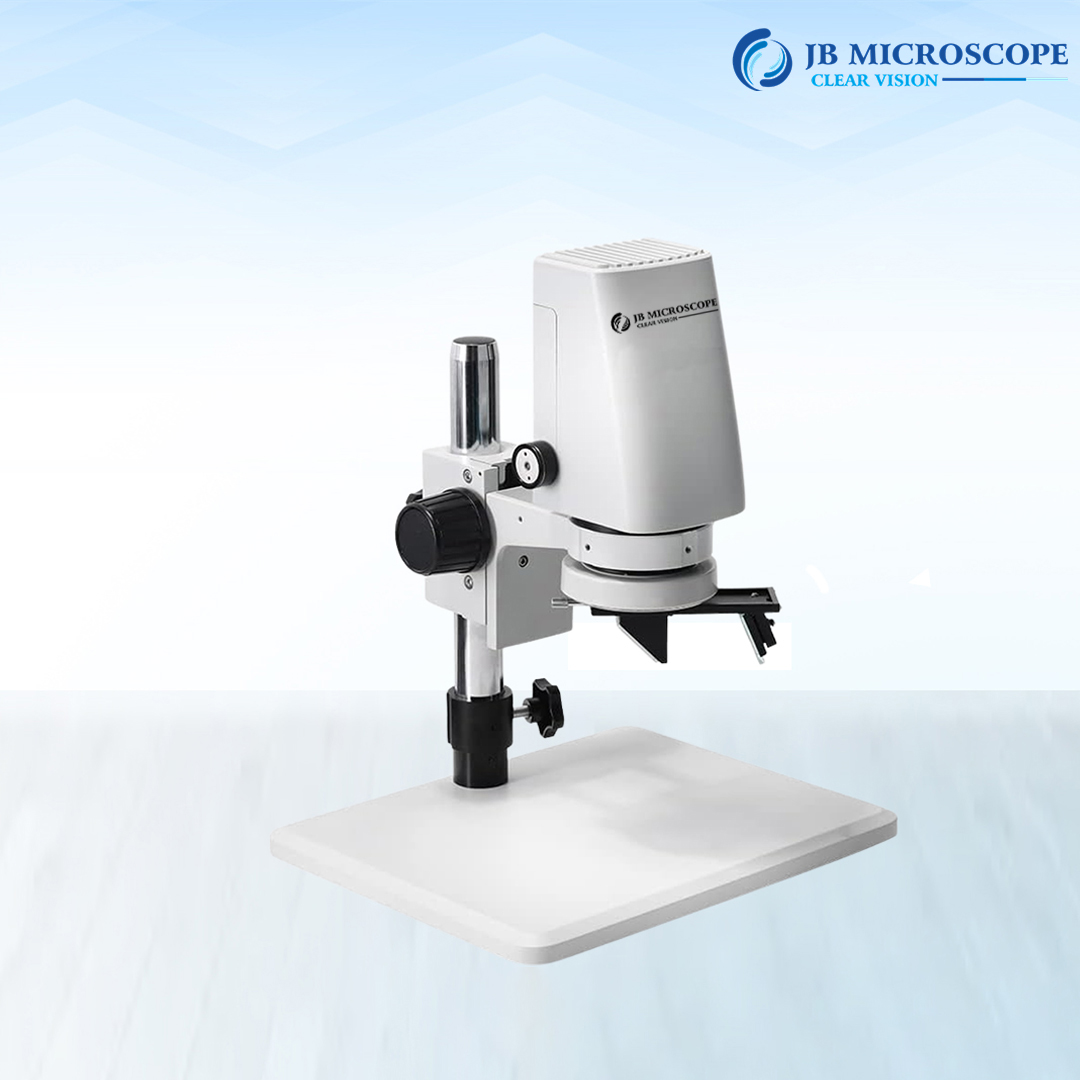

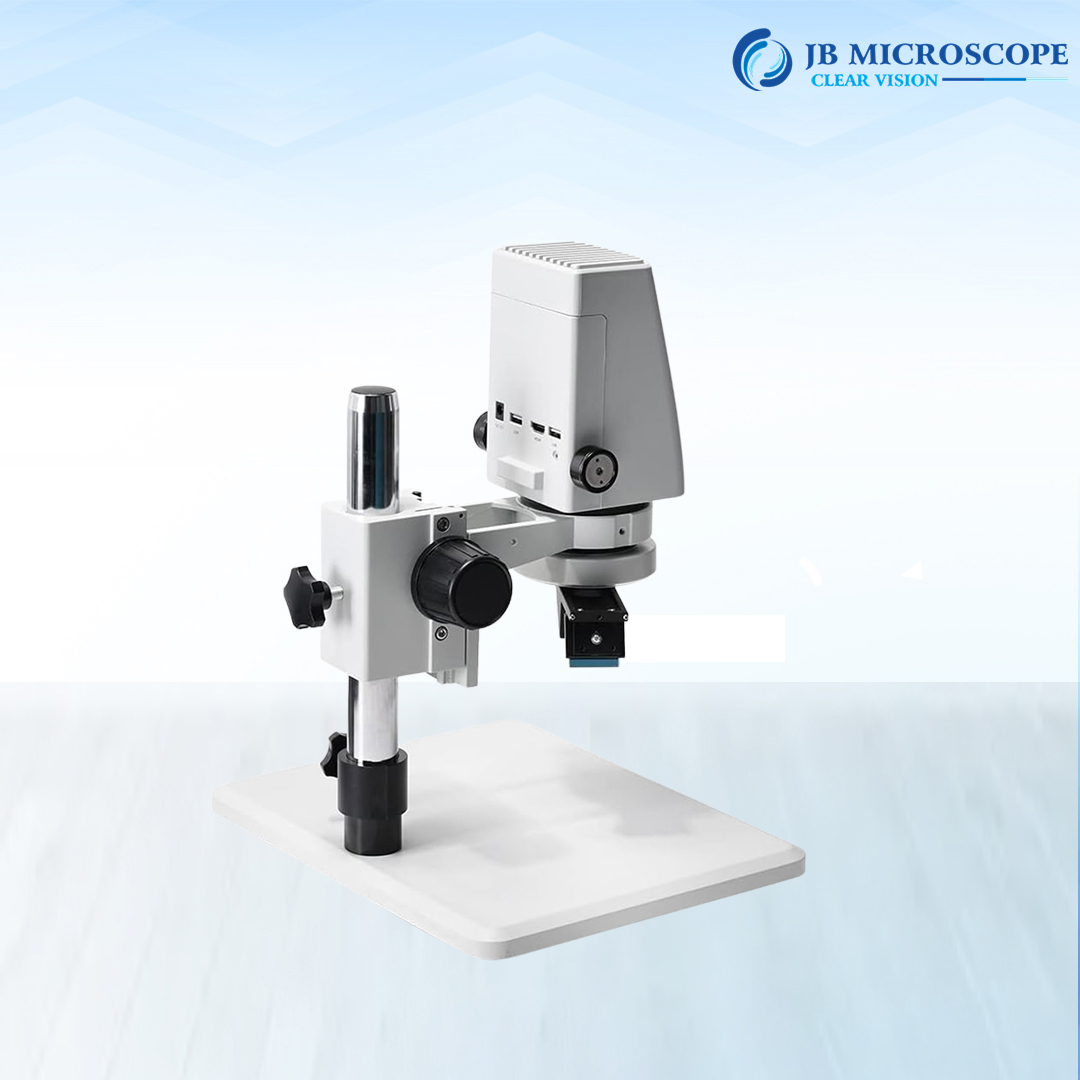

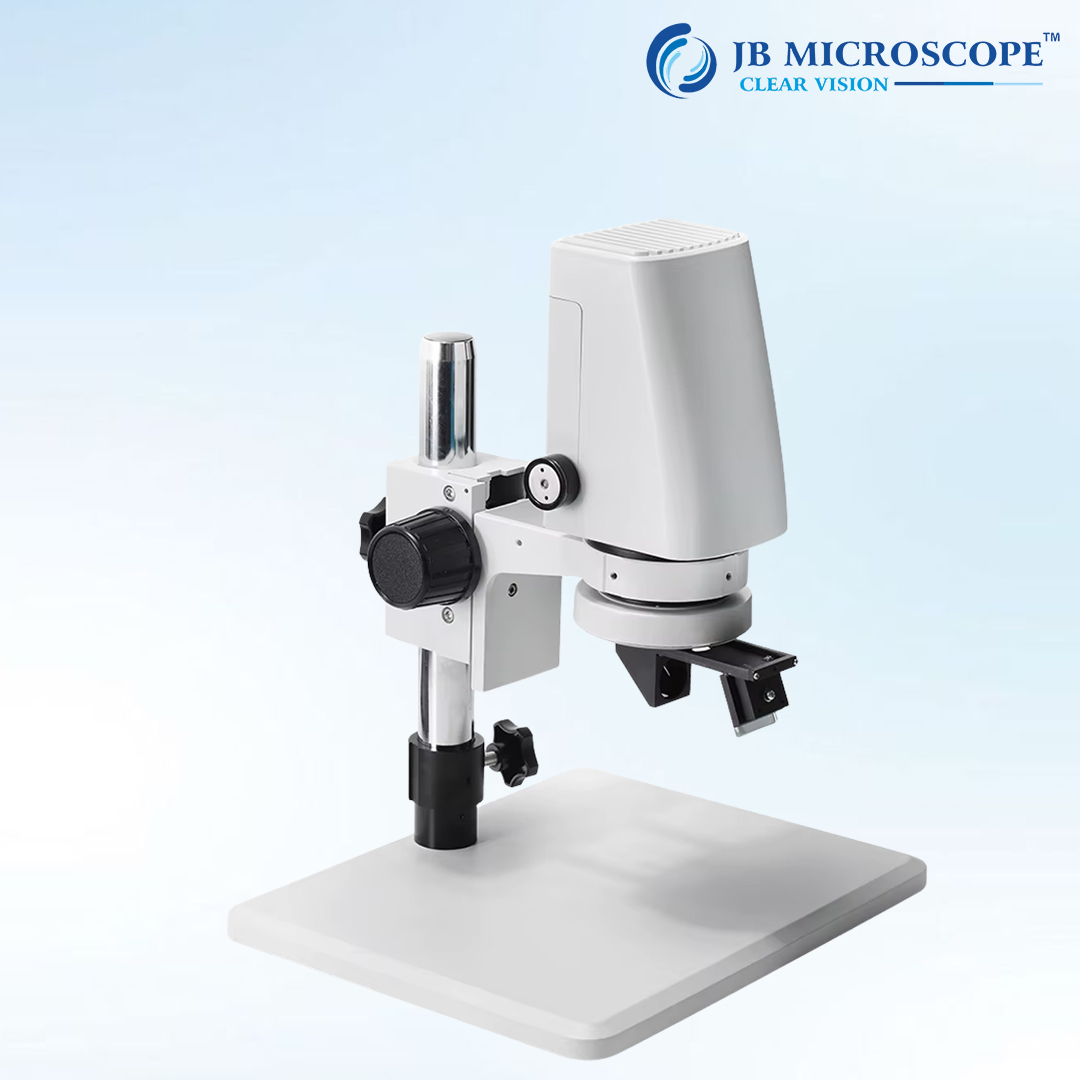

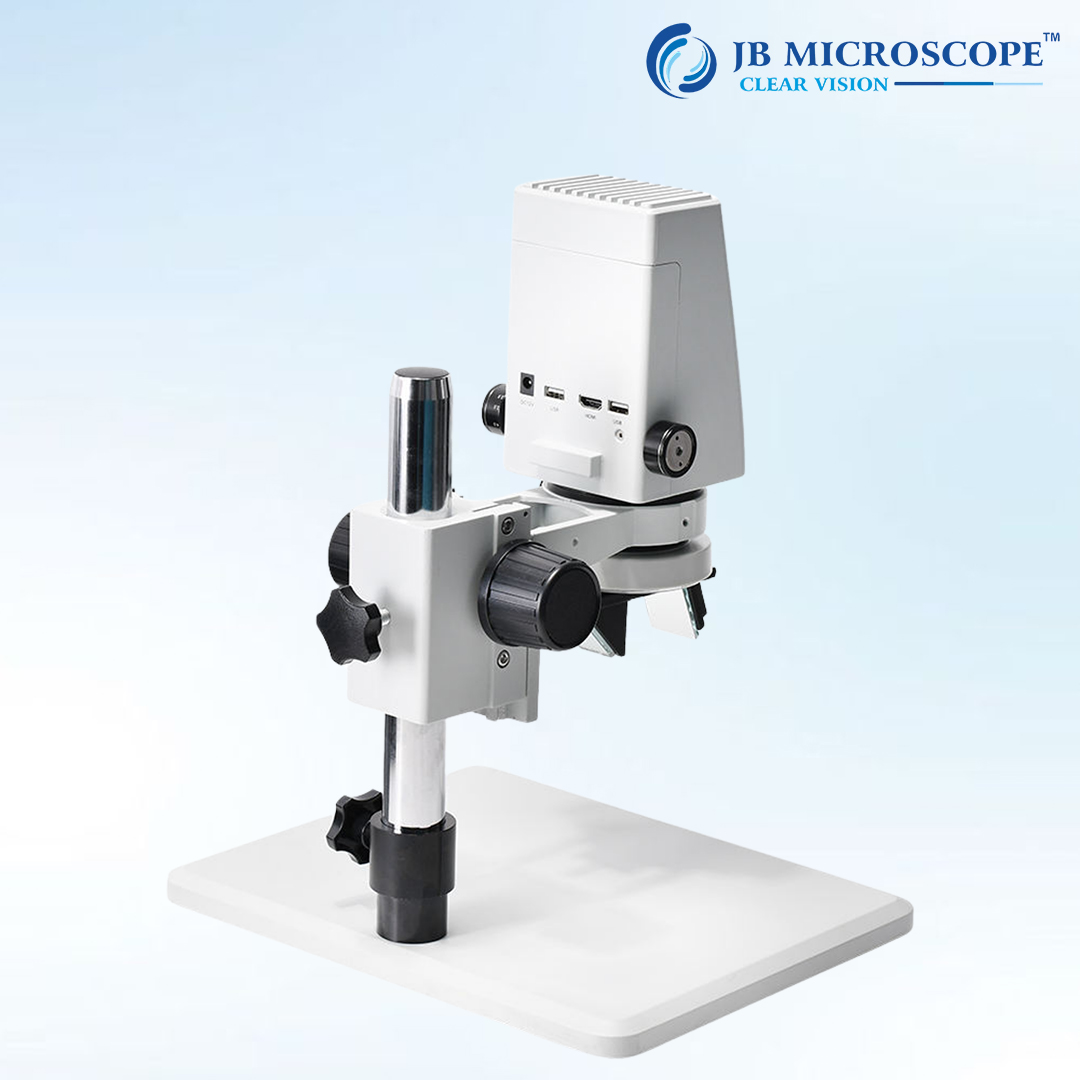

JBM- MZ3DI Monozoom 3D Microscope Manual Rotation

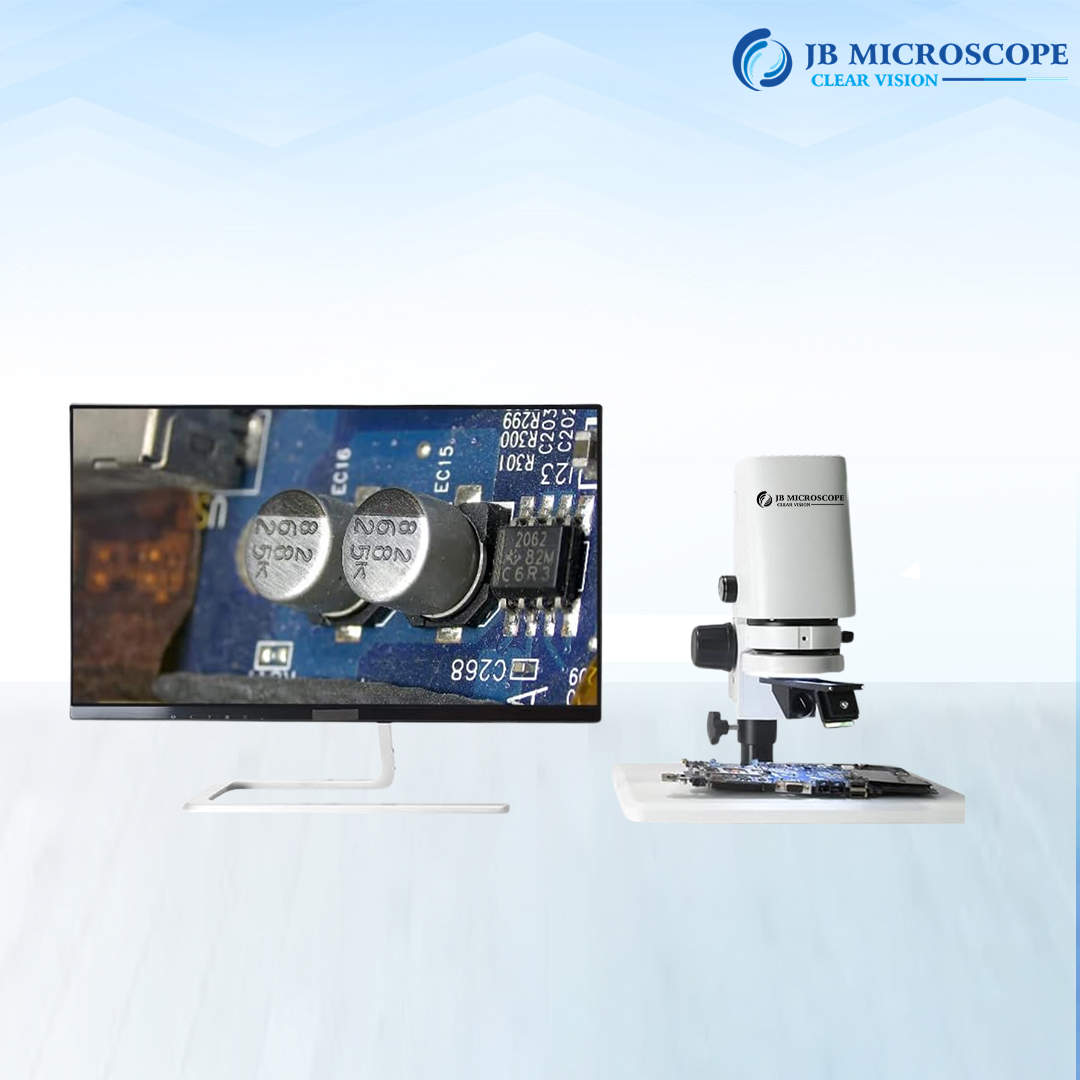

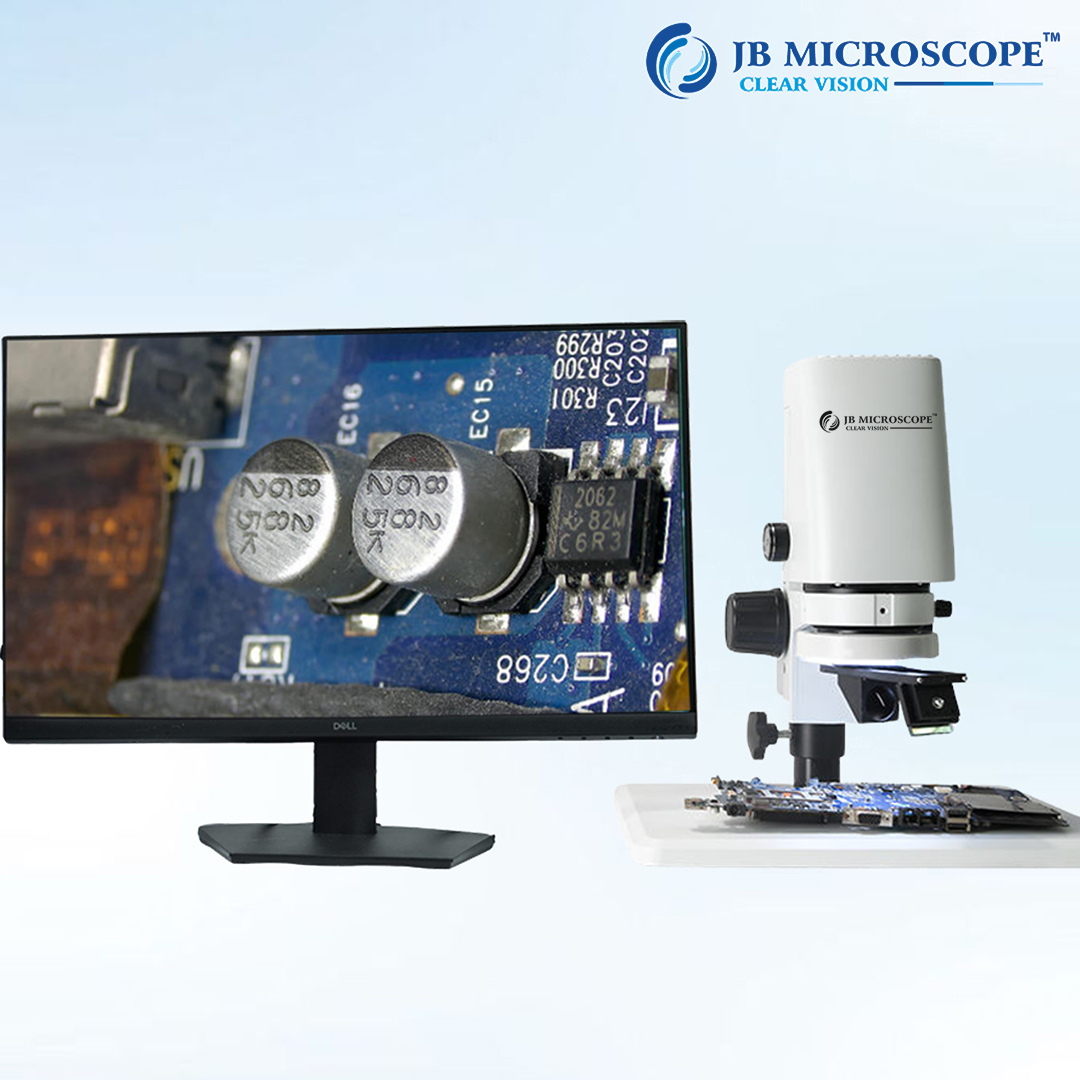

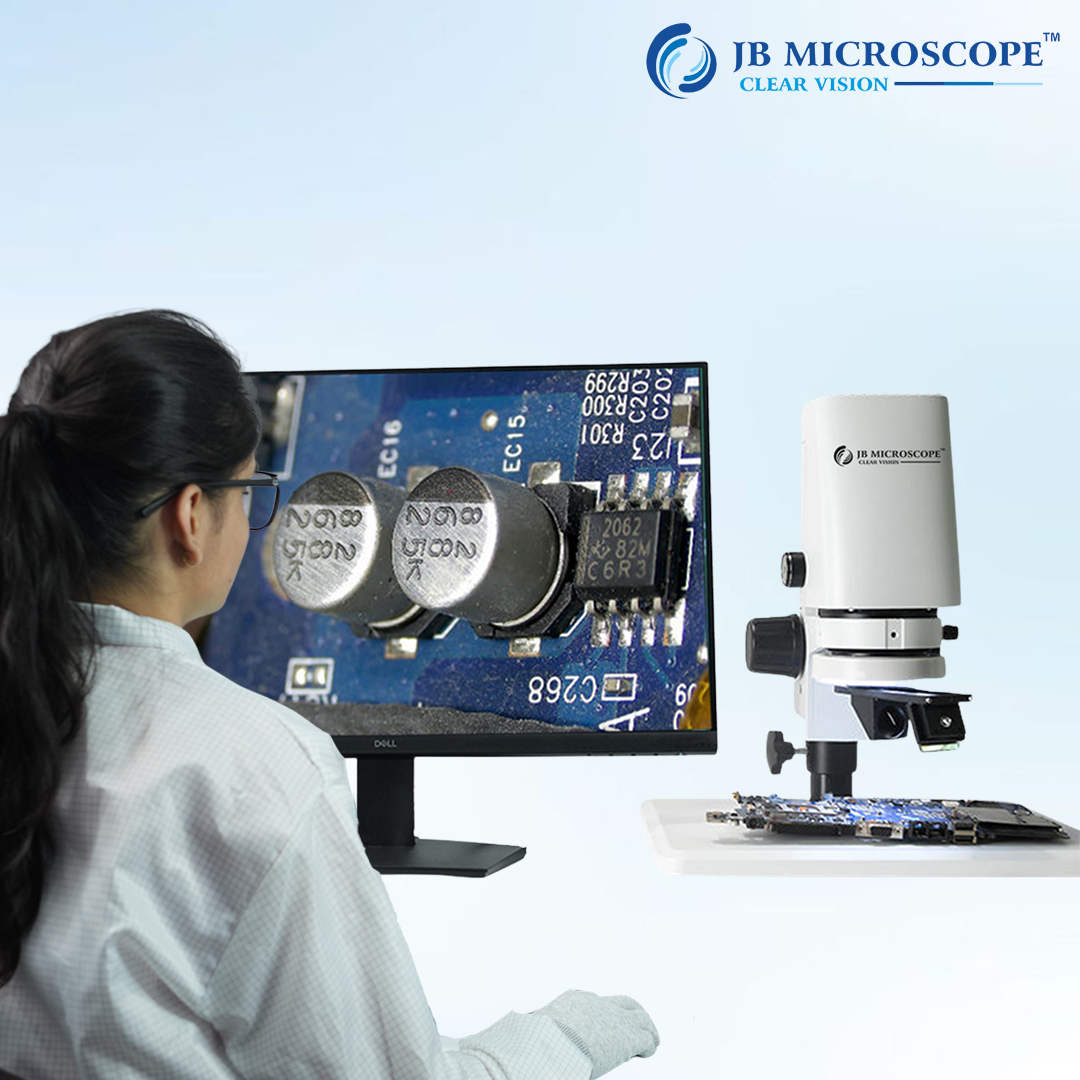

  1. An all-in-one digital inspection system for industrial and laboratory use, complete with high-definition imaging, a large 11.6” screen, and a 144-LED ring light.

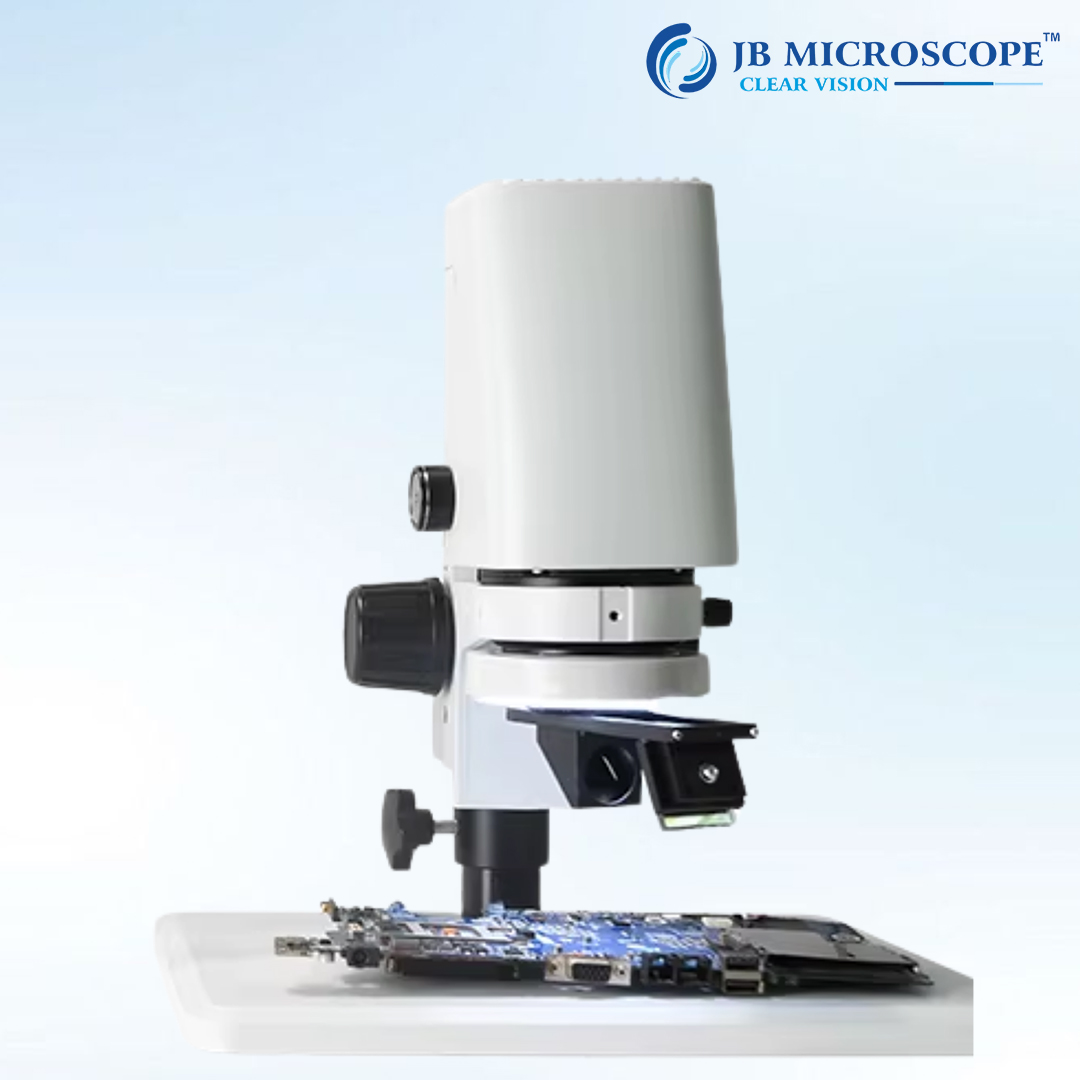

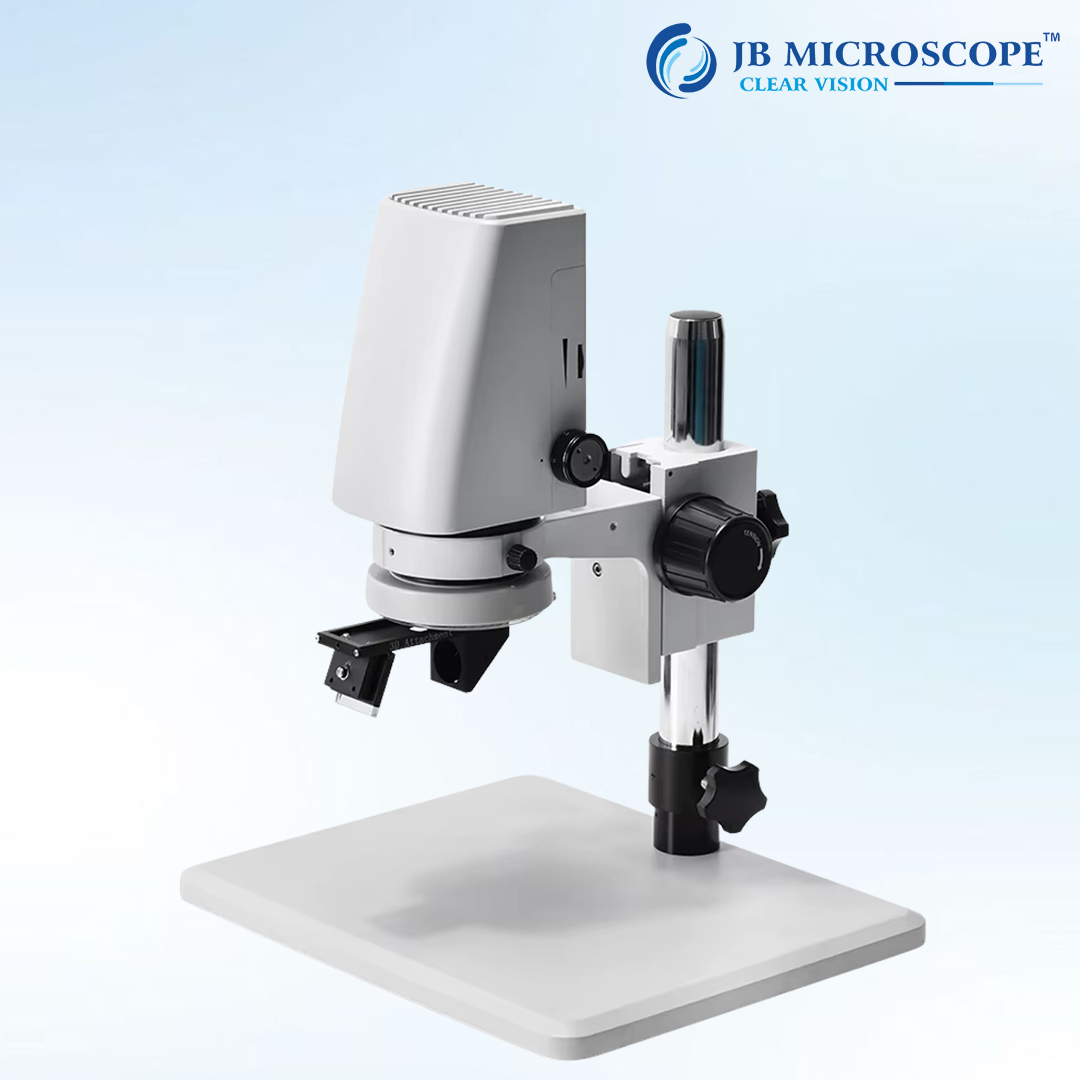

  2. Includes a unique 3D rotary attachment which allows you to view object from various angles.
  3. 0.7X-5X zoom magnification is ideal for dissection, soldering, and general inspection, and detents at key magnifications ensure ease and consistency.
Category:

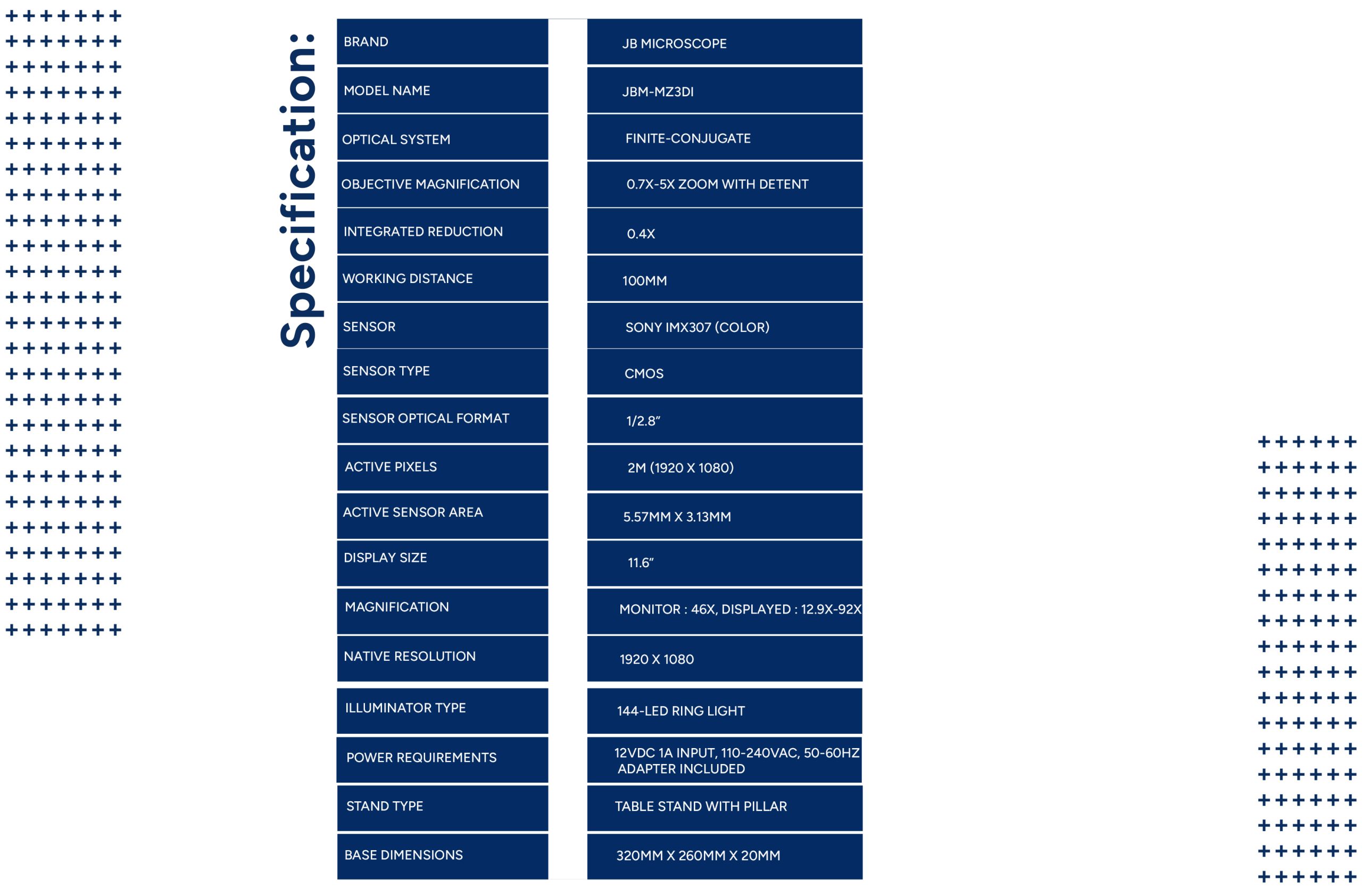

Specification



MODEL JBM-MZ3Di
Optical System Finite-conjugate
Objective Magnification 0.7X-5X zoom with detent
Integrated Reduction 0.4X
Working Distance 100mm
Sensor Sony IMX307 (color)
Sensor Type CMOS
Sensor Optical Format 1/2.8”
Active Pixels 2M (1920 x 1080)
Active Sensor Area 5.57mm x 3.13mm
Display Size 11.6”
Magnification Monitor : 46X, Displayed : 12.9X-92X
Native Resolution 1920 x 1080
Illuminator Type 144-LED ring light
Power Requirements 12VDC 1A input, 110-240VAC, 50-60HZ adapter included
Stand Type Table stand with pillar
Base Dimensions 320mm x 260mm x 20mm
