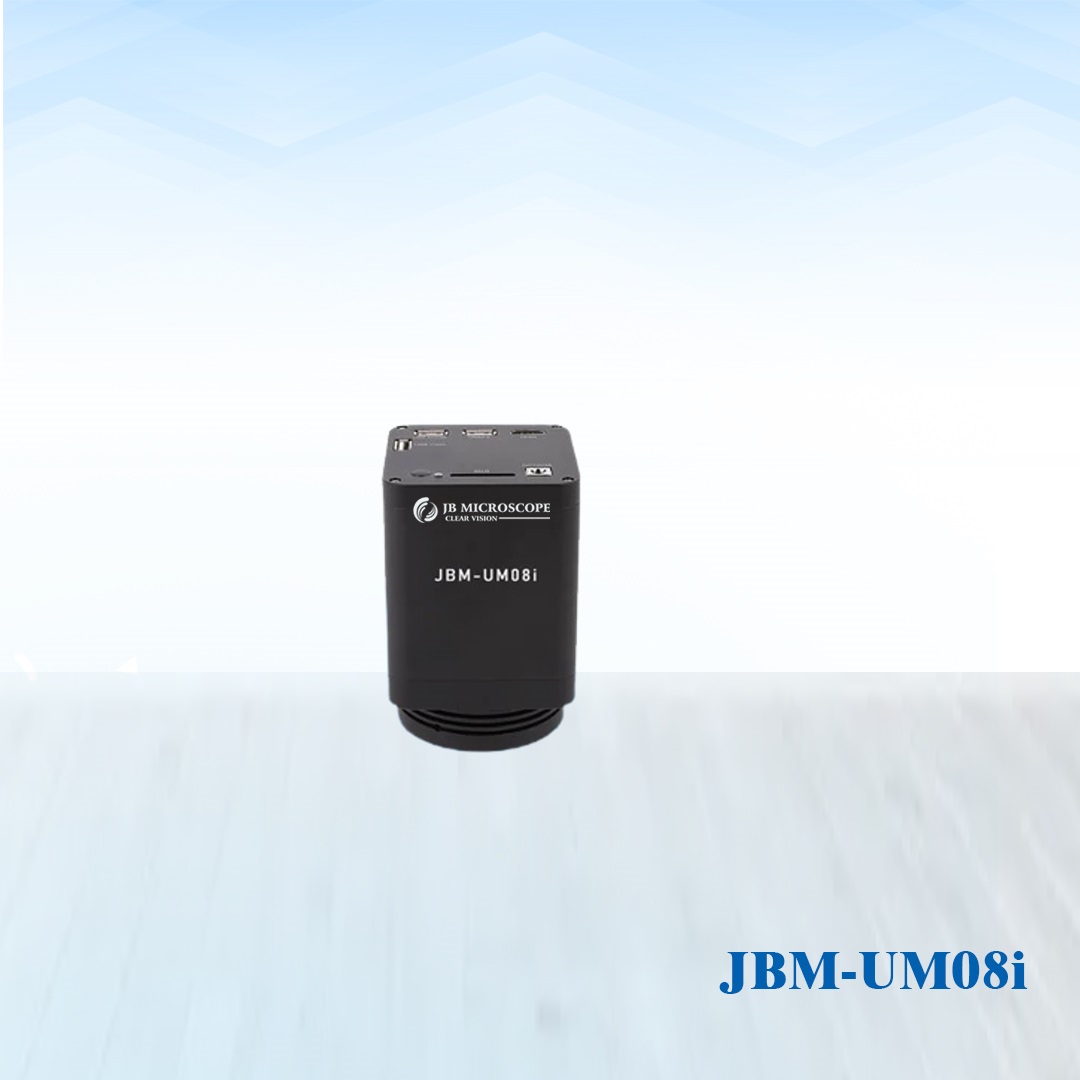

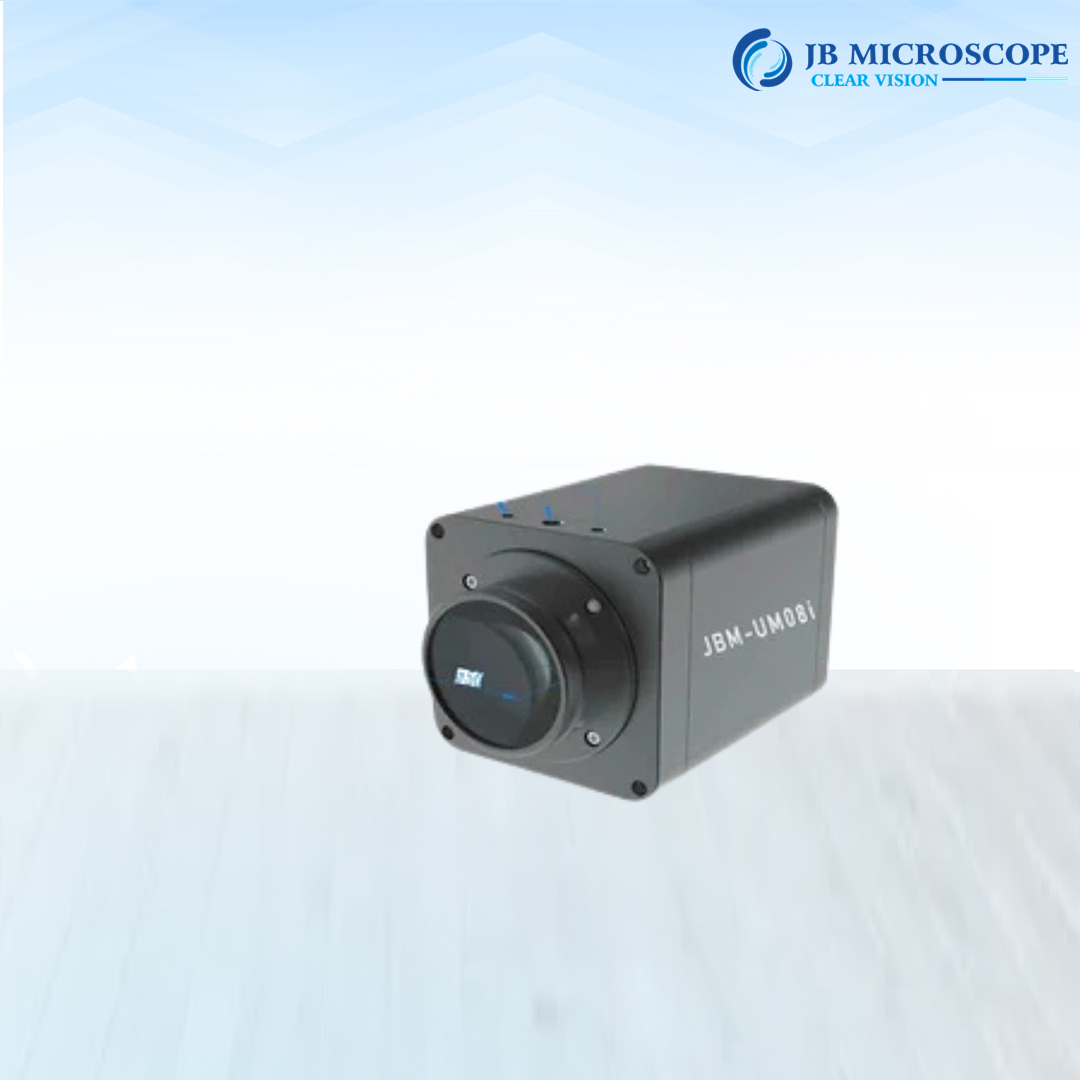

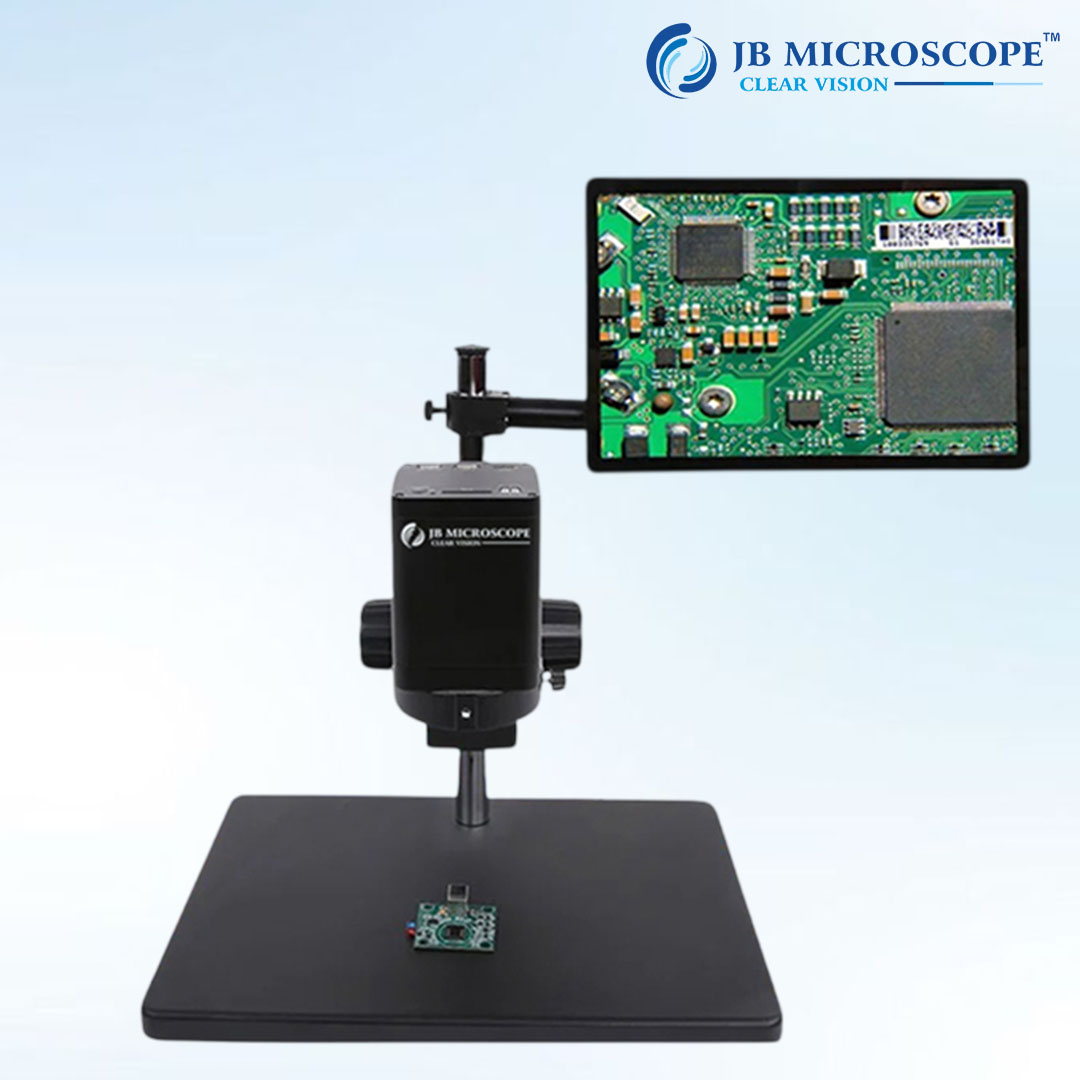

JBM-UM08i comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be
connected directly to the HDMI monitor. The camera has JBMS View software built within it, including Camera Control Panel, Auto
Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and
perform various operations through a USB mouse. The images and videos captured by mouse can be saved on an SD card for on
site analysis and follow-up research.JBM-UM08i can be widely used in industrial inspection, medical observation, scientific
research, automation system, and other fields.

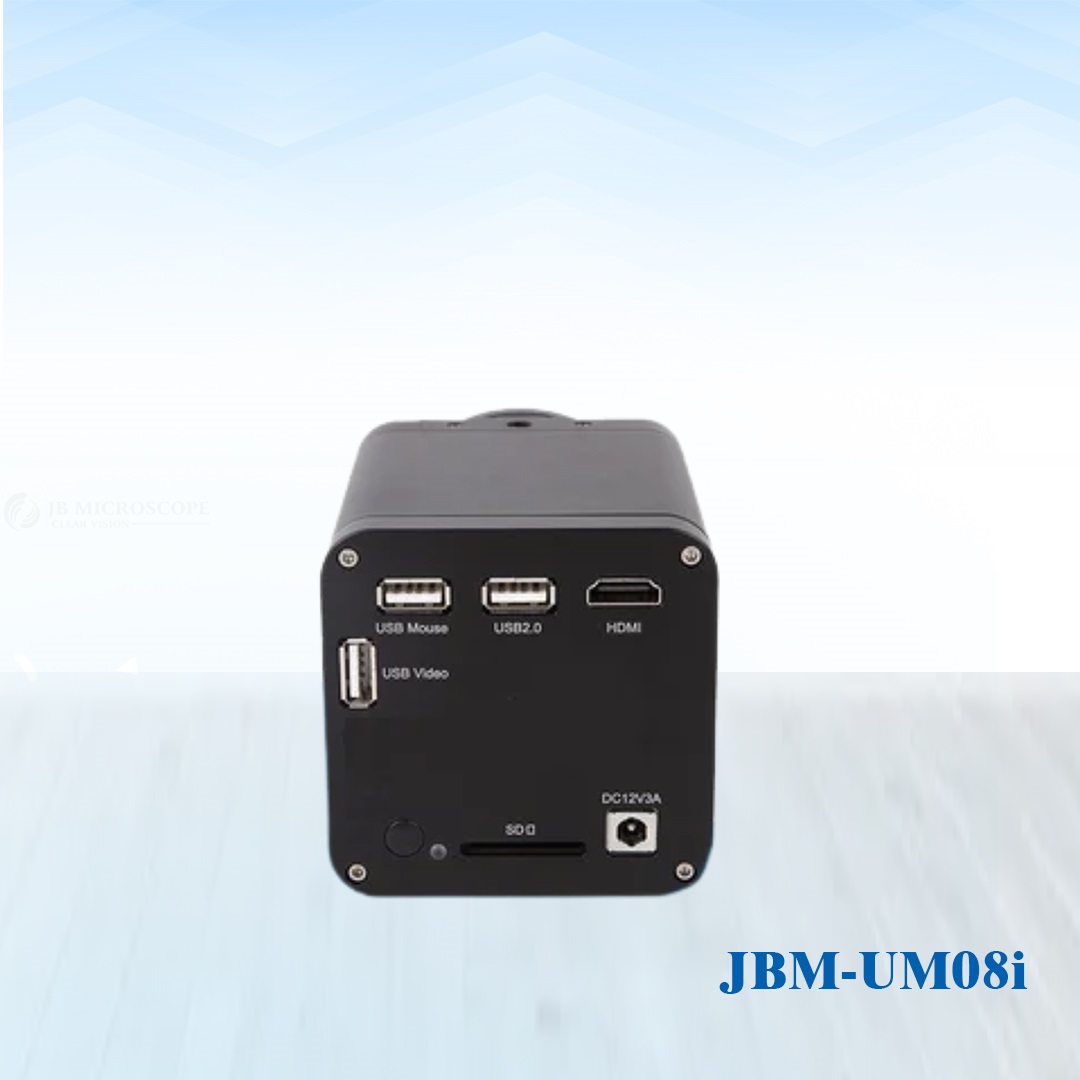

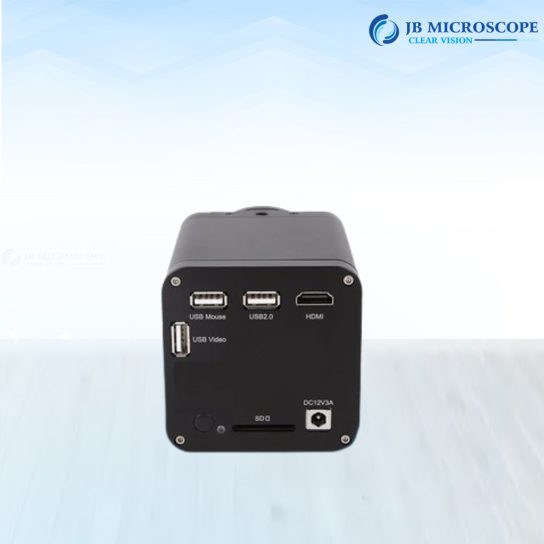

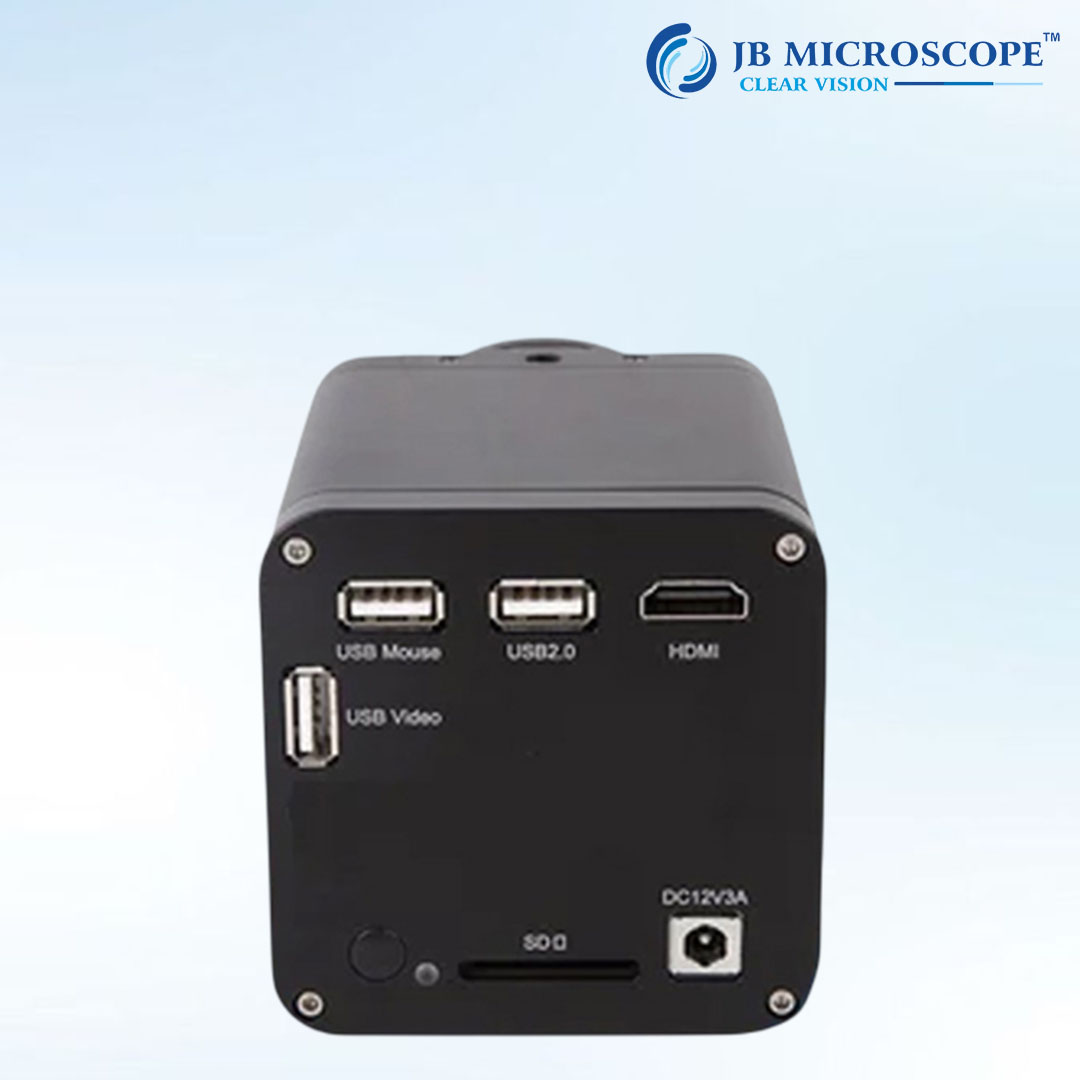

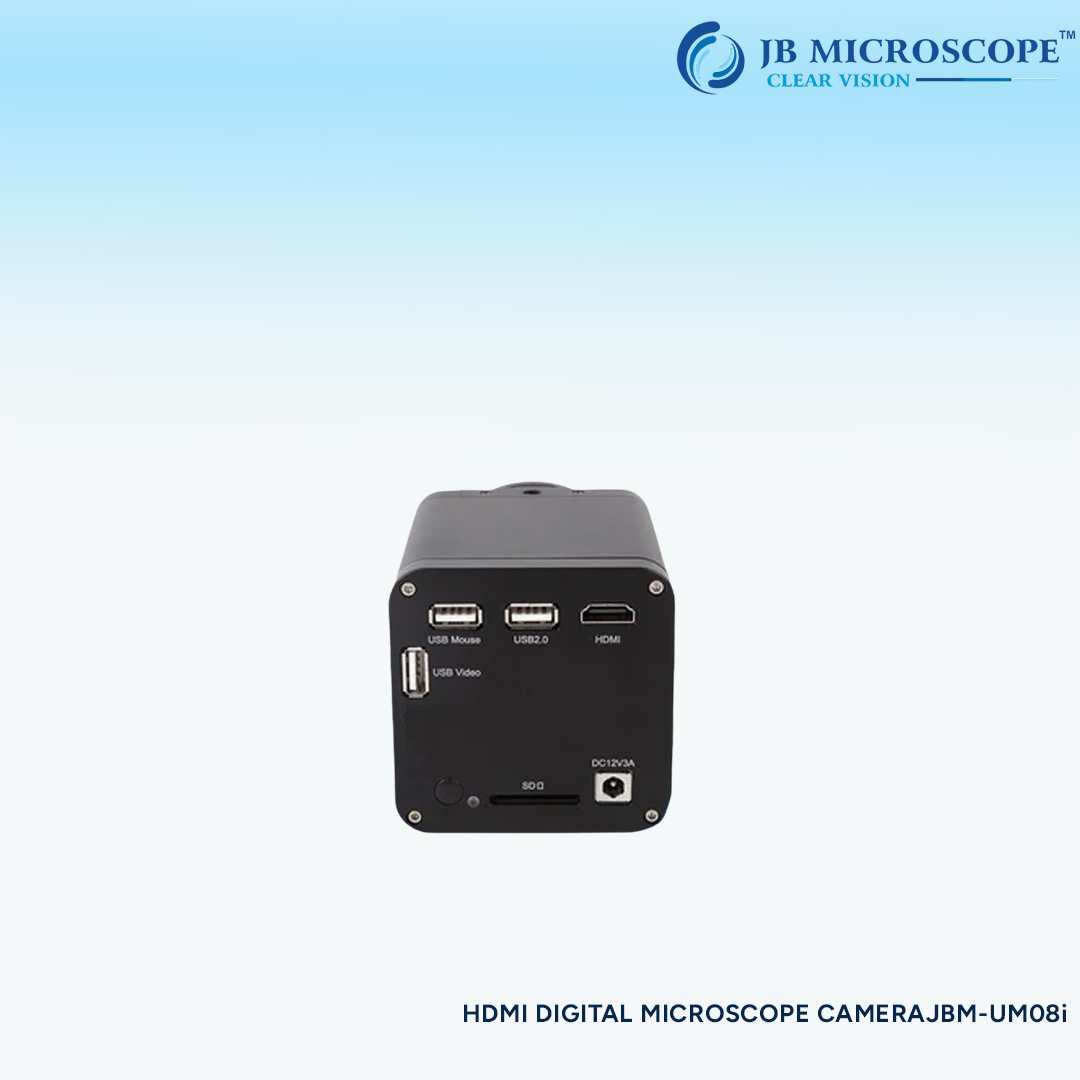

USB Mouse: USB mouse for JBMS View control
USB2.0: Connect USB flash drive to save pictures and videos
HDMI: Comply with HDMI1.4 standard. 4K/1080P format video output and
supporting automatic switch between 4K and 1080P format according to
the connected monitors & Screen
USB Video: Connect PC or other host device to realize video image transmission
ON/OFF: Power on/off switch
LED: Power LED indicator
SD: Comply with SDIO3.0 standard and SD card could be inserted for video and
images saving
DC: 12V3A DC12V3A power input
