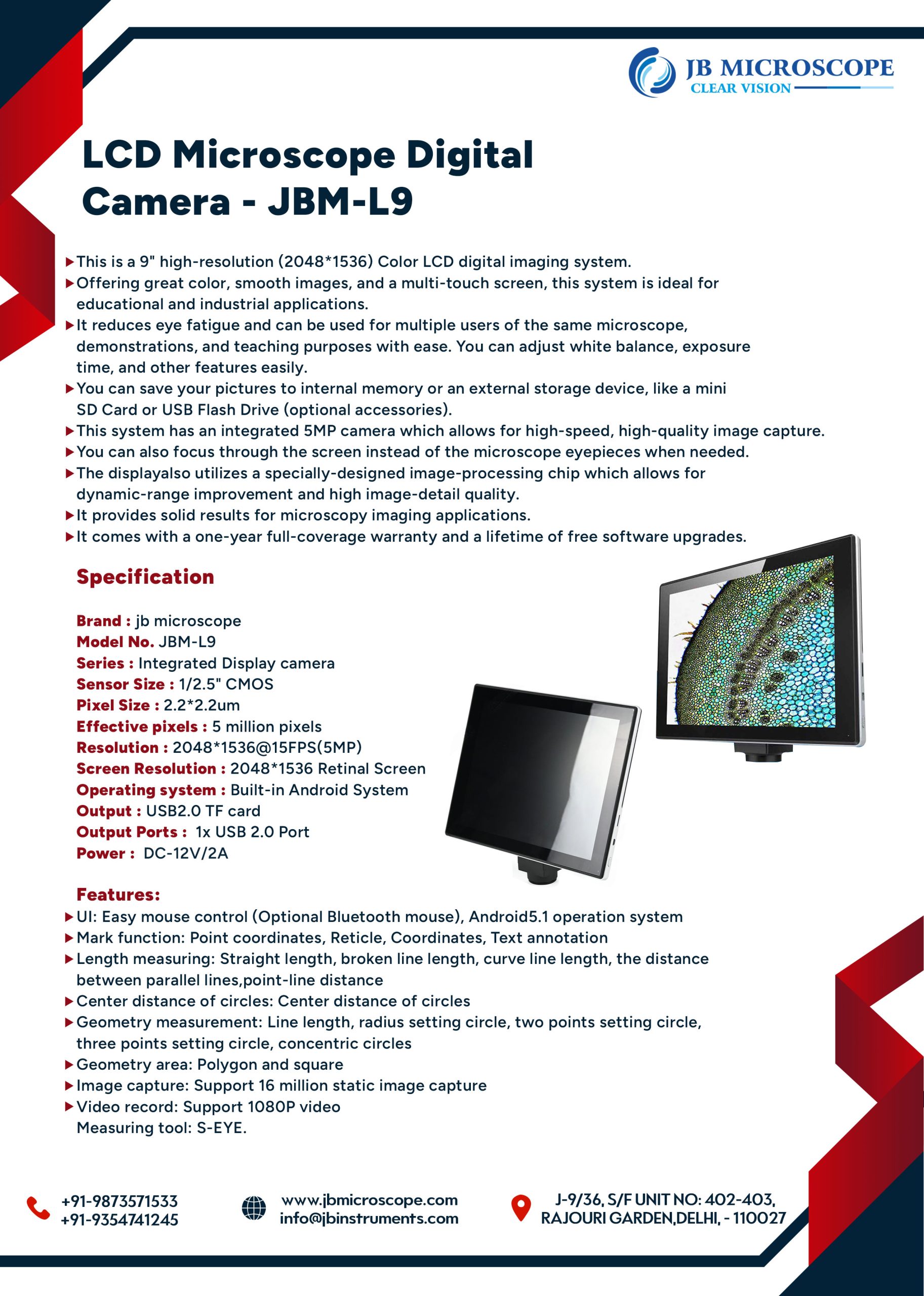

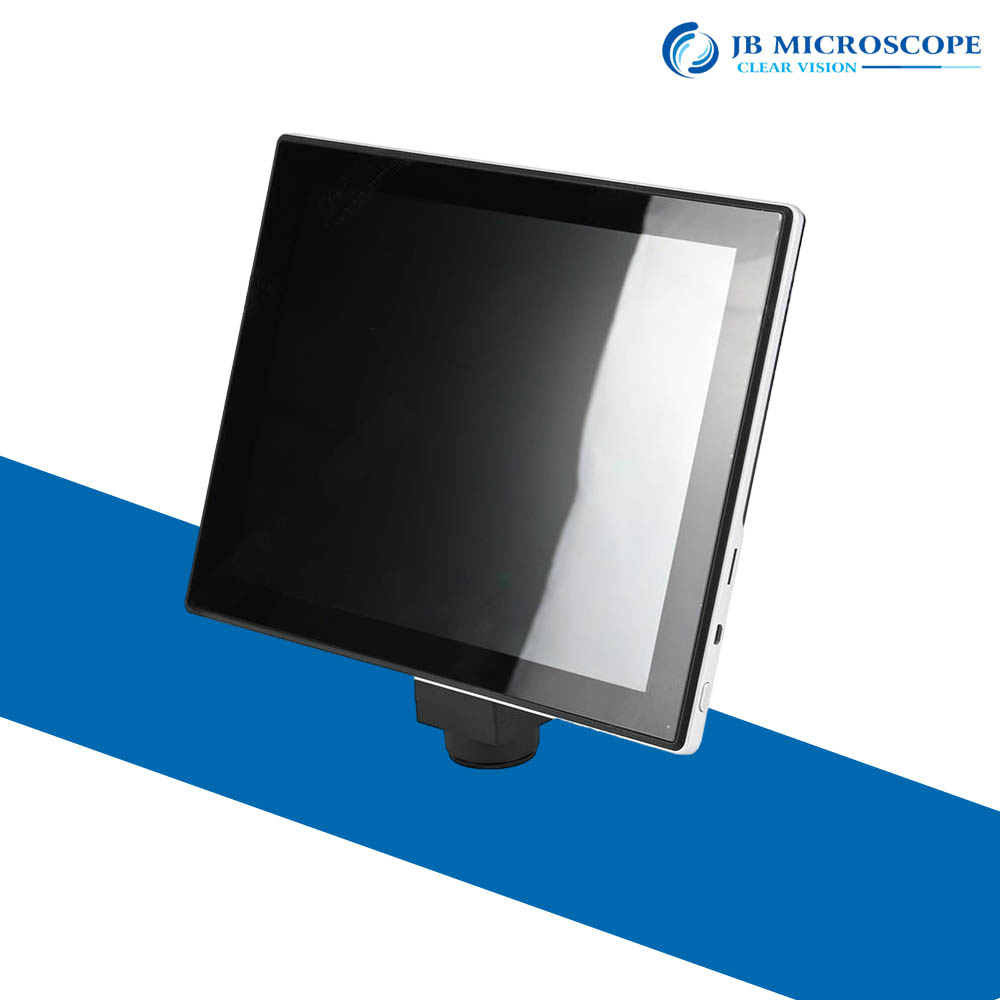

LCD With Microscope Digital Camera – JBM-L9

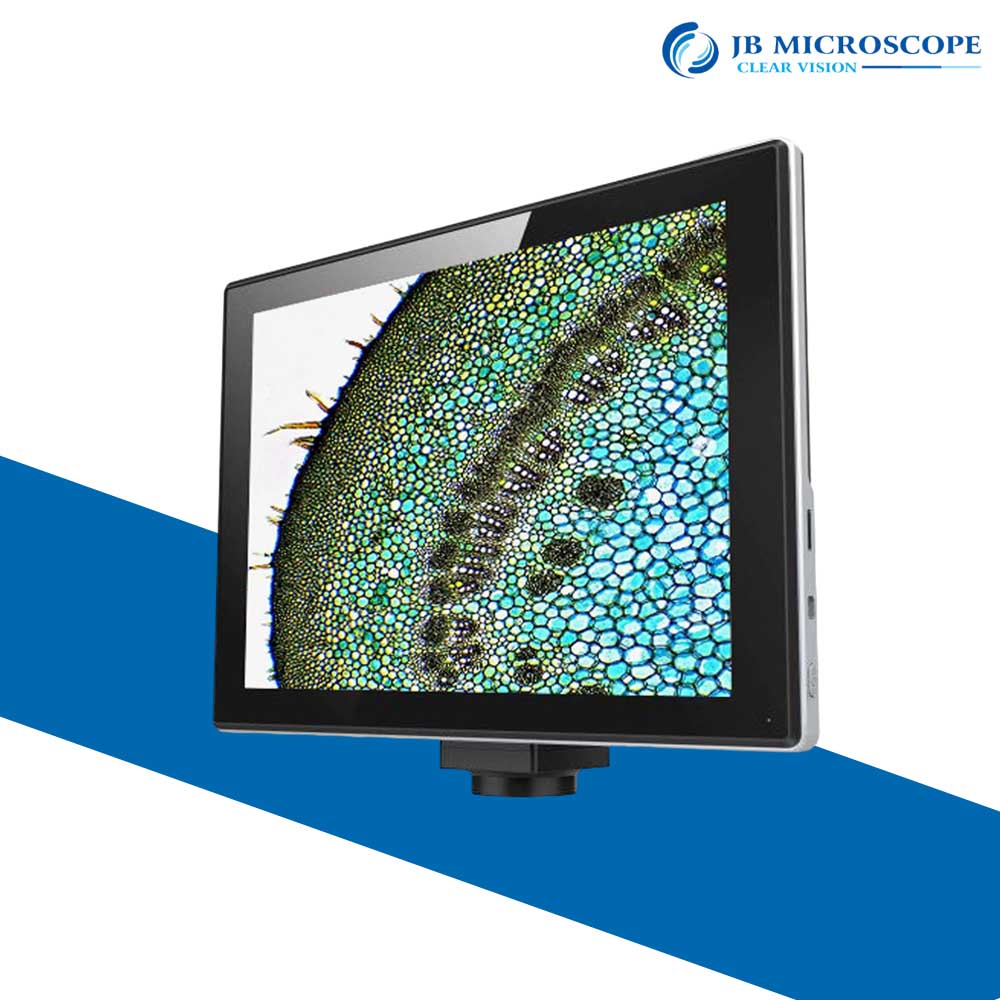

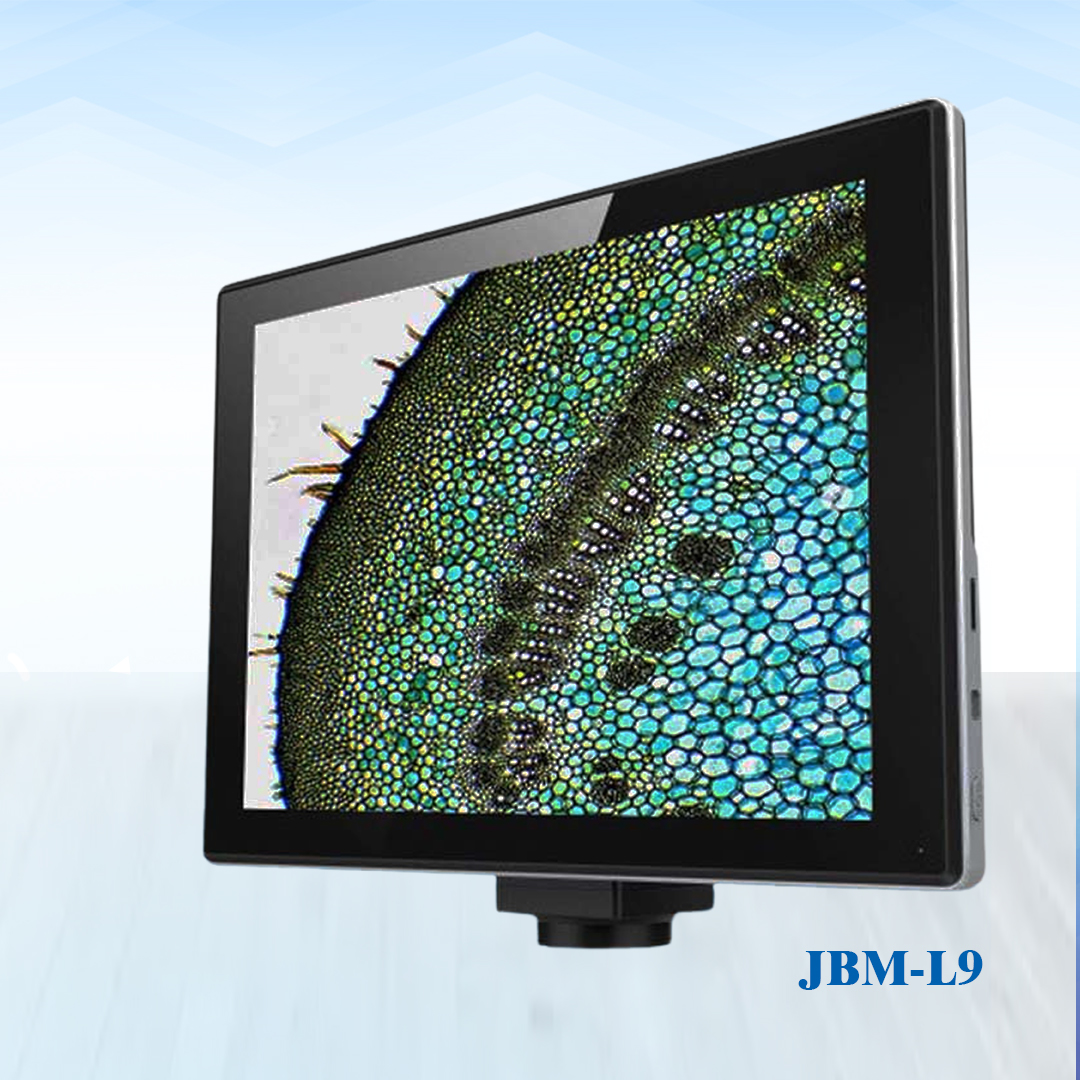

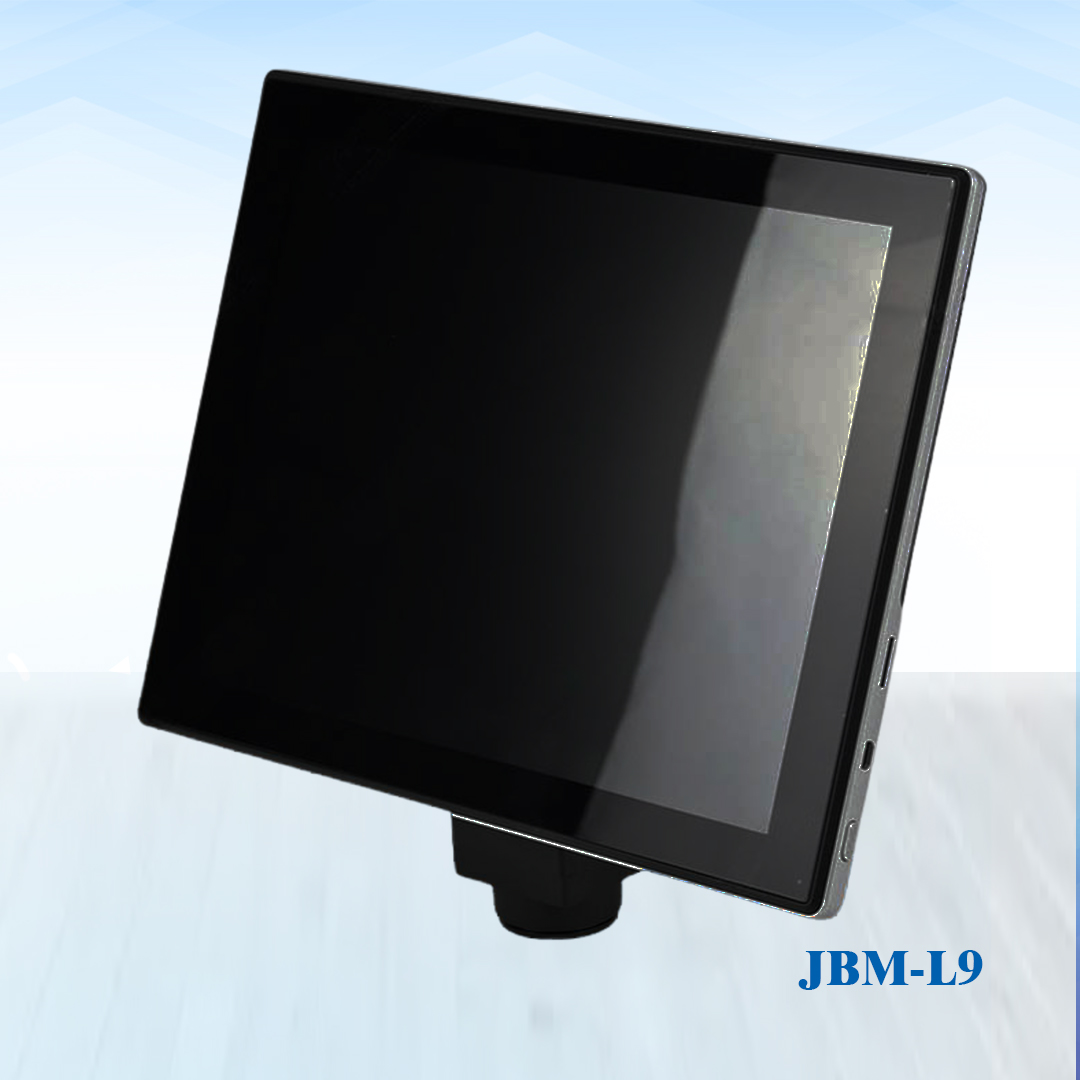

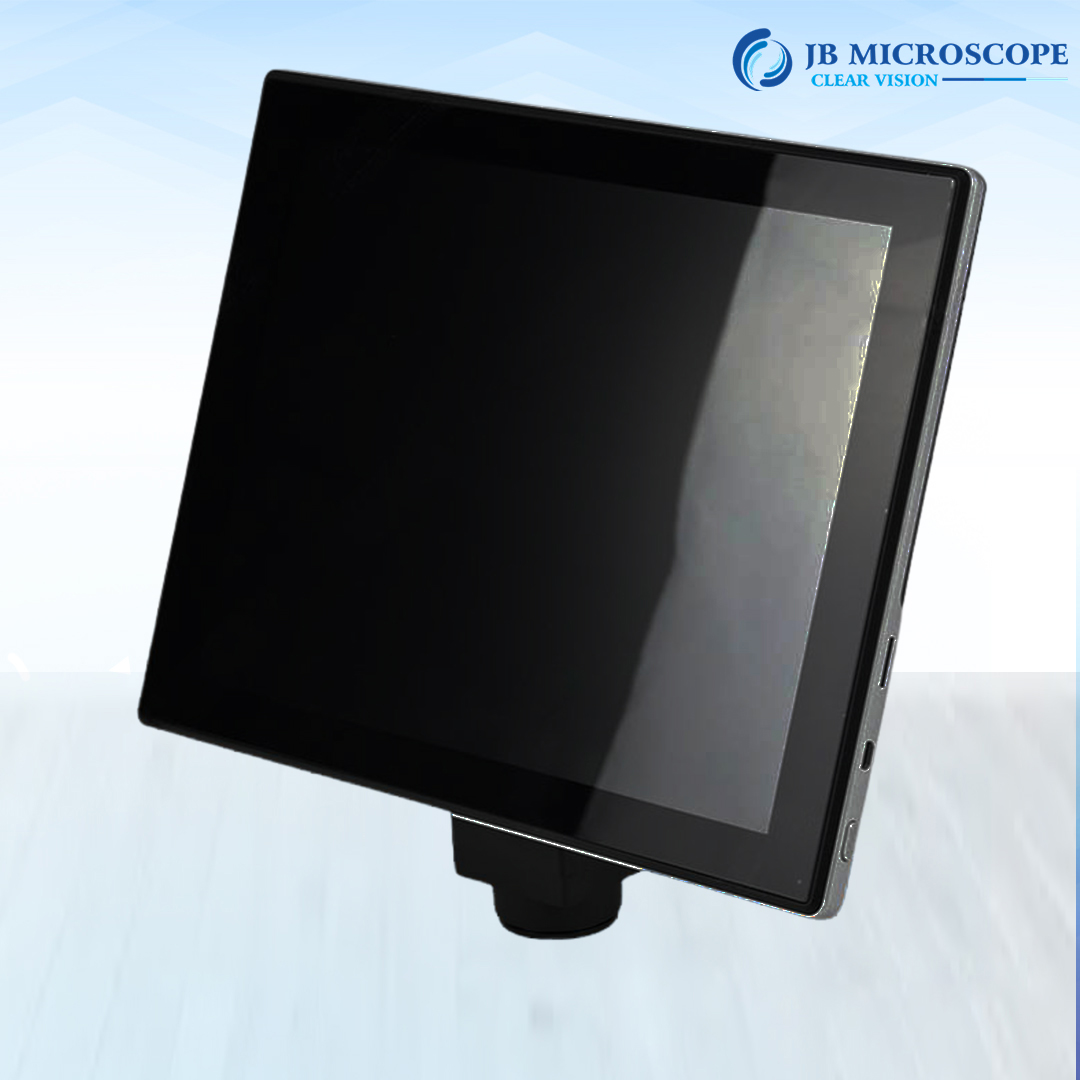

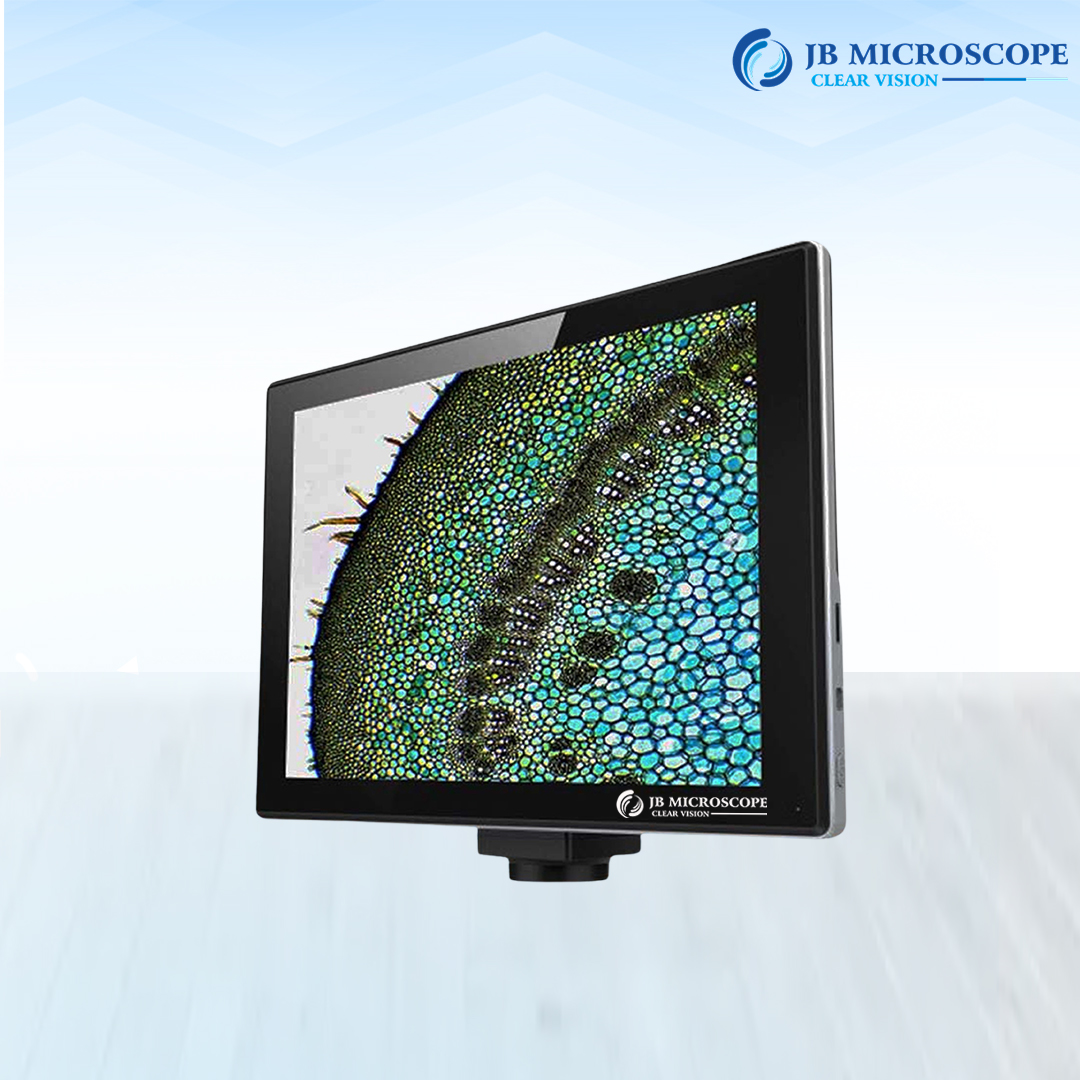

This is a 9″ high-resolution (2048*1536) Color LCD digital imaging system.

• Offering great color, smooth images, and a multi-touch screen, this system is ideal for educational and industrial applications.

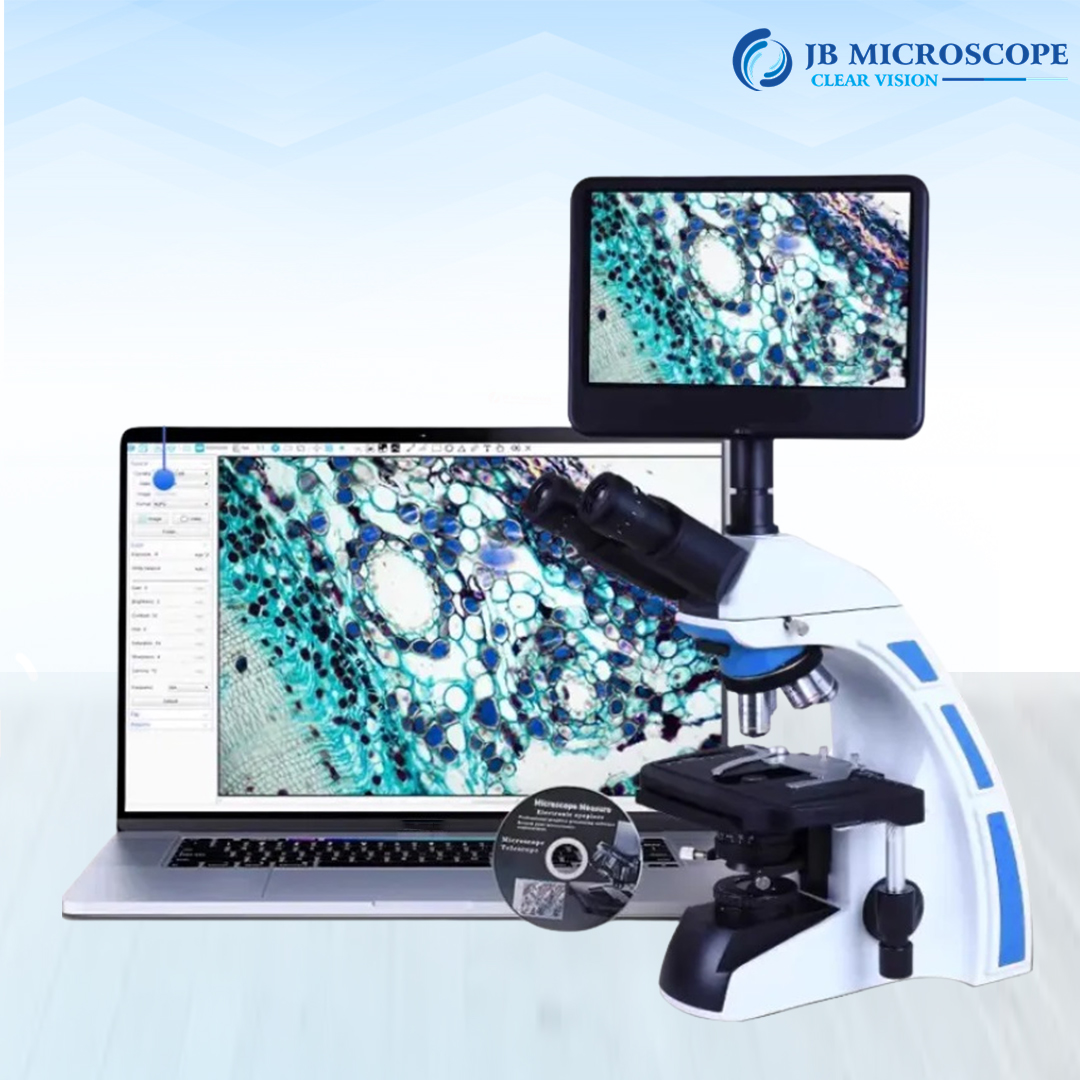

• It reduces eye fatigue and can be used for multiple users of the same microscope, demonstrations, and teaching purposes with
ease. You can adjust white balance, exposure time, and other features easily.
• You can save your pictures to internal memory or an external storage device, like a mini SD Card or USB Flash Drive (optional accessories).
• This system has an integrated 5MP camera which allows for high-speed, high-quality image capture.
• You can also focus through the screen instead of the microscope eyepieces when needed.
• The display also utilizes a specially-designed image-processing chip which allows for dynamic-range improvement and high image-detail quality.
• It provides solid results for microscopy imaging applications.
• It comes with a one-year full-coverage warranty and a lifetime of free software upgrades.

Category:

Features:

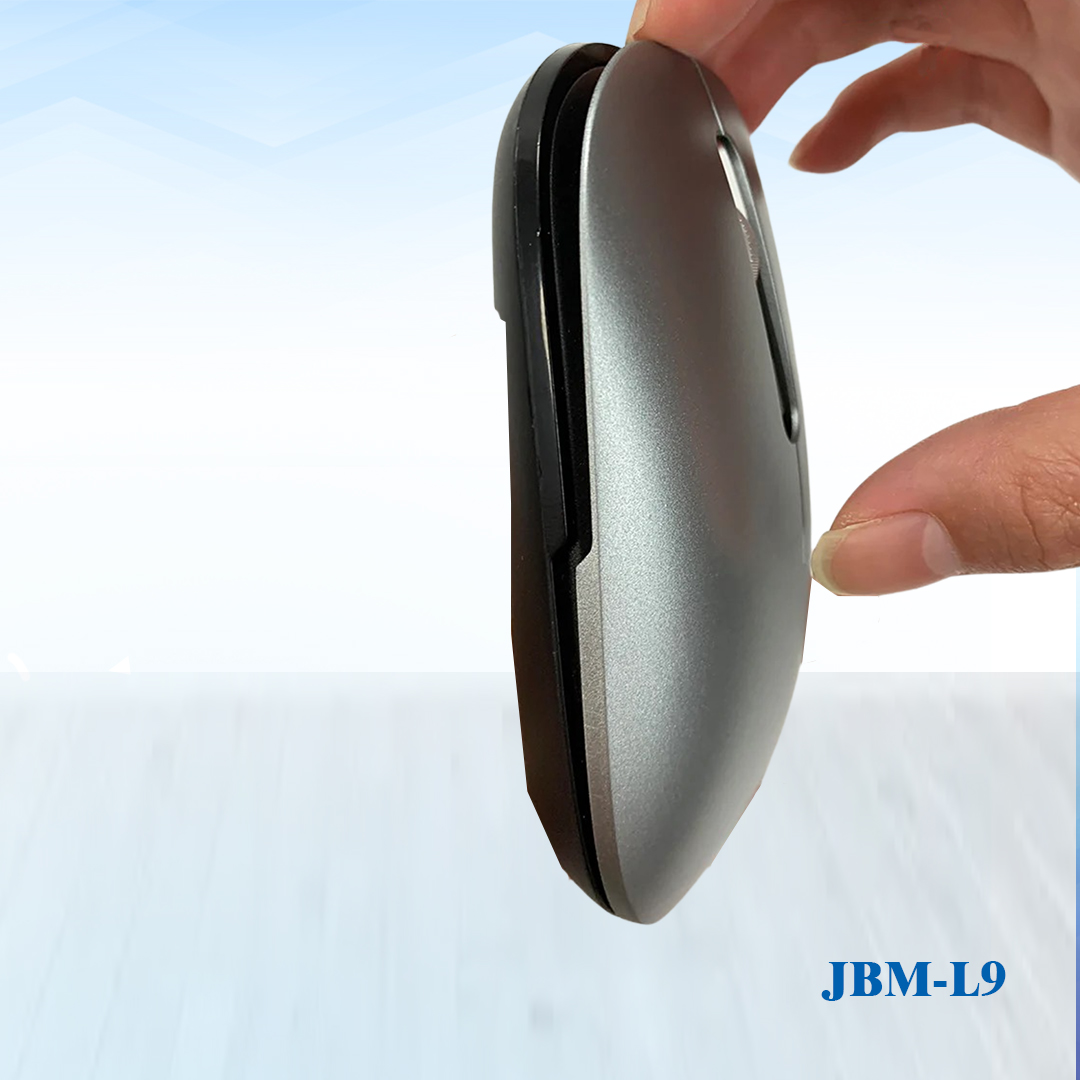

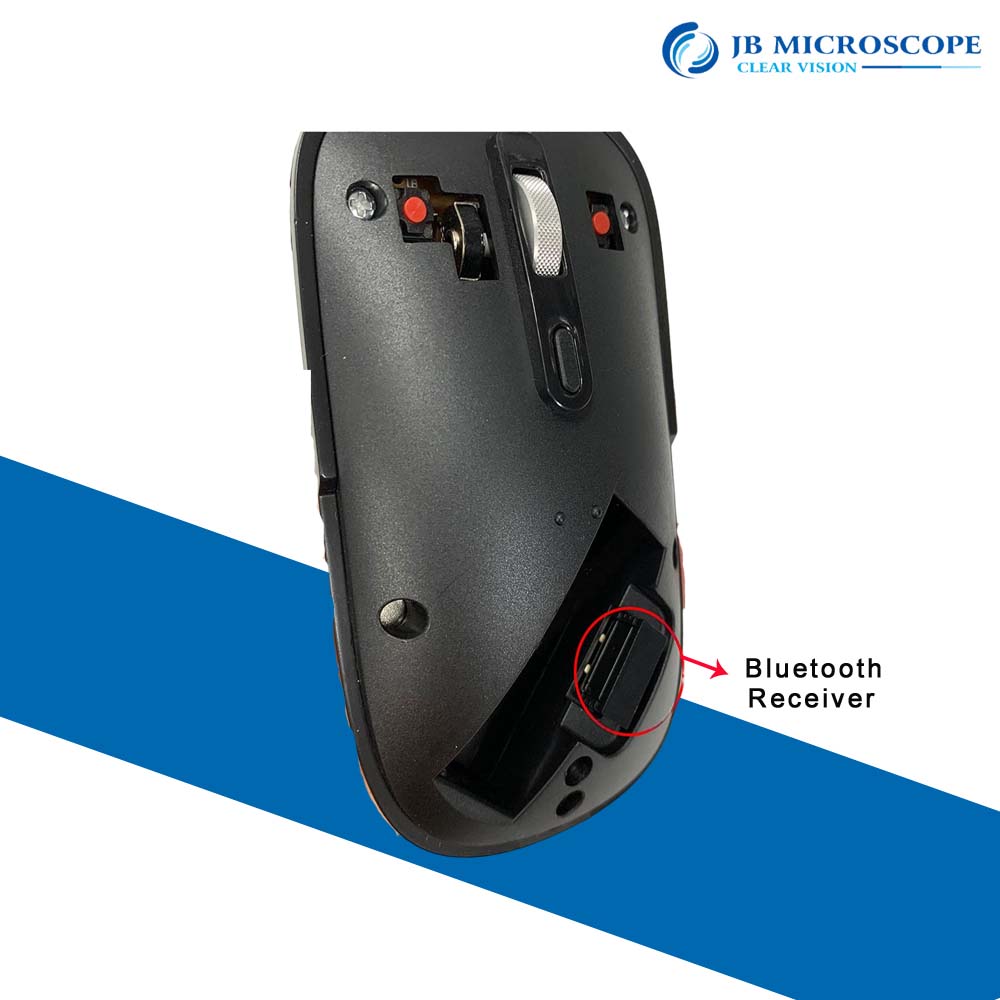

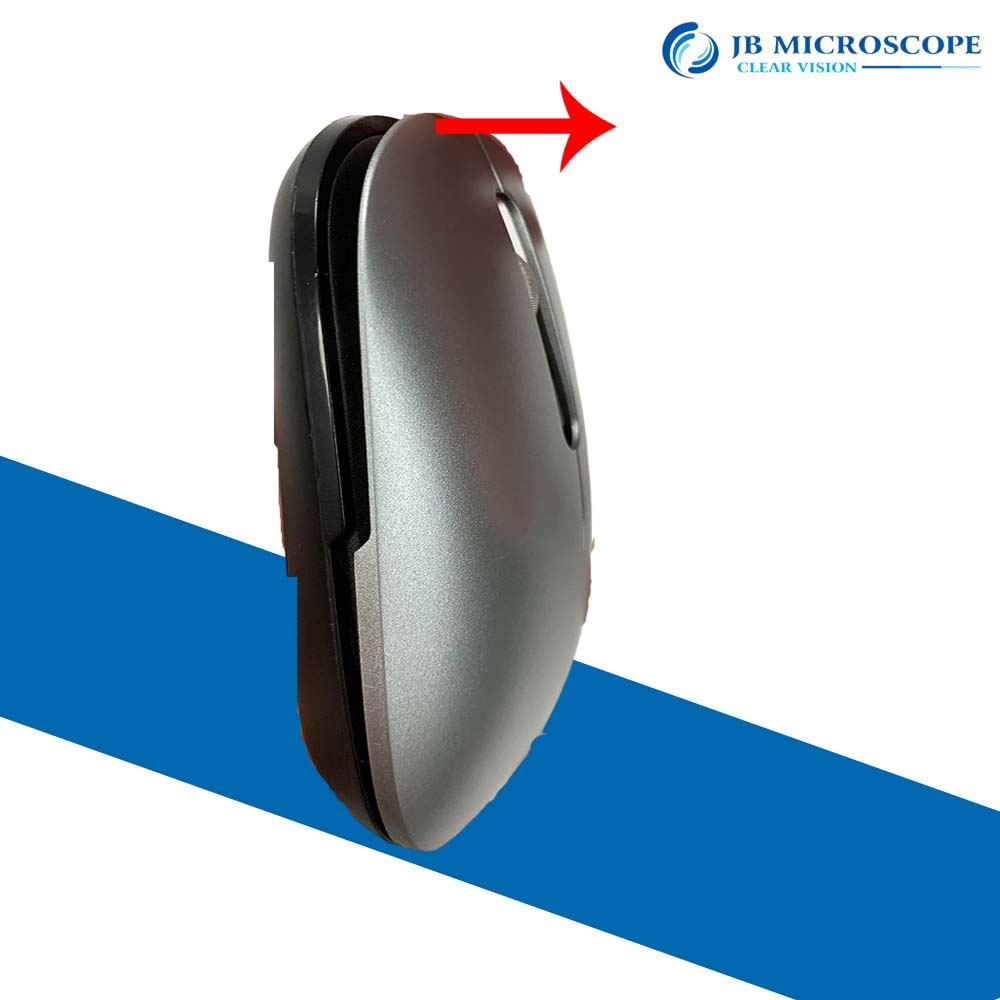

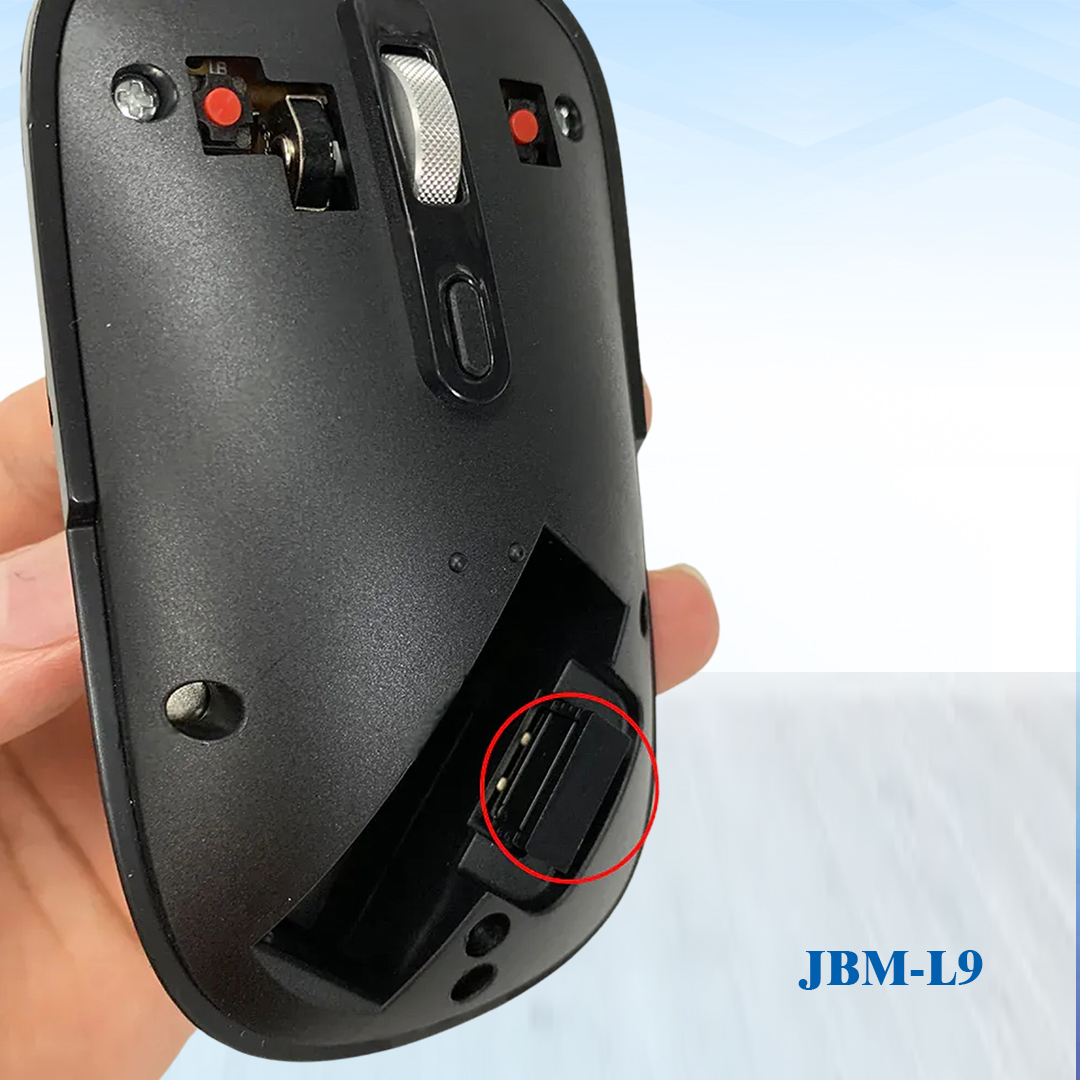

• UI: Easy mouse control (Optional Bluetooth mouse), Android5.1 operation system
• Mark function: Point coordinates, Reticle, Coordinates, Text annotation
• Length measuring: Straight length, broken line length, curve line length, the distance between parallel lines, point-line distance
• Center distance of circles: Center distance of circles
• Geometry measurement: Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
• Geometry area: Polygon and square
• Image capture: Support 16 million static image capture
• Video record: Support 1080P video
• Measuring tool: S-EYE.

Specification:



Brand JB Microscope
Series Integrated Display camera
Sensor size 1/2.5″ CMOS
Pixel size 2.2*2.2um
Effective pixels 5 million pixels
Resolution 2048*1536@15FPS
Screen Resolution 2048*1536 Retinal Screen
Operating system Built-in Android System

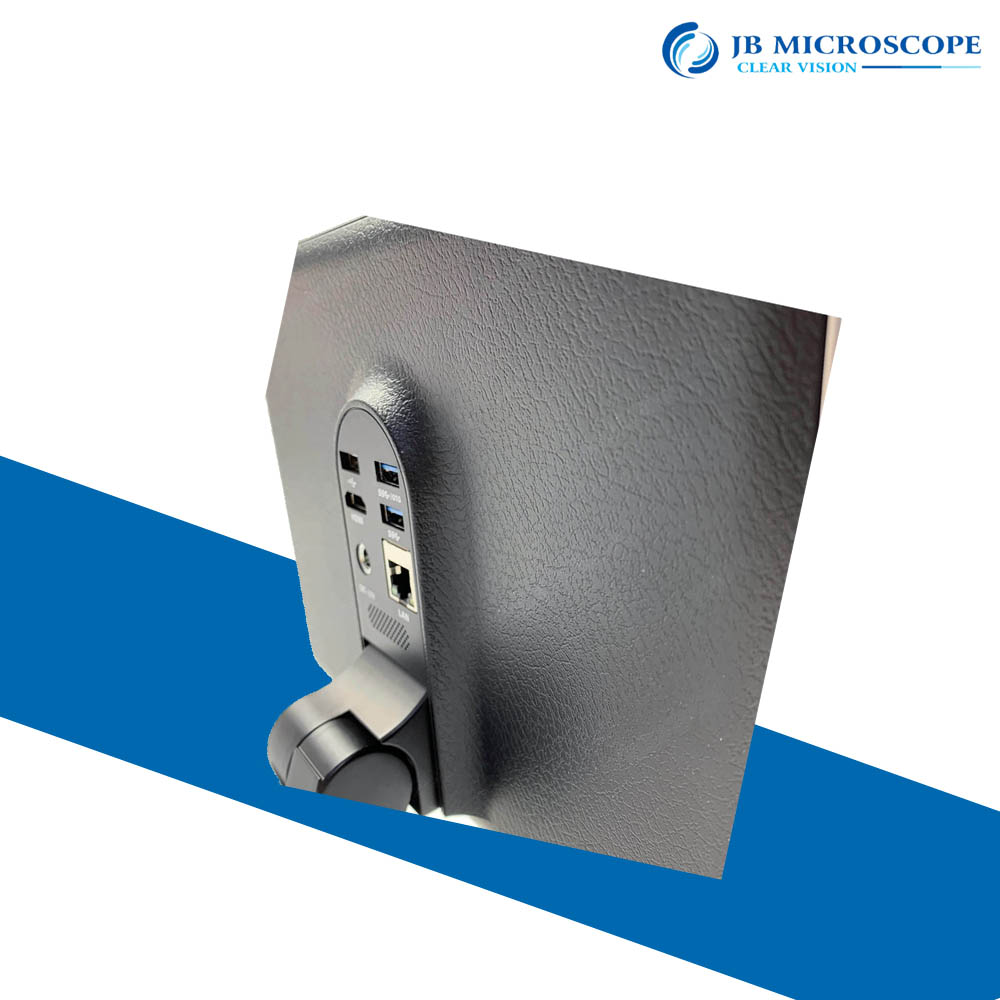

Output USB2.0, TF card
Output Ports 1x USB 2.0 Port
Power DC-12V/2A
