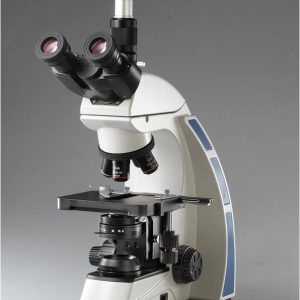

Life Science Microscopes (SMART)

Life Science Microscopes (SMART)

Binocular Observation Head

  • Siedentopf Observation head inclined at 30° rotatable at 360°.
  • Diopter adjustment ring on ocular tube. (±5).
  • Inter-pupillary distance from 55mm to 75mm.

Eyepiece (Anti fungus coated)

  • Wide Field 10X (paired) F.O.V 18mm.

Objectives (Anti fungus coated)

  • S-Plan Achromatic 4X
  • S-Plan Achromatic 10X
  • S-Plan Achromatic 40X(S.L.)
  • S-Plan Achromatic 100X Oil(S.L.)

Mechanical Body

  • Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • The slow motion has 1Div=0.002mm.
  • Quadruple nosepiece revolves on ball bearing.
  • Double plate mechanical stage size 140mmX155mm having low positioned co-axial controls on ball bearing
  • Cross movement 55mm X 75mm.

Sub Stage Condenser

  • Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm.

Illumination System

  • Built-in-base illumination system with 3W LED bulb and adjustable brightness.

Standard Accessories

  • Operating manual, dust cover, guarantee card and Styrofoam molded pack.
