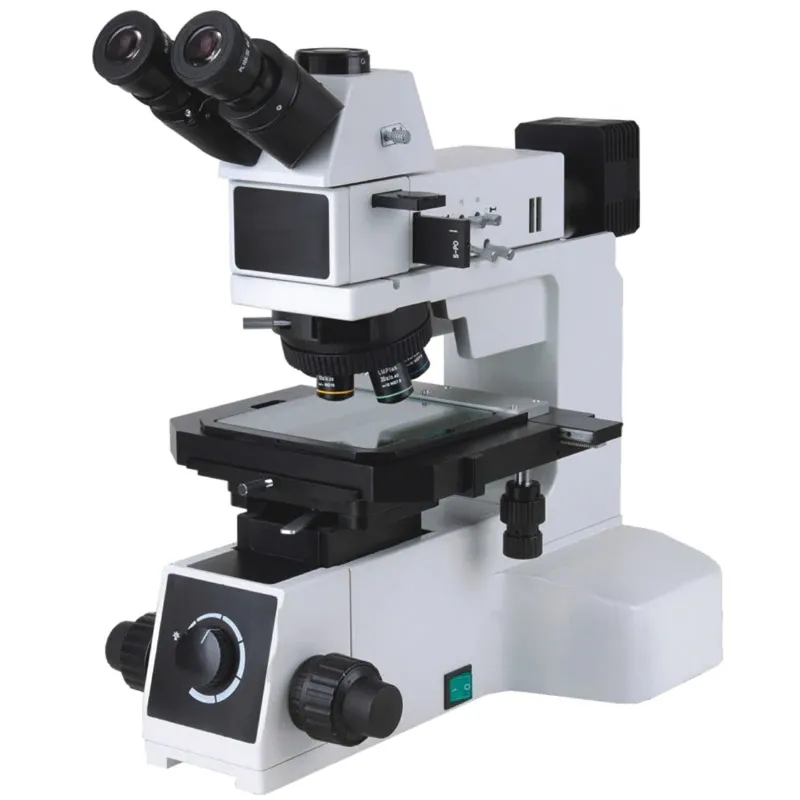

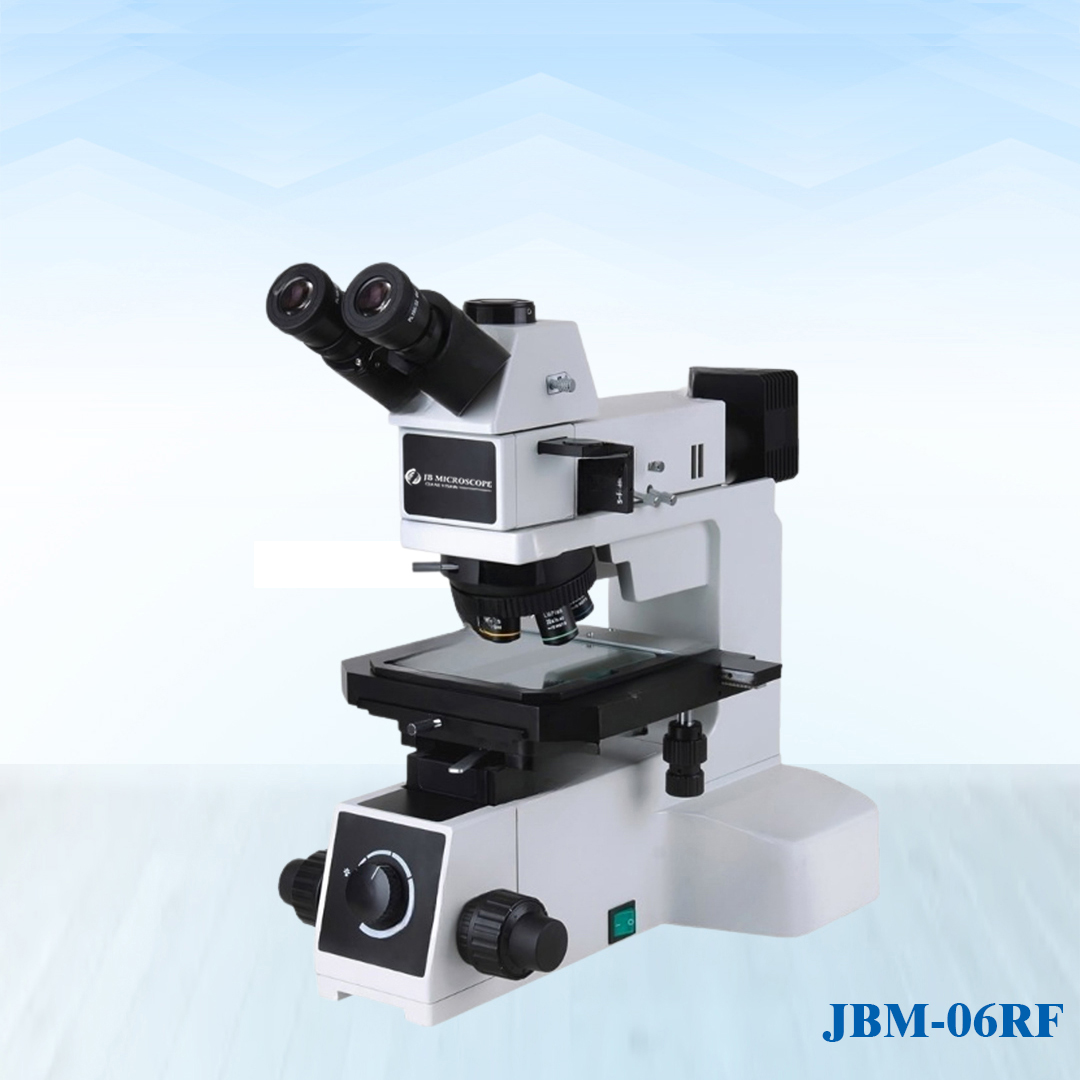

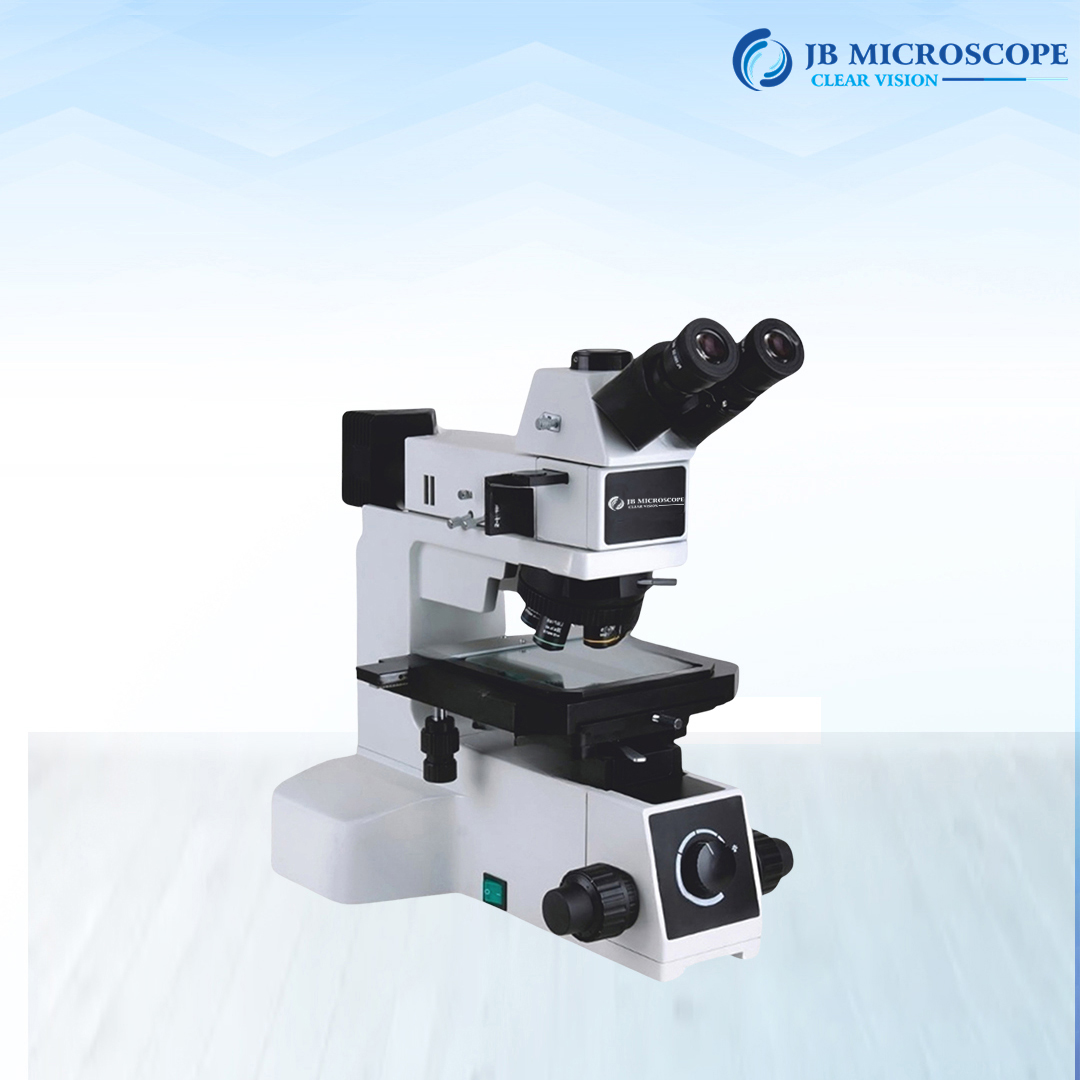

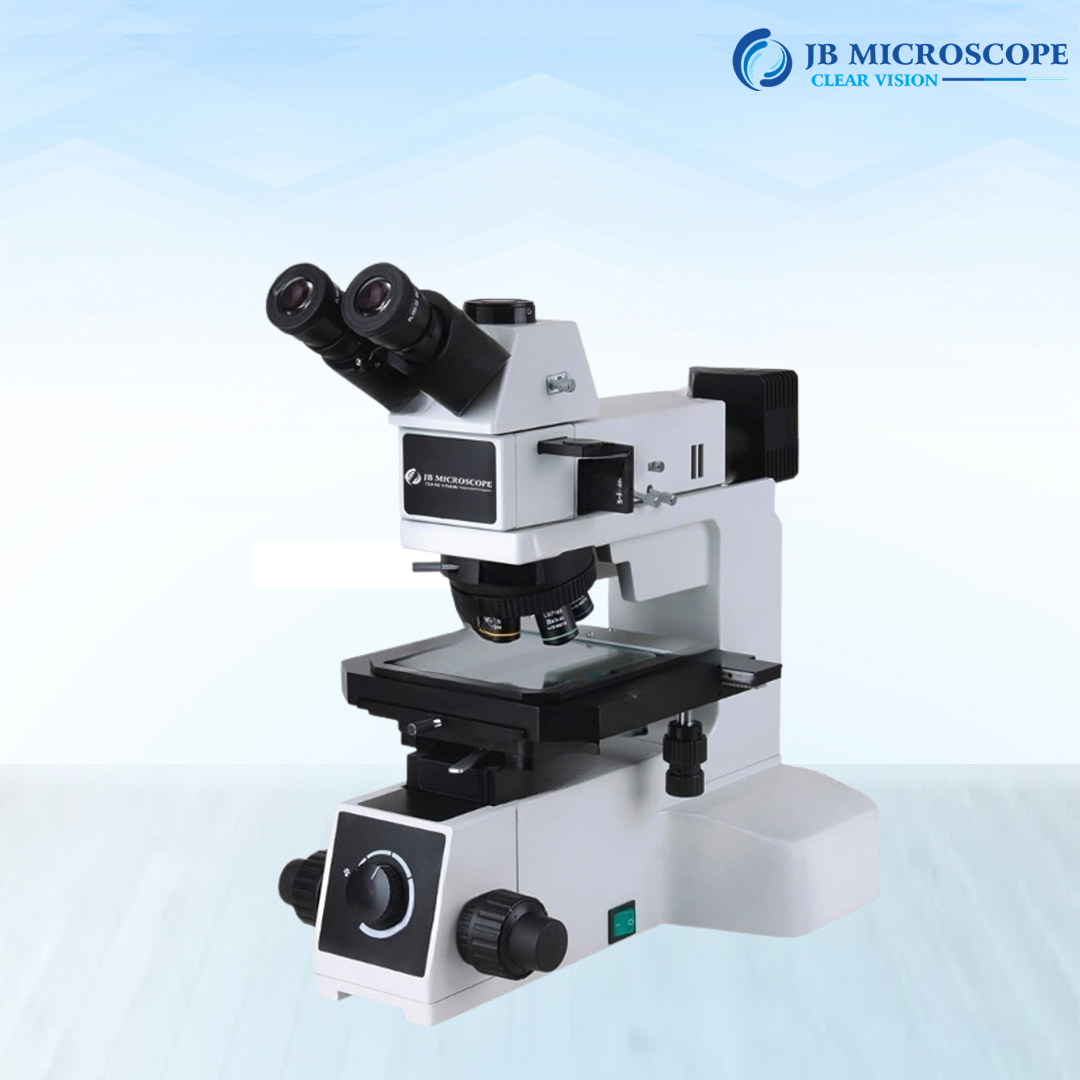

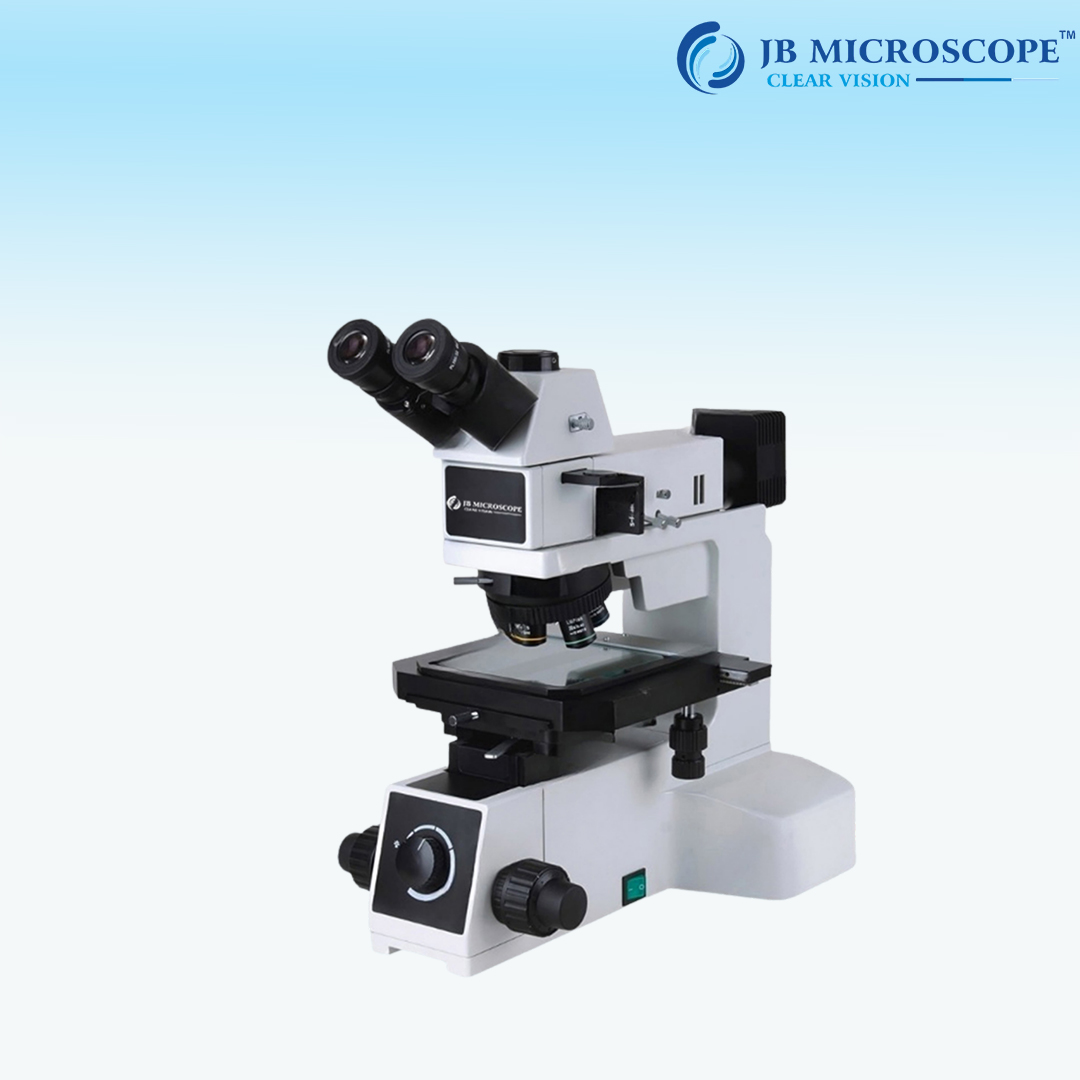

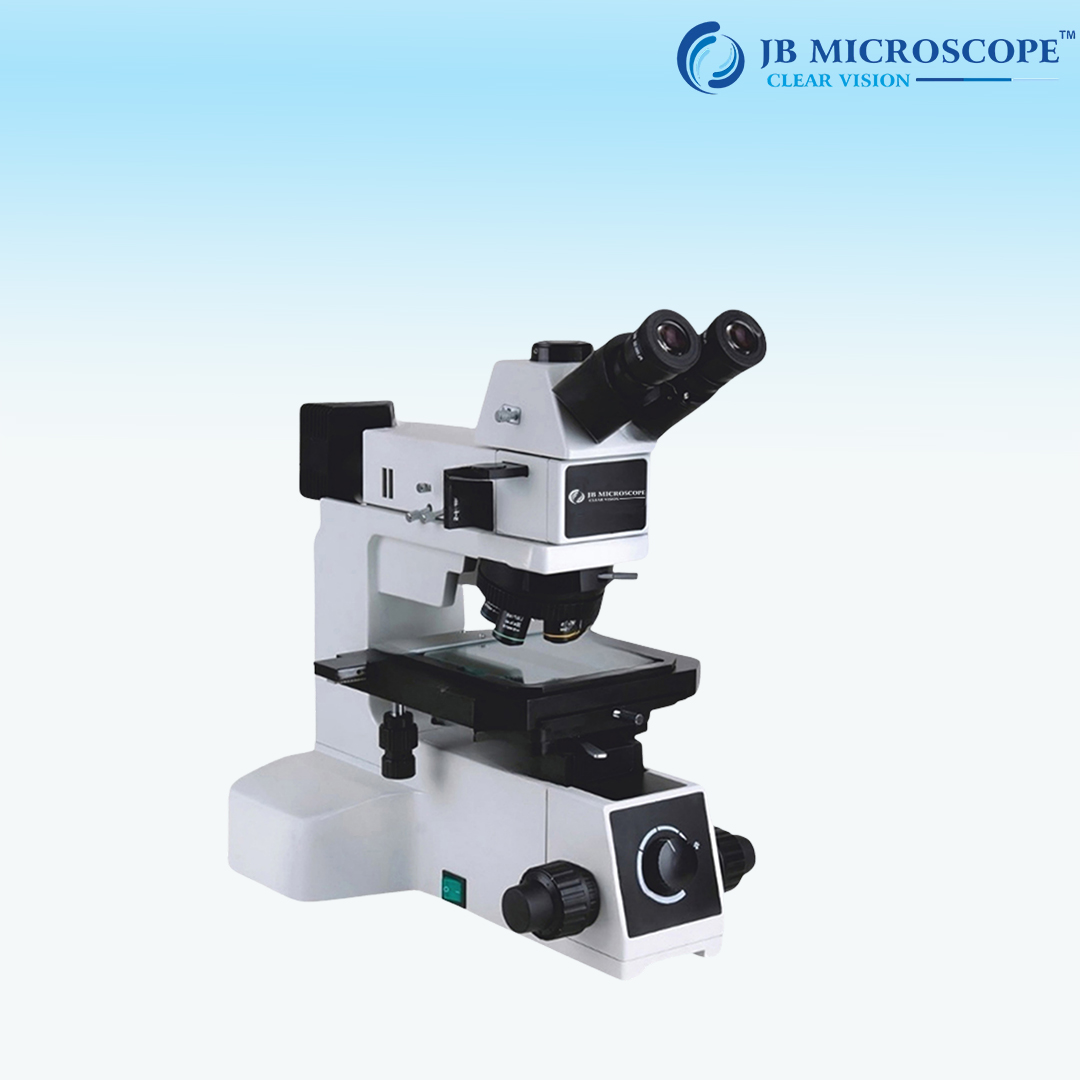

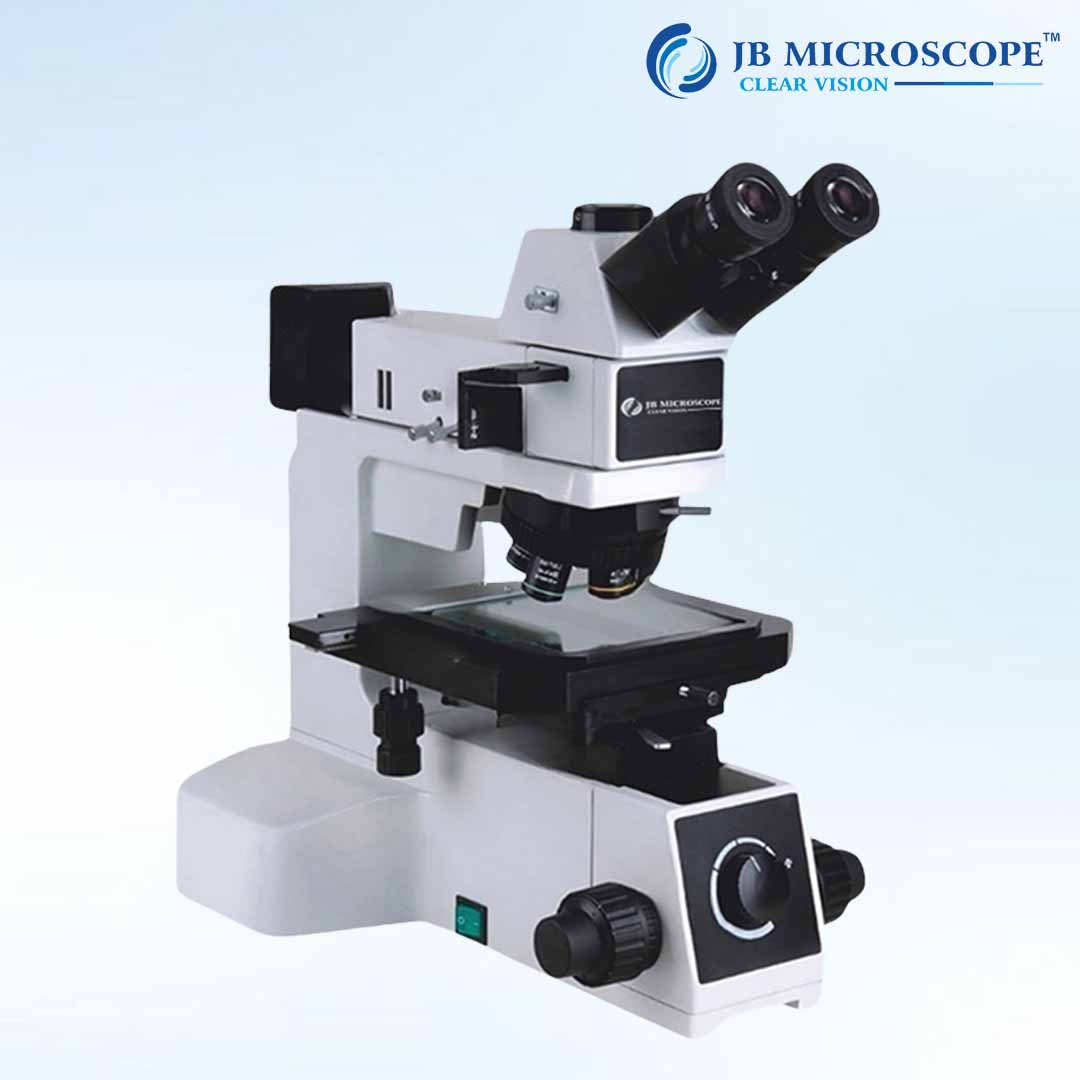

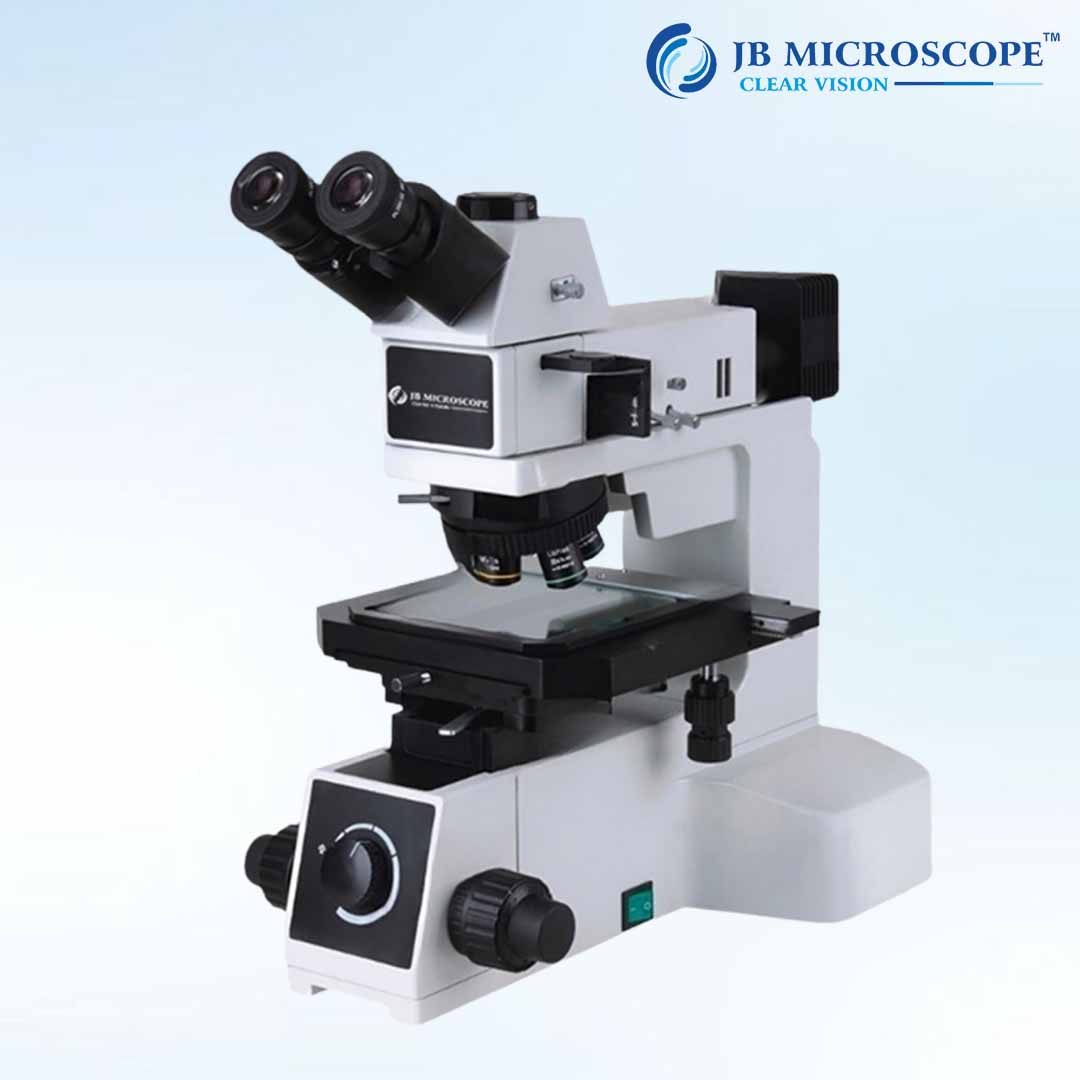

JBM-06RF Upright Metallographic Microscope (BD)

Category: Upright Microscope

Description
Reviews (0)

6R	Reflected Illumination	Reflected/ Transmitted Illumination
		6R	6RF
Eyepieces	High Eye-point Wide Field Plan Eyepiece PL10X / 22mm High Eye-point Wide Field Plan Eyepiece PL10X / 22mm, with reticle High Eye-point Wide Field Plan Eyepiece PL10X / 22mm, diopter adjustable High Eye-point Wide Field Plan Eyepiece PL10X / 22mm, diopter adjustable, with reticle High Eye-point Wide Field Plan Eyepiece PL10X / 23mm, Diopter adjustable High Eye-point Wide Field Plan Eyepiece PL15X / 16mm Hight eyepoint plan eyepiece PL10X / 25mm, Diopter adjustable Hight eyepoint plan eyepiece PL10X / 25mm, Diopter adjustable, with reticle Hight eyepoint plan eyepiece PL10X / 26.5mm, Diopter adjustable Hight eyepoint plan eyepiece PL10X / 26.5mm, Diopter adjustable, with reticle	●●	●●
Head	5-35° tilt angle adjustable, Erect image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 ( support 22/ 23/ 16mm field of view ) 30° Inclined, Erect image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 ( support 25 / 26.5mm field of view ) 30° Inclined, Inverted Image, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 or 20: 80 ( support 25/ 26.5mm field of view )	●	●
Objective 1	Infinity LWD B&D plan achromatic metallurgical objectives 5X/ 0.15 WD=9.00mm Infinity LWD B&D plan achromatic metallurgical objectives 10X/ 0.30 WD=9.00mm Infinity LWD B&D plan achromatic metallurgical objectives 20X/ 0.45 WD=3.40mm Infinity LWD Infinity plan B&D semi-aprochromatic metallurgical objectives 50X/0.55 WD=7.50mm Infinity LWD Infinity plan B&D semi-aprochromatic metallurgical objectives 100X/ 0.80 WD=2.10mm	● ● ● ●	● ● ● ●
DIC	DIC Slider (for Infinity LWD B&D plan achromatic metallurgical objectives 5x, 10x 20x)
Objective 2	B&D semi-aprochromatic metallurgical objectives 5X/0.15, WD=13.50mm B&D semi-aprochromatic metallurgical objectives 10X/0.30 WD=9.00mm B&D semi-aprochromatic metallurgical objectives 20X/0.50 WD=2.50mm LWD B&D semi-aprochromatic metallurgical objectives 20X/0.40 WD=8.50mm B&D semi-aprochromatic metallurgical objectives 50X/0.80 WD=1.00mm B&D semi-aprochromatic metallurgical objectives 100X/0.90 WD=1.00mm
DIC	DIC Slider ( for B&D semi-aprochromatic metallurgical objectives )
Condensor	B&D reflect illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field	●	●
Nosepiece	Backward quintuple nosepiece, with DIC slot	●	●
Focus	Coaxial coarse and fine adjustment, coarse adjustment 33mm, precision of fine adjustment:0.001mm, with coarse adjustment stop and tightness adjustment	●	●
Stage	6″ double layers mechanical stage 445x240mm, Reflected Light moving range 158x158mm, Transmitted Light moving range 100x100mm, with glass insert, right hand position X-Y moving hand wheel, with glass work plate ( Reflected / Transmitted ) 4” platform adapter interface ( Reflected ) 4″ double layers mechanical stage 230X215mm, moving range 105x105mm, with metal work plate, right hand position X-Y moving hand wheel ( Reflected ) 4″ double layers mechanical stage 230x215mm, moving range 105x105mm, with glass insert, left hand position X-Y moving hand wheel, ( Reflected ) 4-inch platform adapter interface ( Reflected / Transmitted ) 4″ double layers mechanical stage 230x215mm, moving range 105x105mm, with glass insert, low hand position X-Y moving hand wheel, with glass work plate ( Reflected / Transmitted )	●	●
Refelcted Illumination	12V100W Halogen lamp house, Pre-Centering 12V100W Halogen lamp	● ●	● ●
Transmitted Illumination	Built-in 5W LED transmitted light illumination system		●
Polarizing kits	Polarizer ( for reflection ) 360° Rrotatable analyzer Fixed analyzer ( for reflection )	● ●	● ●
Accessories	6 inch Rrotatable plate, apply to 4, 5, 6 inch Wafer
IF Filter	Blue IF Filter, ( for reflection ): ≤ 480nm Green IF Filter, ( for reflection ): 520-570nm Red IF Filter, ( for reflection ): 630-750nm Natural IF Filter, ( for reflection )
Camera adapter Accessories	0.35X camera adapter, C-type interface, adjustable 0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable	●	●
Micrometer Accessories	High-precision micrometer, grid value 0.01mm Standard micrometer, grid value 0.01mm
