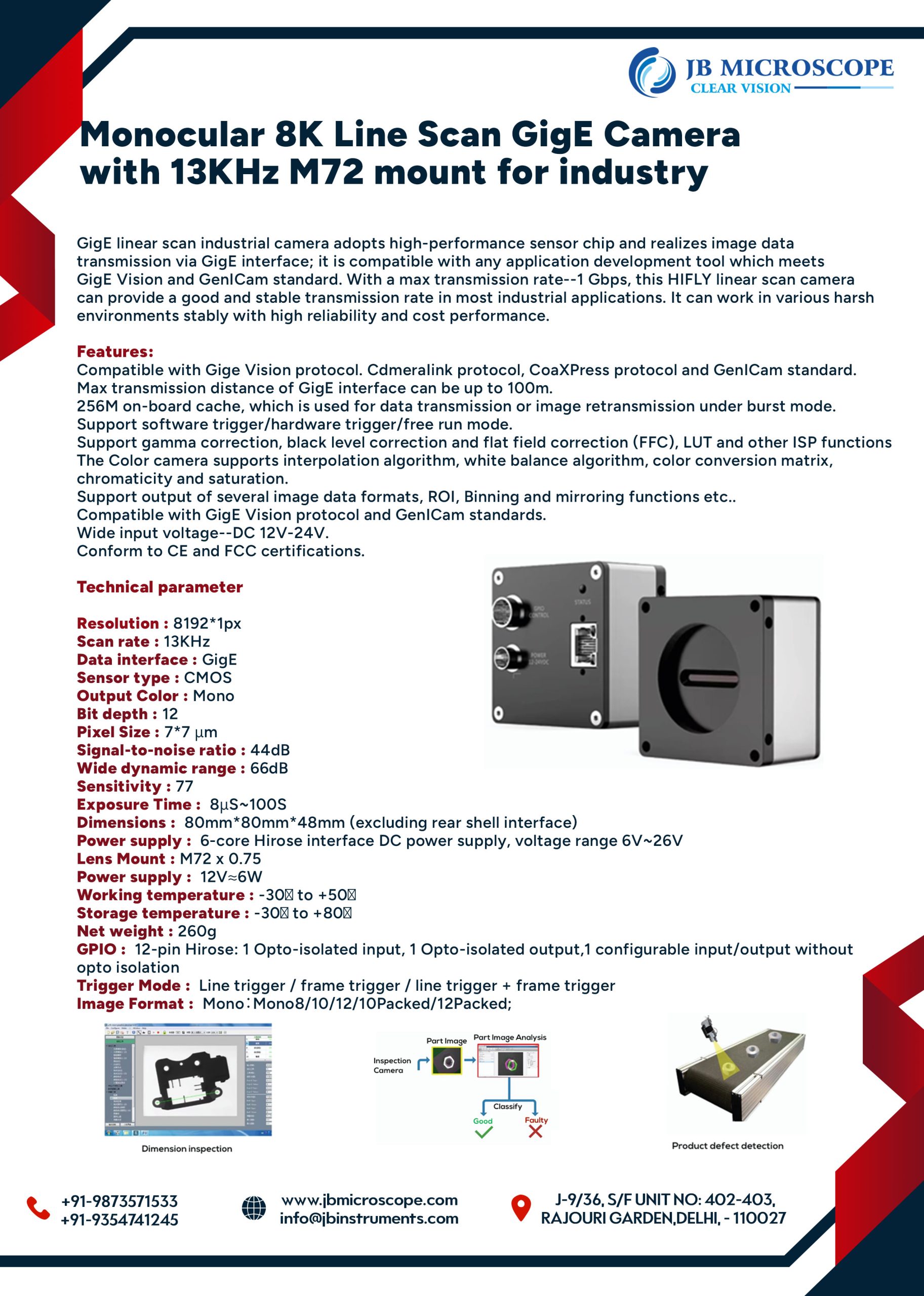

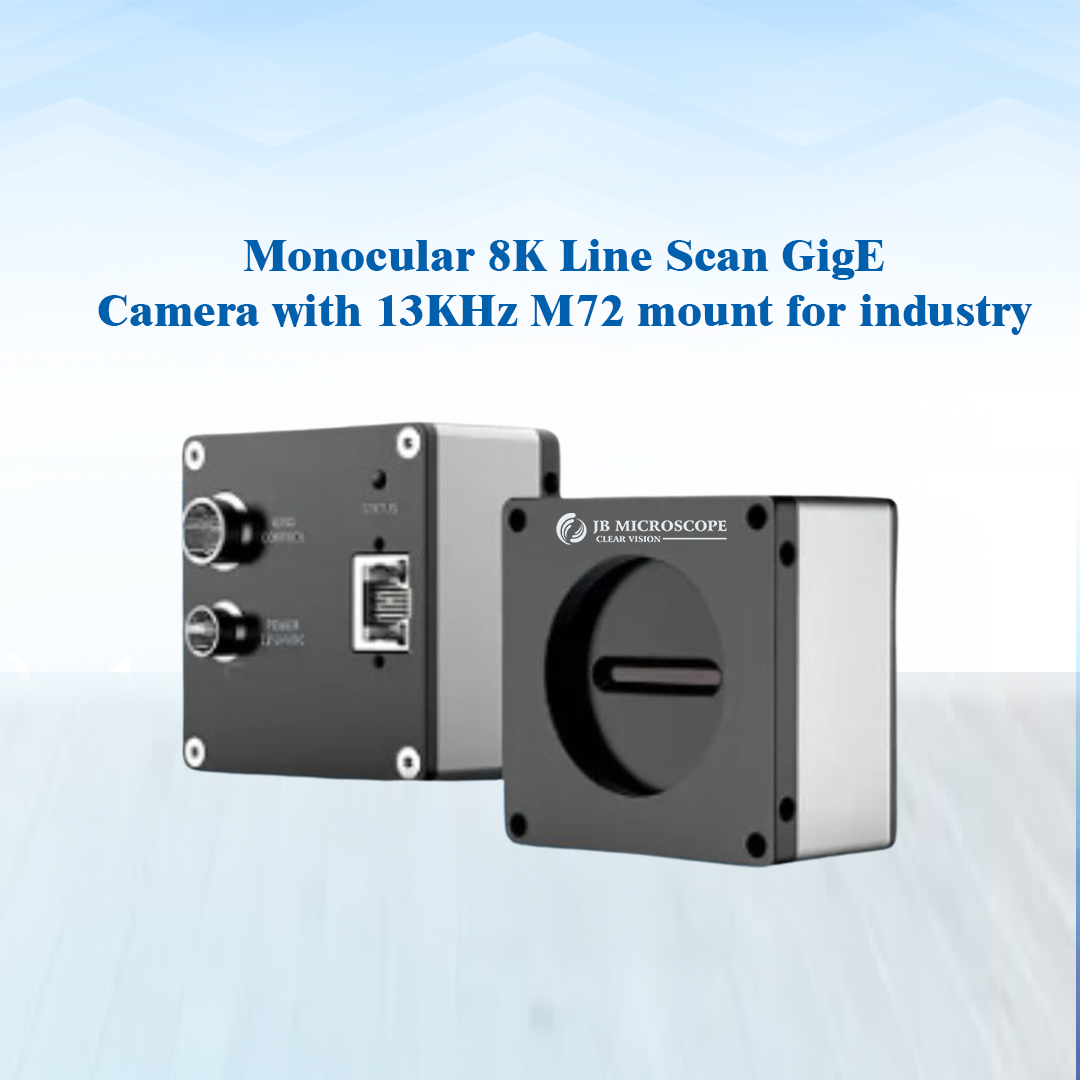

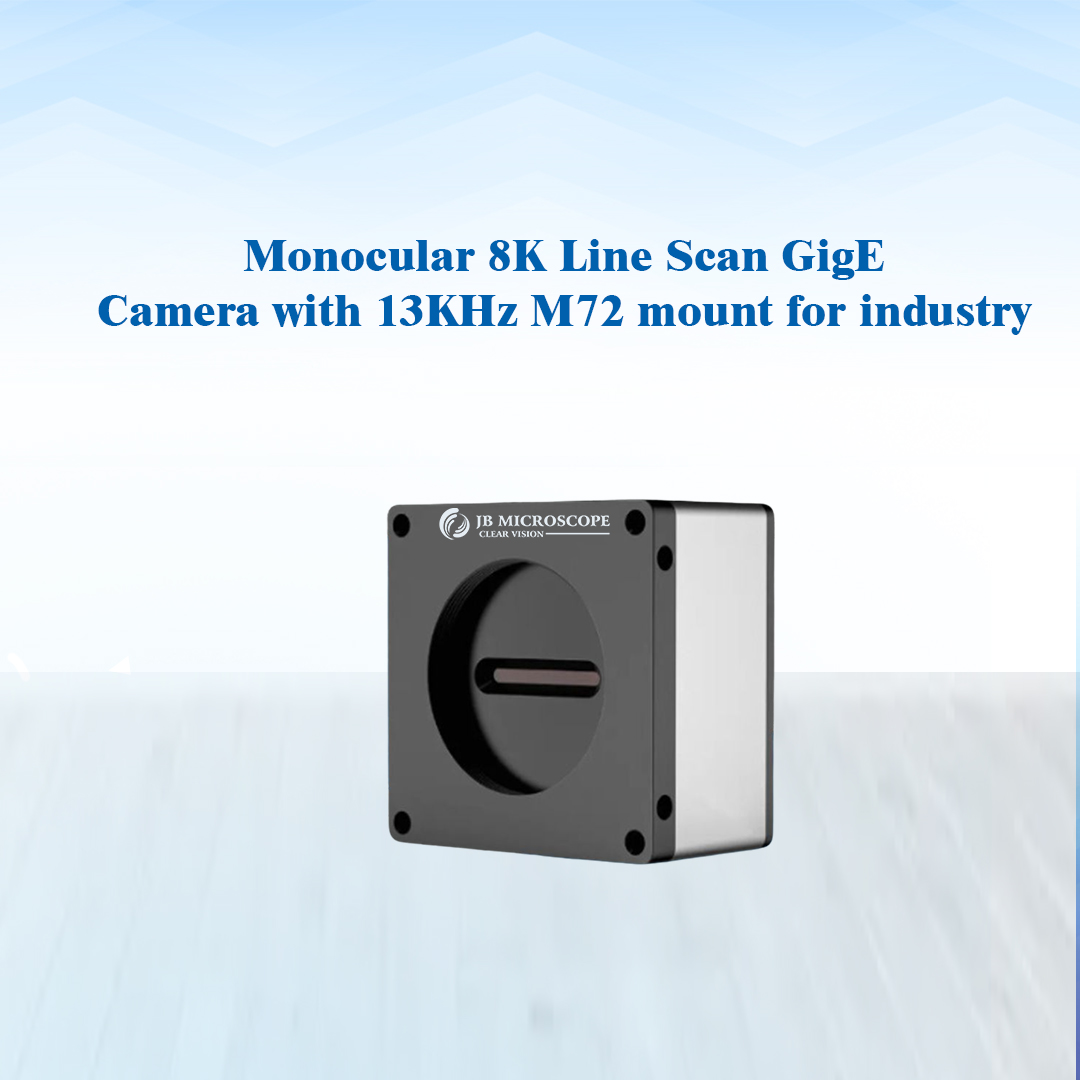

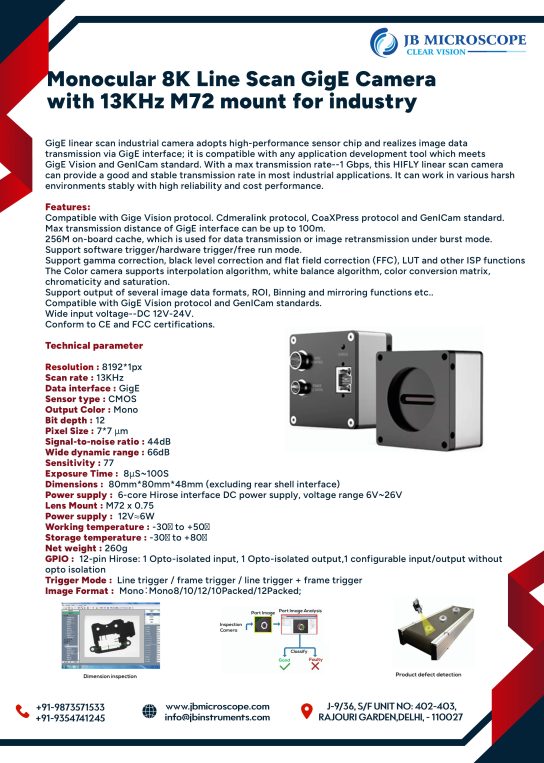

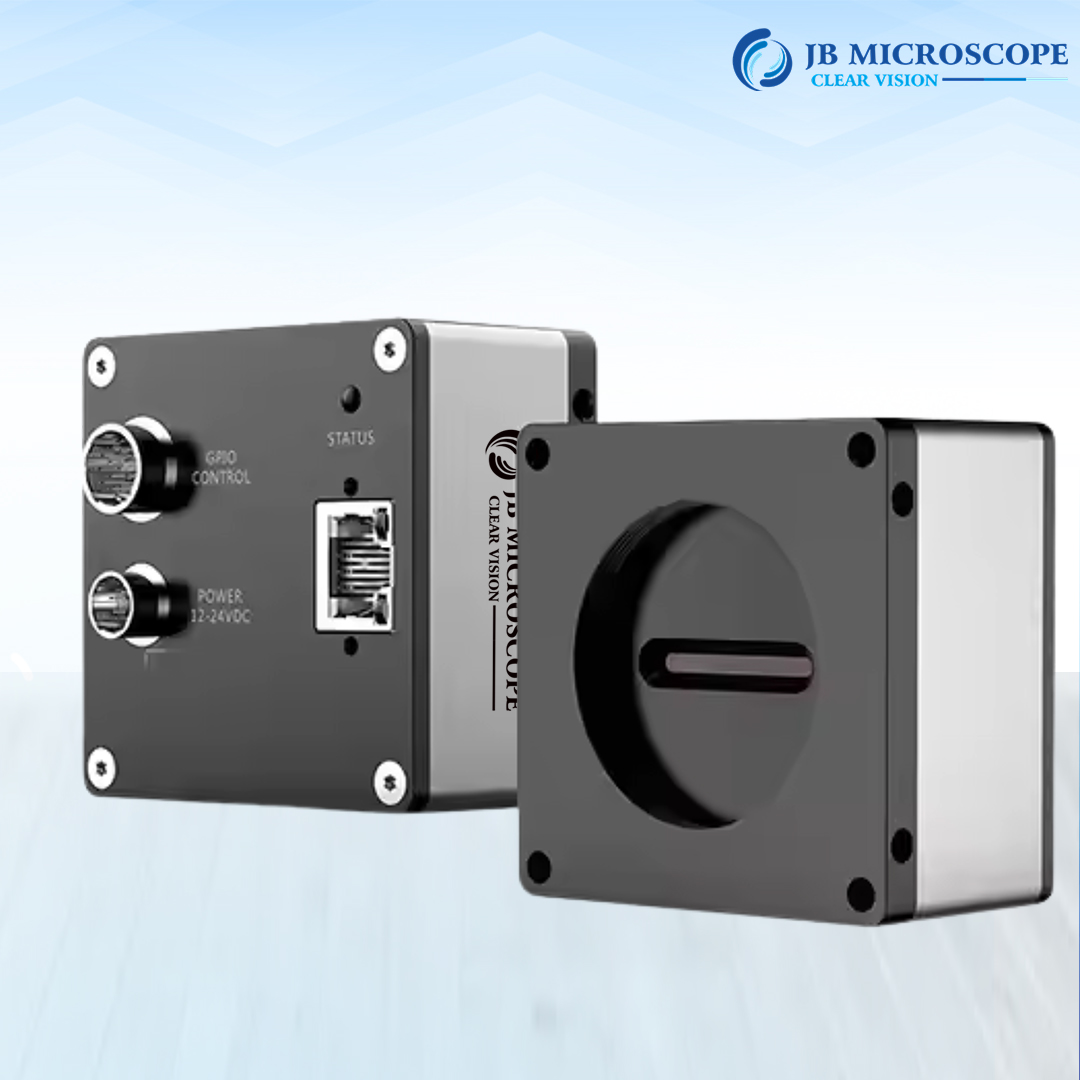

Monocular 8K Line Scan GigE Camera with 13KHz M72 mount for industry.

Features:

• Compatible with Gige Vision protocol. CdmeraIink protocol, CoaXPress protocol and GenICam standard.
• Max transmission distance of GigE interface can be up to 100m.
• 256M on-board cache, which is used for data transmission or image retransmission under burst mode.
• Support software trigger/hardware trigger/free run mode.
• Support gamma correction, black level correction and flat field correction (FFC), LUT and other ISP functions
• The Color camera supports interpolation algorithm, white balance algorithm, color conversion matrix, chromaticity and saturation.
• Support output of several image data formats, ROI, Binning and mirroring functions etc..
• Compatible with GigE Vision protocol and GenICam standards.
• Wide input voltage–DC 12V-24V.
• Conform to CE and FCC certifications.

Category:

Specification:



Resolution: 8192 * 1 px

Scan rate: 13KHz

Data Interface: GigE

Sensor type: CMOS

Output Color: Mono

Bit depth: 12

Pixel Size: Pixel Size

Signal-to-noise ratio: 44 dB

Wide dynamic range: 66 dB

Sensitivity: 77

Exposure Time: 8μS~100S

Dimensions: 80mm*80mm*48mm (excluding rear shell interface)

Power supply: 6-core Hirose interface DC power supply, voltage range 6V~26V

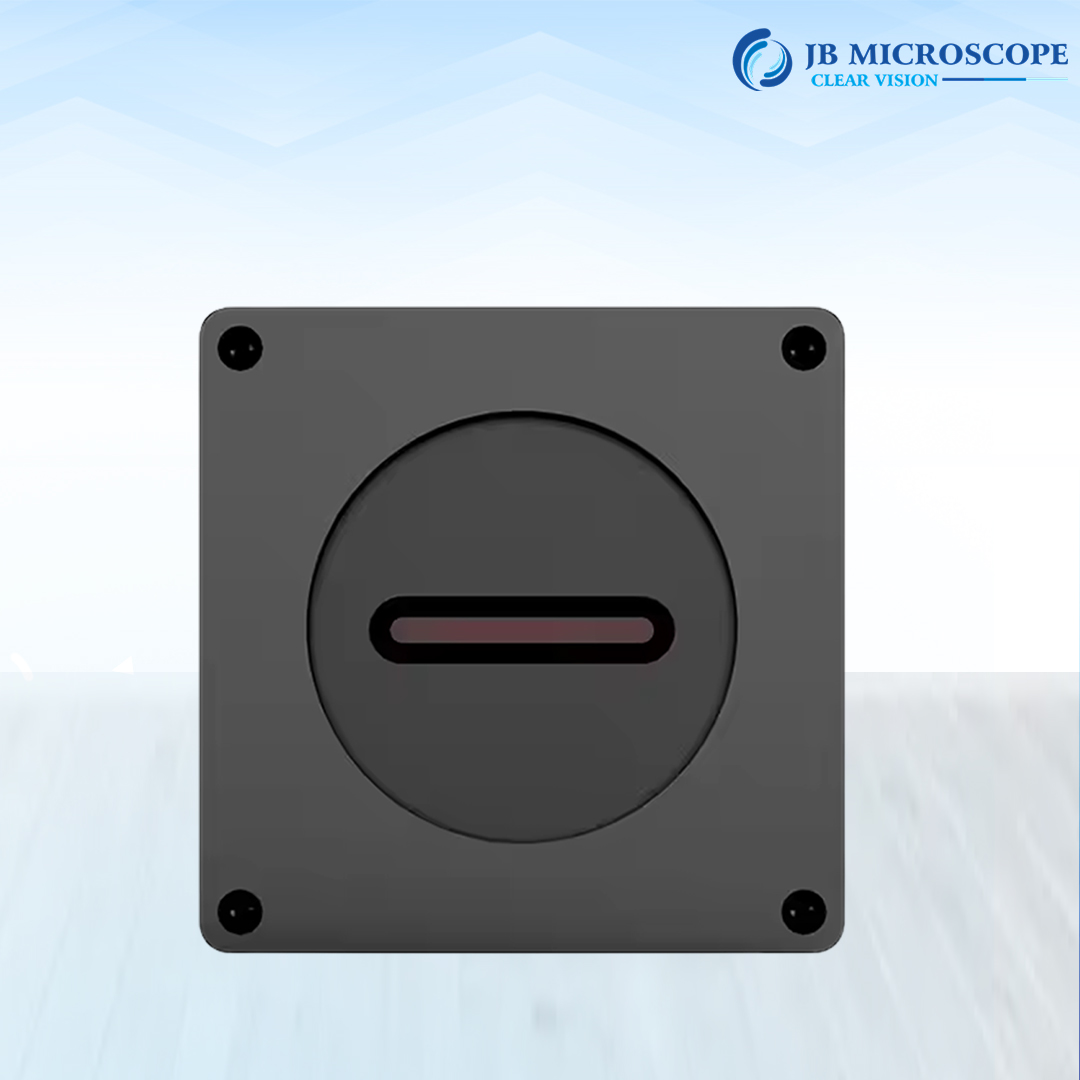

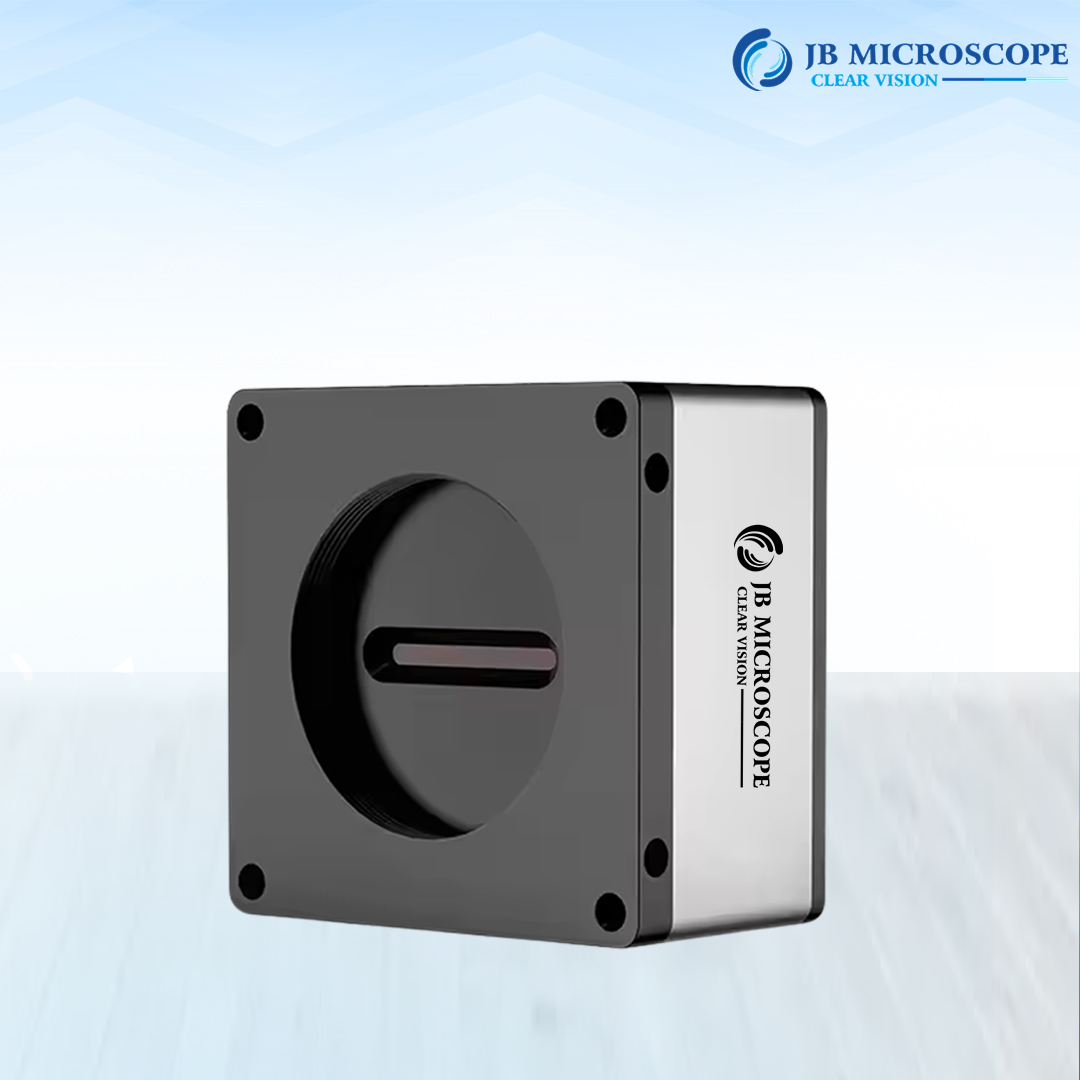

Lens Mount: M72 x 0.75

Power Consumption: 12V≈6W

Working temperature: -30℃ to +50℃

Storage temperature: -30℃ to +80℃

Net weight: 260g

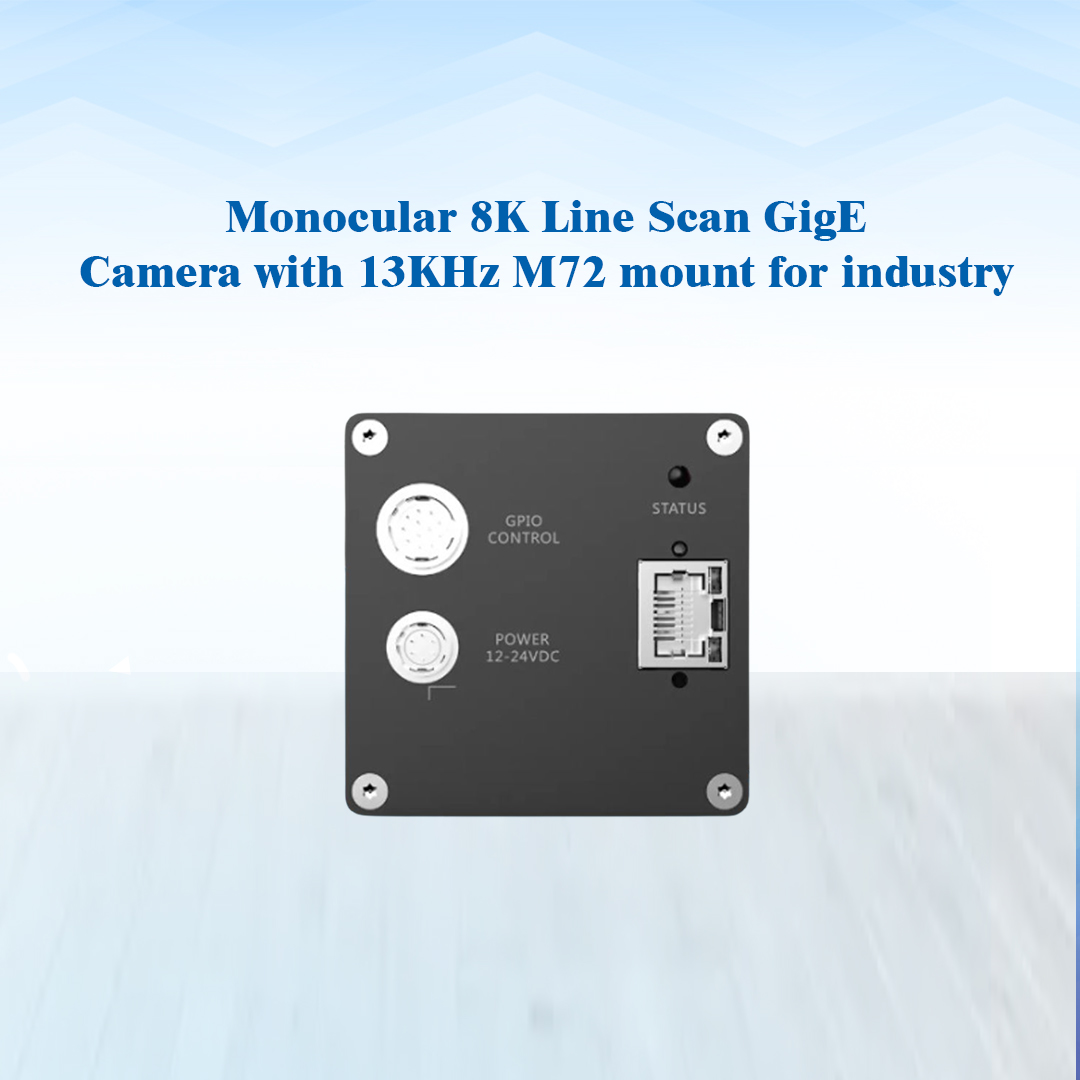

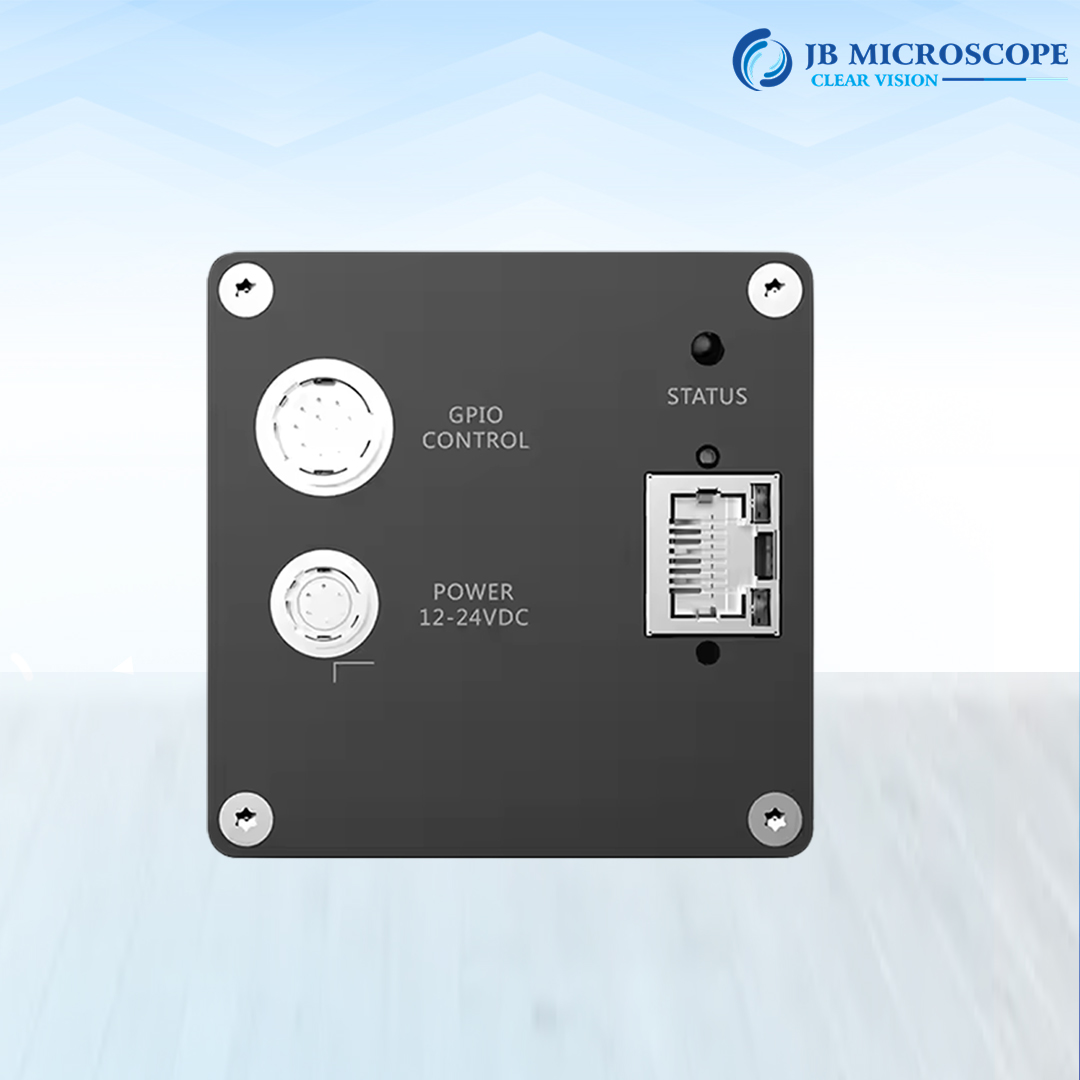

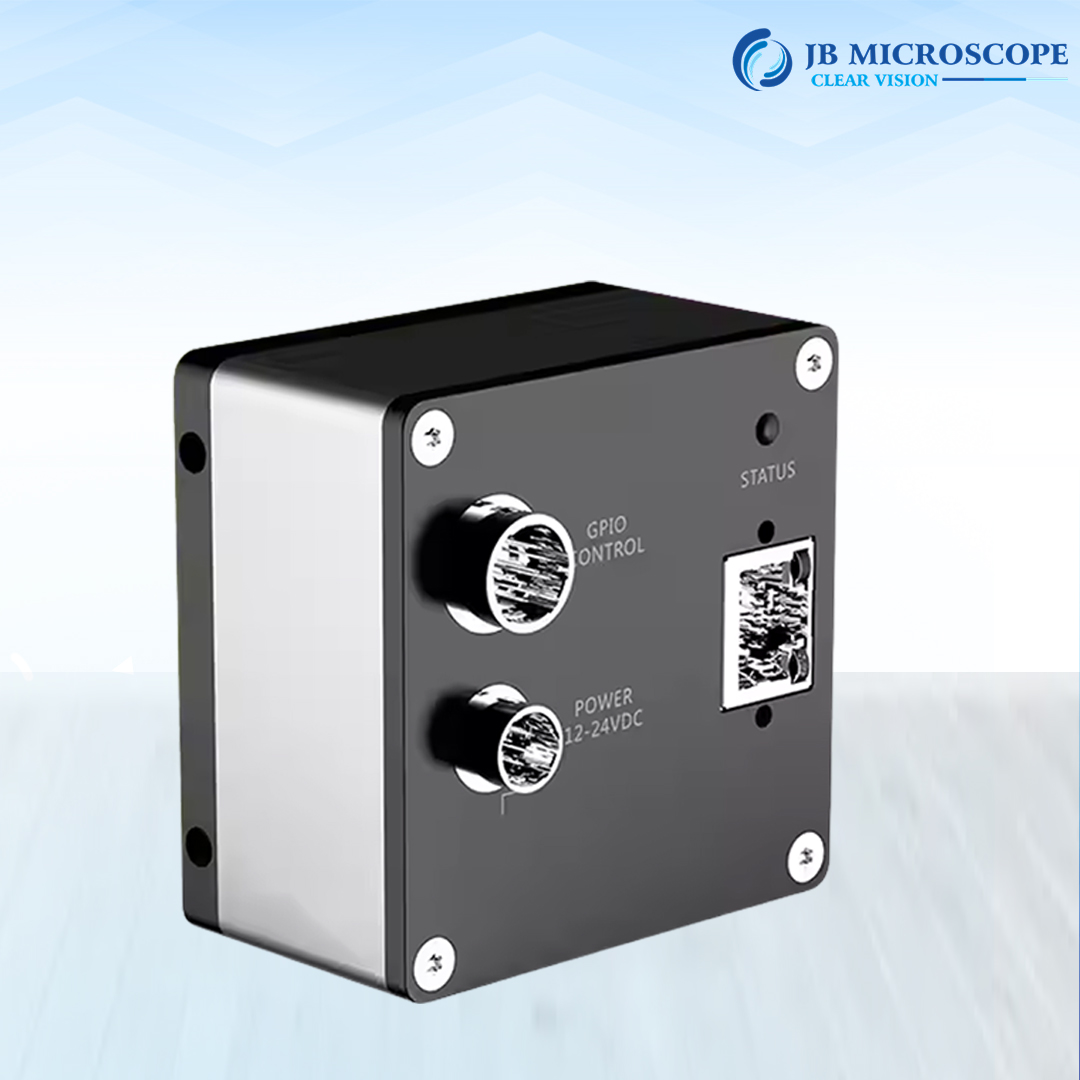

GPIO: 12-pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output,1 configurable input/output without opto isolation

Trigger Mode: Line trigger / frame trigger / line trigger + frame trigger

Image format: Mono：Mono8/10/12/10Packed/12Packed;
