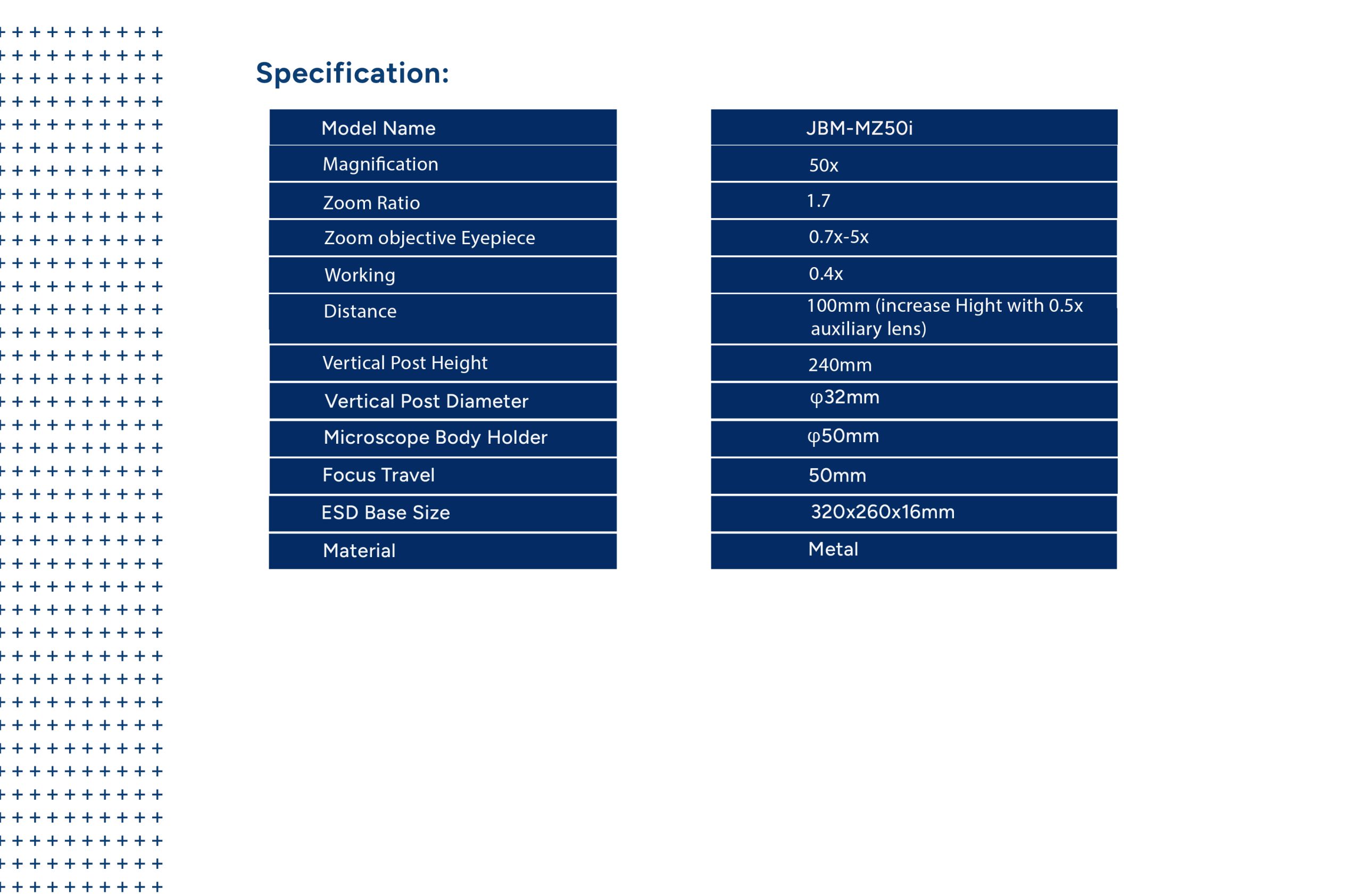

Specifications:
Zoom Ratio : 1.7
Zoom objective Eyepiece : 0.7x-5x
Working : 0.4x
Distance : 100mm (increase hight with 0.5x auxiliary lens)
Vertical Post Height : 240mm
Vertical Post Diameter : φ32mm
Microscope Body Holder : φ50mm
Focus Travel : 50mm
ESD Base Size : 320x260x16mm
Material : Metal

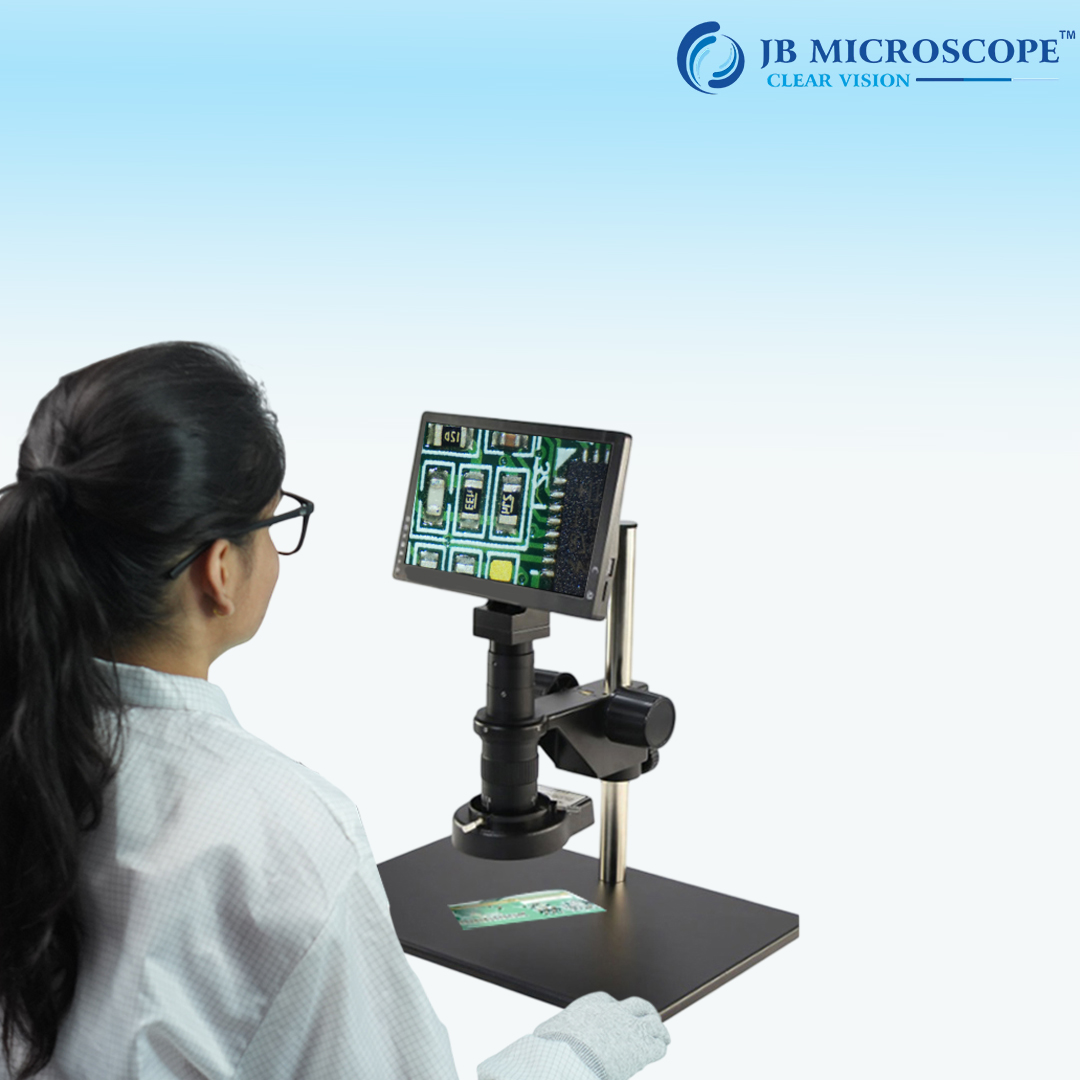

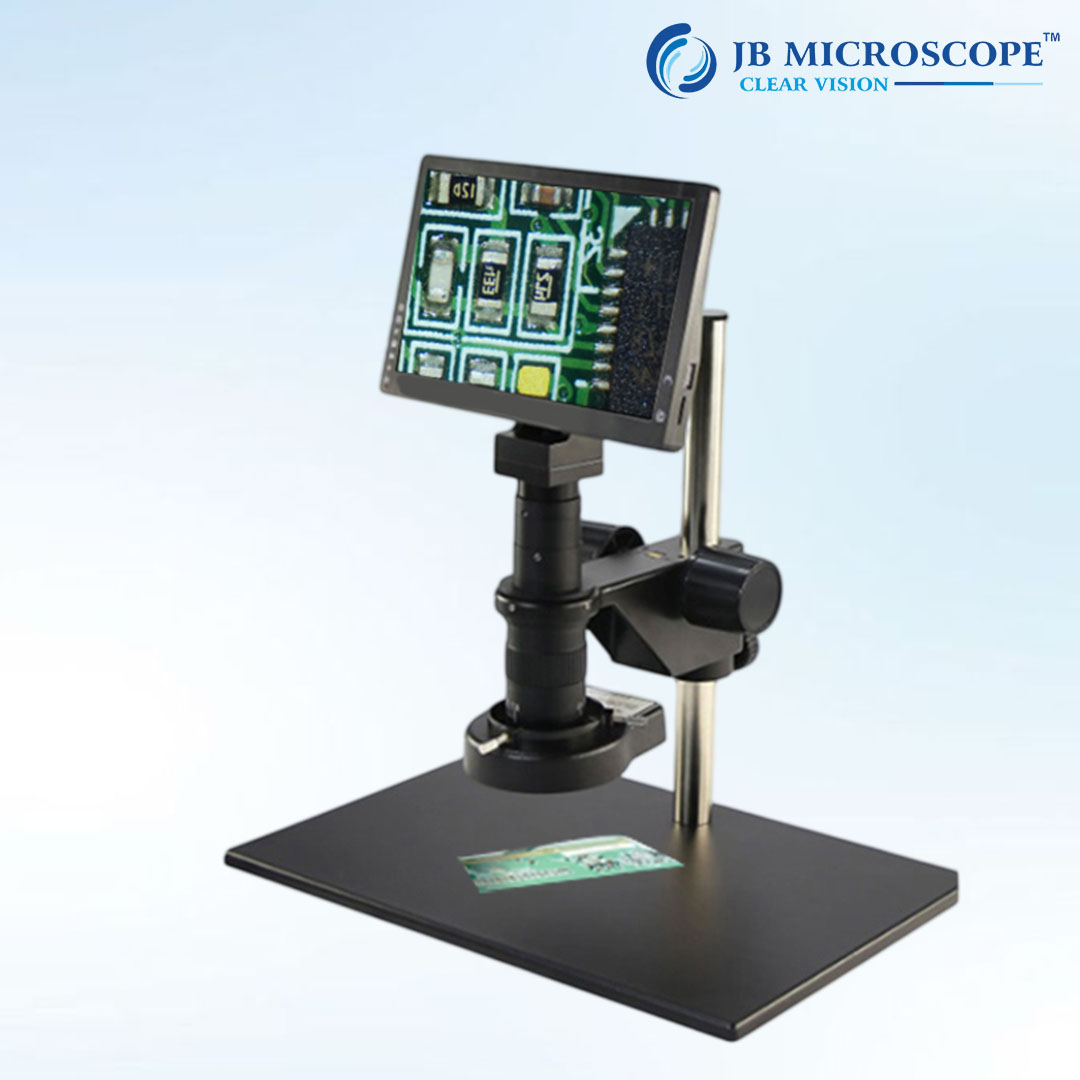

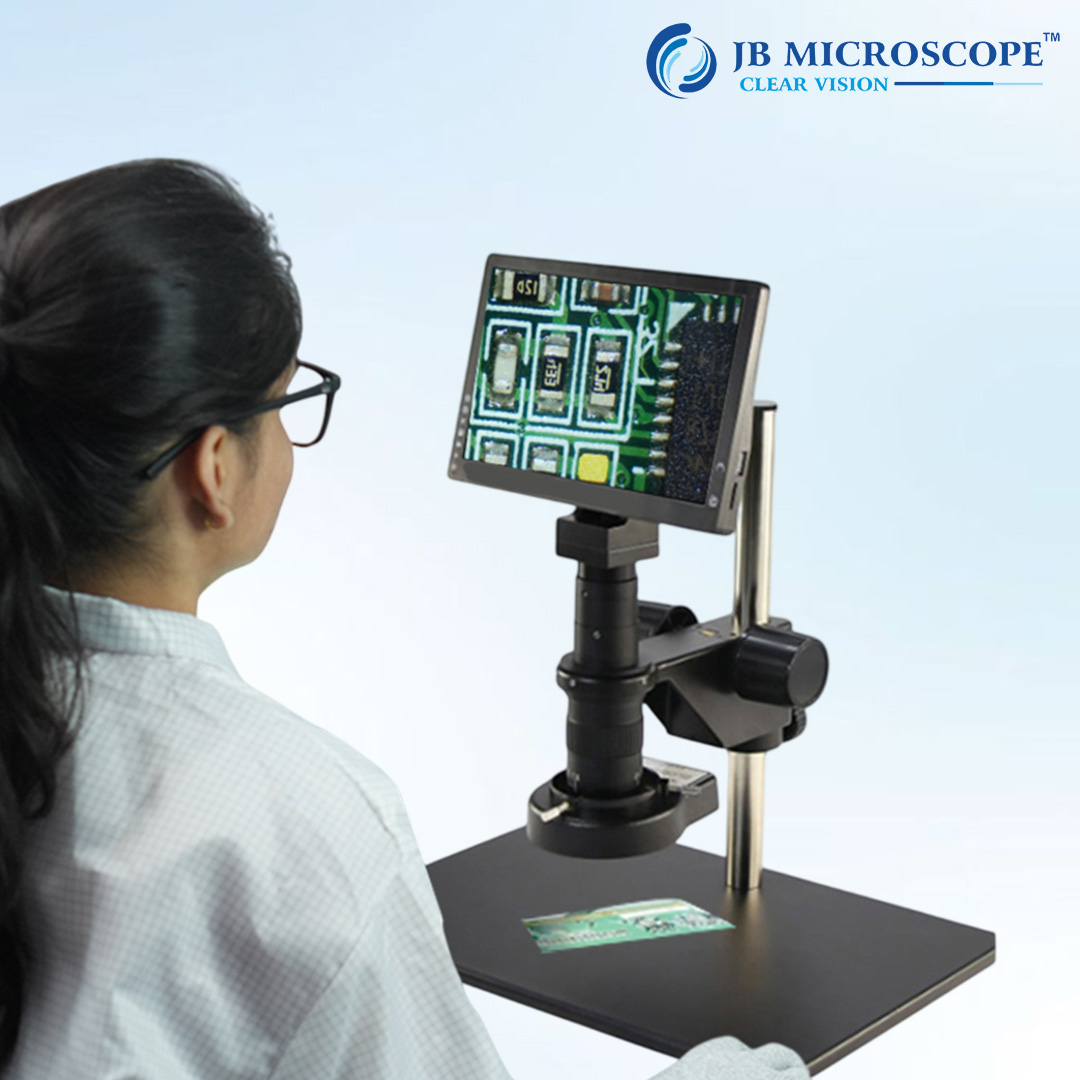

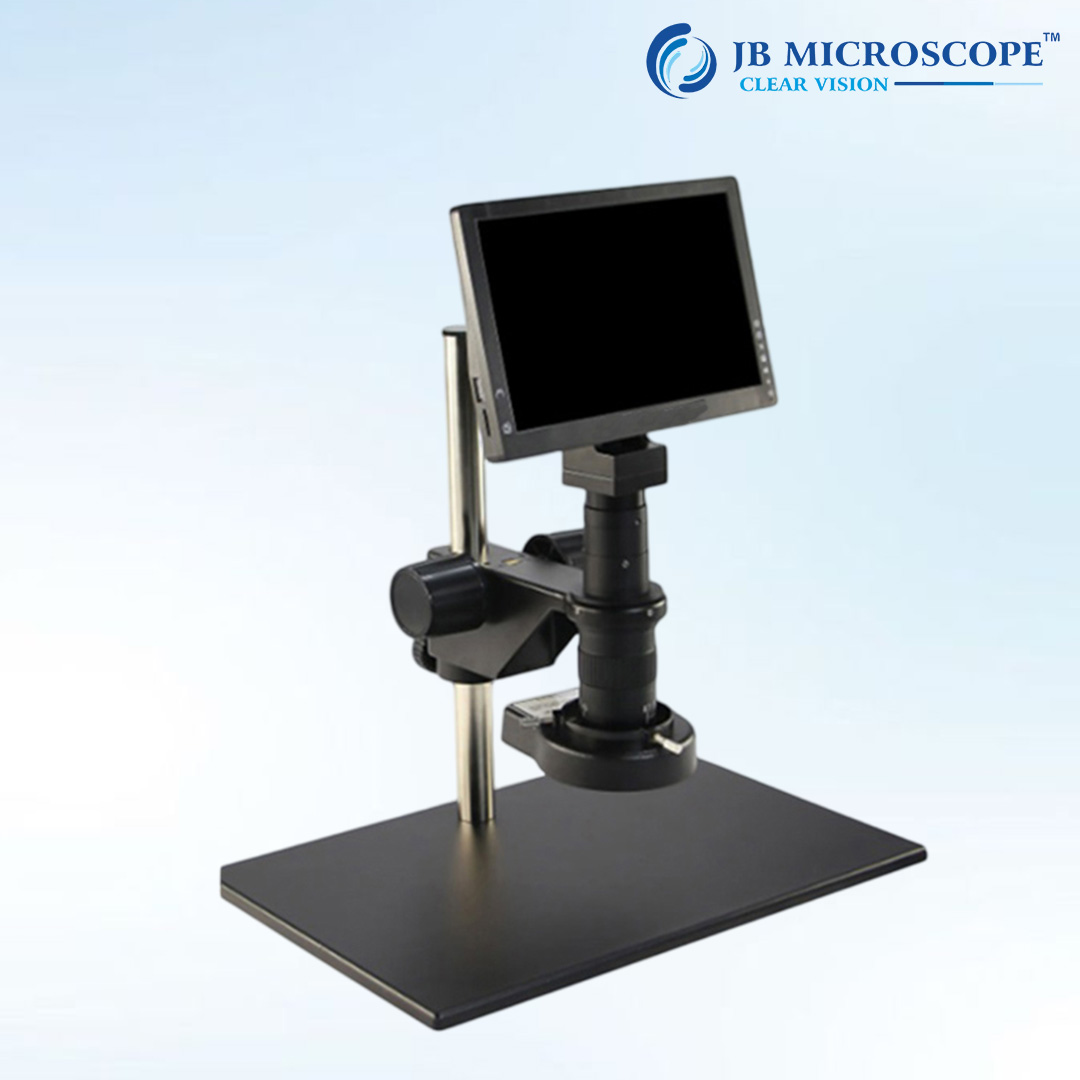

JBM-MZ50i + ANDROID SCREEN + ACCESSORIES Camera

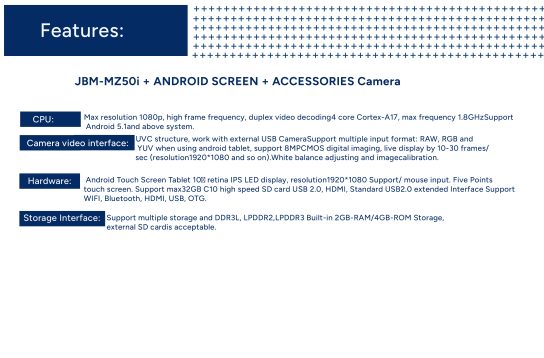

Features :
CPU: Max resolution 1080p, high frame frequency, duplex video decoding
4 core Cortex-A17, max frequency 1.8GHzSupport Android 5.1
and above system.
Storage Interface : Support multiple storage and DDR3L, LPDDR2,
LPDDR3 Built-in 2GB-RAM/4GB-ROM Storage, external SD card
is acceptable.
Camera video interface : UVC structure, work with external USB Camera
Support multiple input format : RAW, RGB and YUV when using android
tablet, support 8MP CMOS digital imaging , live display by 10-30 frames/
sec (resolution1920*1080 and so on). White balance adjusting and image
calibration.
Hardware : Android Touch Screen Tablet 10″ retina IPS LED display, resolution
1920*1080 Support/ mouse input. Five Points touch screen. Support max
32GB C10 high speed SD card USB 2.0, HDMI, Standard USB2.0 extended
Interface Support WIFI, Bluetooth, HDMI, USB, OTG.

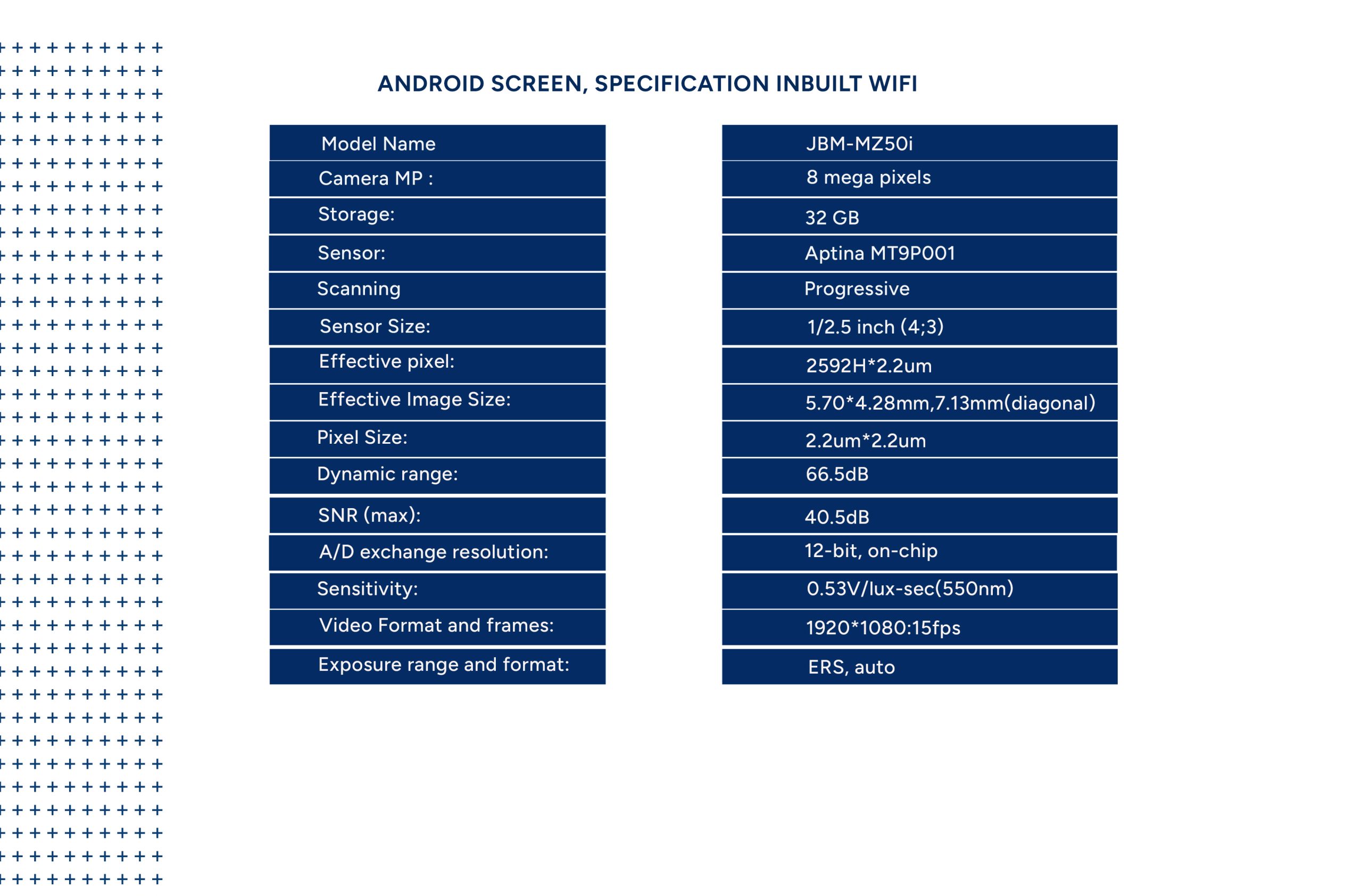

ANDROID SCREEN, SPECIFICATION INBUILT WIFI
Camera MP : 8 mega pixel
Storage : 32 GB
Sensor : Aptina MT9P001
Scanning : Progressive
Sensor Size : 1/2.5 inch(4;3)
Effective pixel : 2592H*2.2um
Effective Image Size : 5.70*4.28mm,7.13mm(diagonal)
Pixel Size : 2.2um*2.2um
Dynamic range : 66.5dB
SNR (max) : 40.5dB
A/D exchange resolution : 12-bit, on-chip
Sensitivity : 0.53V/lux-sec(550nm)
Video Format and frames : 1920*1080:15fps
Exposure range and format : ERS, auto
