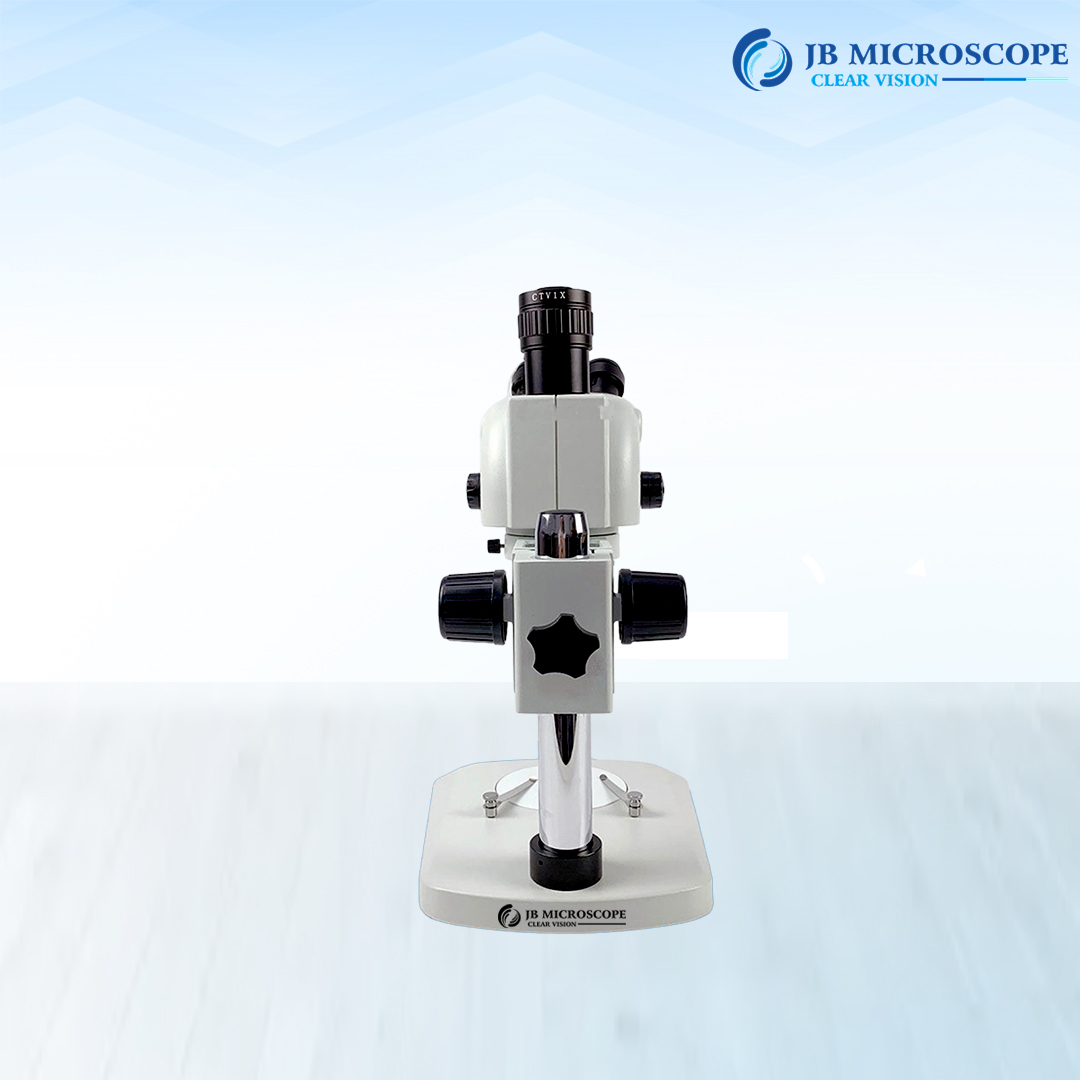

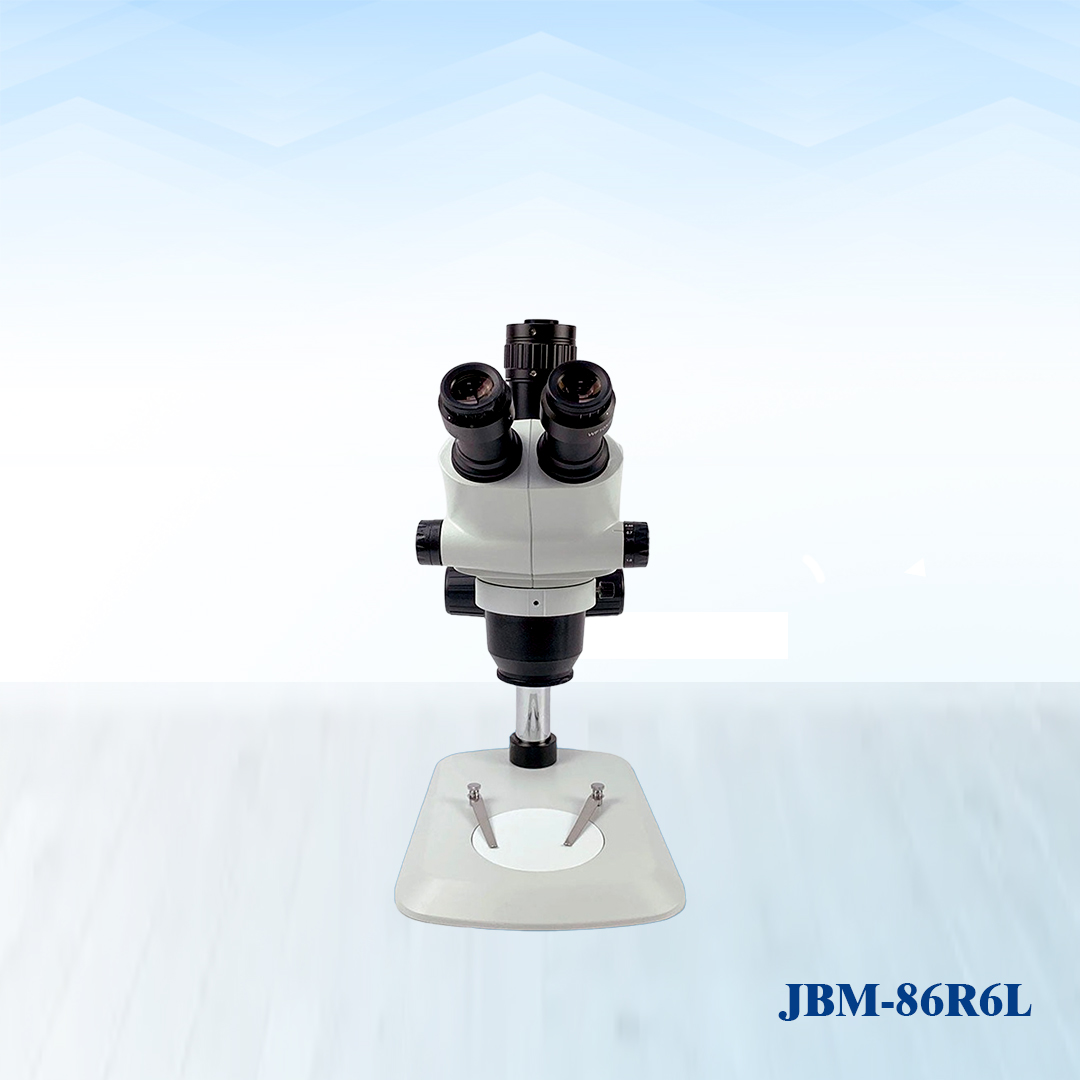

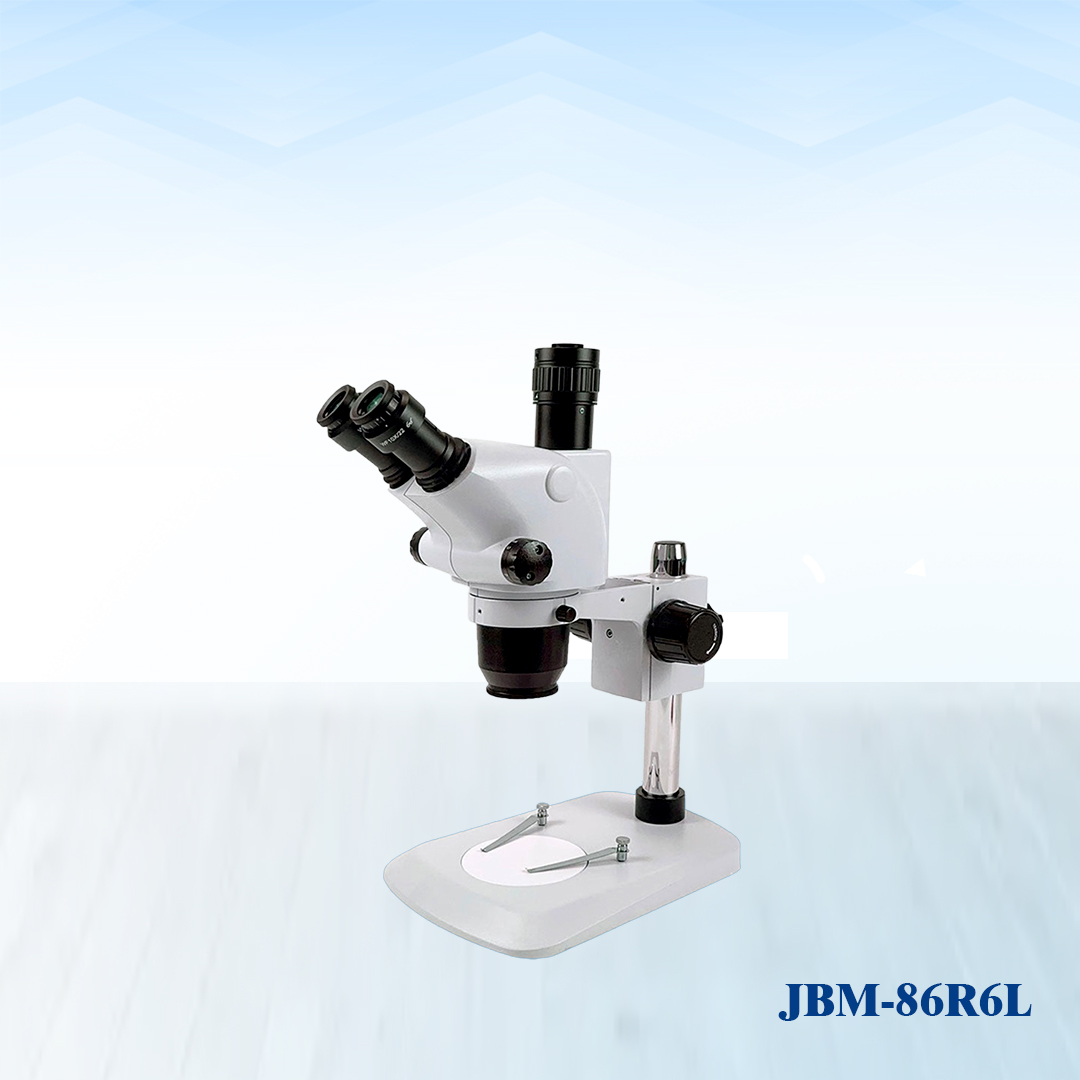

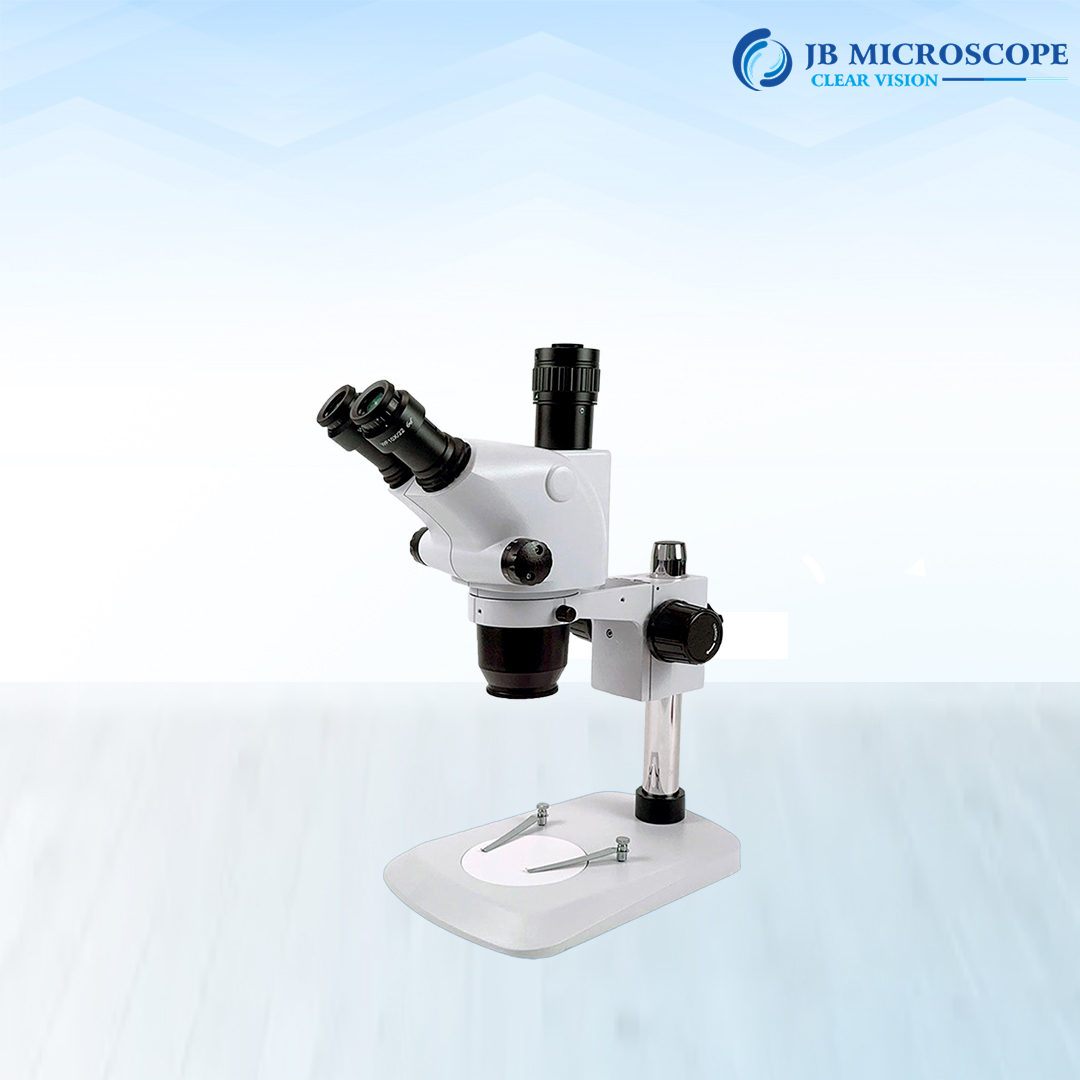

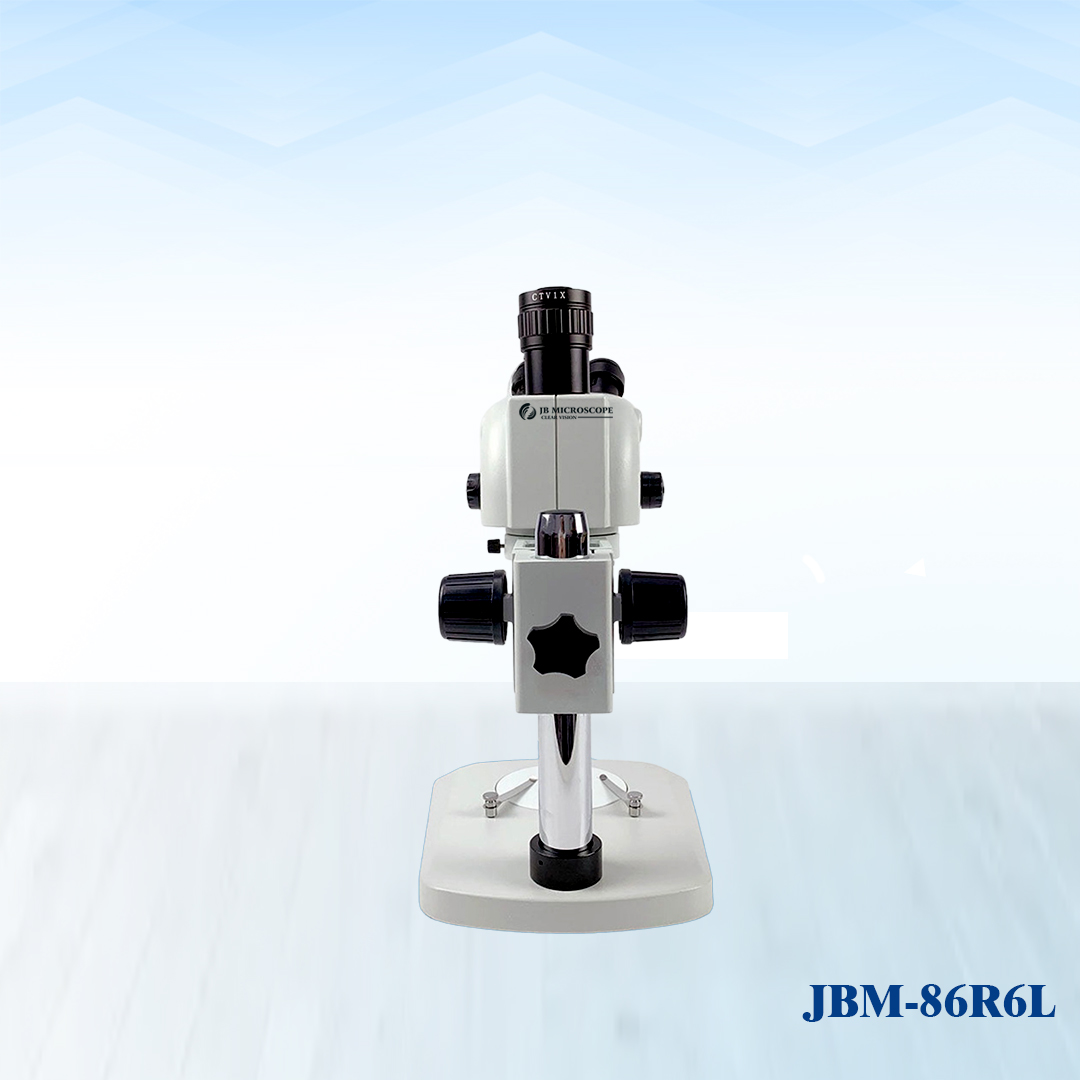

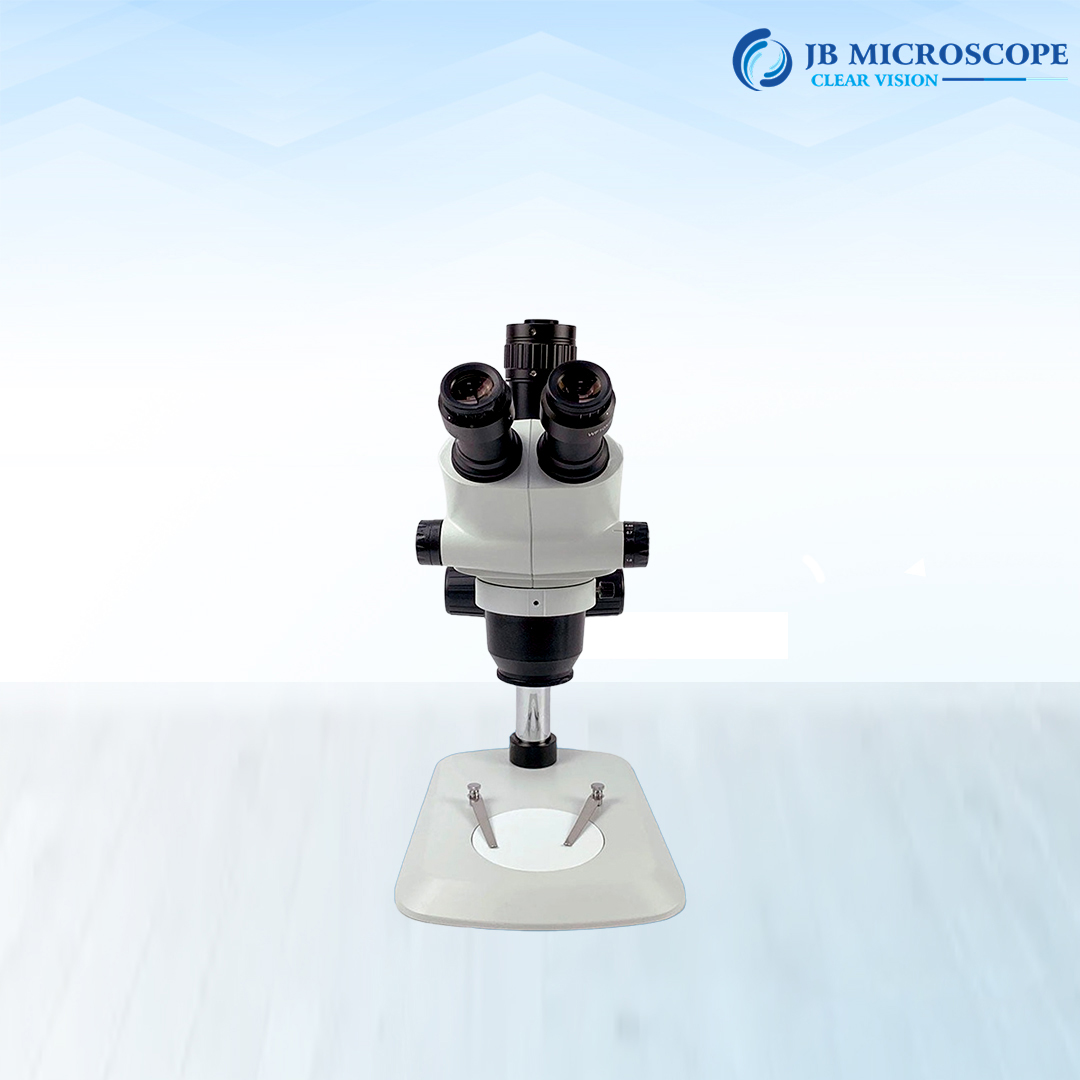

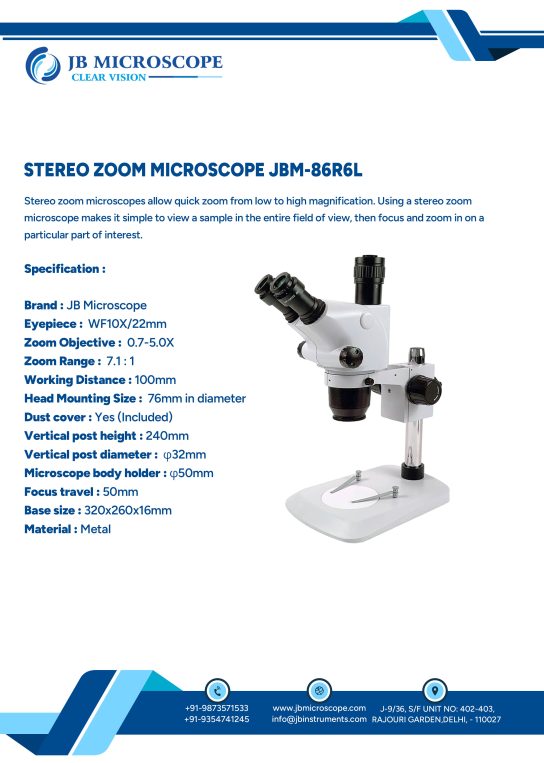

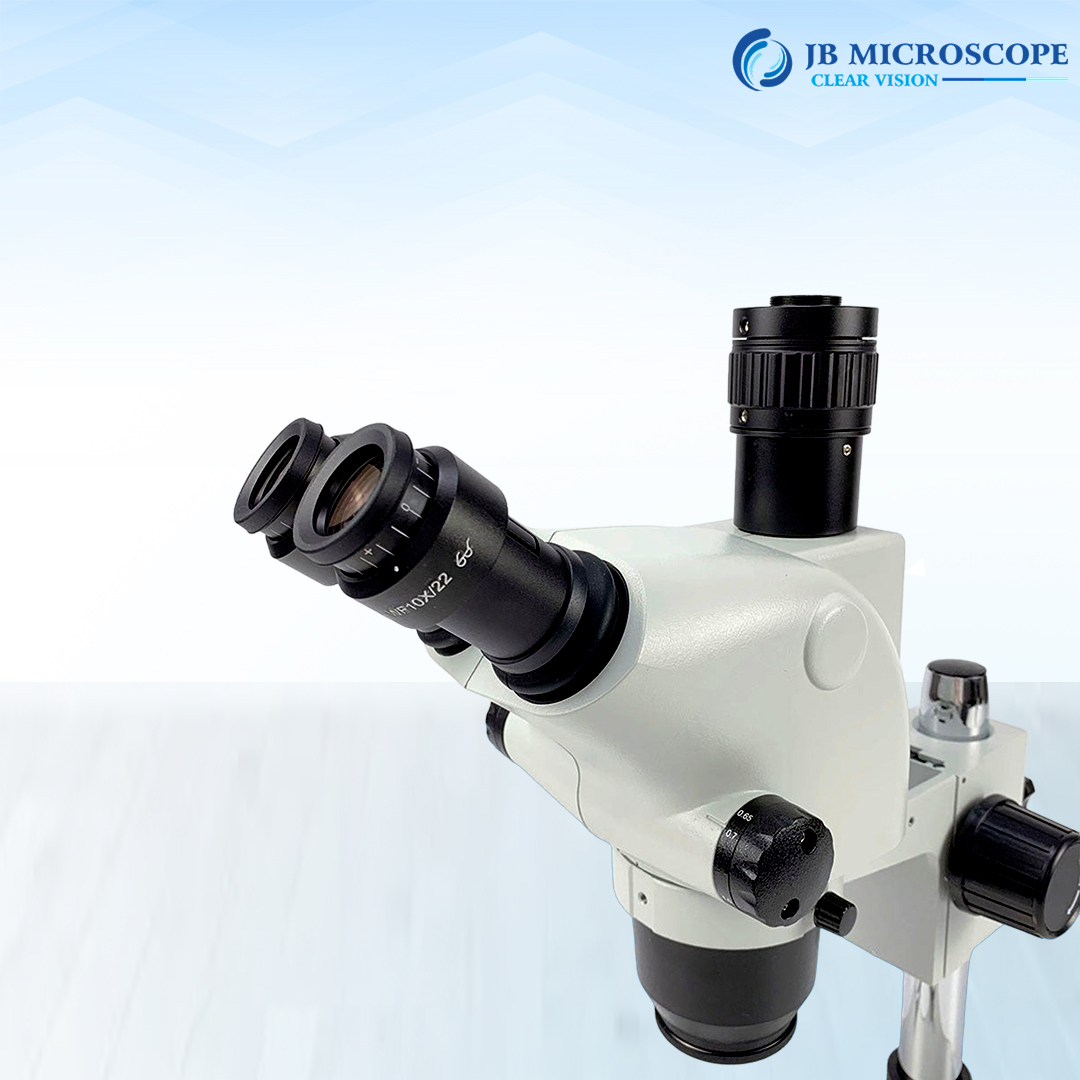

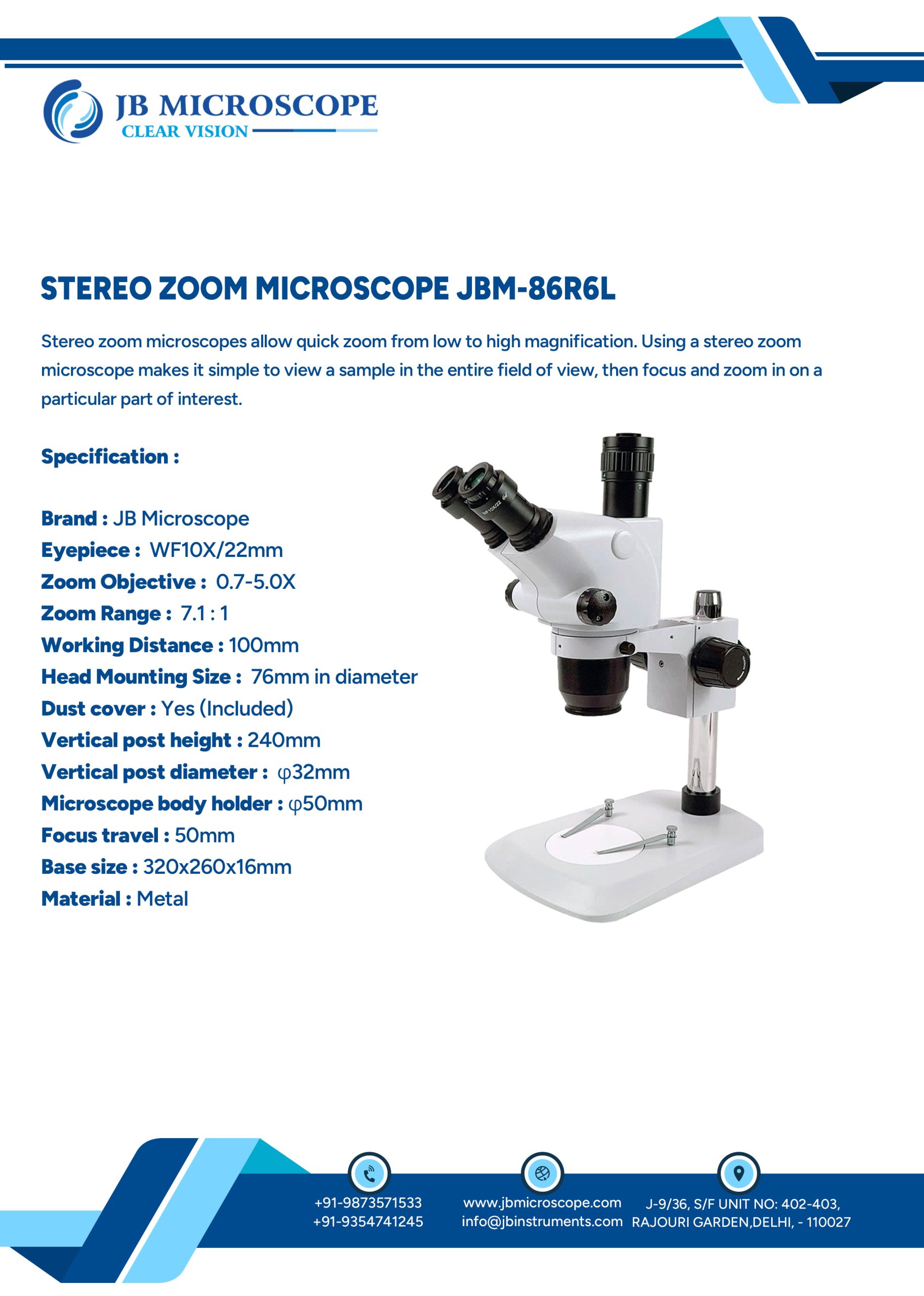

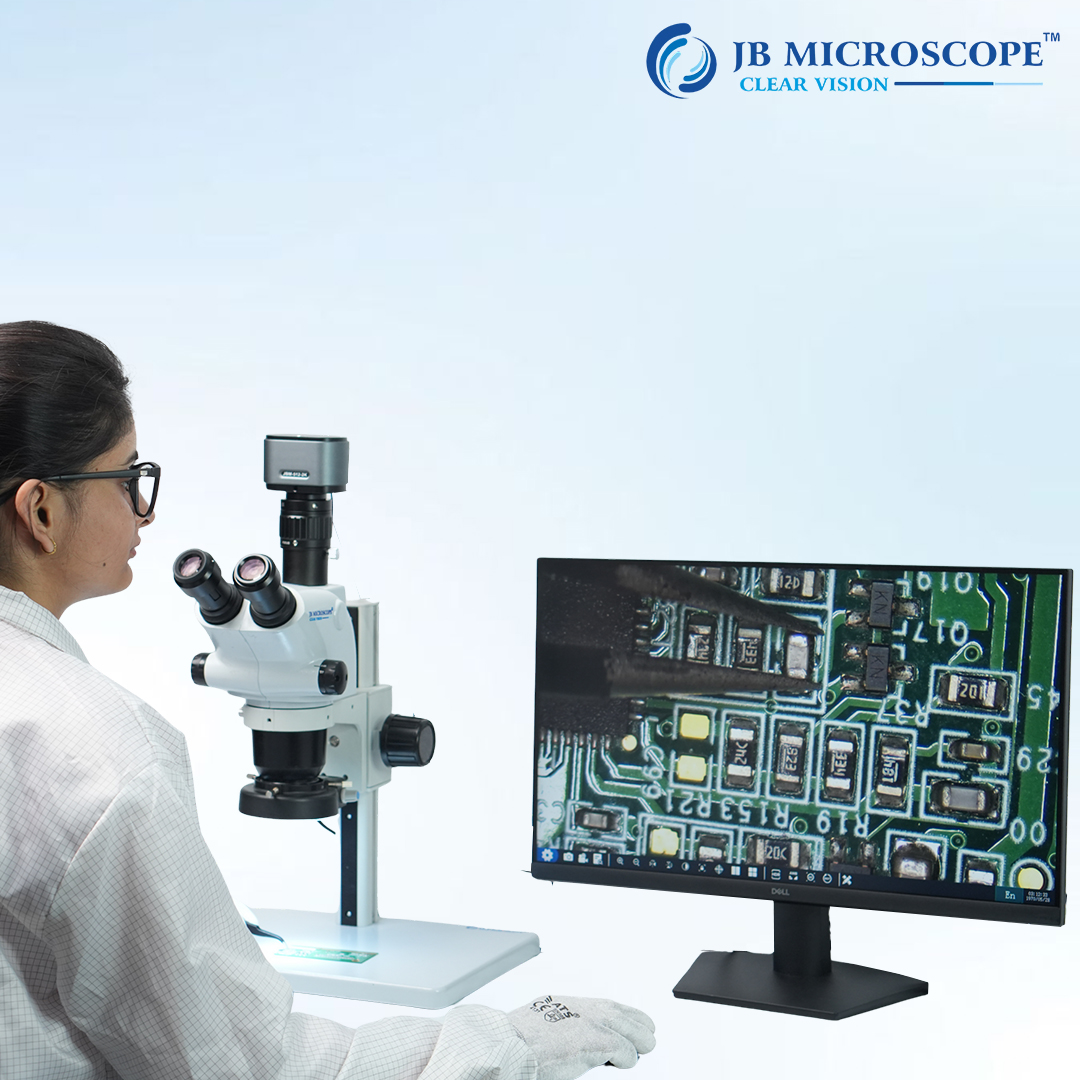

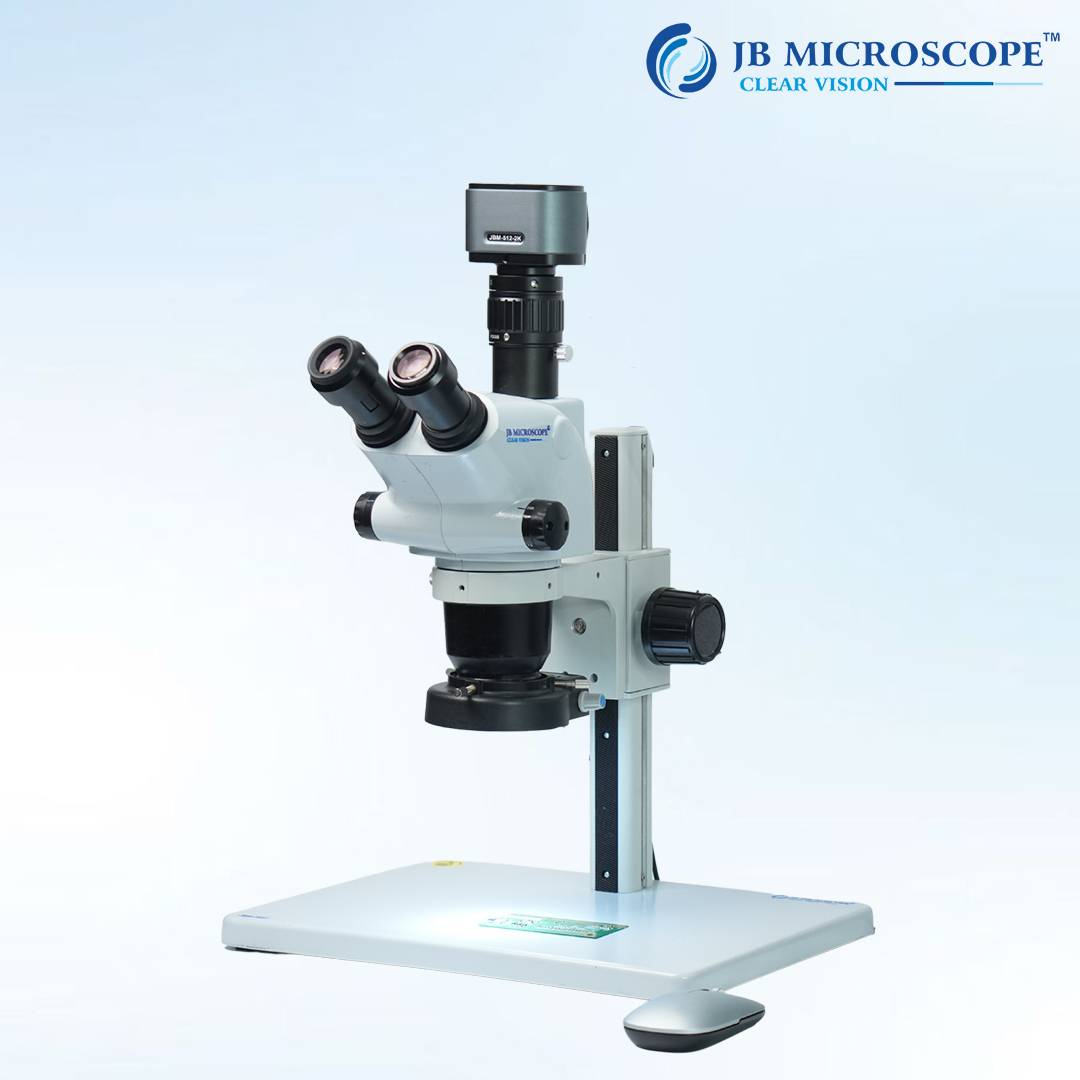

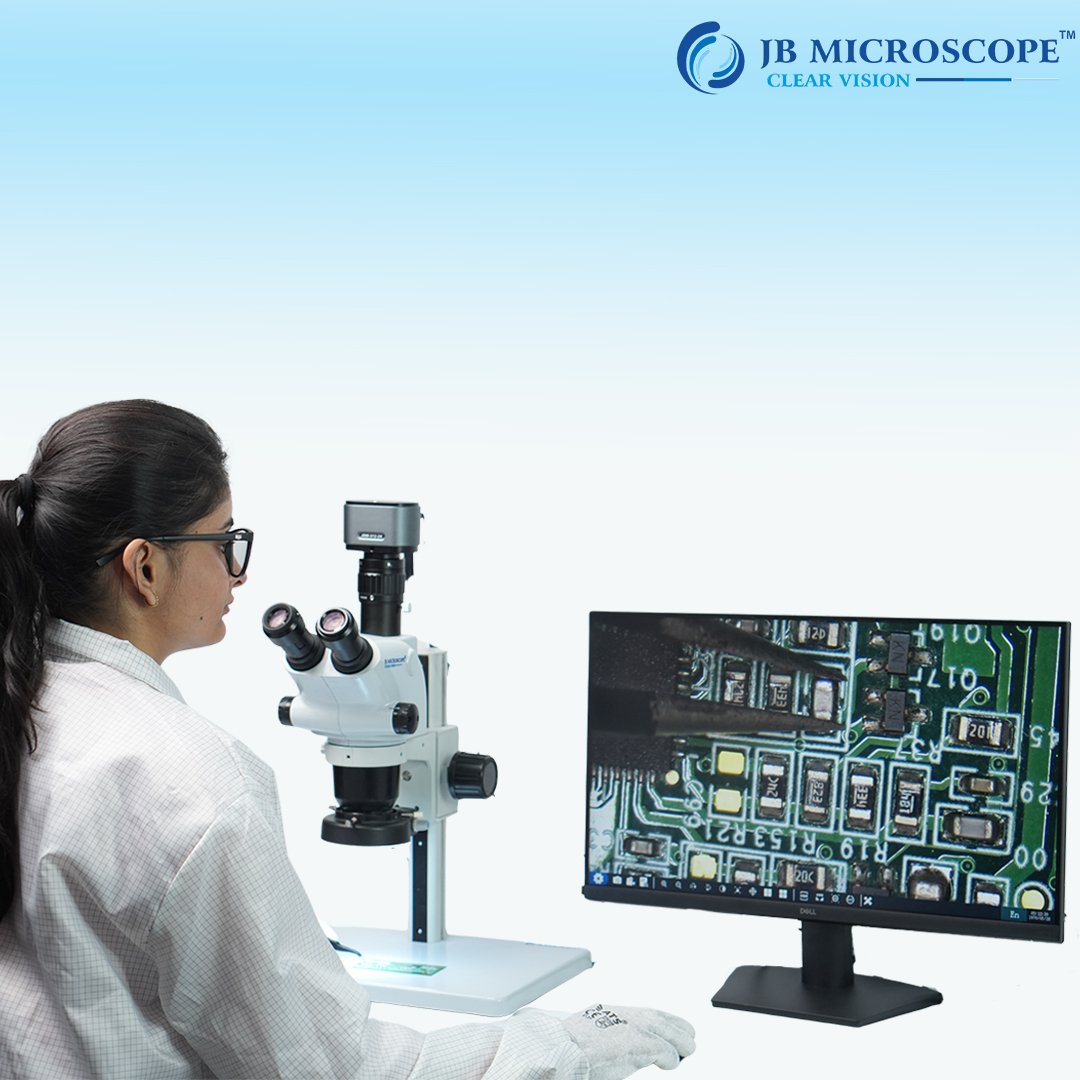

Stereo Zoom Microscope JBM-86R6L

Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.

Categories: ,
Brand JB Microscope
Trinocular Head 45° inclined 360°rotate
Interpupillary Distance Adjustment 54-76mm
Diopter Adjustment ±5dp
Eyepiece WF10X/22mm
Objective 0.65X-6.5X
Magnification Ratio 1:10
Magnification 6.5X-65X
Working Distance 110mm
C-mount Adapter 1x
Vertical Post Height 240mm
Vertical Post Diameter φ32mm
Microscope Body Holder φ76mm
Focus Travel 50mm
Stage Plate φ95mm black white contrast plate
Base 274x207x23mm
Material Metal
