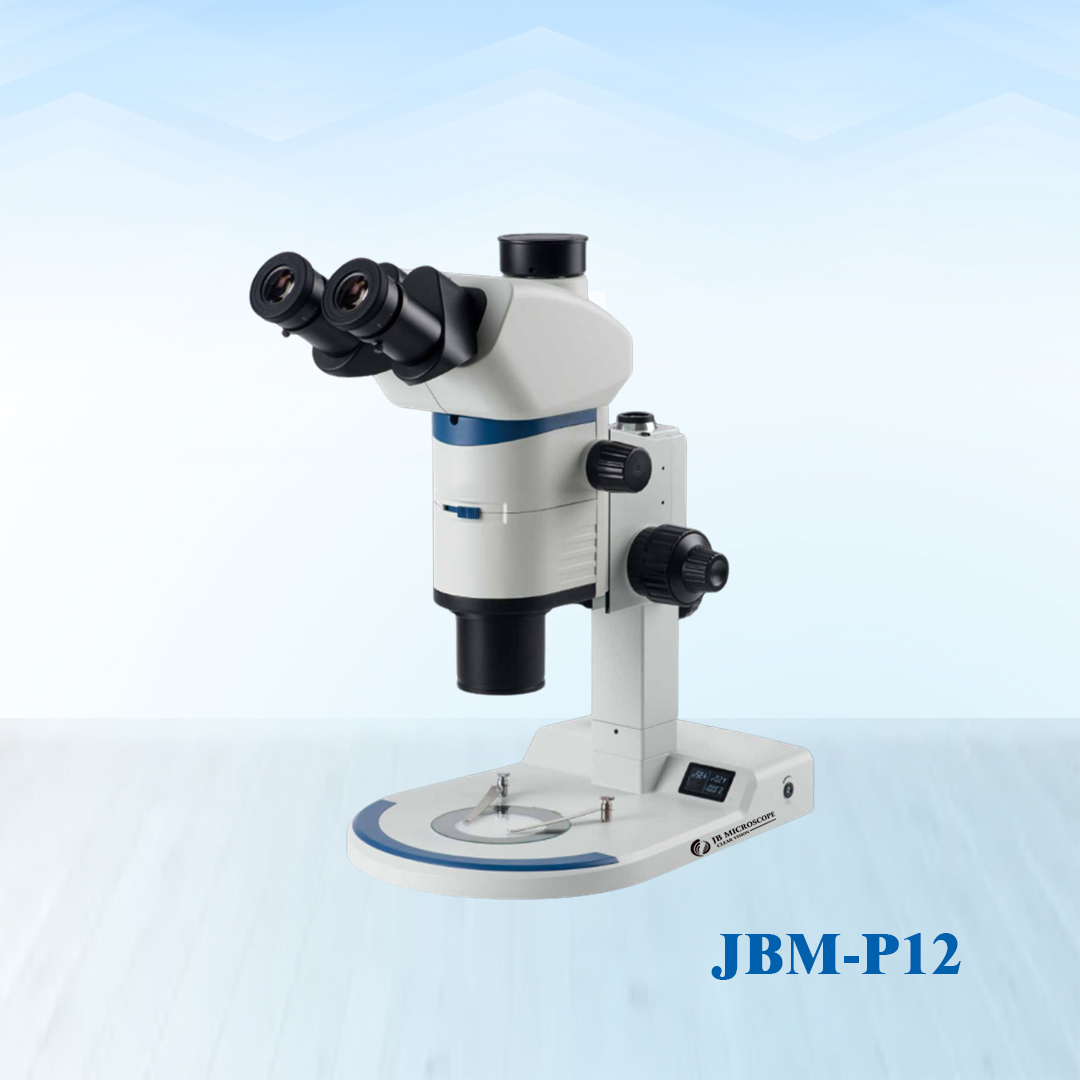

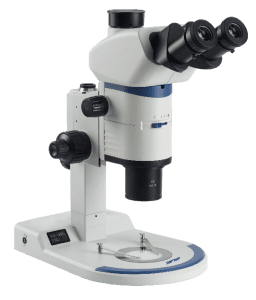

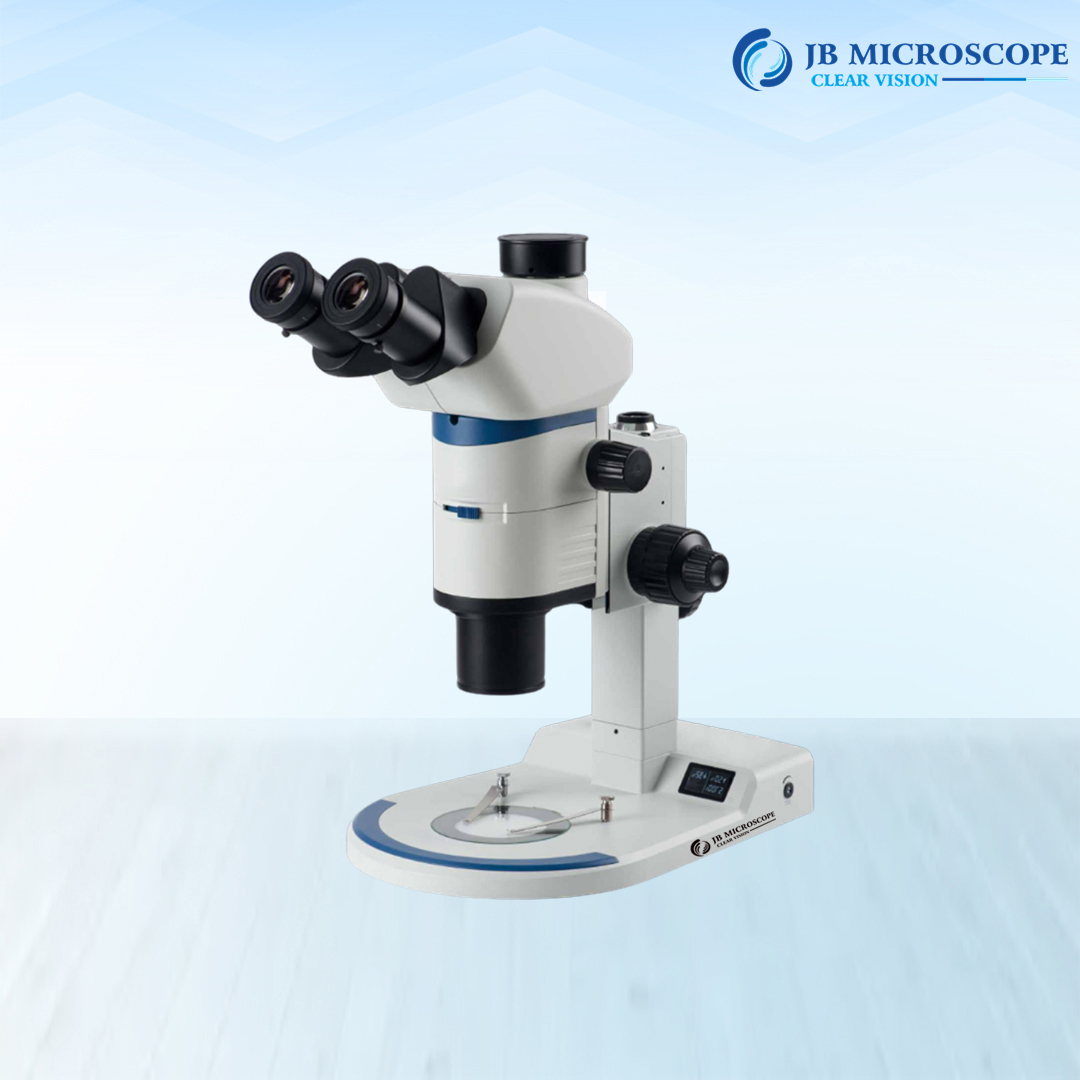

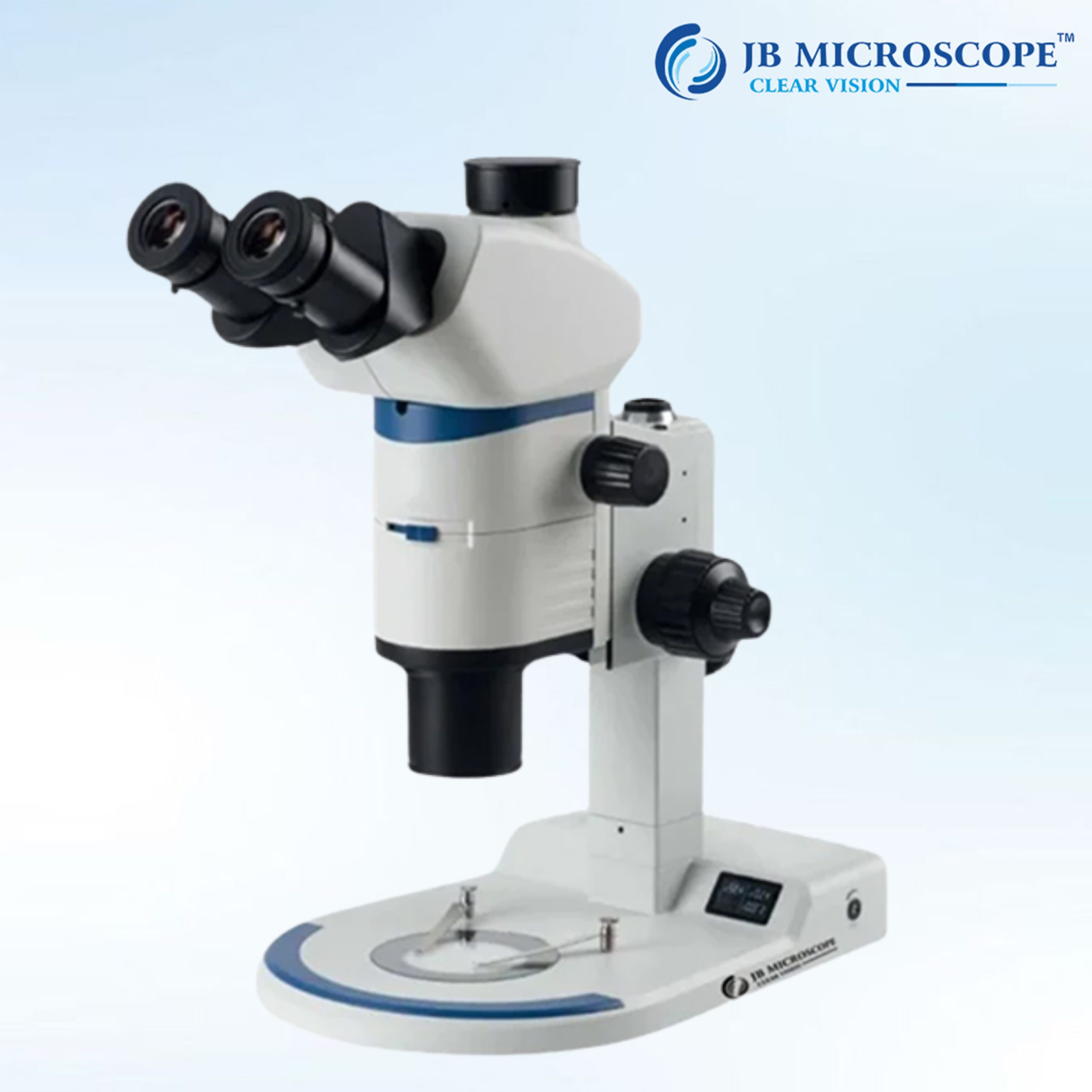

Stereo Zoom Microscope JBM-PL12

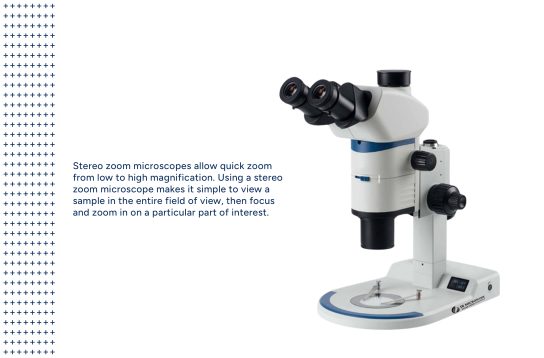

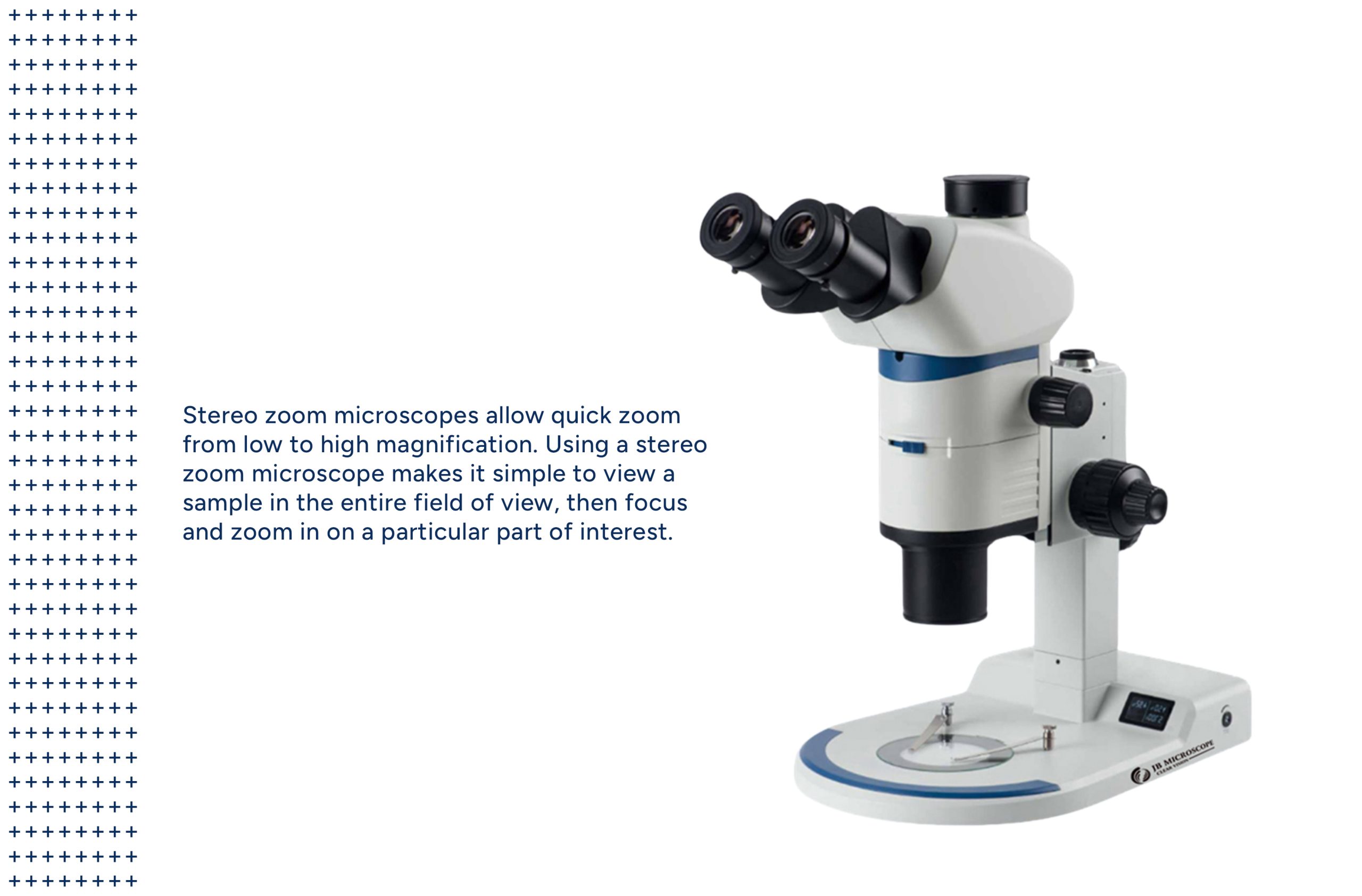

Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.







Humanized light intensity
Rotate the dimmer to adjust light intensity, the detailed percent of brightness will be displayed from the LCD on the base. It is helpful to record data of the best back light for sample observation.
LCD for displaying intensity and color temperature Rotate for adjusting intensity

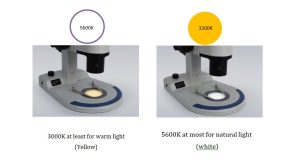

Optional Color temperature.

Adjust the color temperature to create a perfect imaging background for different samples in different work environment.

Application Fields

Life Science

Support for life science research, meet the demand of biological experiment, chemical analysis and cell culture.

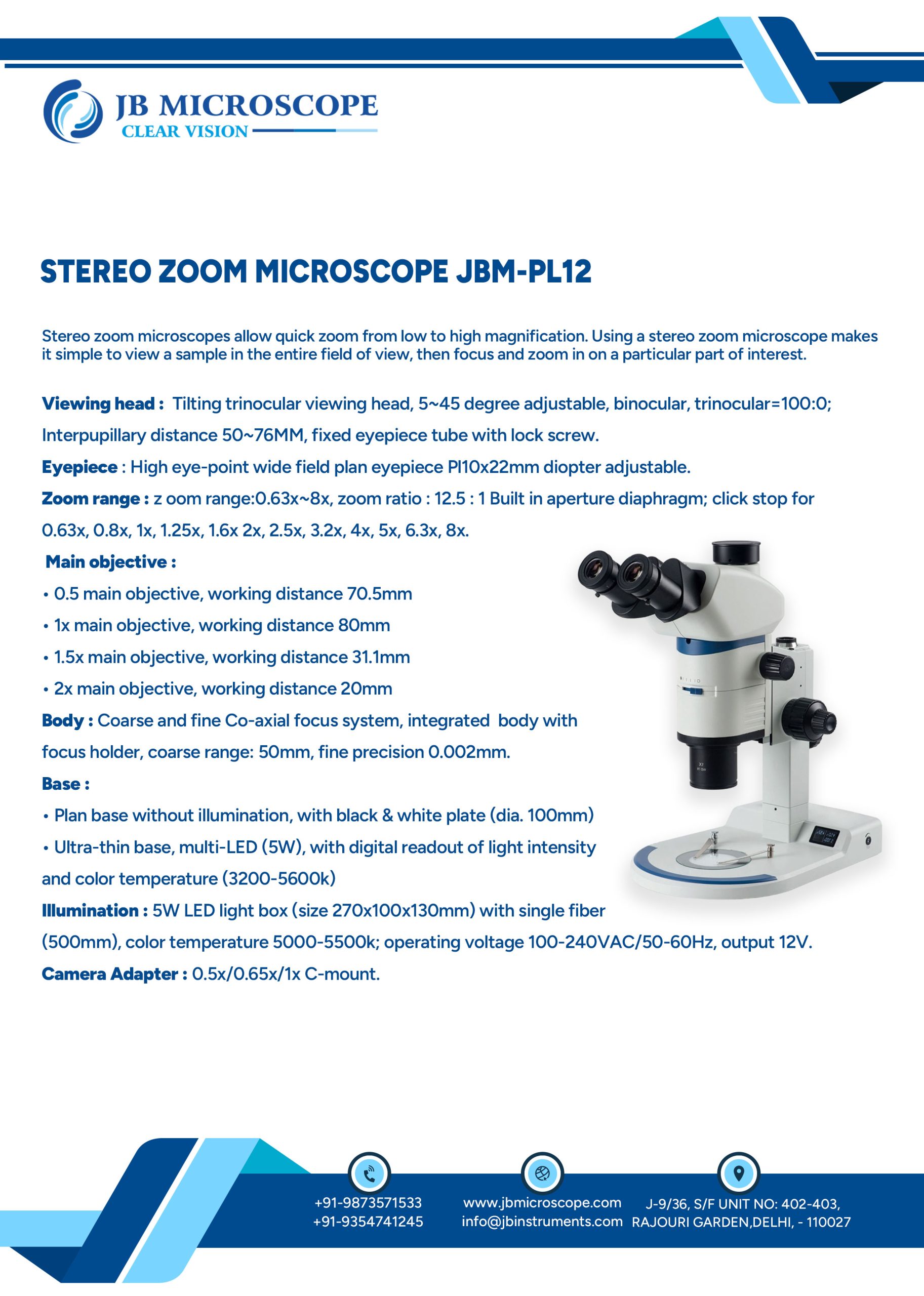

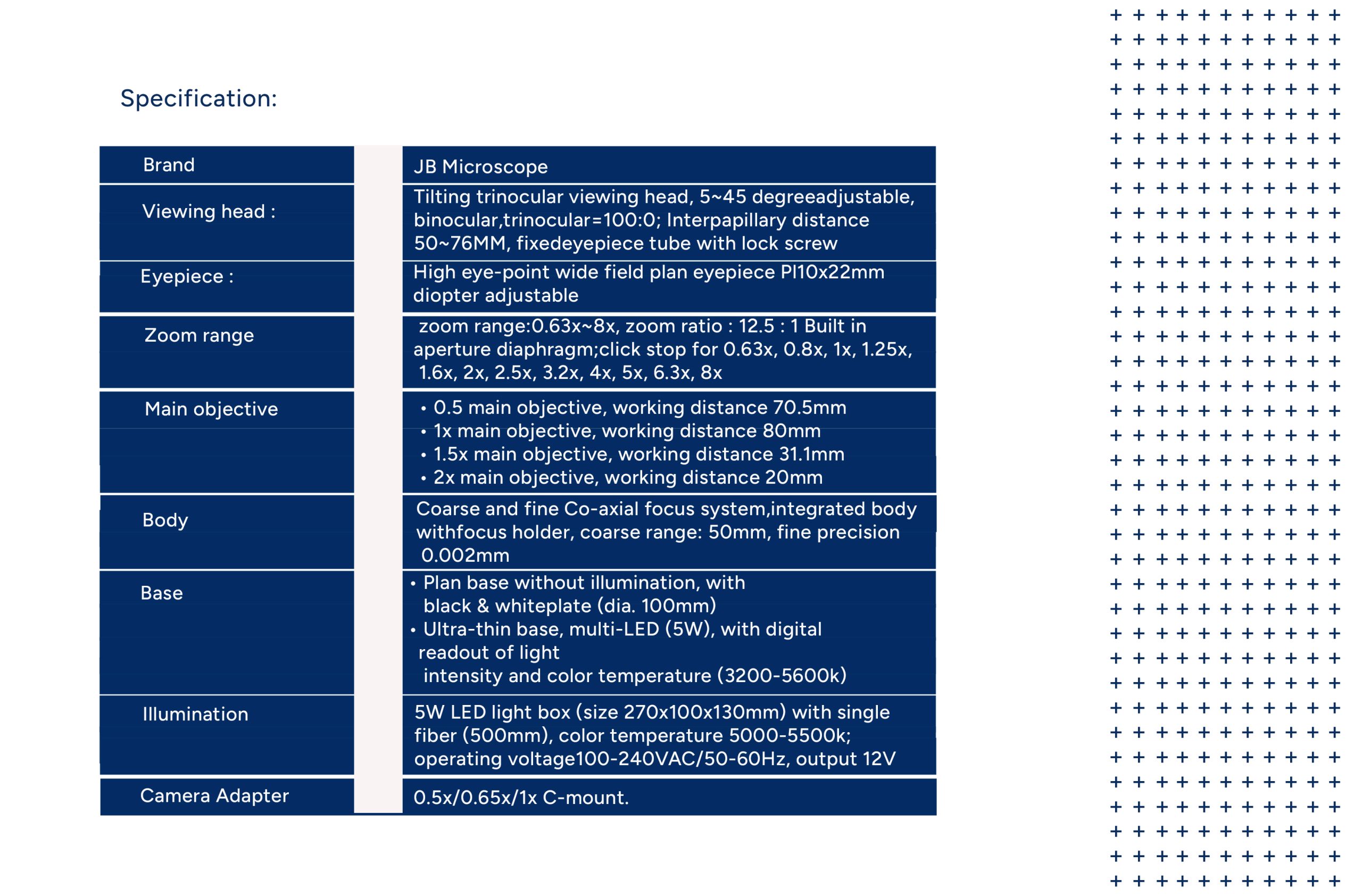

Specification.

Brand JB Microscope
Viewing head 5~45 degree adjustable
Eyepiece PL10X23mm
Zoom range 0.63X~8X
Main objective 2X main objective
Objective 0.65X-6.5X
Body Coarse and fine coaxial focus system
Base Plan base without illumination
Camera 1X  C-mount  focus
