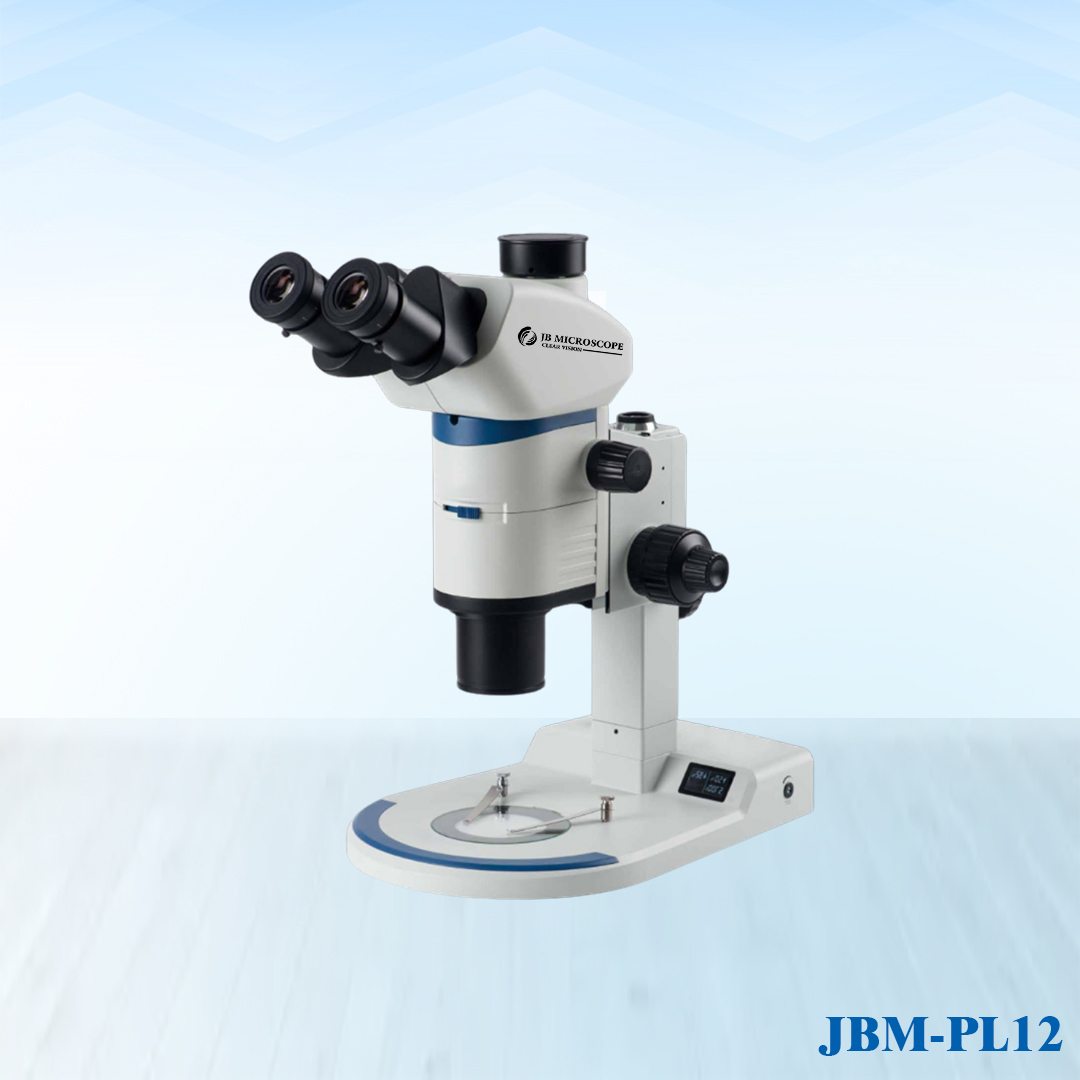

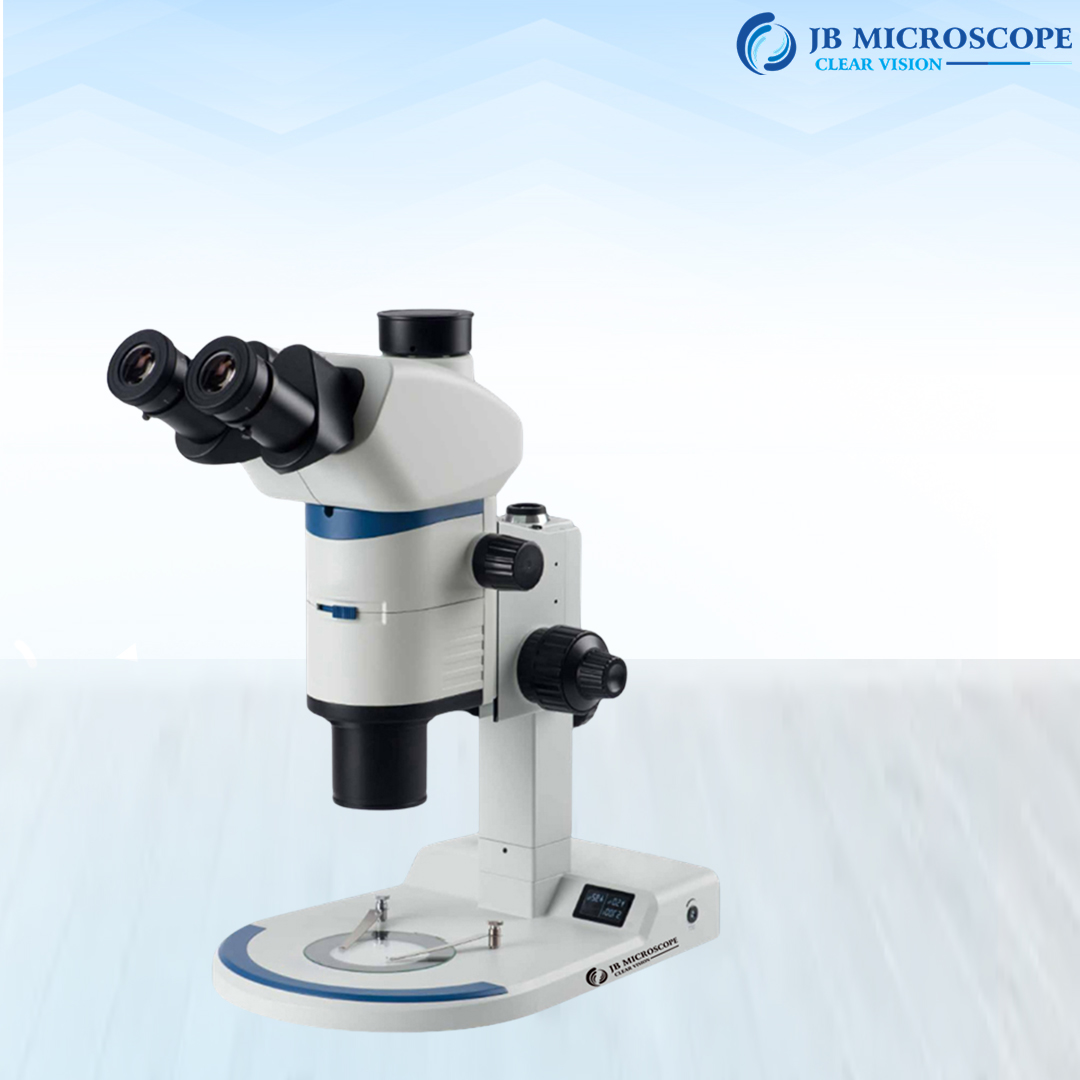

Specification :
Viewing head : Tilting trinocular viewing head, 5~45 degree adjustable, binocular,
trinocular=100:0; Interpapillary distance 50~76MM, fixed eyepiece tube with lock screw.
Eyepiece : High eye-point wide field plan eyepiece Pl10x22mm diopter adjustable
Zoom range : zoom range:0.63x~8x, zoom ratio : 12.5 : 1 Built in aperture diaphragm;
click stop for 0.63x, 0.8x, 1x, 1.25x, 1.6x, 2x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x
Main objective :
• 0.5 main objective, working distance 70.5mm
• 1x main objective, working distance 80mm
• 1.5x main objective, working distance 31.1mm
• 2x main objective, working distance 20mm
Body : Coarse and fine Co-axial focus system, integrated body with
focus holder, coarse range: 50mm, fine precision 0.002mm
Base :
• Plan base without illumination, with black & white plate (dia. 100mm)
• Ultra-thin base, multi-LED (5W), with digital readout of light
intensity and color temperature (3200-5600k)
Illumination : 5W LED light box (size 270x100x130mm) with single
fiber (500mm), color temperature 5000-5500k; operating voltage
100-240VAC/50-60Hz, output 12V
Camera Adapter : 0.5x/0.65x/1x C-mount.
