Specification

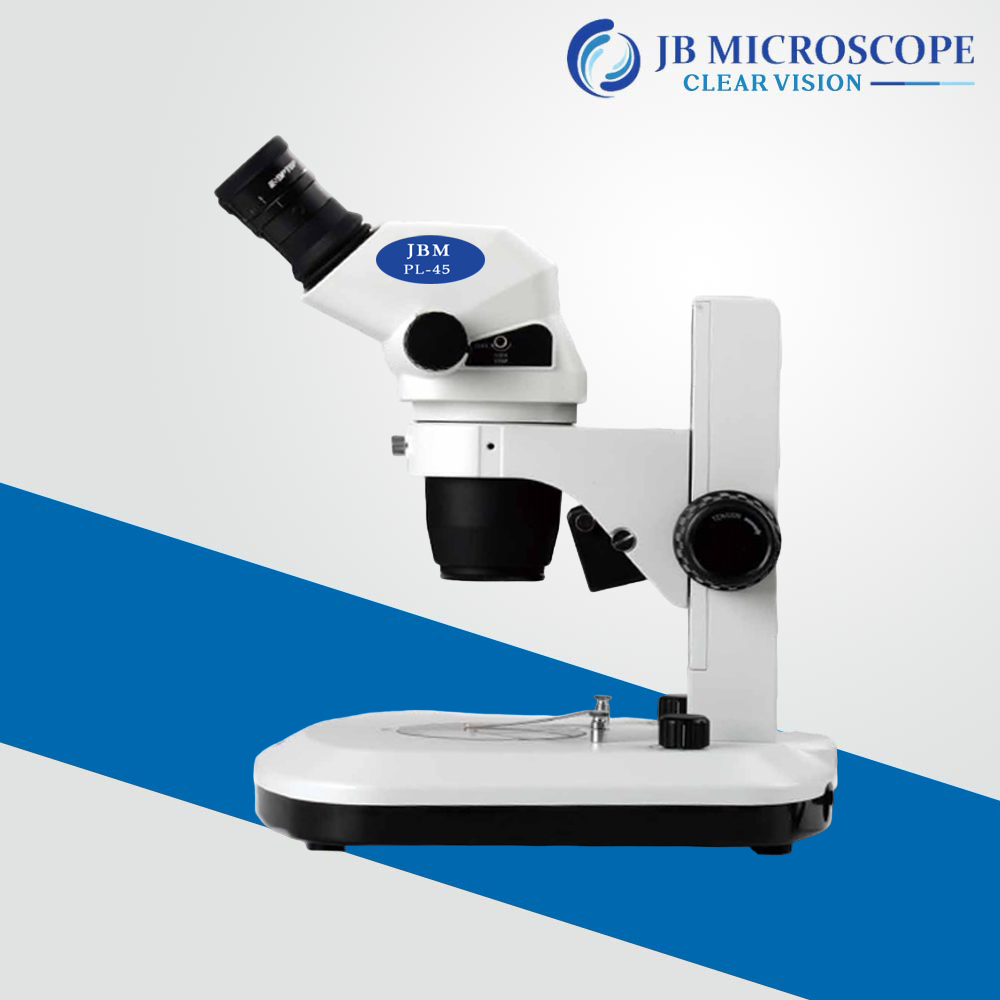

Viewing Head : 45° inclined binocular head with fixed eyepiece tube,
inter-pupillary range: 52mm – 76mm, with click stop and interlock mechanism.

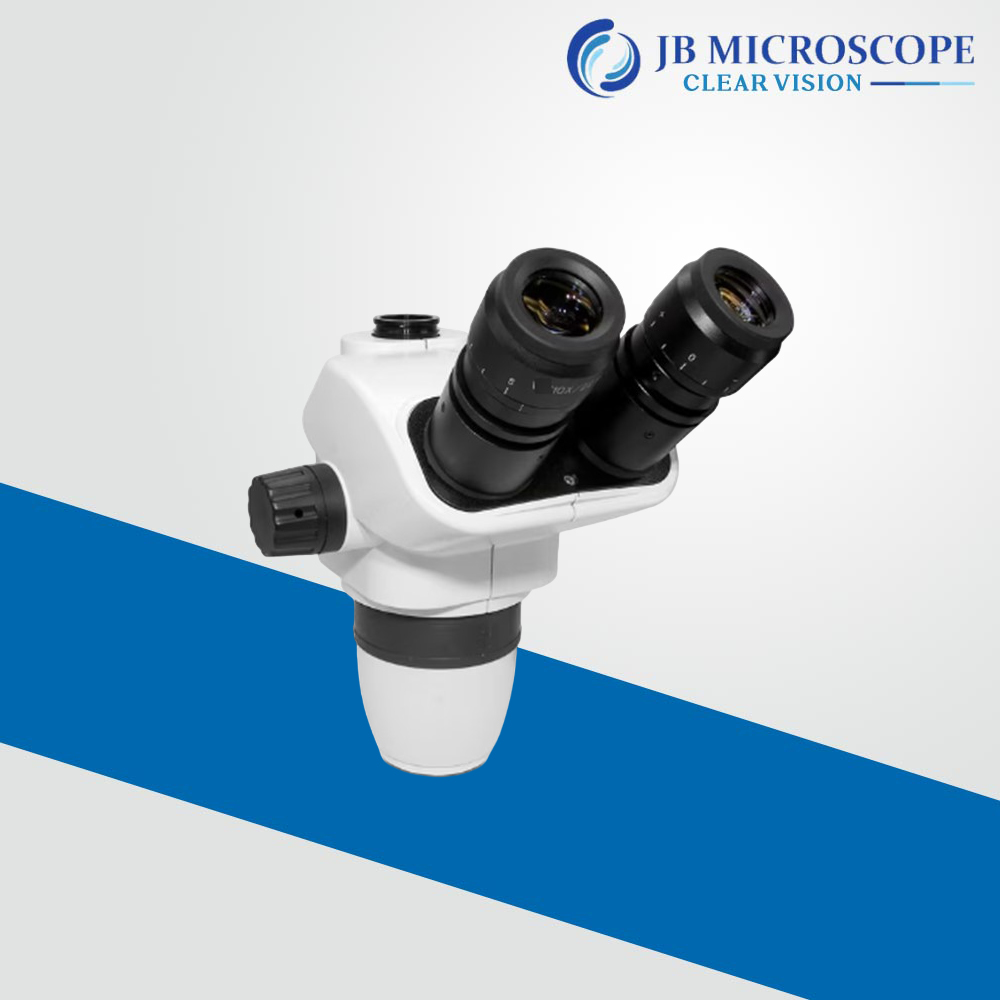

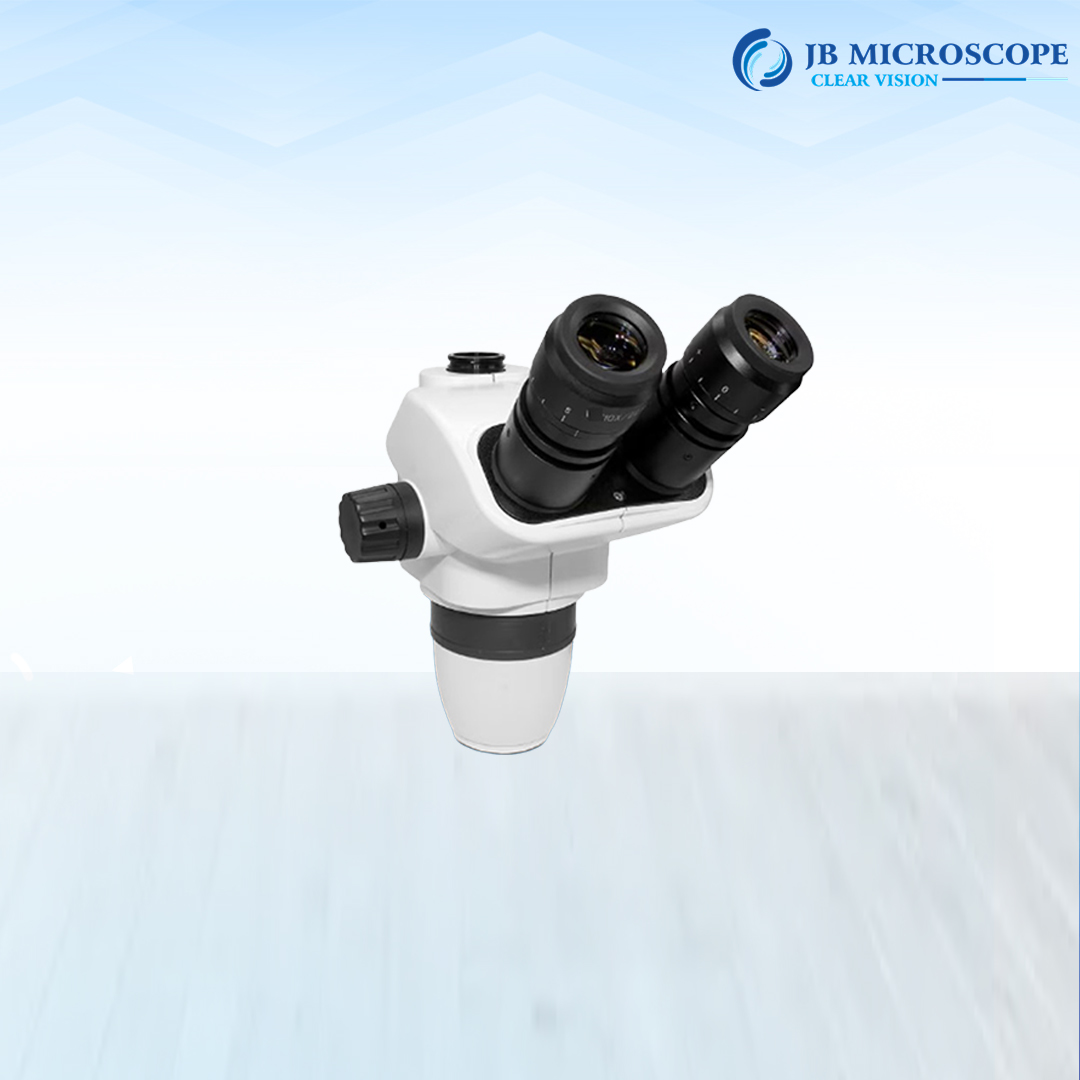

45° inclined trinocular head with fixed eyepiece tube, inter-pupillary
range: 52mm – 76mm, with click stop and interlock mechanism.

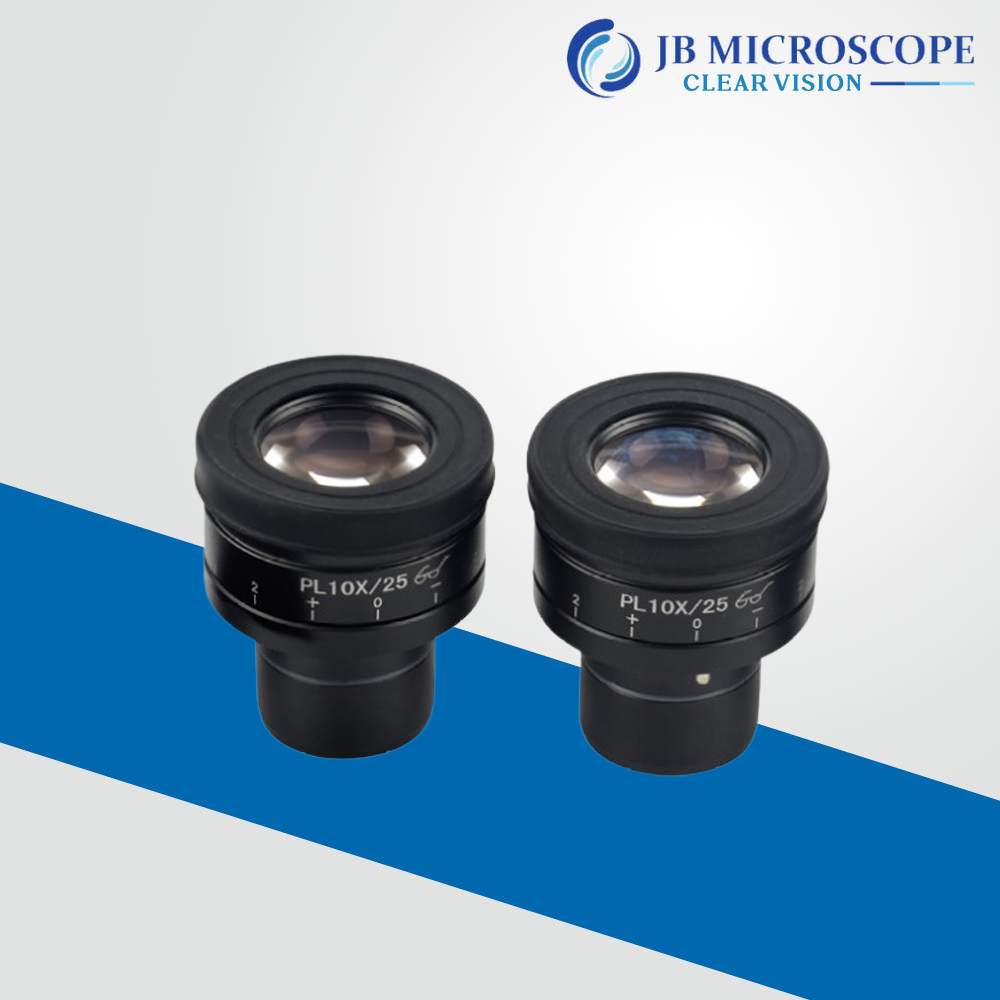

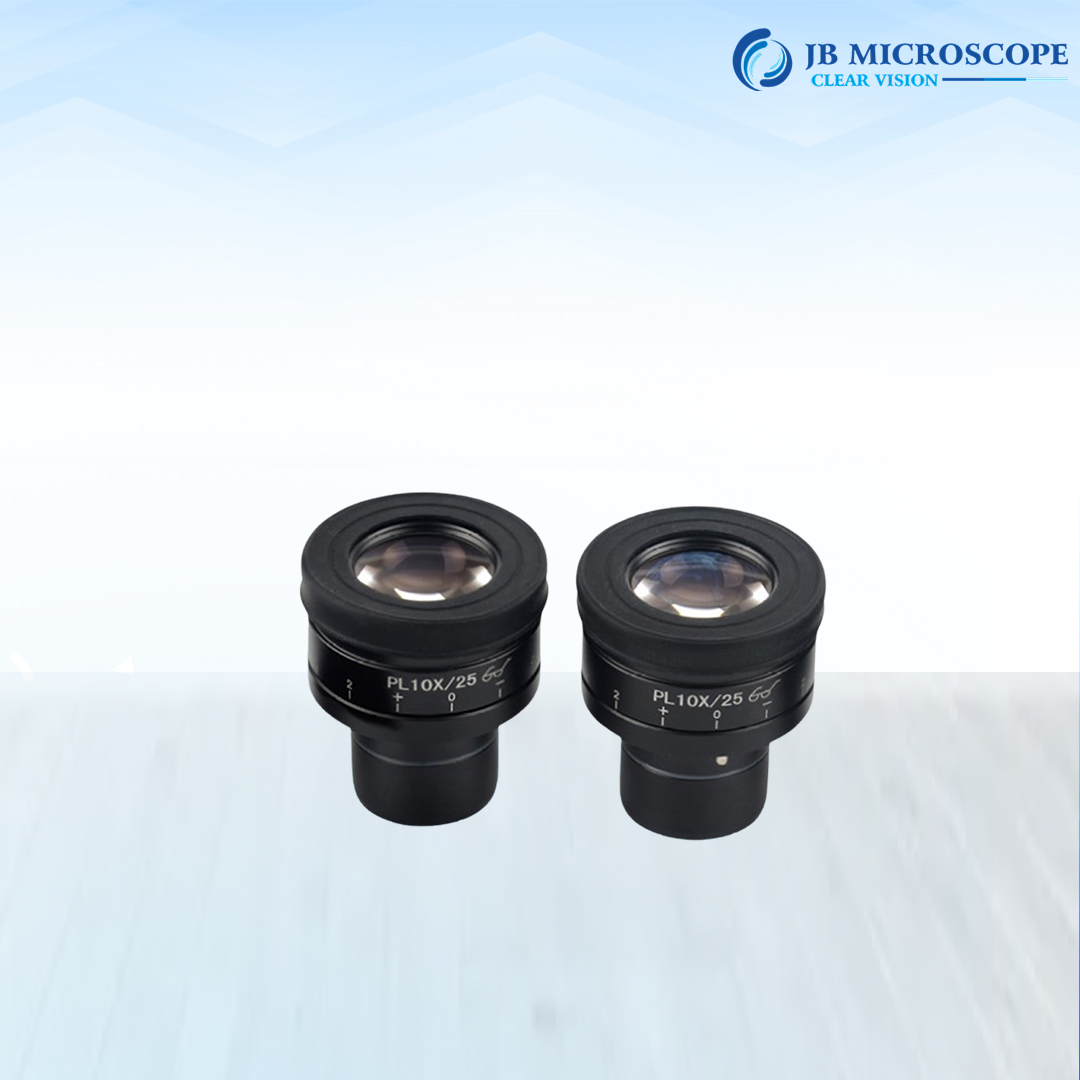

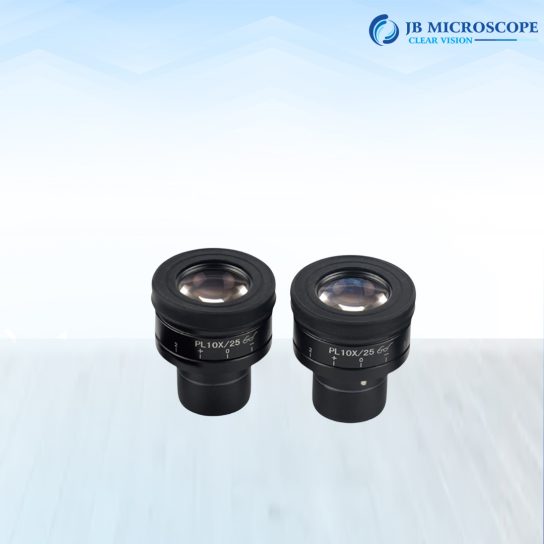

Eyepiece : High eye-point wide field plan eyepiece PL10X/22mm, with
adjustable dioptre.

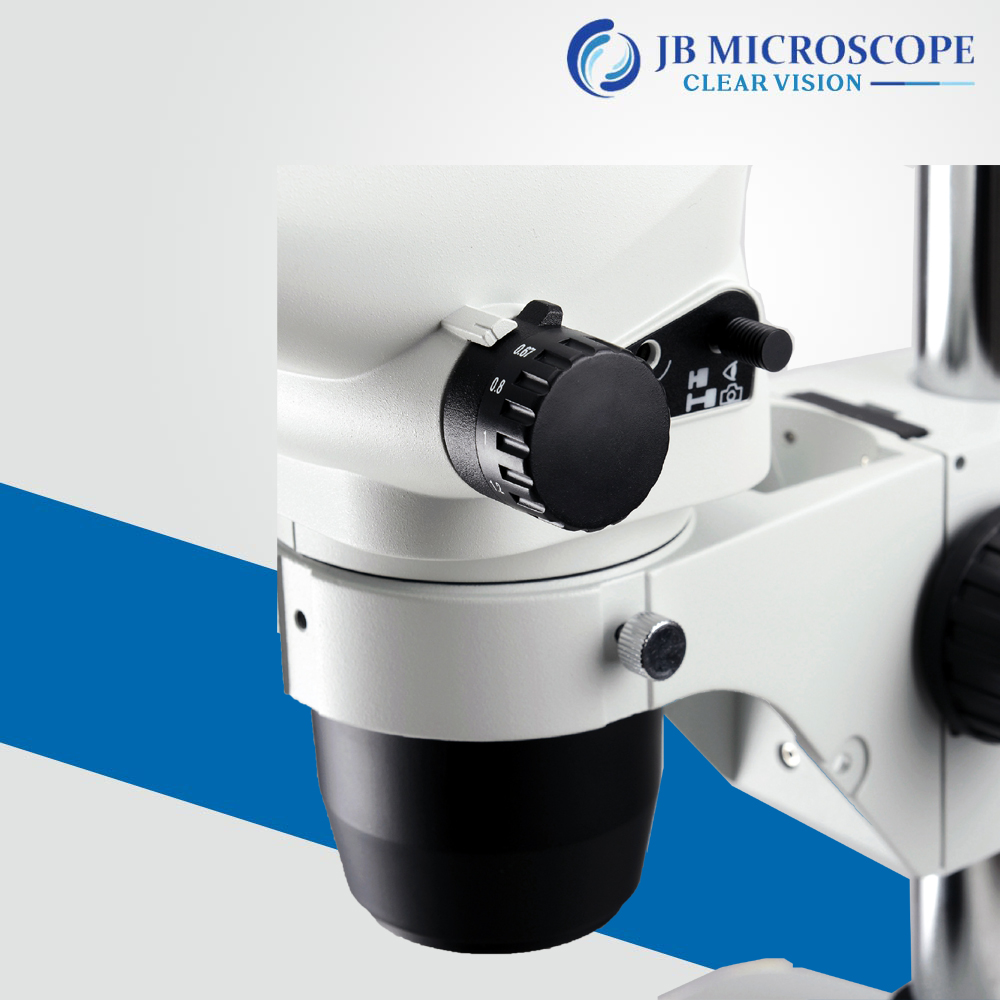

Main Objective : Zoom objective 0.67X – 4.5X, working distance: 110mm.
Auxiliary Objective : 148mm
• Arm stand with fixed focus holder

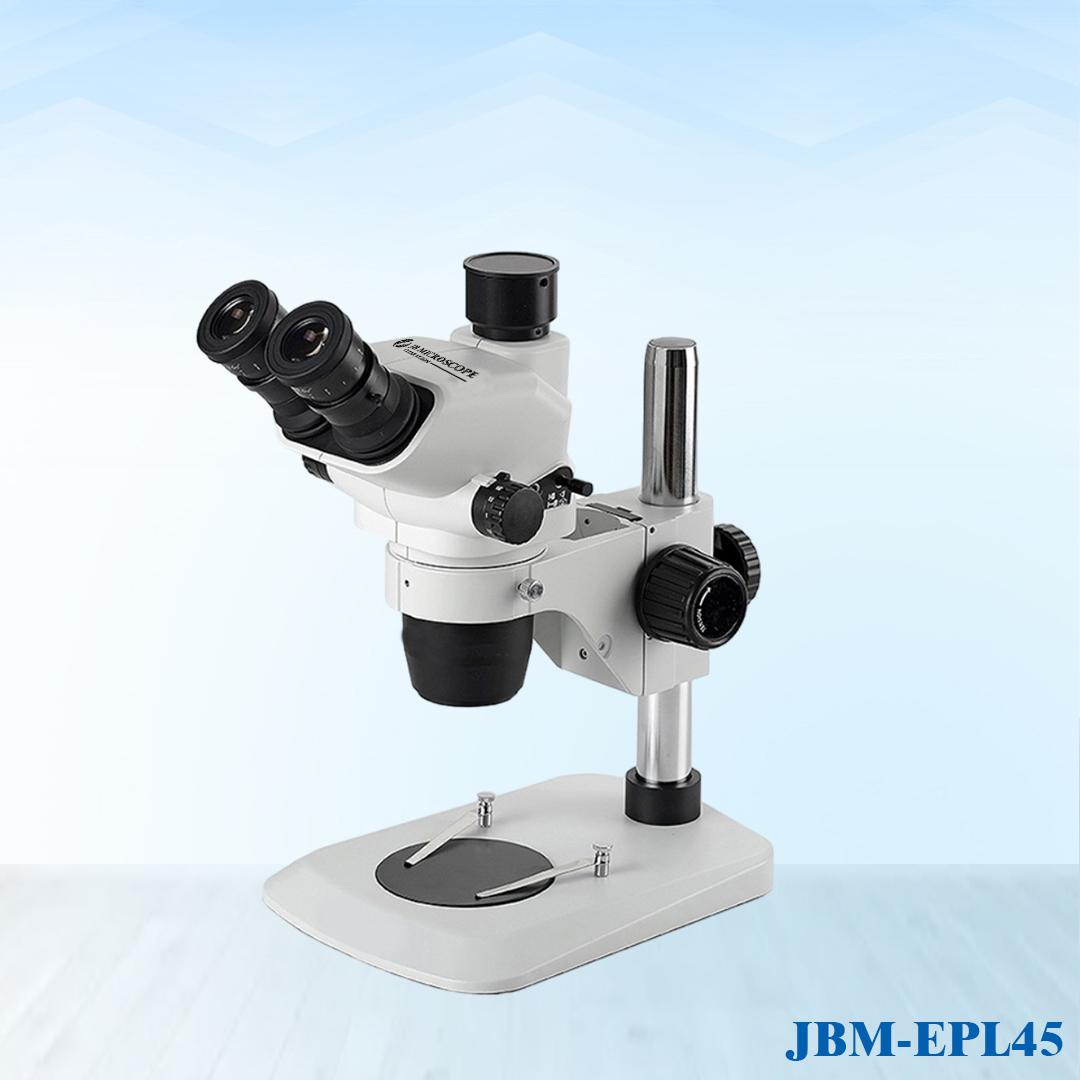

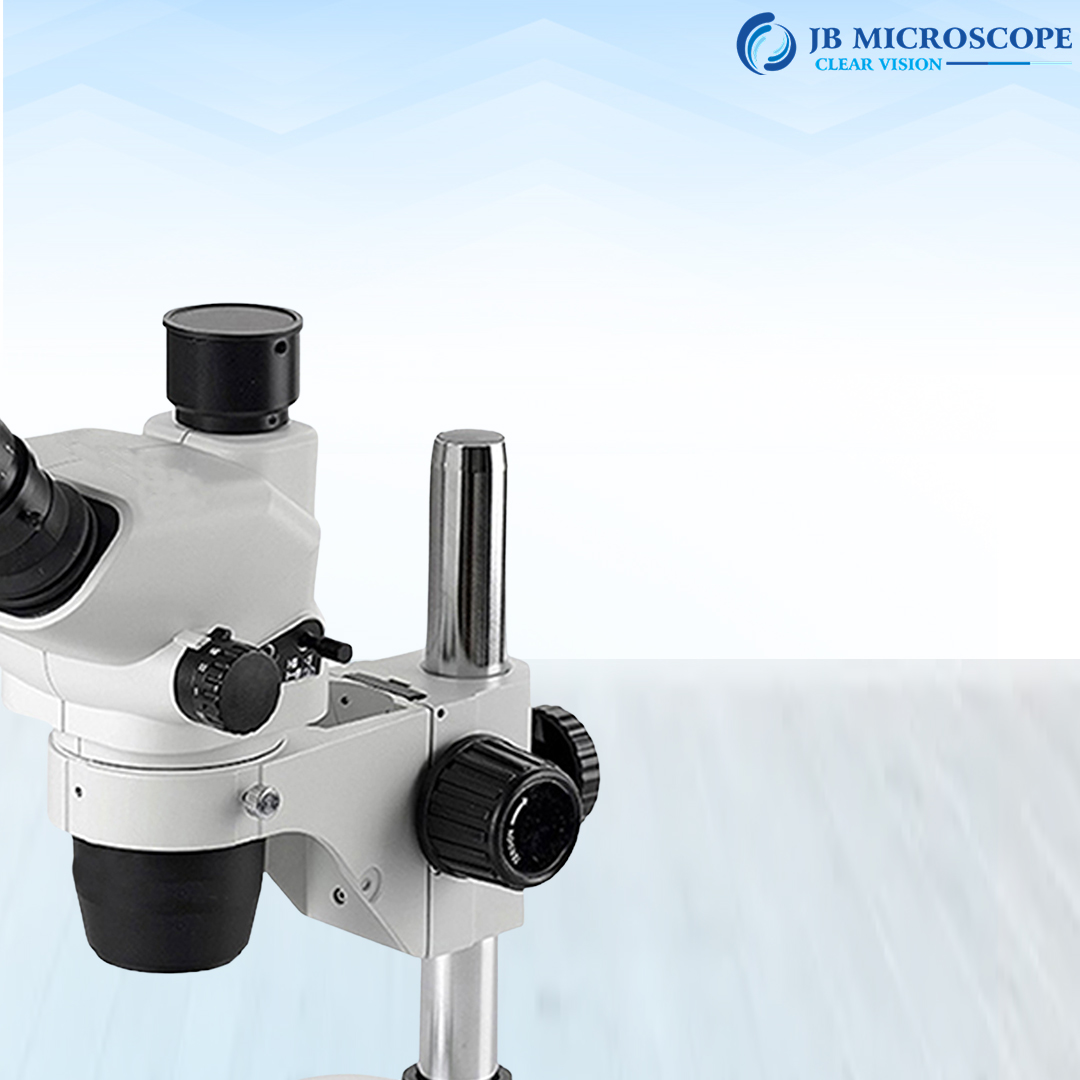

• Pilar stand, can be equipped with different focus holders.
Base :
• Plan base

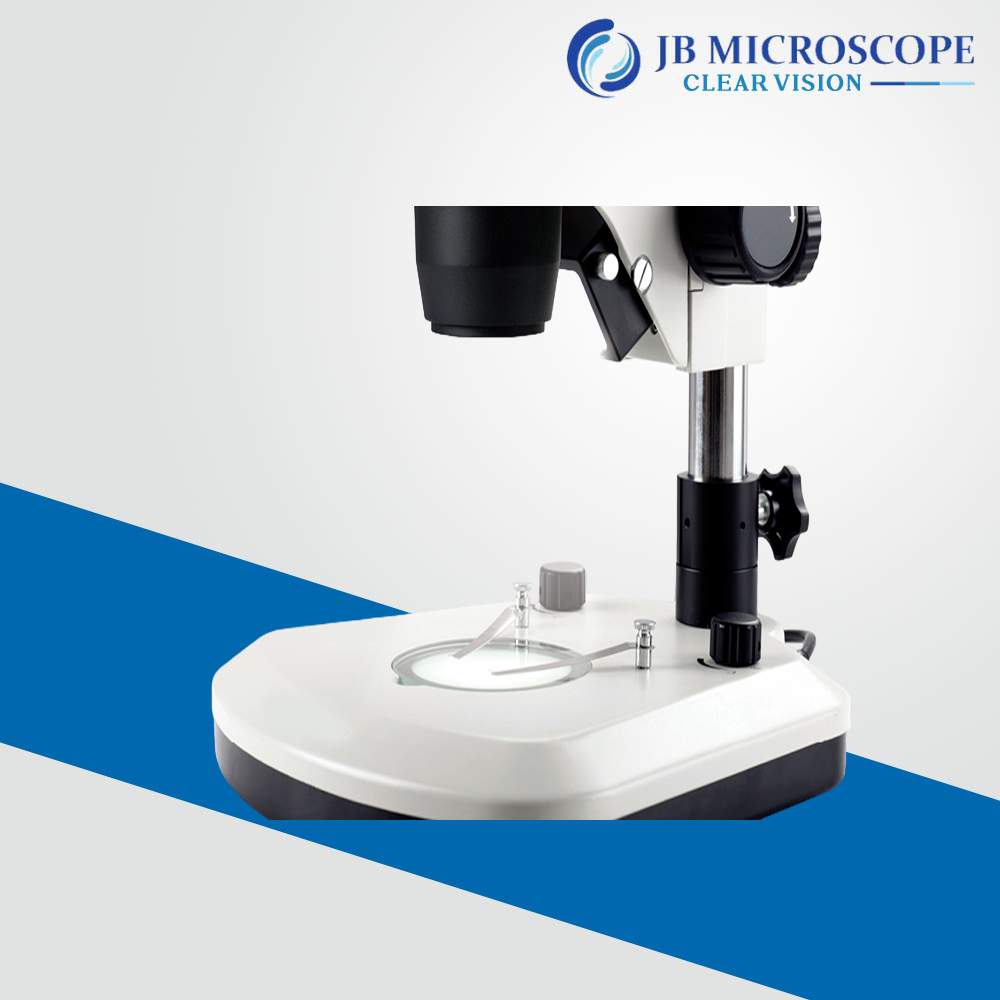

• Base with illumination
Camera adapter : Magnascope
Others : 6.0 kgs (Approx)
