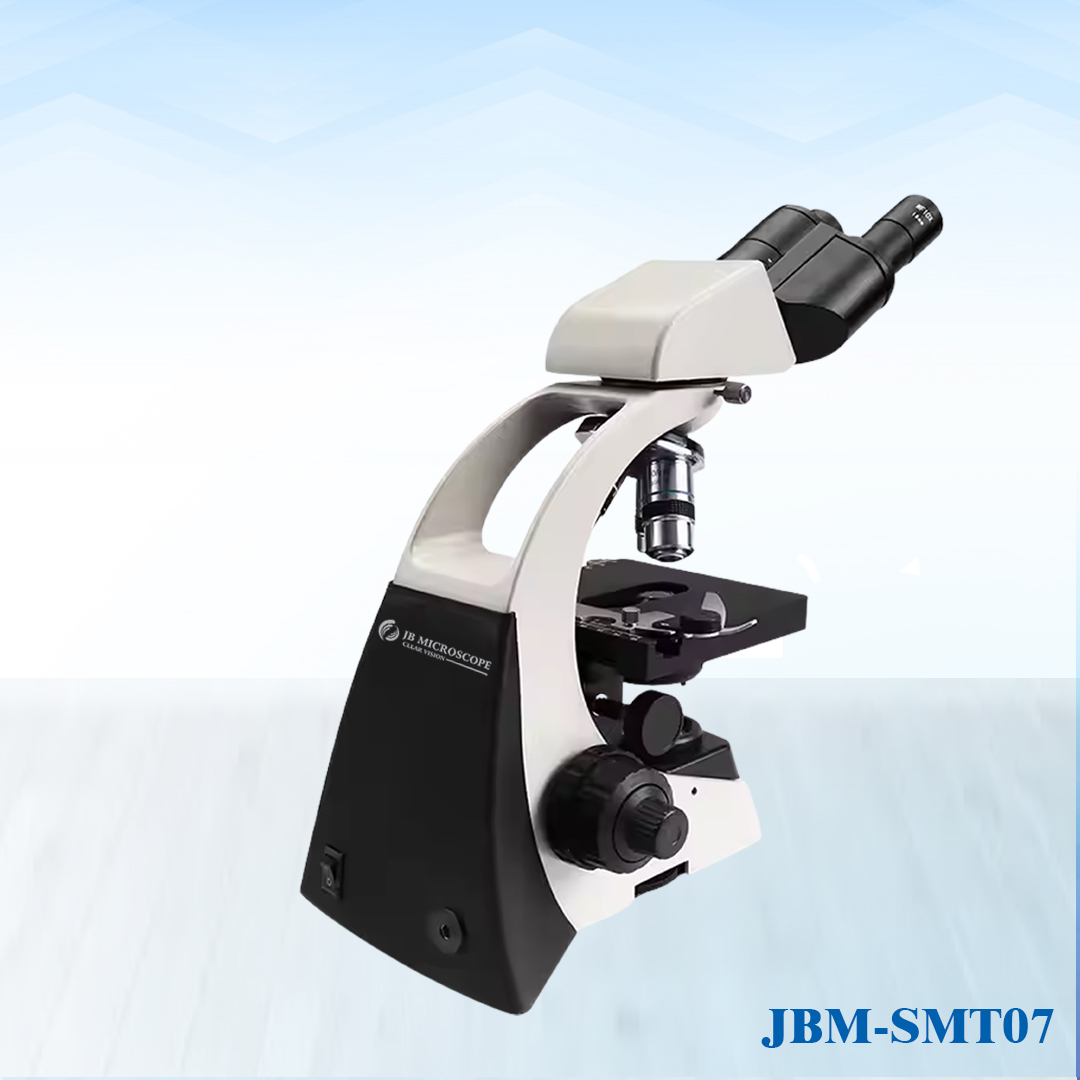

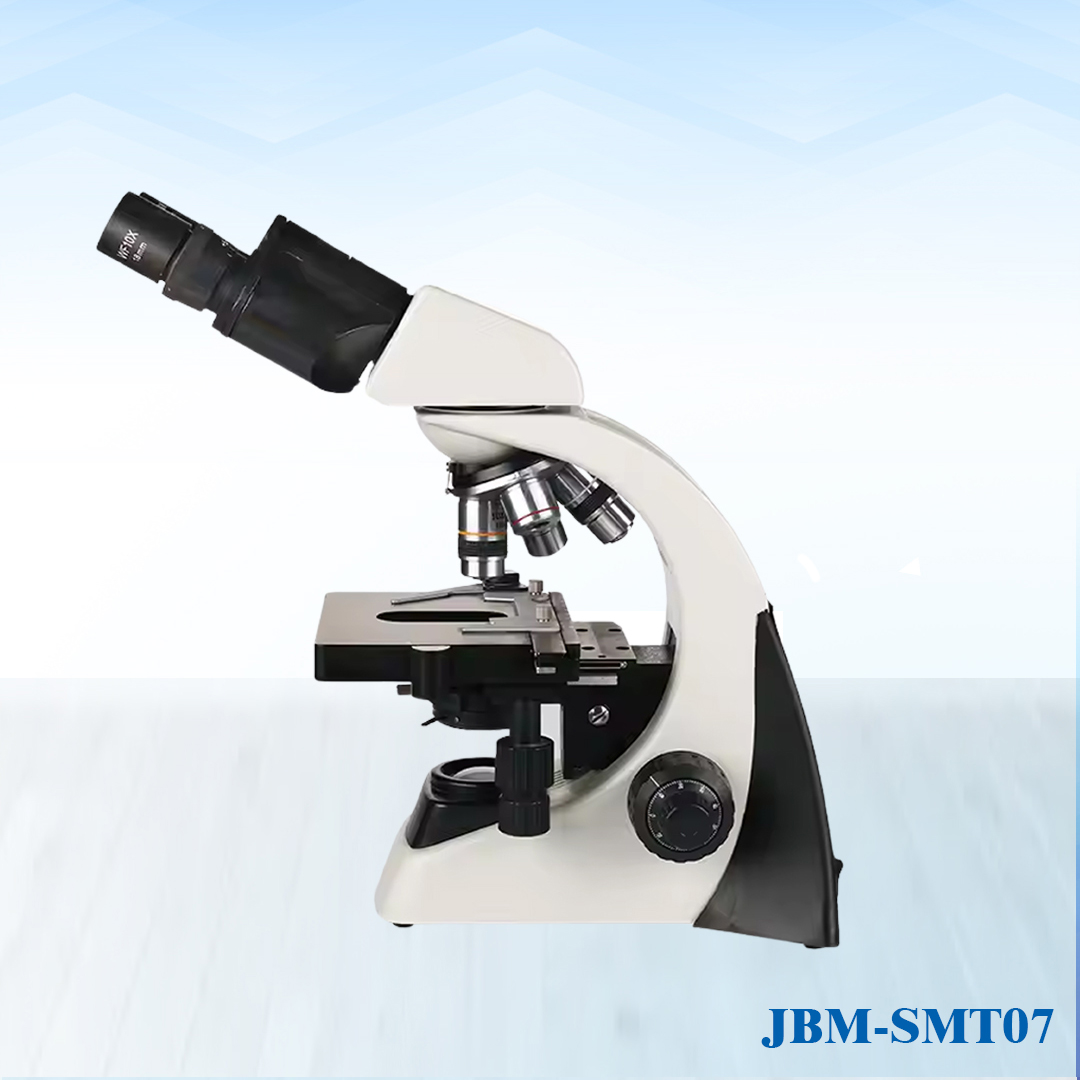

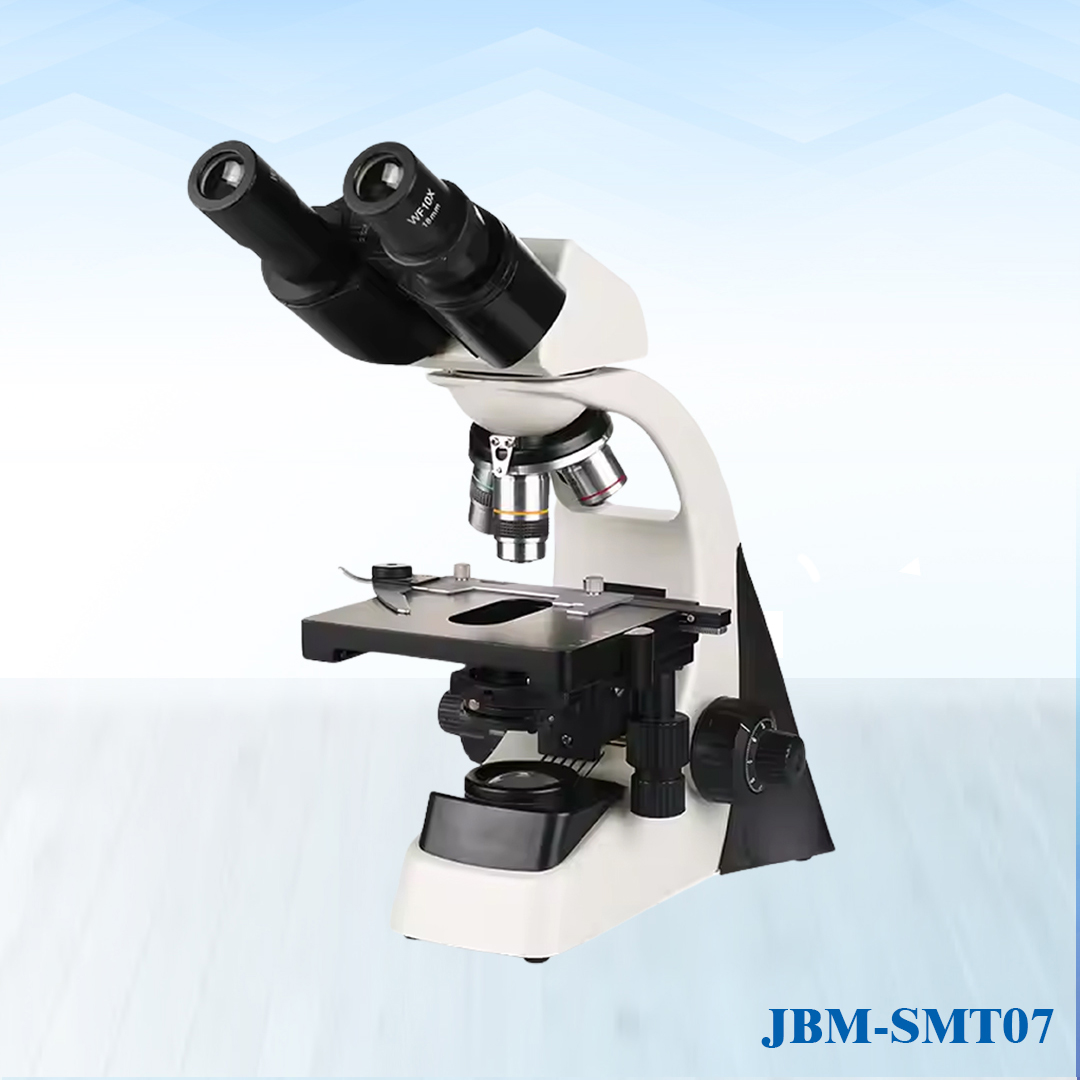

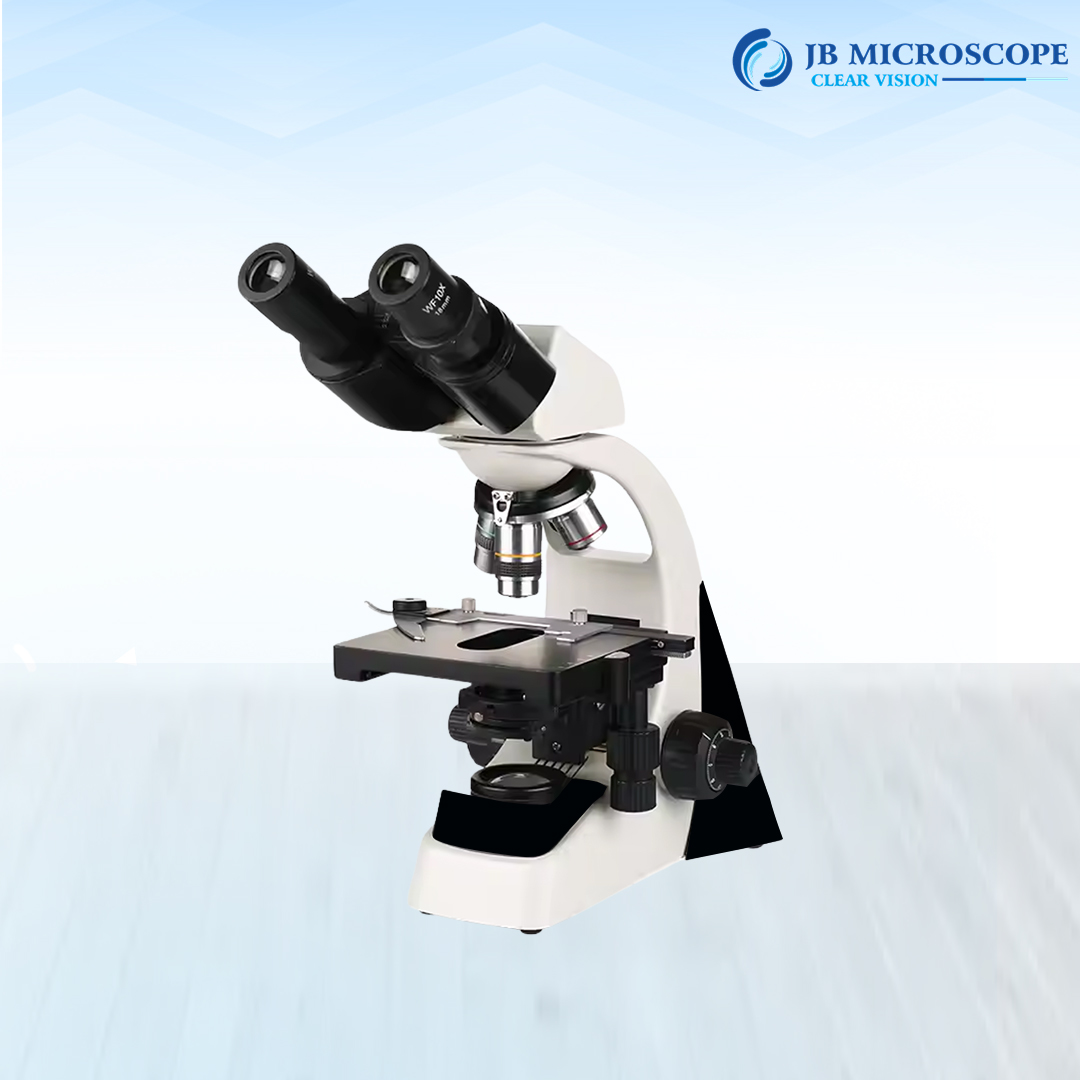

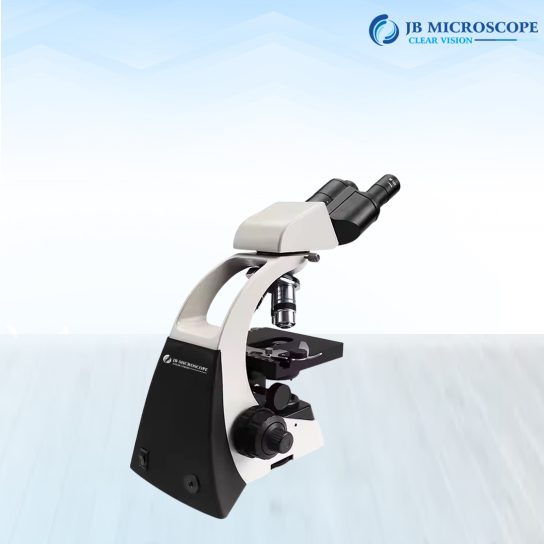

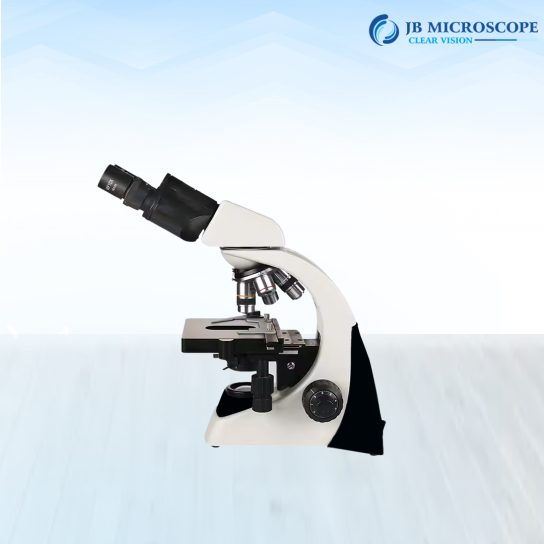

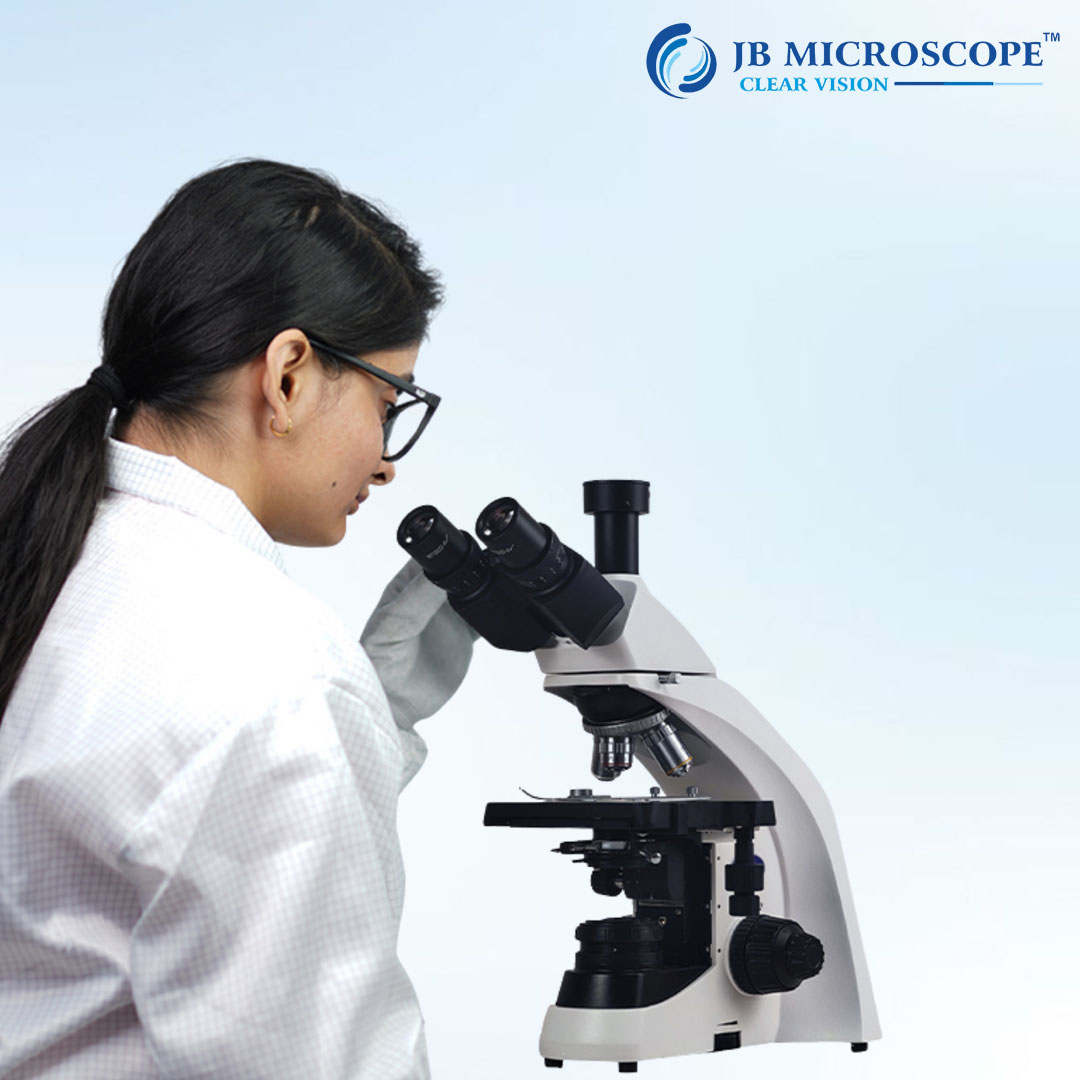

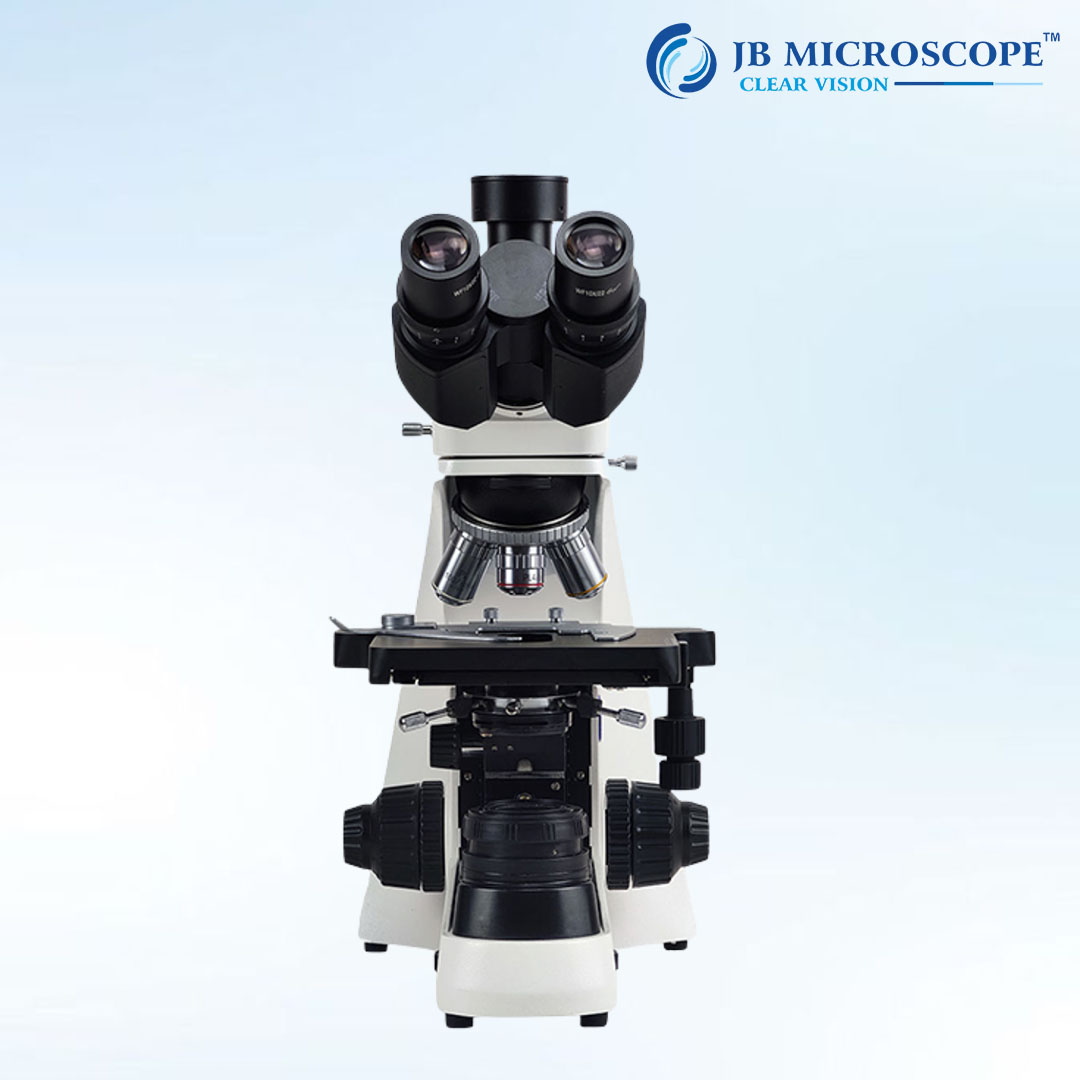

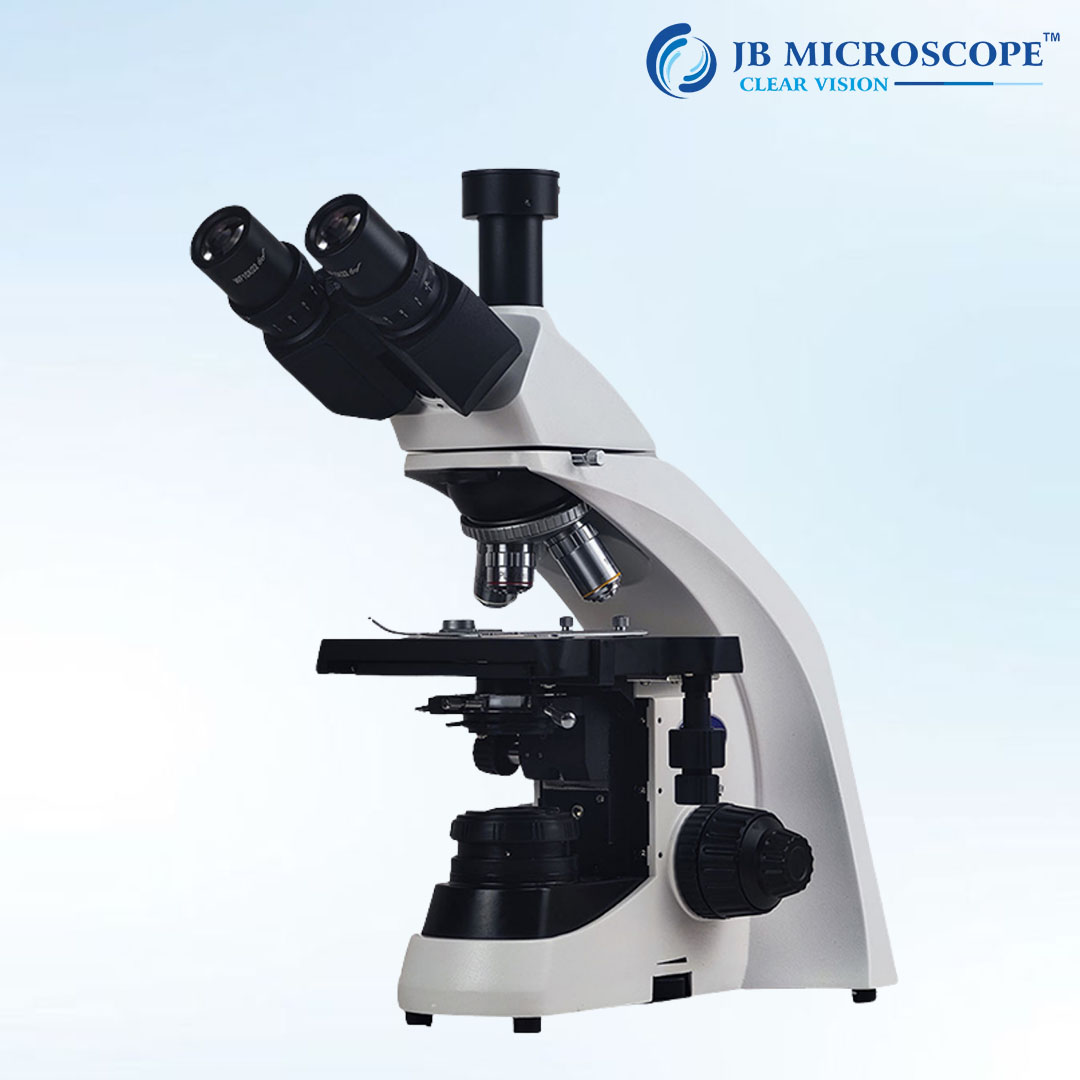

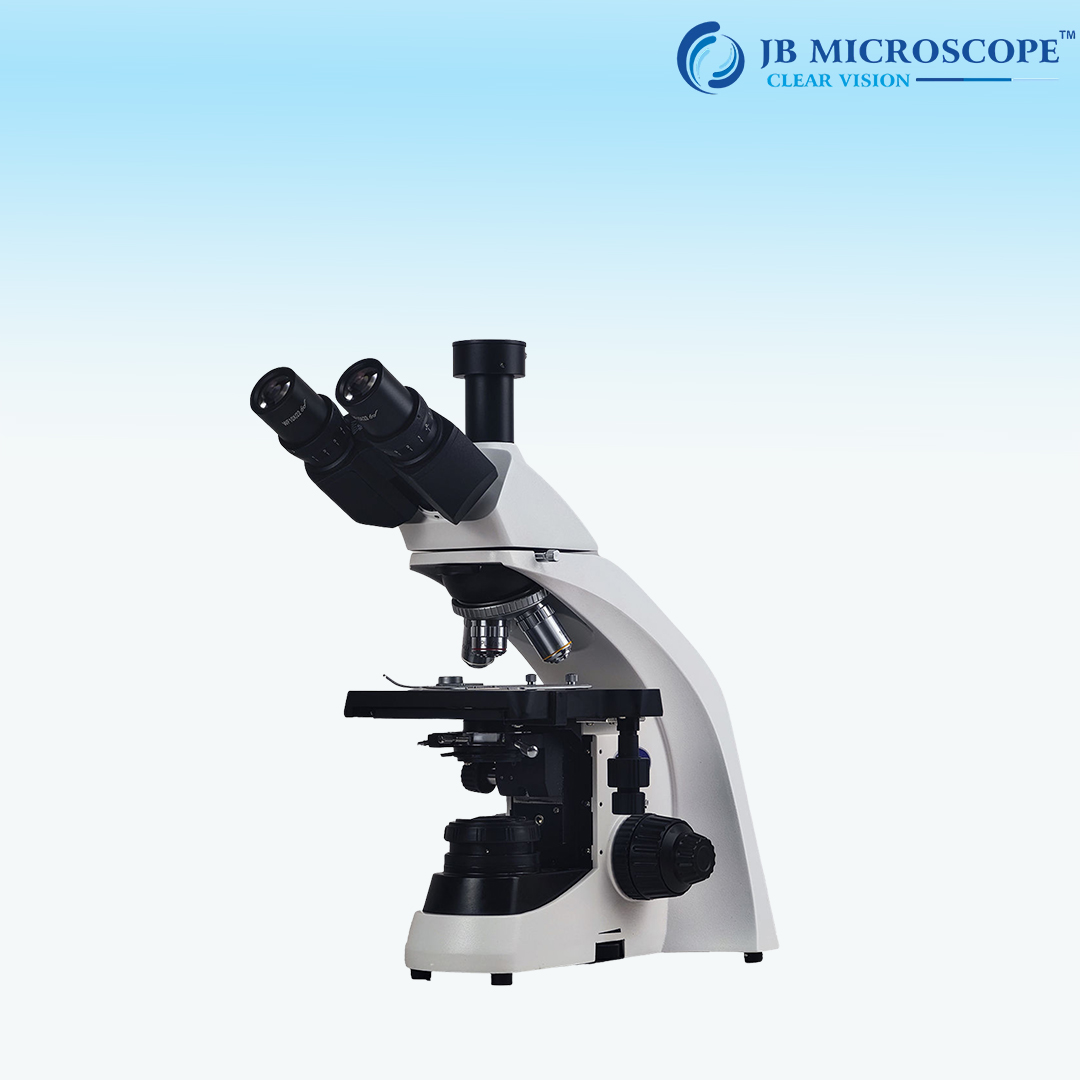

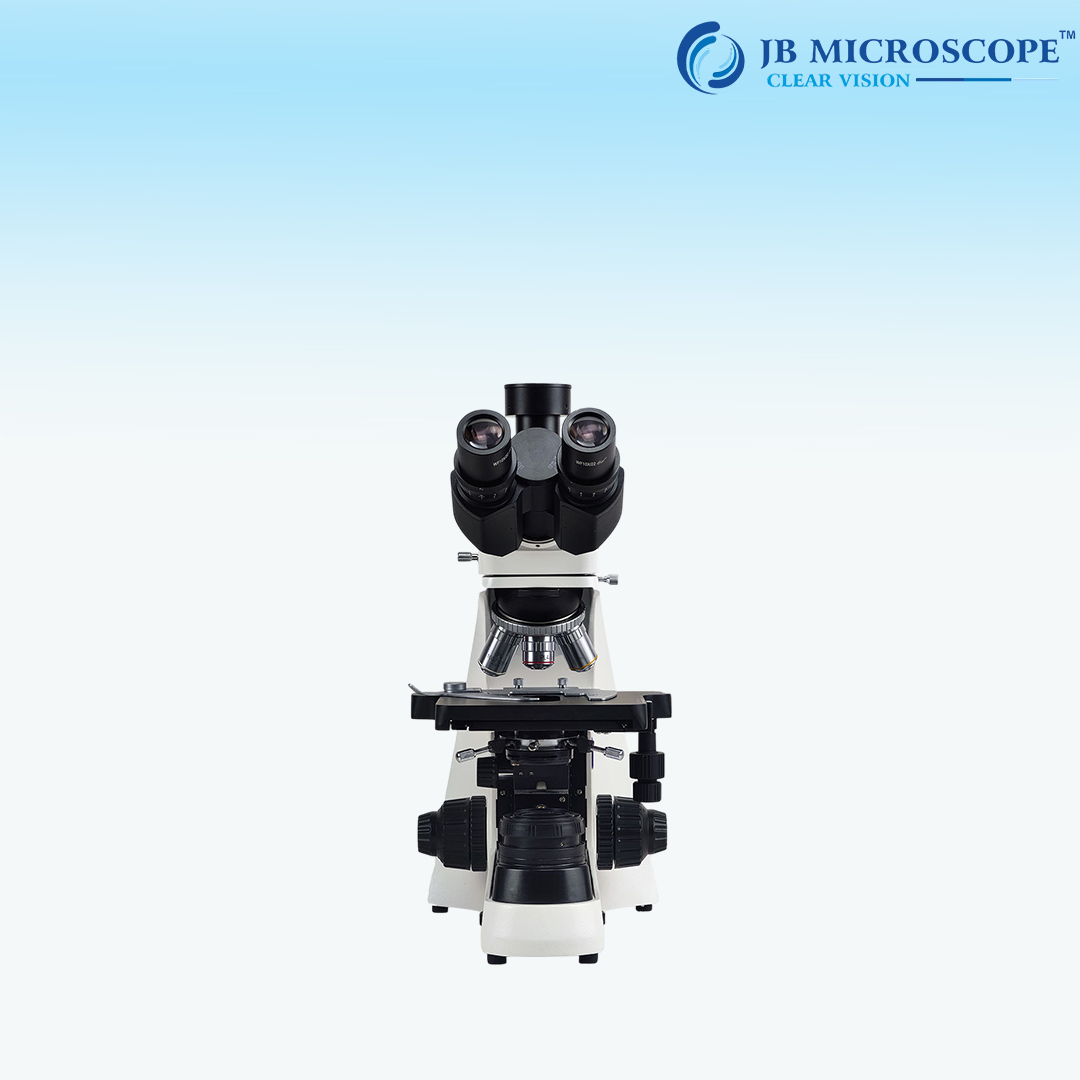

Trinocular Laboratory Microscope JBM-SMT07

This series microscope is a high precision instrument designed and produced by our company. It is specially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.

Category:
Specification :



Eyepiece : WF10X/18mm (optional:WF15X/WF20X)

Objective : 45mm DIN Achromatic

Objective: 4X, 10X, 40X(s), 100X(s,oil)

Viewing Head : Articulated Free Trinocular head, Interpupillary Distance: 55-75mm; 0°inclined, 360° rotatable

Total Magnification : 40X-1000X

Stage : Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm

Condenser : ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter

Focusing Adjustment : Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm

Illumination : Built-in Adjustable Brightness 1W LED Lamp Built-in Adjustable Brightness 1W LED Lamp

Net Weight : 5kg
