Specification:
Optical System : Common optical system.
View Head : Articulated Free Trinocular Head. Inclined at 30°,360° Rotatable. (Interpupillary Distance:55-75mm)
Eyepiece : PL 10x/23mm high eyepoint eyepiece, diopter adjustment.
Objective : Plan achromaic objectives 4X,10X,40X,100X
Nosepiece : Backward quardruple Condenser : Abbe Condenser set
.Stage :
• X-axis low hand position double Layers Mechanical Stage (steel wire transmission)
• Stage Size:220x148mm Moving Range:76x50mm Precision:0.1mmDamped double slide clamp.
Focusing : Coaxial Coarse & Fine Focus knobs Precision:0.002mm.
Illumination : 3W LED lamp with Kohler illumination system Optional Accessory:

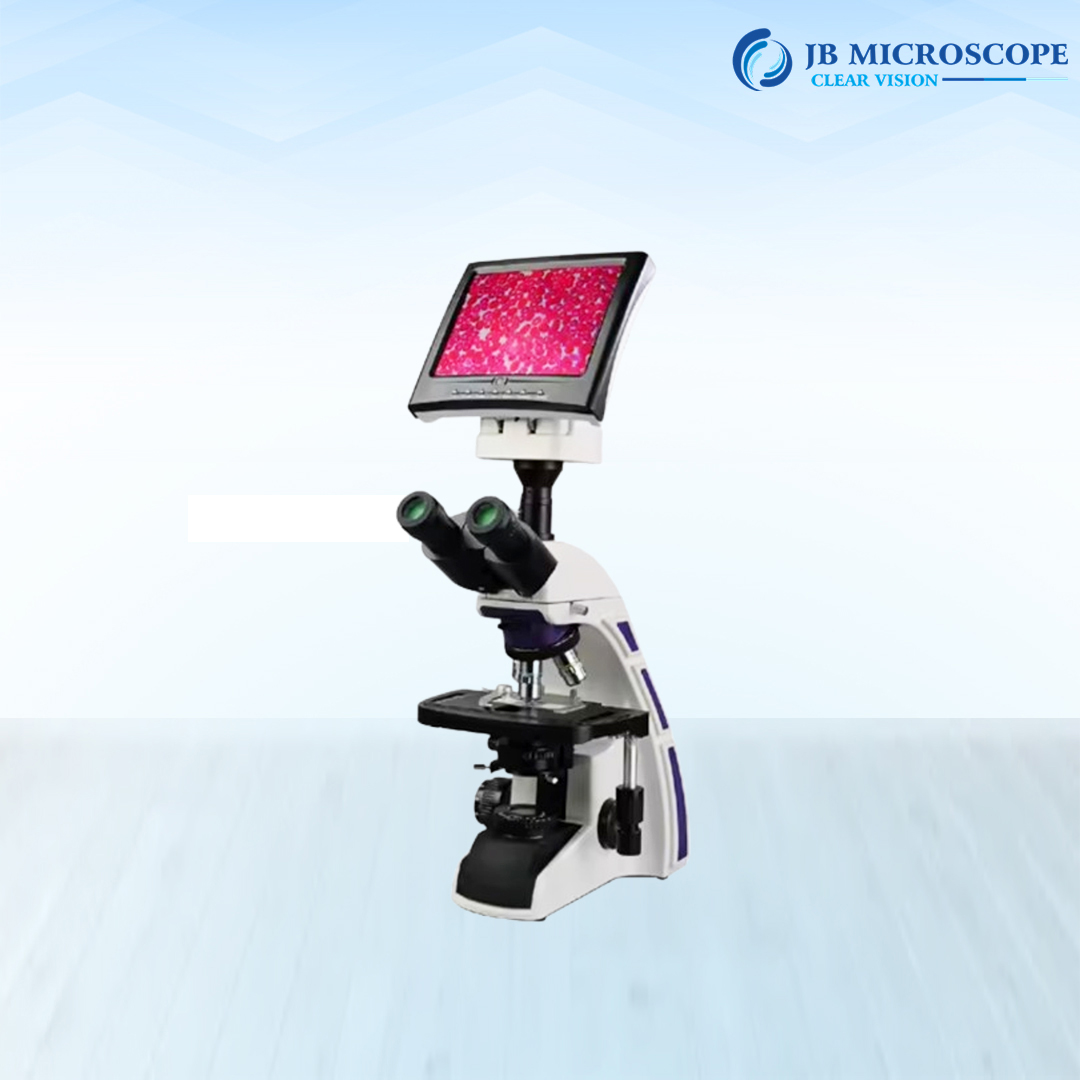

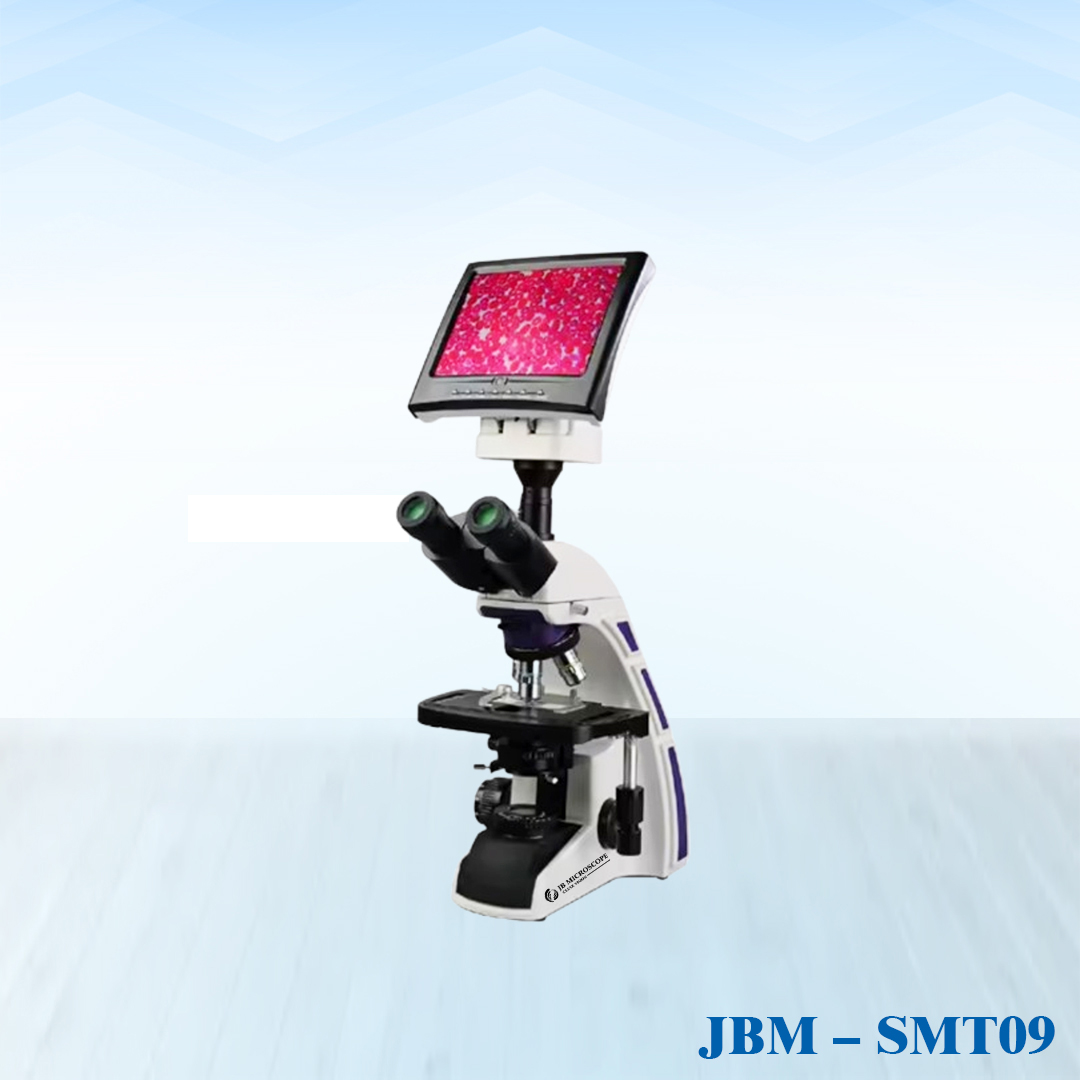

LCD : 8”color LCDPixels:976(H)x582(v) Color System: PAL/ NTSC4.43/NTSC3.58/SECAM
Optical System : Infinity achromatic correction optical system
Nosepiece : Backward quintuple objective nosepiece
Objective : 1.Achromatic objectives:40x,10x,20x,40x,60x,100x
2.Plan objectives:20x,60X
