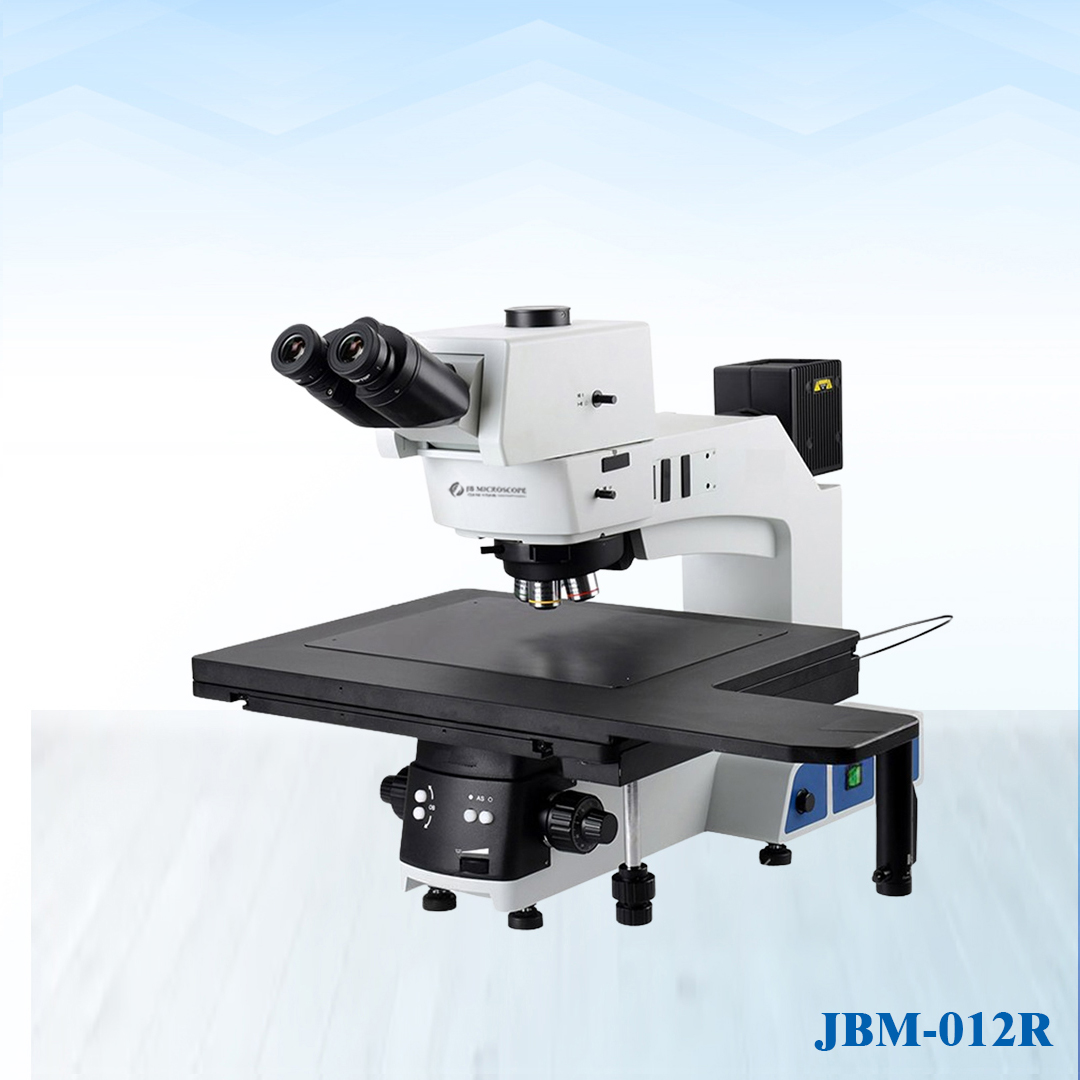

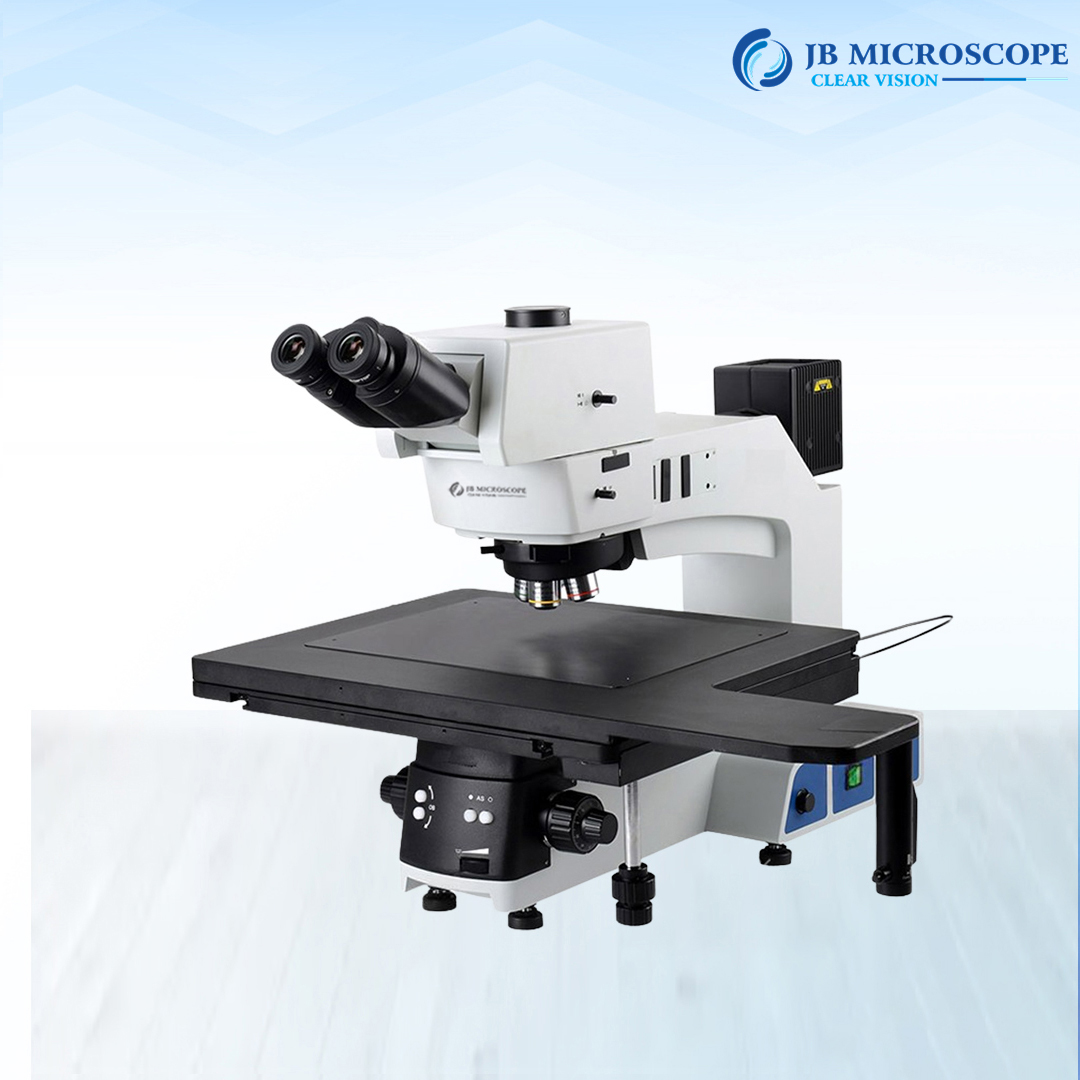

| 12R | ||
| Eyepieces | High Eye-point Wide Field Plan Eyepiece PL10X/25mm, diopter adjustable
High Eye-point Wide Field Plan Eyepiece PL10X/25mm, diopter adjustable, with reticle |
●●
|

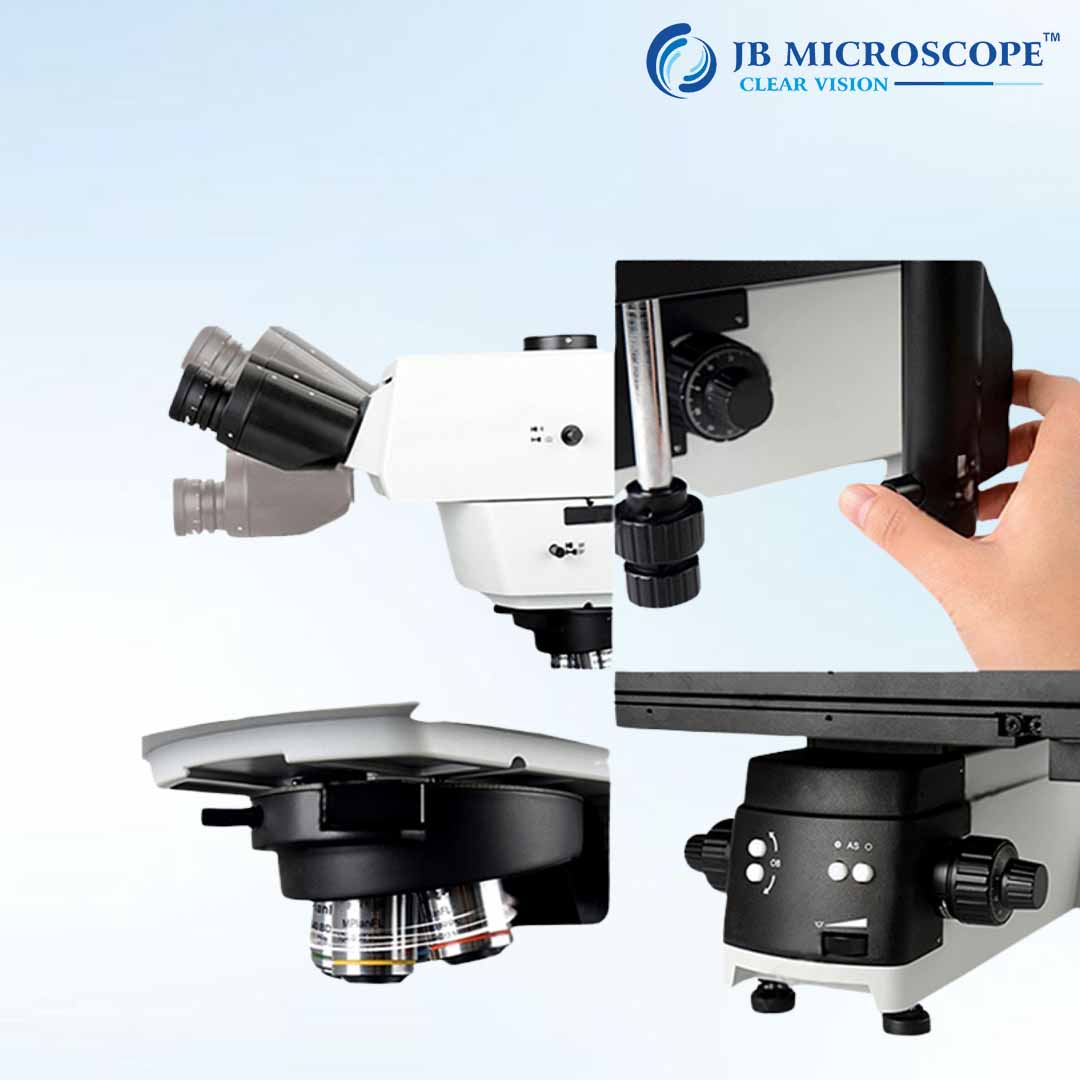

| Viewing Head | 0-35° Tilting trinocular head, Erect image, interpupillary distance: 50-76mm, splitting ratio: 100 : 0 or 0 : 100 | ● |
| Objective 1 | B&D semi-aprochromatic metallurgical objective 5X / 0.15, WD=13.5mm
B&D semi-aprochromatic metallurgical objective 10X / 0.3, WD=9.00mm B&D semi-aprochromati metallurgicalc objective 20X / 0.5, WD=2.50mm LWD B&D semi-aprochromatic metallurgical objective 20X / 0.4,WD=8.50mm B&D semi-aprochromati metallurgicalc objective 50X / 0.8, WD=1.00mm B&D semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
●
●
●
|
| Objective 2 | LWD B&D semi-aprochromati metallurgicalc objective 50X / 0.55, WD=7.5mm
LWD B&D semi-aprochromati metallurgicalc objective 100X / 0.8, WD=2.1mm |
●
|
| Objective 3 | Bright field semi-aprochromati metallurgicalc objective 5X / 0.15, WD=19.5mm
Bright field semi-aprochromati metallurgicalc objective 10X / 0.30, WD=10.9mm Bright field semi-aprochromati metallurgicalc objective 20X / 0.50, WD=3.2mm Bright field semi-aprochromati metallurgicalc objective 50X / 0.80, WD=1.20mm Bright field semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
|
| DIC | DIC Slider | |

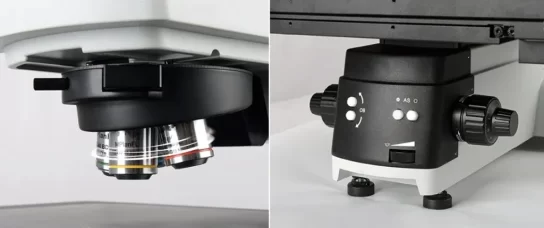

| Nosepiece | Electronic BD sextuple nosepiece with DIC slot
Bright & Dark field quintuple nosepiece ( with DIC slot ) Bright & Dark field sextuple nosepiece( with DIC slot ) Brigh field sextuple nosepiece ( with DIC slot ) Brigh field Septuple nosepiece ( with DIC slot ) |
●
|
| Focus | Coaxial Coarse and fine focusing adjustment, Coarse adjustment distance: 35mm, precision of fine adjustment: 0.001mm, with loosen and tight limit ring | ● |
| Stage | 14 X 12 inches three-layer mechanical stage with low position coaxial adjustment, size: 718mm X 420mm, moving range: 356mm X 305mm; with clutch handle for quick movement; glass plate for reflected use | ● |
| Condensor | B&D reflect illumination, with Electronic Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field | ● |
| Illumination | 12V 100W Halogen lamp( for reflection / Transmitted )
12V 100W Halogen lamp( PHILIPS 7724 ) |
●
● |
| Accessories | 12 inch Rrotatable wok plate, apply to 6, 8,12 inch Wafer | |
| IF Filter | Blue IF Filter, ( for reflection ): ≤ 480nm
Green IF Filter, ( for reflection ): 520-570nm Red IF Filter, ( for reflection ): 630-750nm Natural IF Filter, ( for reflection ) |
● |
| Polarizing kits | Polarizer ( for reflection )
Fixed analyzer ( for reflection ) |
●
● |
| Camera adapter Accessories |
0.35X camera adapter, C-type interface, adjustable
0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable |

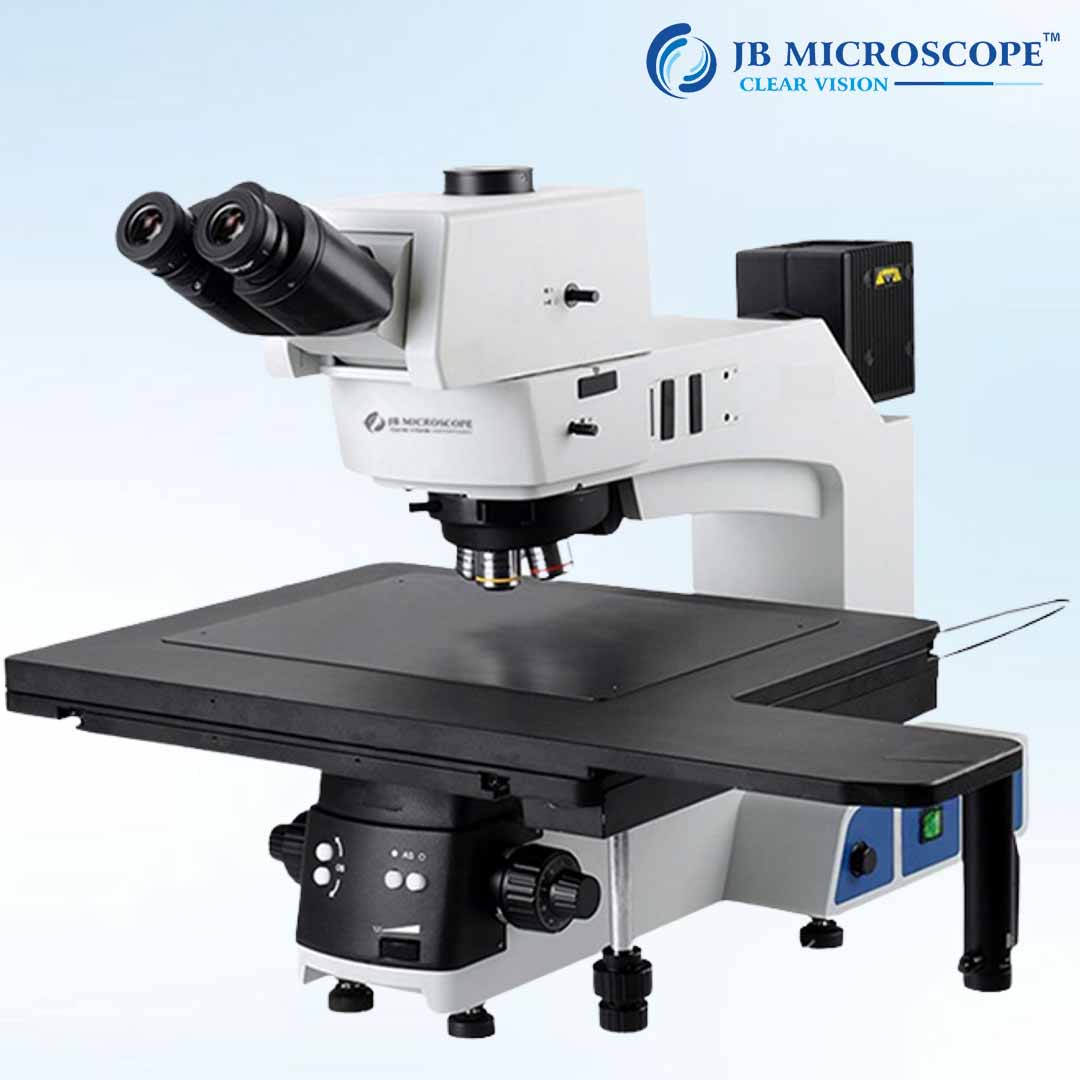

Upright Inspection Microscopes are essential instruments in the realm of quality control, offering unparalleled precision and clarity in the examination of various materials. Designed for upright viewing, these microscopes excel in providing detailed insights into the surface features, defects, and characteristics of samples.
Key attributes of Upright Inspection Microscopes include advanced optics, adjustable lighting, and ergonomic design, catering to the specific needs of industries such as manufacturing, electronics, and materials science. These microscopes are particularly adept at facilitating thorough inspections of components, ensuring that products meet exacting standards and specifications.
The upright configuration simplifies the inspection process, making it easier to manipulate and position samples for detailed scrutiny. High-quality optics deliver sharp images, allowing inspectors and quality control professionals to identify imperfections, defects, or irregularities that may impact the performance or reliability of the materials under examination.
Industries relying on precision and accuracy, such as electronics manufacturing and precision engineering, benefit significantly from the capabilities of Upright Inspection Microscopes. These instruments contribute to the early detection of flaws, enhancing efficiency in production processes and minimizing the risk of defects in finished products.
