GEM Stereo

JBM Gem-II

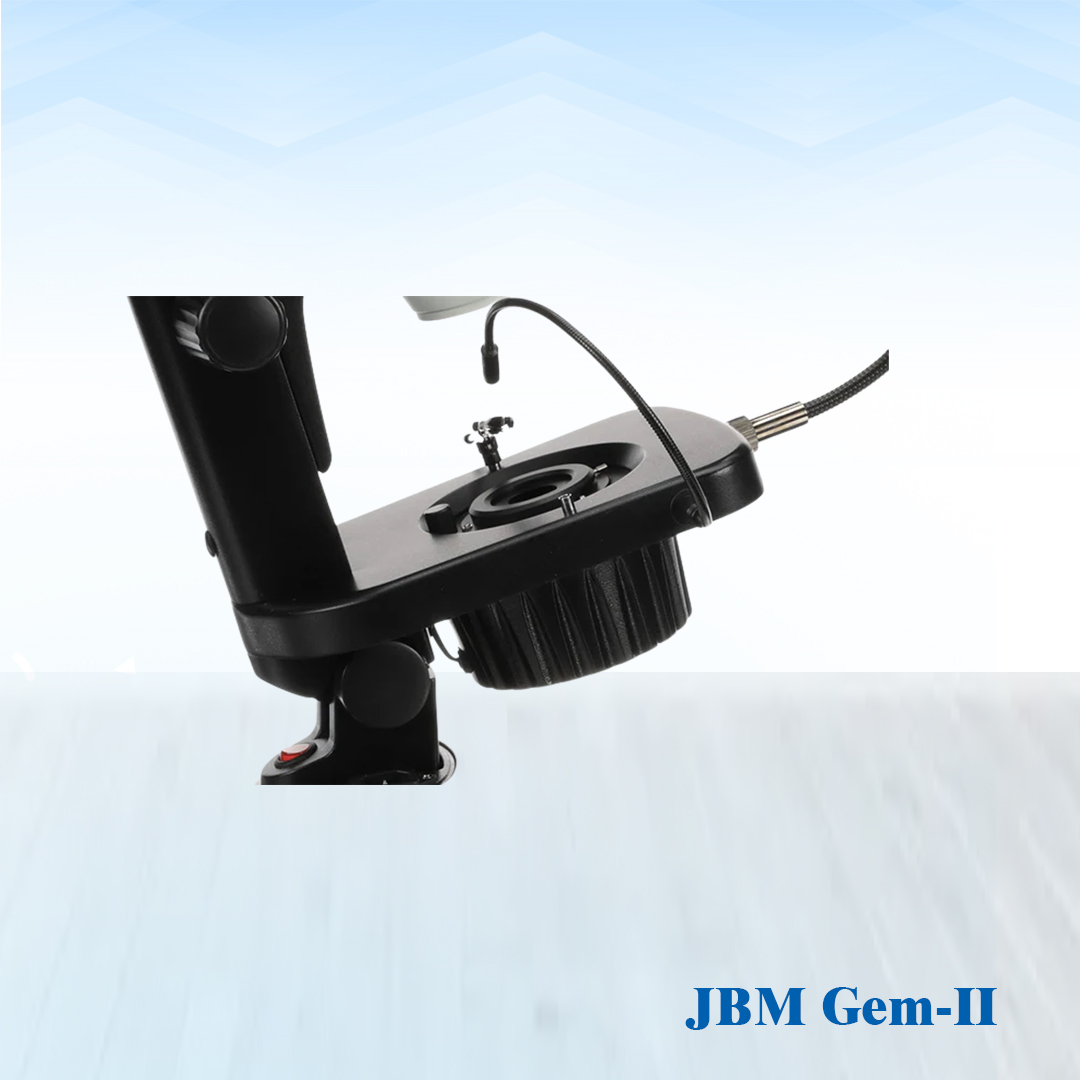

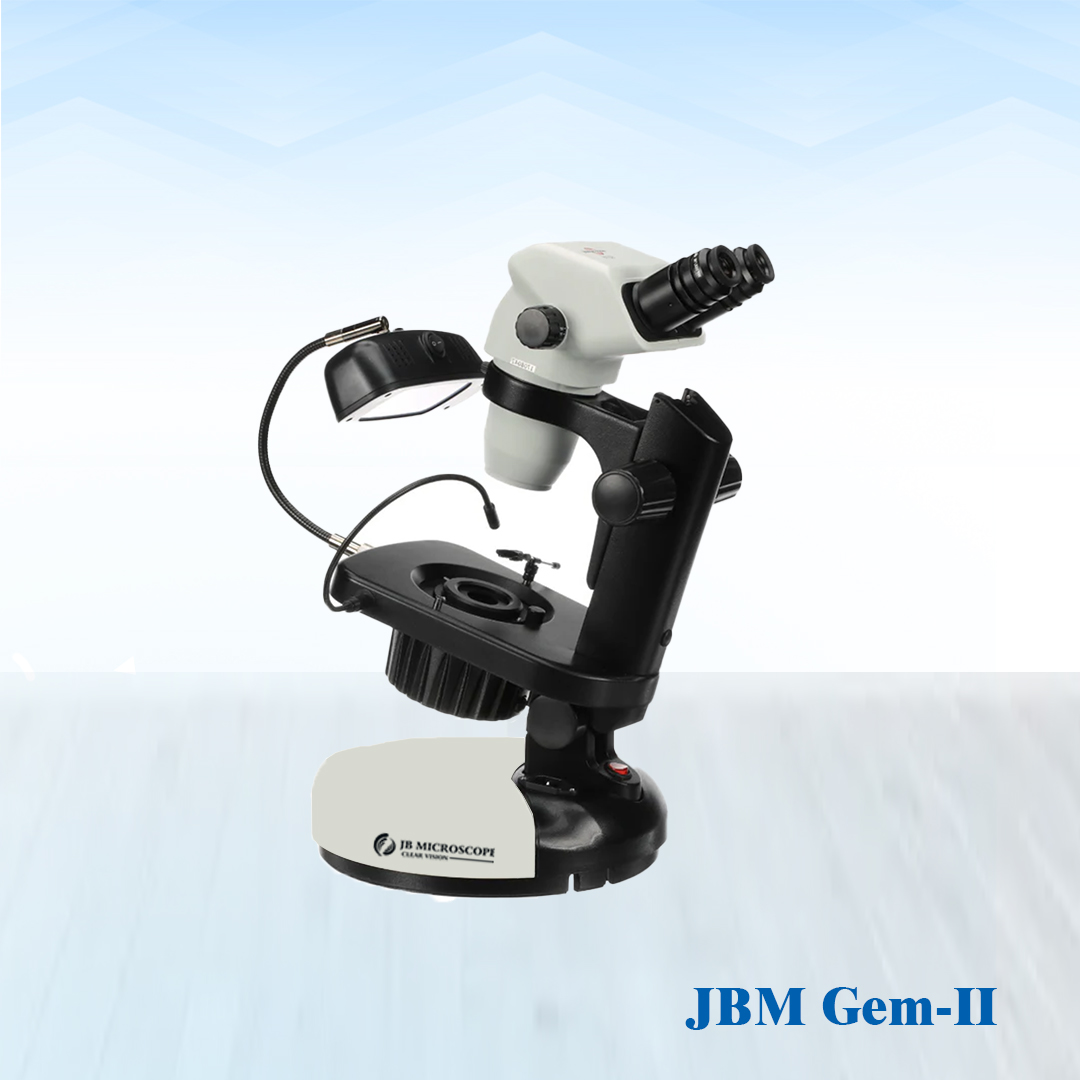

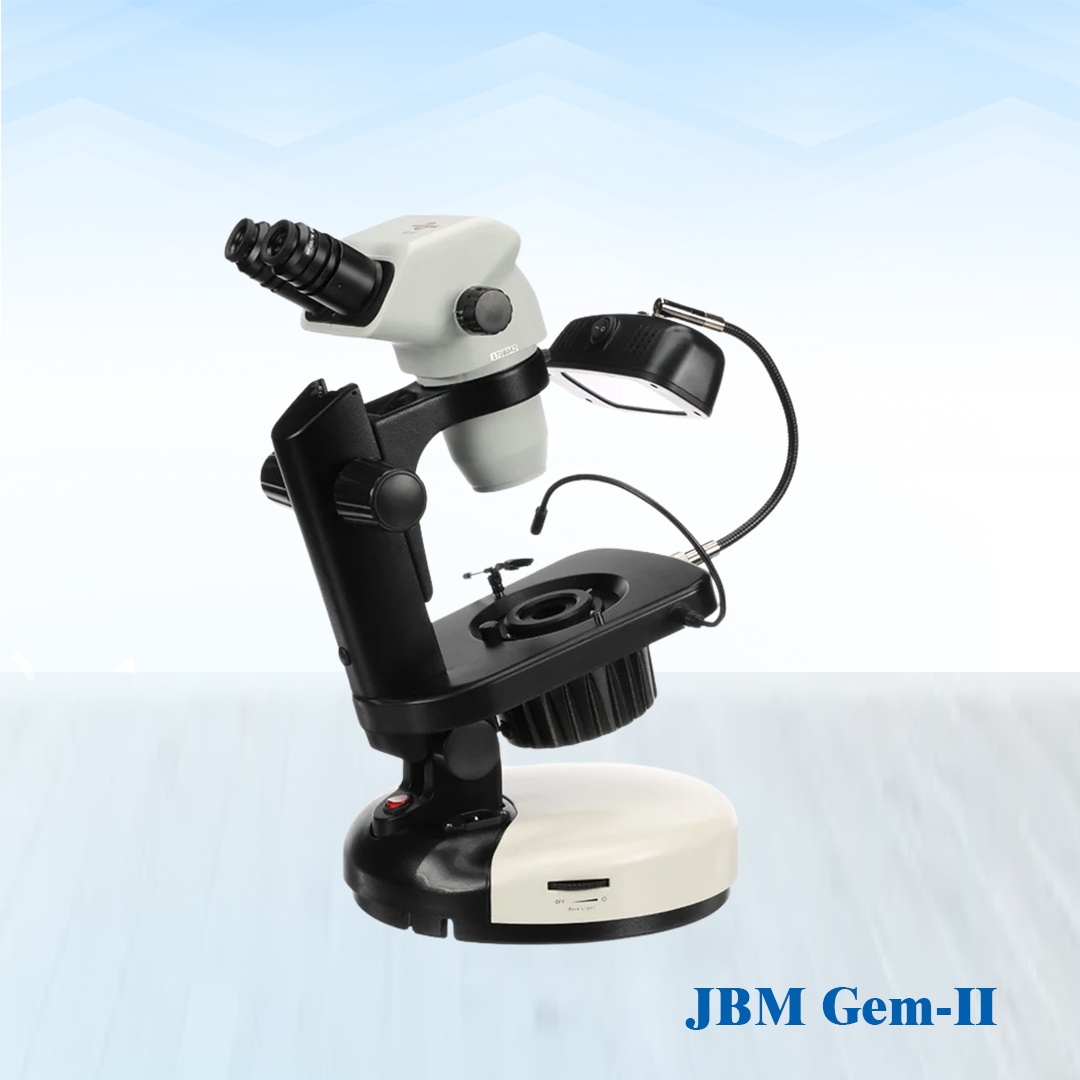

JBM-GEM-II Gemological microscope comes complete on a tilting rotating base with overhead fluorescence and LED pinpoint light guide. The microscope features darkfield attachment and a digital camera attachment with stand. The high quality camera provide clear crisp images. The microscope includes a pair of 10x eyepieces with eyeguards. The large zoom knobs make it easy to change magnification.

Category:
Trinocular Observation Head Mechanical Zooming Range & Ratio
Observation head inclined at 45° rotatable at 360°. Track stand with fan type base Lateral zoom control movement. Zoom 0.7X to 4.5X with Magnification ratio of 1:6.4
Vertical phototube for micro photography. Diopter adjustment ring on ocular tube. Incident and transmitted light system with LED lamp.The system regulated with transformer has Separate intensity control knob. Magnification Range 7X- 45X
Interpupillary distance from 54mm to 76mm. On/off switch provides flexibility to use either both light or any of them.

Working Distance 100 mm.
Eyepieces Wide field 10X (paire.d. ) F.O.V. 22mm. Clip for holding specimen Base size is 240mm X 280mm.
