JBM digital microscope and its image processing system were capable of enhancing the observed object and other operations in accordance with the user need. Digital Inspection microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. The digital microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.
| Brand | JB Microscope |
| Zoom Ratio | 1: 6.5 |

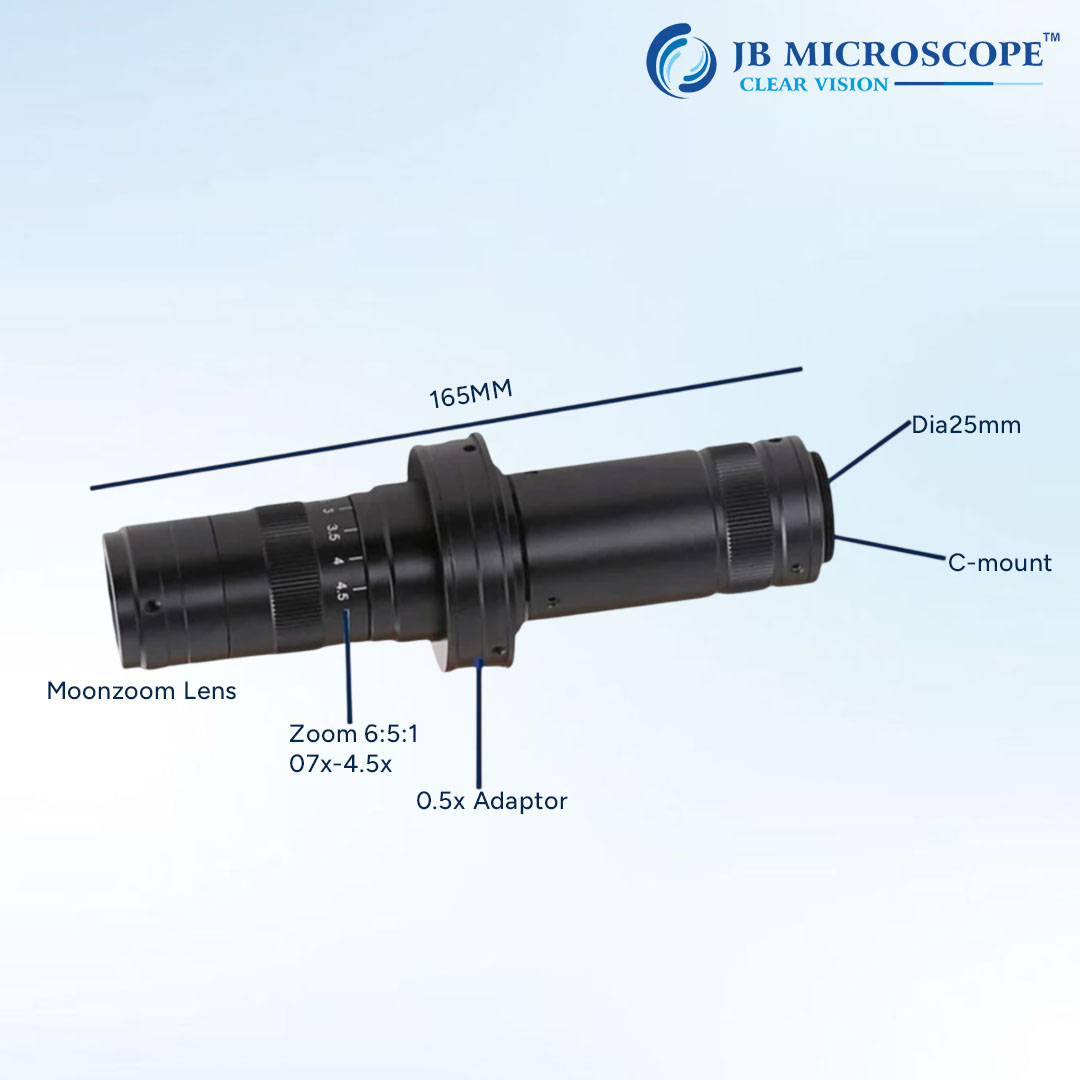

| Zoom objective | 0.7x-4.5x |
| Eyepiece | 0.5X |
| Working Distance | 100mm |

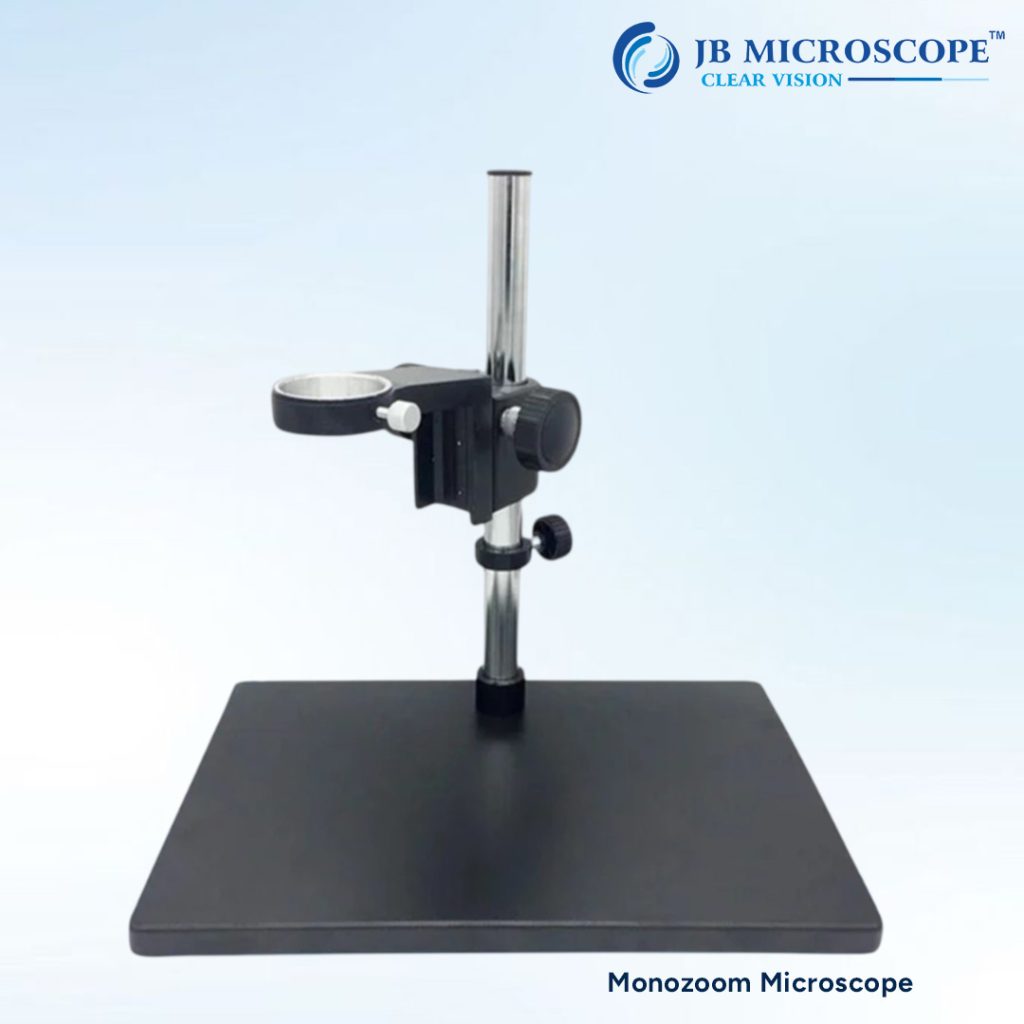

| Base Vertical post height | 240mm |
| Vertical post diameter | φ32mm |
| Microscope body holder | φ50mm |
| Focus travel | 50mm |
| Base size | 320x260x16mm |
| Material | Metal |
Digital Microscope is an instrument used to enlarge tiny objects to examine those that are not visible to the naked eye. it magnifies tiny objects so that they can be seen easily. The lens in the microscope helps to magnify objects, which can zoom in at up to 1000x magnification, so you can discover a world of germs and particles that are invisible to the naked eye.
This microscope often has its own built-in LED light source, and it differs from an optical microscope in that there is no provision to observe the sample directly through an eyepiece. Since the image is focused on the digital circuit, the entire system is designed for the monitor image.
Digital microscopes typically range from inexpensive USB digital microscopes to advanced industrial digital microscopes that cost thousands of dollars. Low-cost commercial microscopes generally forgo optics for illumination and resemble webcams with macro lenses. Optical microscope can also be attached with digital camera.
Stereo Microscope VS Digital Microscope
The primary difference between a stereo microscope and a digital microscope is magnification. With a stereo microscope, magnification is determined by multiplying the eyepiece magnification by the objective magnification. That digital microscope does not have an eyepiece, so magnification cannot be found using this method. Instead, the magnification for a digital microscope was originally determined by how many times larger the specimen was reproduced on a monitor.
