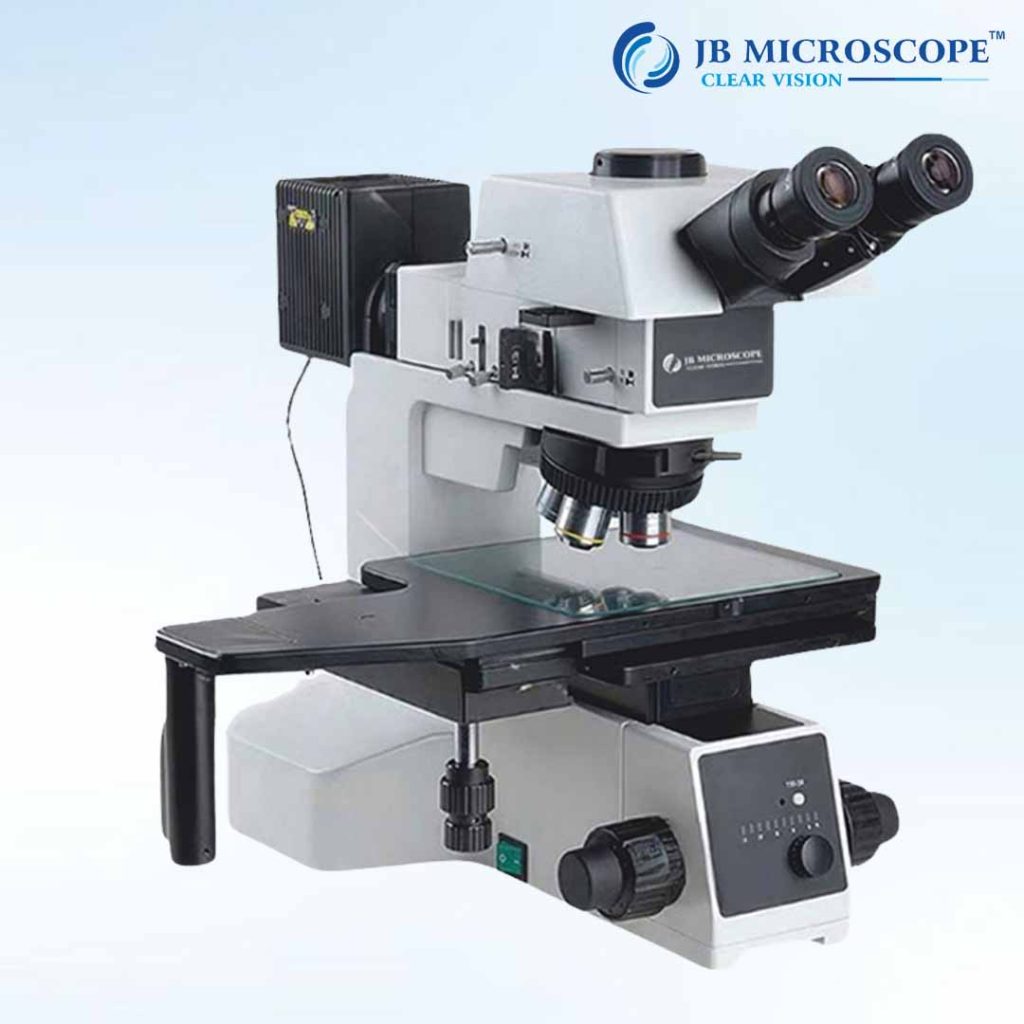

Upright Metallurgical Microscope with a trinocular setup is an indispensable asset for professionals seeking to delve into the nuanced world of metallurgical analysis. With its combination of advanced optics and trinocular functionality, it empowers users to uncover vital insights, advancing both research and industrial applications in the realm of materials science.
| Eyepieces | High Eye-point Wide Field Plan Eyepiece PL10X/22mm
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, with reticle High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable, with reticle High Eye-point Wide Field Plan Eyepiece PL15X/16mm |
|
|
| Objective | LWD Infinity plan achromatic metallographic objective 5X/ 0.15 WD=10.80mm
LWD Infinity plan achromatic metallographic objective 10X/ 0.3 WD=12.20mm LWD Infinity plan achromatic metallographic objective 20X/ 0.45 WD=4.00mm LWD Infinity plan achromatic metallographic objective 50X/ 0.55 WD=7.90mm LWD Infinity plan achromatic metallographic objective 100X/ 0.80 WD=2.10mm |
|
|
| Accessories | Infinity Semi-aprochromatic metallurgical objectivewith correction ring 50X/0.70, WD=2.3-2.9mm | ||
| DIC | DIC Slider | ||
| Head | Compensation Infinity trinocular Head 30° Inclined
5-35° tilt angle adjustable, Erect image, compensation Infinity trinocular Head, interpupillary adjustable distance: 50-76mm, splitting ratio R:T=100:0 or 0:100, Diopter +/-5 Adjustable |
|
|
| Nosepiece | Backward quintuple nosepiece, with DIC slot | ||
| Focus | Coaxial coarse and fine adjustment, coarse adjustment 30mm, precision of fine adjustment: 0.001mm, with coarse adjustment stop and tightness adjustment | ||
| Reflected Illumination |
With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with oblique illumination switch. Single high-power 5W LED, white, brightness adjustable | ||
| Transmitted Illumination |
Built-in 5W warm color LED transmitted light illumination system (color temperature 2850K-3250K) | ||
| Stage | 4 inch platform adapter interface ( Reflected )
4 inch platform adapter interface ( Reflected/Transmitted ) 4 inch double layers mechanical stage 230X215mm, moving range 105x105mm, Right hand position X-Y moving hand wheel, with metal work plate ( Reflected ) 4 inch double layers mechanical stage 230x215mm, moving range 105x105mm, Left hand position X-Y moving hand wheel, with metal work plate ( Reflected ) 4 inch double layers mechanical stage230x215mm, moving range 105x105mm, with glass work stage ( Reflected/Transmitted ) 6 inch three layers mechanical stage 445x240mm, Reflected Light moving range 158x158mm, Transmitted Light moving range 100x100mm, with glass work plate ( Reflected/Transmitted ) |
|
|
| IF Filter | Blue IF Filter, (for reflection): ≤ 480nm
Green IF Filter, (for reflection): 520-570nm Red IF Filter, (for reflection): 630-750nm Natural IF Filter, (for reflection) |
||
| Polarizing kits | 30 Polarizer (for reflection)
30 analyzer (for reflection) 360° Rrotatable analyzer (for reflection) |
||
| Camera adapter Accessories |
0.35X camera adapter, C-type interface, adjustable
0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable |
||
| Micrometer Accessories |
High-precision micrometer, grid value 0.01mm
Standard micrometer, grid value 0.01mm |
