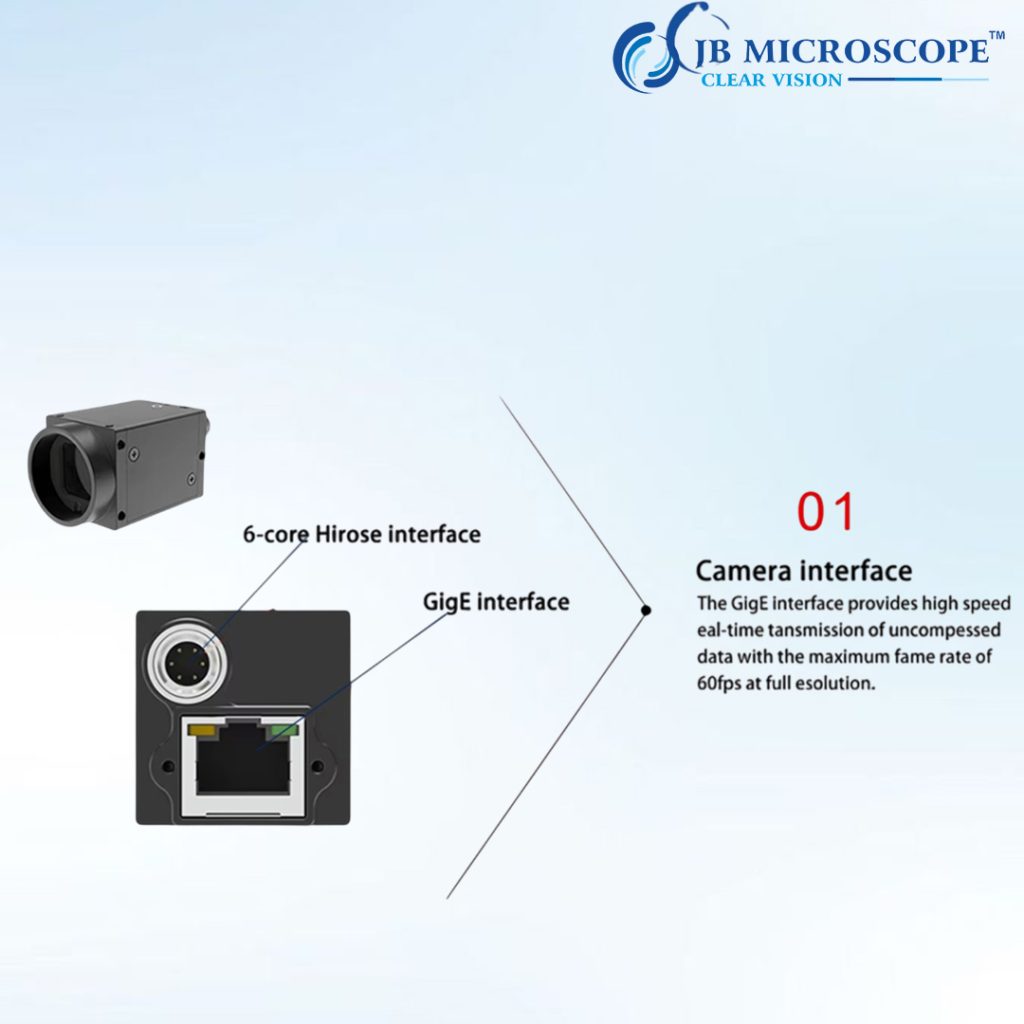

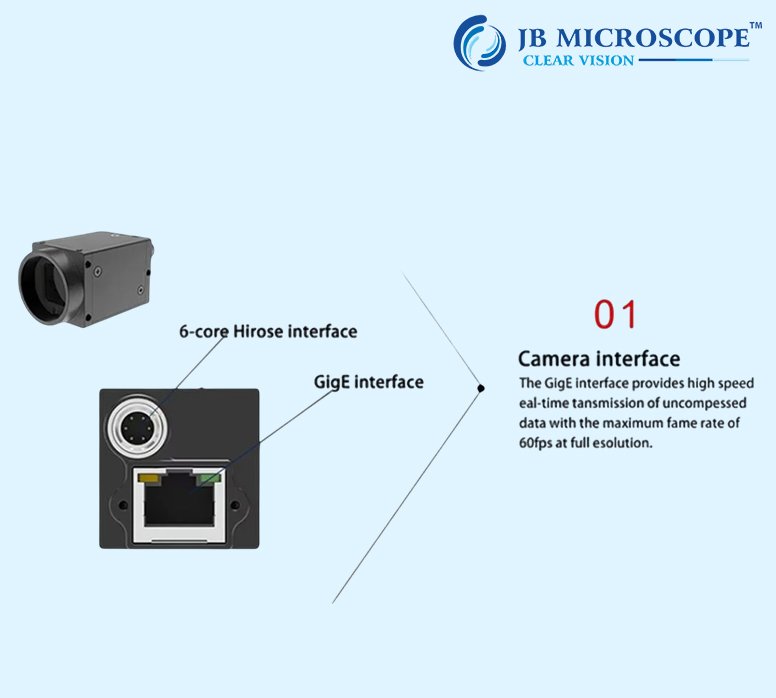

The GigE interface provides high speed Real-time transmission of uncompressed data with the maximum fame rate of 60fps at full solution.
|
Model |
Frame Rate |
Shutter type |
Interface |
Resolution |
Pixel size |
|
JBM (MV-31GC/M-GE) |
387FPS |
Global |
GigE |
640X480 |
4.8μm |
|
JBM (MV-130RM-GE) |
30FPS |
Rolling |
GigE |
1280X1024 |
5.2µm |
|
JBM ( MV-133GC/M-GE) |
91FPS |
Global |
GigE |
1280X1024 |
4.0µm |
|
JBM (MV-200GC/M-GE) |
60FPS |
Global |
GigE |
1600X1200 |
4.5µm |
|
JBM (MV-300GC/M-GE) |
38FPS |
Global |
GigE |
2048X1536 |
3.45µm |
|
JBM (MV-500GC/M-GE) |
24FPS |
Global |
GigE |
2448X2048 |
3.45µm |
|
JBM (MV-630RC/M-GE) |
18.7FPS |
Rolling |
GigE |
3088X2064 |
2.4µm |
|
JBM (MV-1200RC/M-GE) |
9.86FPS |
Rolling |
GigE |
4000X3000 |
1.85µm |
|
JBM (MV-2001RC/M-GE) |
5.9FPS |
Rolling |
GigE |
5488X3672 |
2.4μm |
|
JBM (MV-D32GC/M-GE) |
165FPS |
Global |
GigE |
640X480 |
7.4µm |
|
JBM(MV-D200C/M-GE) |
27FPS |
Global |
GigE |
1600X1200 |
4.4μm |
