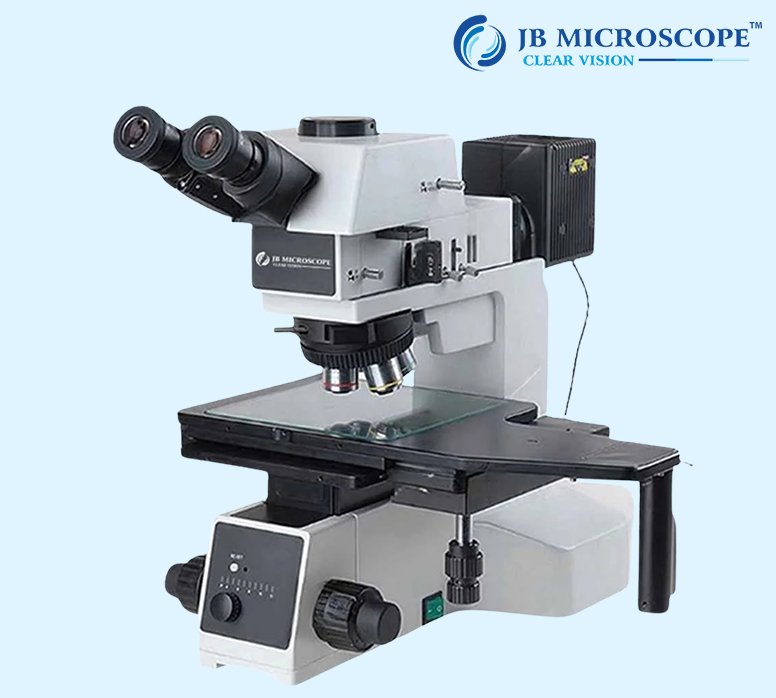

The JBM-4RF Upright Metallurgical Microscope (Trinocular) is a high-performance microscope designed for precision inspection and analysis of metals, semiconductors, electronic components, PCBs, precision castings, and other industrial materials. Equipped with an advanced infinity optical system, bright field reflected illumination, and transmitted LED illumination, it delivers sharp, high-contrast images for research, quality control, and industrial testing.
The microscope features a trinocular observation head for digital imaging, infinity semi-apochromatic metallurgical objectives, a precision mechanical stage, and a DIC-ready optical system. Its ergonomic design and versatile illumination make it ideal for metallurgical laboratories, research institutes, universities, and manufacturing industries.
JBM-4RF
Upright Metallurgical Microscope (Trinocular)
High Eye-point Wide Field Plan Eyepieces PL10X / 22 mm, Diopter Adjustable
LWD Infinity Plan Achromatic Metallurgical Objectives: 5X, 10X, 20X, 50X
Infinity Semi-Apochromatic Metallurgical Objective with Correction Ring 50X/0.70, WD = 2.3–2.9 mm
DIC Slider
Compensation Infinity Trinocular Head, 30° inclined, 5°–35° adjustable tilt, erect image, interpupillary distance 50–76 mm, beam splitting ratio 100:0 / 0:100, diopter adjustment ±5
Backward Quintuple Nosepiece with DIC Slot
Coaxial coarse and fine focusing, coarse adjustment range 30 mm, fine adjustment precision 0.001 mm, coarse adjustment stop and tension adjustment
Bright Field illumination with iris field diaphragm and aperture diaphragm, centrally adjustable, filter slot, polarizing slot, oblique illumination switch, 5W High-Power White LED, adjustable brightness
Built-in 5W Warm Color LED, color temperature 2850K–3250K
4-inch platform adapter interface (Reflected) 4-inch platform adapter interface (Reflected/Transmitted) Double-layer mechanical stage 230 × 215 mm Moving range 105 × 105 mm Left-hand X-Y control Metal work plate (Reflected)
Neutral Filter (Reflection)
0.5X Camera Adapter, C-Type Interface, Adjustable
Suitable for Bright Field, Dark Field, Polarizing and DIC observation. Widely used for inspection of Semiconductors, FPD, Circuit Packages, PCB, Materials, Cast Metals, Ceramic Parts, Abrasive Tools, and related industrial applications.
Discover precision microscopes designed for laboratories, research, education, industrial inspection and advanced imaging.
The JBM-MZD2 Monozoom Microscope is a high-performance stereo zoom microscope...
The JBM-PL6 Digital Inspection Microscope Camera is a high-resolution digital...
The JBM-EX21 Biological Microscope is a compact, high-performance laboratory microscope...
The JBM-EX33 Biological Microscope is a high-performance laboratory microscope designed...
The JBM-4RF Upright Metallurgical Microscope (Trinocular) is a high-performance microscope...
The JBM-B200 Binocular Biological Microscope is a compact and high-performance...
The JBM-202B Biological Microscope is a professional laboratory microscope designed...
The JBM-201B Biological Microscope is a professional laboratory microscope designed...
The JBM-41 Tissue Culture Inverted Biological Microscope is a high-performance...
The JBM-SM05 Binocular Biological Microscope is a high-quality laboratory microscope...
The JBM-SM03 Binocular Microscope is a reliable laboratory microscope designed...
The JBM-BS50 Stereo Zoom Microscope with Dual Articulating Stand is...
The JBM-PL12 Stereo Zoom Microscope is a professional trinocular stereo...
The JBM-PL12 Stereo Zoom Microscope is a high-precision optical microscope...
The JBM-765T Stereo Zoom Microscope is a premium trinocular stereo...
The JBM-760T Stereo Zoom Microscope is a high-performance optical inspection...
The JBM-745B Stereo Zoom Microscope is a professional binocular stereo...
The JBM-85R4L Stereo Zoom Microscope is a high-performance binocular stereo...
Explore this microscope product and its advanced features.
The JBM-50B Stereo Zoom Microscope is a professional binocular stereo...
The JBM-750T Stereo Zoom Microscope is a professional trinocular stereo...
The JBM-50BA Stereo Zoom Microscope is a professional trinocular stereo...

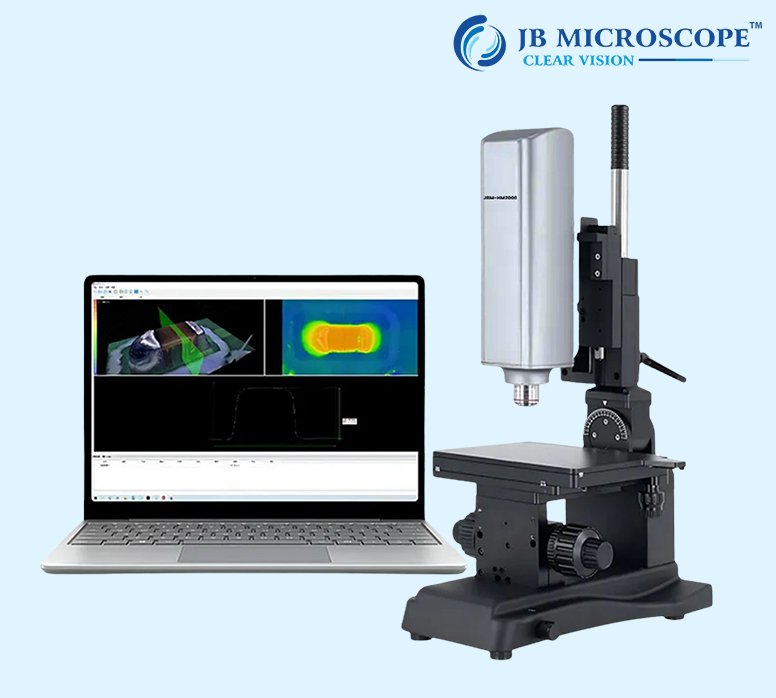

The JBM-HM2000 Light & Dark Field Super Depth 3D Measuring...

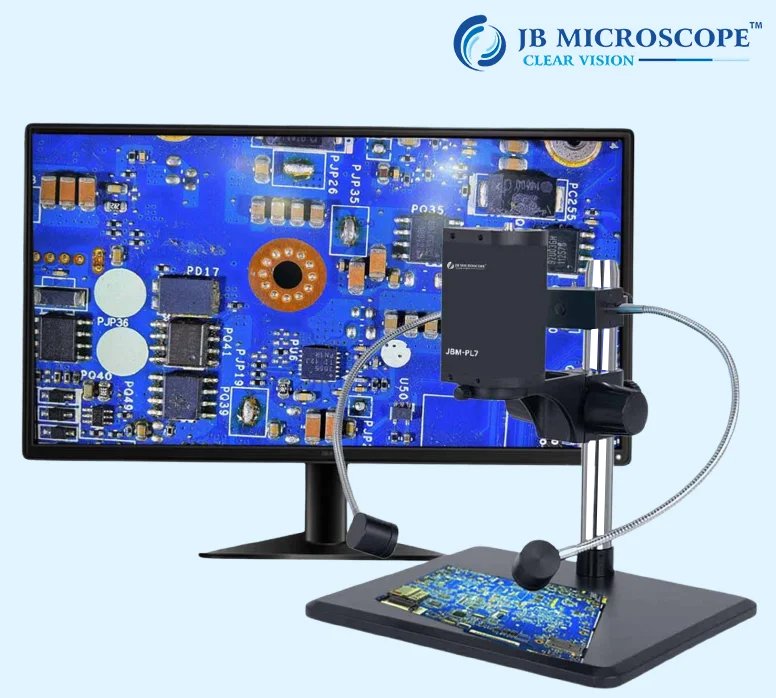

The JBM-PL7 Auto Focus 28X HDMI 4K Microscope Camera is...
