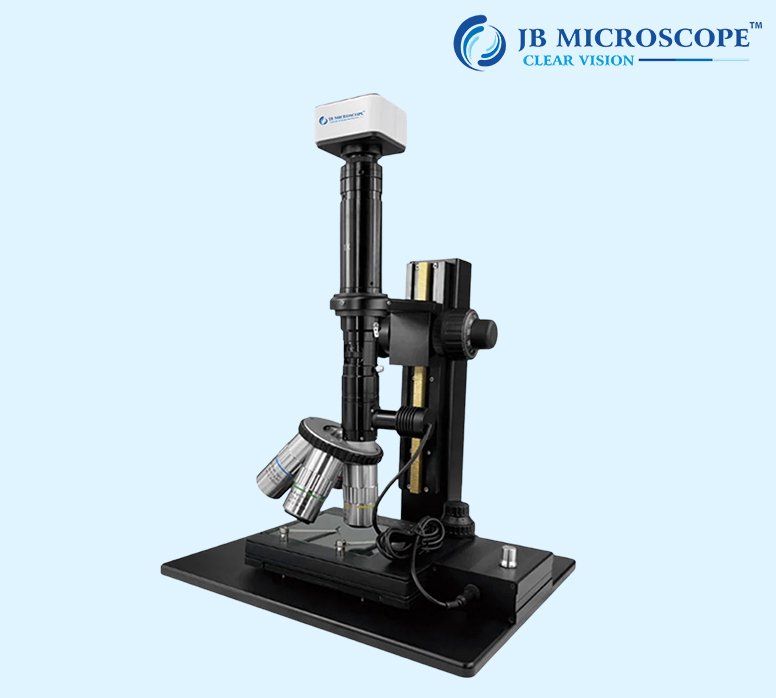

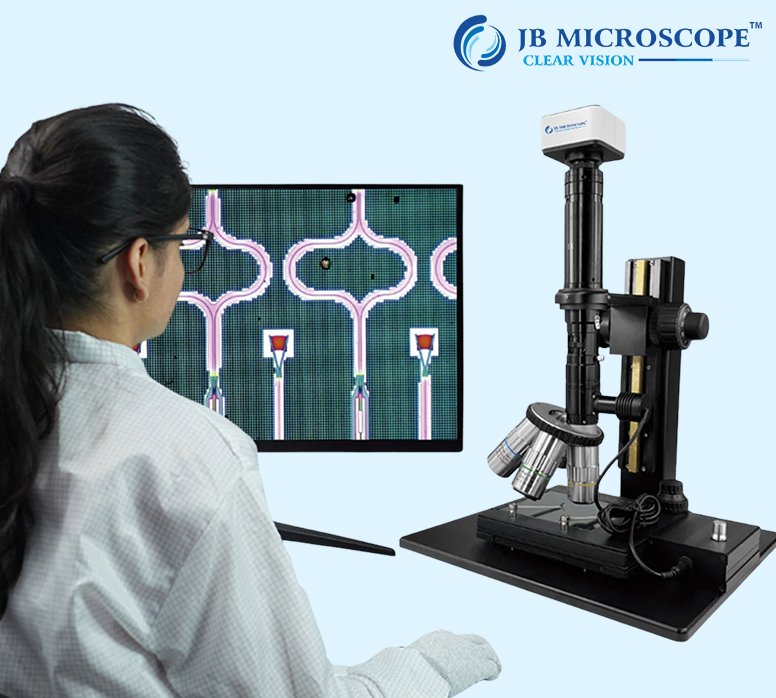

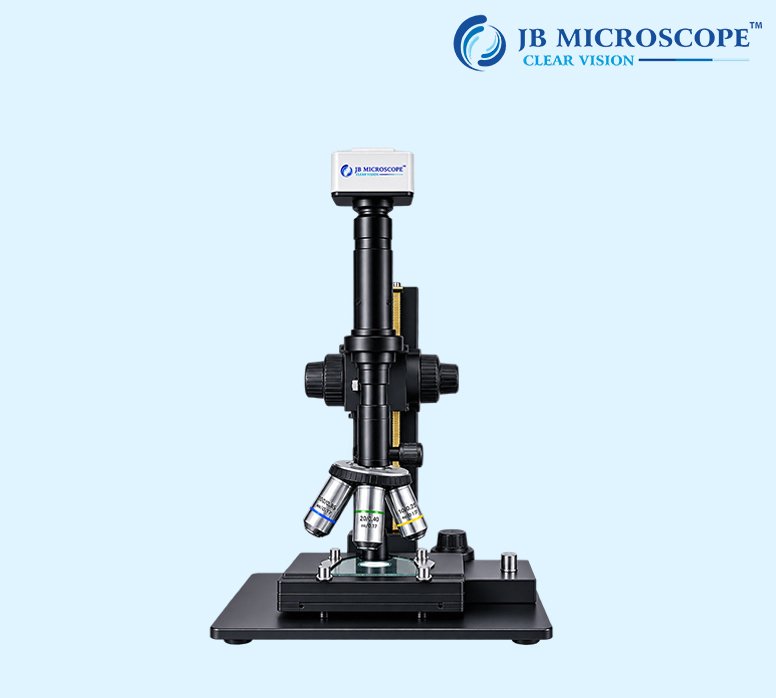

The JBM-MZ-LF5 Long Focal Coaxial Microscope is a high-performance digital inspection microscope engineered for precision inspection, PCB analysis, semiconductor testing, metallurgy, electronics manufacturing, and industrial quality control. Designed with a long focal working distance and coaxial illumination, it delivers exceptional image clarity and accurate surface inspection, even on reflective or complex components.
Powered by a 20MP Sony CMOS image sensor, the JBM-MZ-LF5 captures ultra-high-resolution images with outstanding color accuracy and fine detail. Its 0.7X–6X continuous zoom optical system provides flexible magnification for inspecting micro-components, solder joints, wafers, precision machined parts, and metallic surfaces.
The microscope supports USB 3.0 high-speed output and advanced image processing, enabling real-time image capture, measurement, documentation, and report generation. With a working distance of 295–455 mm and magnification of up to 4000X, it provides ample workspace for soldering, rework, and industrial inspection tasks.
JBM-MZ-LF5
Long Focal Coaxial Digital Microscope
Sony CMOS Sensor
20 Megapixels
5472 × 3648 pixels
15 FPS
USB 3.0 High-Speed Output
Computer
0.7X–6X Continuous Zoom
Large Depth of Field 5X, 10X, 20X Metallographic Objectives
Up to 4000X
295–455 mm
Coaxial Illumination
Real-Time Image Stitching
High-Speed Depth-of-Field Expansion
Image Shooting, Processing, Measurement & Report Generation
Secondary Development Functional Modular Design
